Product Overview

Description


75W Constant Current LED Driver


--------------------------------------------------------------------------------------_01.png


Features;


* Full Power at Wide Output Current Range (Constant Power)
* Adjustable Output Current (AOC) with Programmability
* Non-dimming Control (SG models)

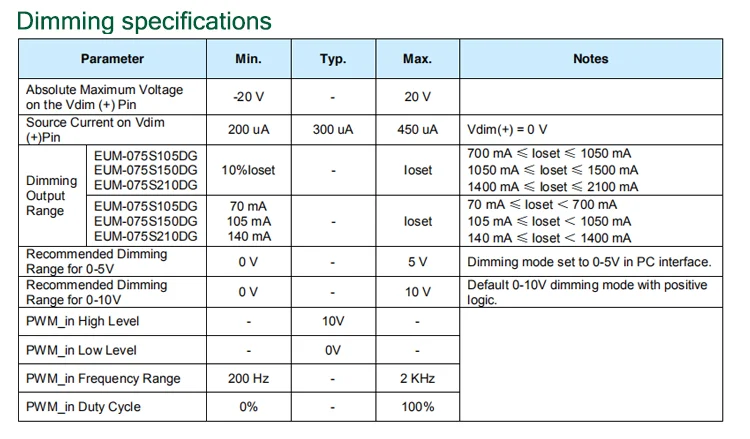

  Isolated 0-5V/0-10V/10V PWM/3-Timer-Modes Dimmable (DG models)


* Output Lumen Compensation (DG models)
* Input Surge Protection: 6kV line-line, 10kV line-earth
* All-Around Protection: OVP, SCP, OTP
* Waterproof (IP67)
* Class 2 & SELV Output
* TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
* 5 Years Warranty


Description;

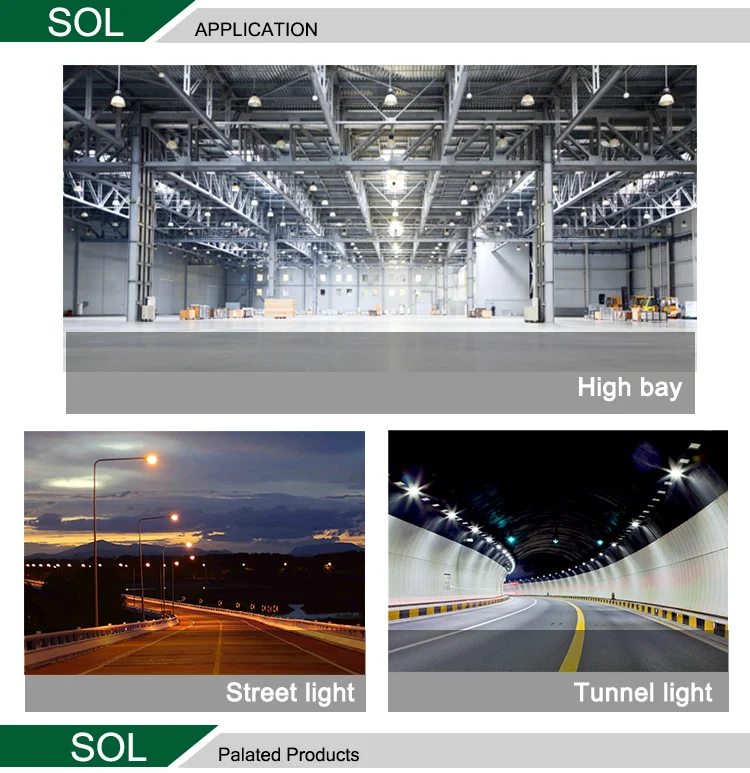

The EUM-075SxxxDG(SG) series is a 75W, constant-current, programmable IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for high bay, tunnel and roadway lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.






Models;




















































Output Current Range
Full-Power

Current

Range (1)


Default

Output

Current



Output

Voltage

Range


 		Max. Output Power Typical Efficienc Power FactorModel Number (4)

120Vac




220Vac


70~1050 mA
700-1050mA


700 mA


36~107 Vdc

75W91%0.990.96
EUM-075S105DG(SG)

105~1500 mA
1050-1500mA


1500 mA


25~72 Vdc

75W90.5%0.990.96
EUM-075S150DG(SG)

140~2100 mA
1400-2100mA


2100 mA


18~54 Vdc

75W90%0.990.96
EUM-075S210DG(SG)


Notes;


(1) Output current range with constant power at 75W

(2) Certified input voltage range: FCC 100-277Vac or 127-250Vdc; otherwise 100-240Vac or 127-250Vdc (except KS).

(3) Measured at full load and 220Vac input (see below “General Specifications” for details).

(4) SELV Output.

(5) Class 2 & SELV output.

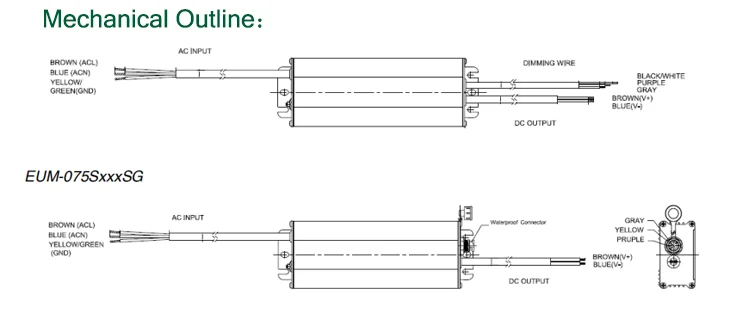

_05.png_06.pngRoHS Compliance;


Our products comply with the European Directive 2011/65/EC, calling for the elimination of lead and other hazardous substances from electronic products.





Q1. What is the warranty of the module?


A1. It's 5 years warranty


Q2. Can we get  samples for testing?


A2. Yes,sample order welcomed.


Q3. What are Constant Power LED drivers?


A3. Constant power comes along with adjustable output current. When output current is adjusted, either through programming or other method, the output voltage range can change correspondingly and the output power remains at maximum
