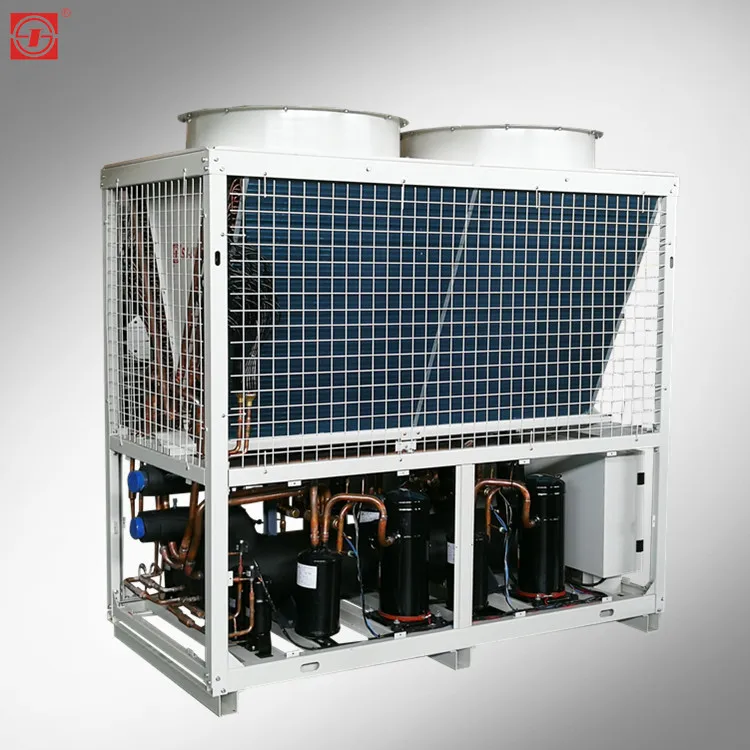

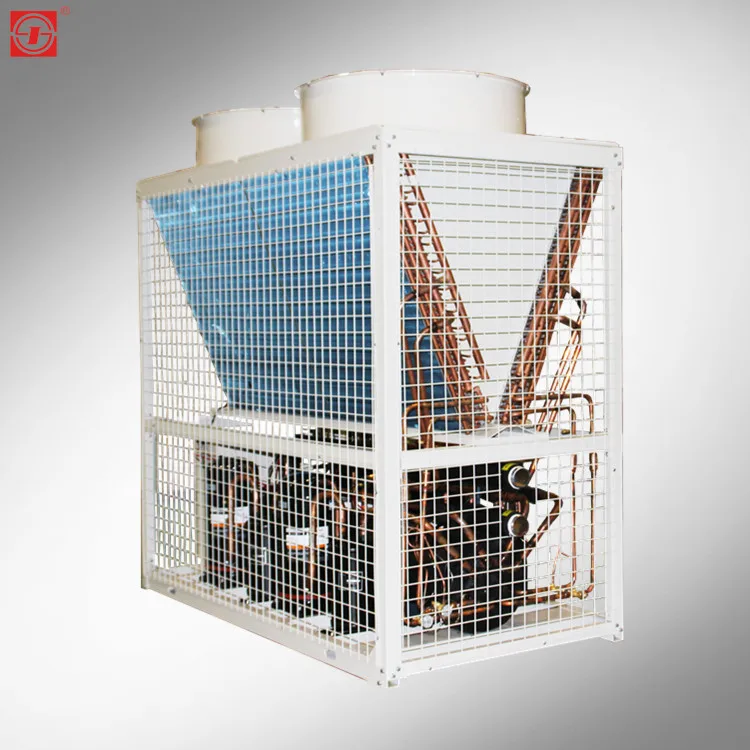

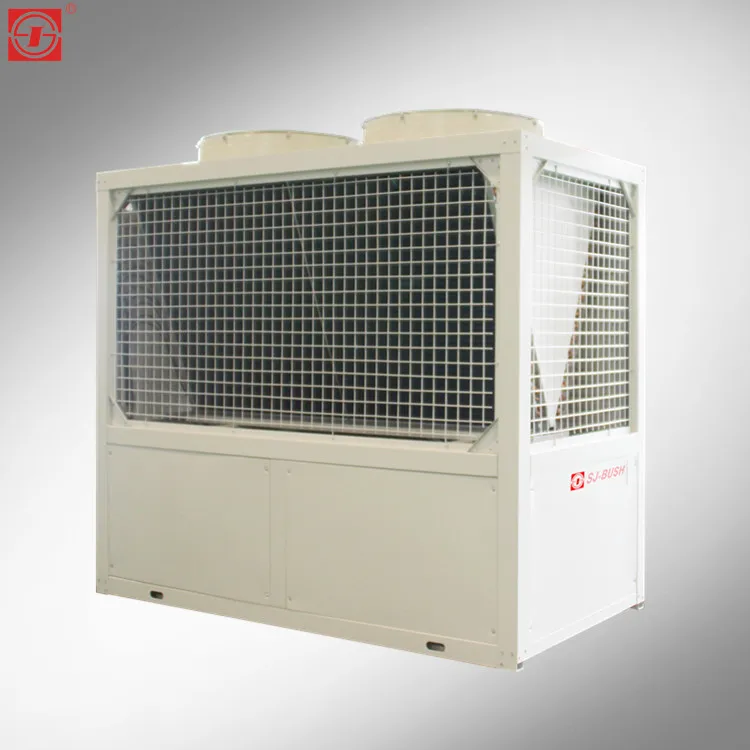

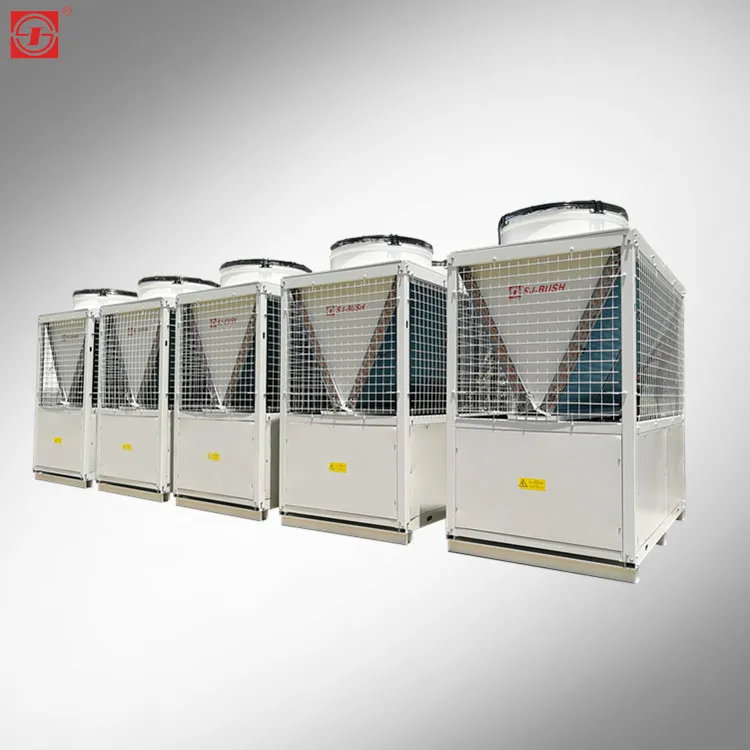

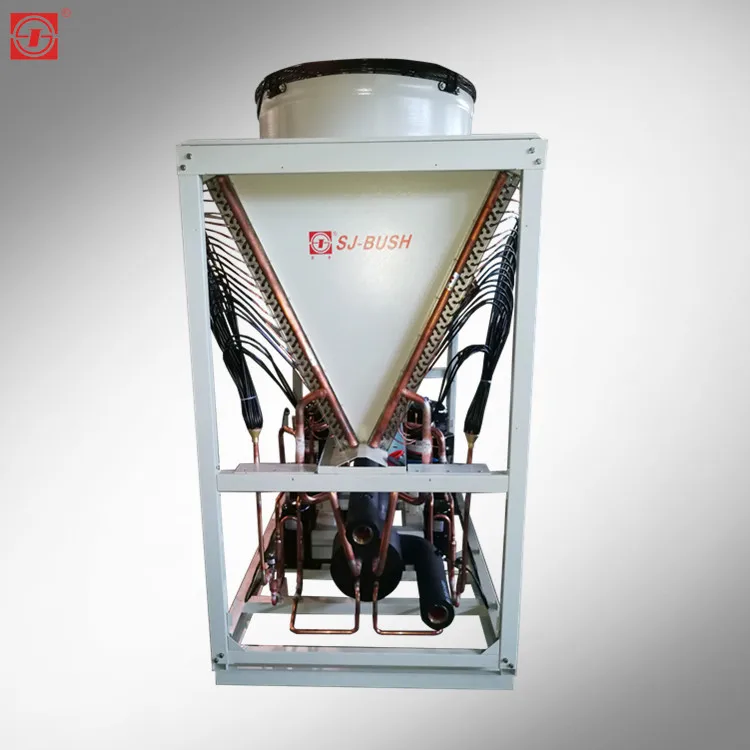

Box type temperature control system chiller unit with cooling and heating functions

Product Overview

Description



Box type temperature control system chiller unit with cooling and heating functions

SJFX series full liquid-semi-closed twin-screw water chillers are consistent with the characteristics of water flood screw units: high efficiency, energy saving, high reliability, simple and convenient control. The enhanced heat exchange tube can significantly improve the heat transfer capacity, and the combination with twin-screw compressor technology can greatly improve the system efficiency. Multi-compressor design not only has higher energy efficiency of partial load, but also can make the unit better standby; Siemens controller is equipped with touch liquid crystal operation screen, which can easily realize the operation and control of the unit. At the same time, we abandon some flashy functional design, based on the concept of simple operation and reliable performance, launched this economical and practical double screw chiller for customers.



Type(SJFX-***XE3SF)			Single compressor specification parameter table			Double compressor specification parameter table
			80	165	325	200	260	360
Refrigeration condition	Cooling capacity	U.S.RT	80	165	325	195	262	360
		KW	281	580	1142	687	922	1266
		*104kcal/h	24	50	98	59	79	109
	Input power	KW	50	103	202	118	156	212
	COP	KW/KW	5.61	5.63	5.65	5.82	5.91	5.97
	Freezing water flow	m³/h	48.2	99.4	195.8	117.8	158.1	217
	Freezing water pressure drop	kpa	58	62	75	60	68	75
	cooling water flow	m³/h	56.8	117.1	230.4	138.1	184.8	253.4
	cooling water pressure drop	kpa	65	70	80	65	72	78
Compressor	Type		Semi-enclosed twin screw compressor
	Qty		1	1	1	2	2	2
Starting mode			Y
energy control range		%	25%-100%			12.5-100%
power supply			380V/3N 50Hz
Condensor	Type		Water-cooled shell and tube
	Qty		1	1	1	1	1	1
Evaporator	Type		Flooded evaporator
	Qty		1	1	1	1	1	1
Refrigerant	Type		R134a
Temperature control			PID water temperature control
Freezing water inlet and outlet pipe diameters			DN100	DN125	DN200	DN150	DN150	DN200
Cooling water inlet and outlet pipe diameters			DN100	DN125	DN200	DN150	DN150	DN200
Heat preservation material			Rubber and plastic flexible closed foam insulation material
Unit weight		kg	2190	2830	1470	3990	5298	7558
Unit running weight		kg	2365	3056	1588	4309	5722	8162
Rated current		A	91.7	188.5	369.7	215.9	285.5	388
Maximum running current		A	145.3	298.7	585.8	318.6	421.2	572.4
maximum starting current		A	245.5	504.7	989.8	289.1	382.2	519.4
Length x width x height		mm	2900*1200*1800	3100*1500*1920	3800*1800*2200	4300*1500*1900	4400*1600*1950	4500*1750*2250
