Fiber Optic Equipment 1U Gepon/Epon OLT FTTH 4 PON OLT
- Category: >>>
- Supplier: Guangzhou V-Solution Telecommunication Technology Co. Ltd.
Share on (62360062027):
Product Overview
Description
Fiber Optic Equipment 1U Gepon/Epon OLT FTTH 4 PON OLT
Product Description
Introduction
V1600D4 EPON OLT products is 1U height 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment.The OLTs can be used for “Triple-Play”,VPN, IP Camera, Enterprise LAN and ICT applications.
V1600D4 provides 4GE(copper) and 4SFP slots independent interface for uplink, and 4*EPON OLT ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.

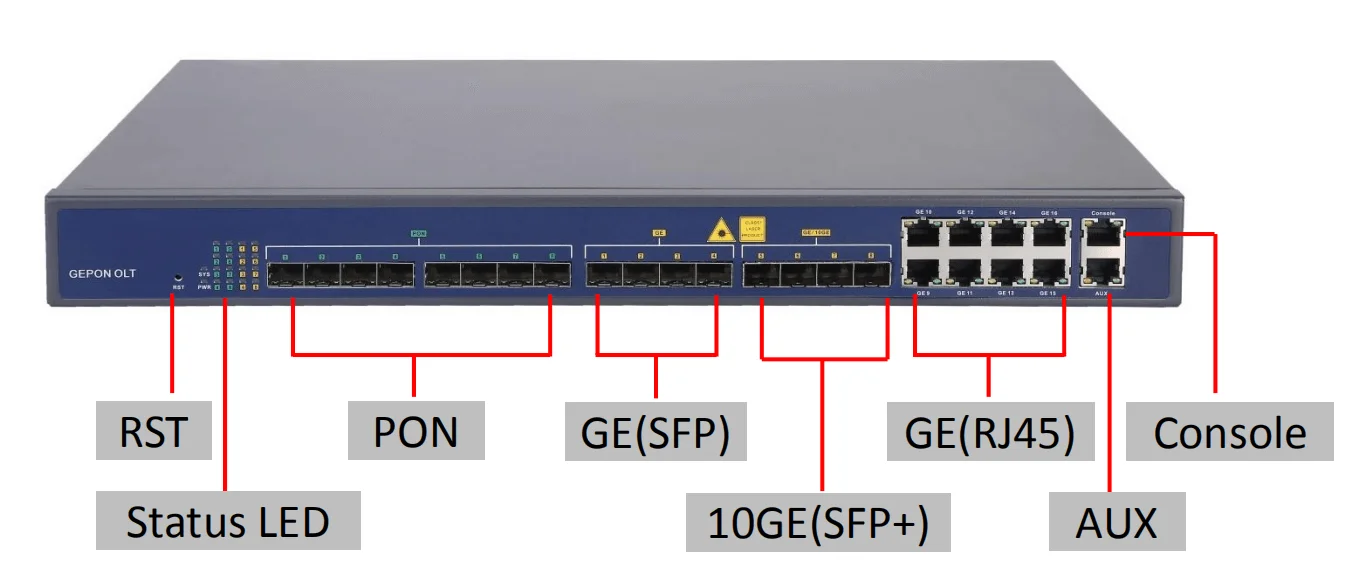

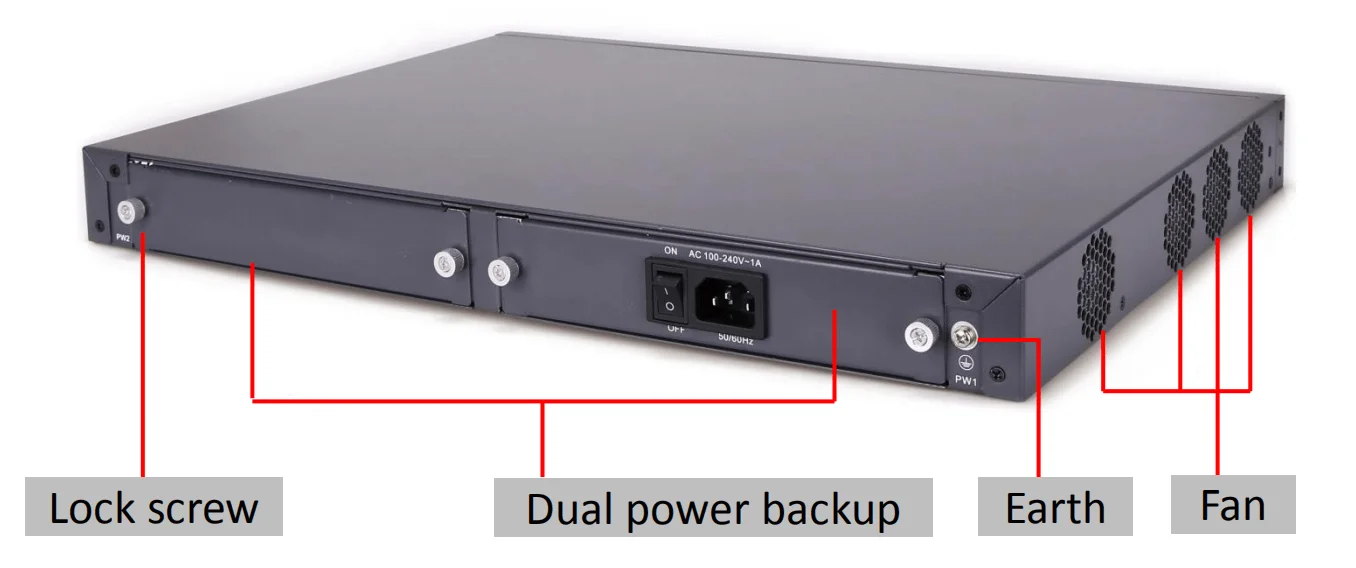

Product appearance features
Technical parameters
Item | V1600D4 | |
Chassis | Rack | 1U 19 inch standard box |
1G/10G | QTY | 8 |
Copper 10/100/1000M auto-negotiation | 4 | |
SFP 1GE | | |
SFP+ 10GE | ||
EPON Port | QTY | 4 |
Physical Interface | SFP Slot | |
Connector Type | PX20+ | |
Max splitting ratio | 1:64 | |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |
PON Port Specification (PX20+ module) | Transmission Distance | 20KM |
EPON port speed | Upstream 1.25G | |
Wavelength | TX 1490nm, RX 1310nm | |
Connector | SC/UPC | |
Fiber Type | 9/125μm SMF | |
TX Power | +2~+7dBm(PX20+) | |
Rx Sensitivity | -30dB(PX20+) | |
Saturation Optical | -6dBm | |
Dimension(L*W*H)(mm) | 442*200*43 | |
Weight(kg) | 3.2 | |
AC Power Supply | AC:100~240V, 47/63Hz | |
DC Power Supply(DC:-48V) | x | |
Double Power Module Hot Backup | x | |
Max Power Consumption(W) | 30 | |
Operating Environment | Working Temperature | 0~+50℃ |
Storage Temperature | -40~+85℃ | |
Relative Humidity | 5~90%(non-conditioning) | |

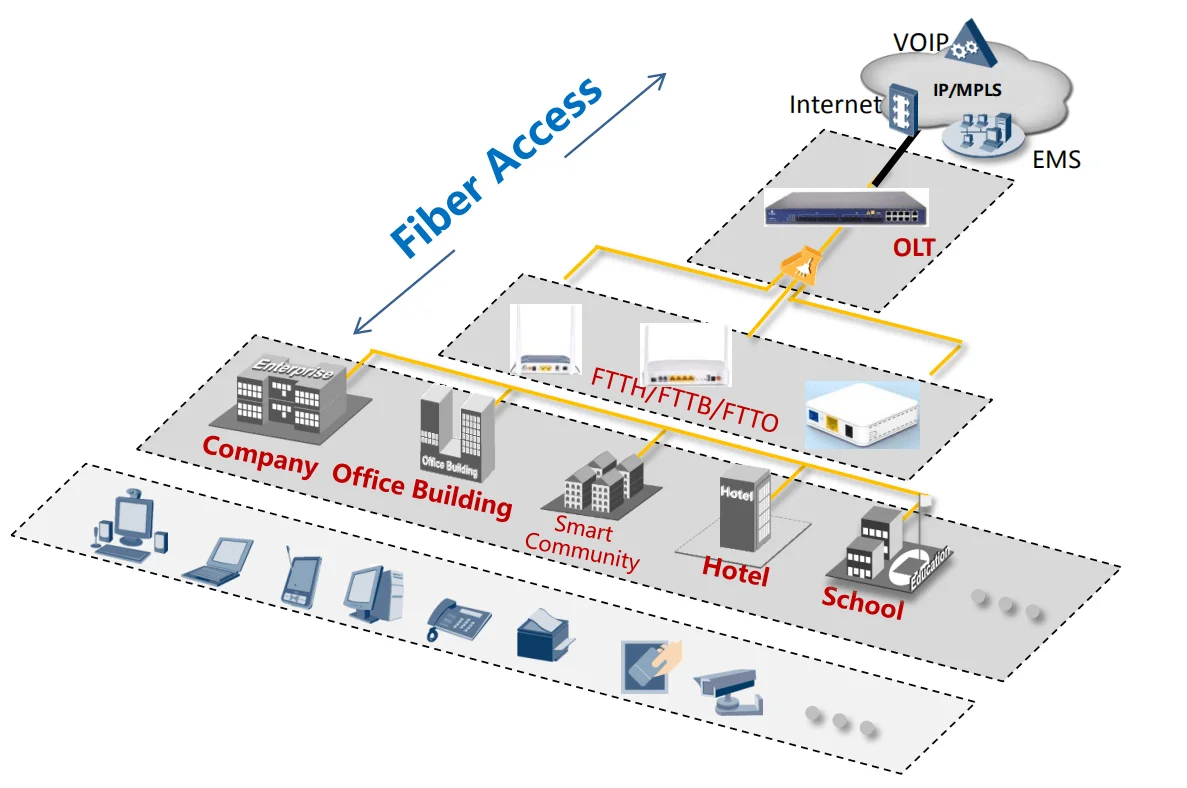

Application chart
Contact US
Company Information
V-SOLUTION is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
Business Distribution Map in the World

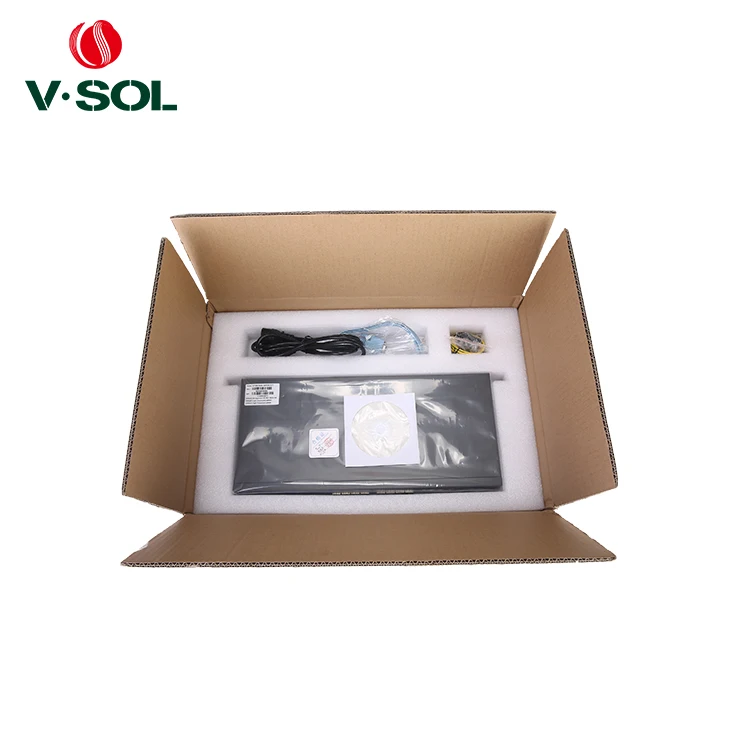

Packaging & Shipping
1. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
2. Packaging: standard carton which suitable for air/ sea transportation.
Our Services
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365days
FAQ
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test, at least 100pcs/models after sample order.
5. OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW Guangzhou
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
