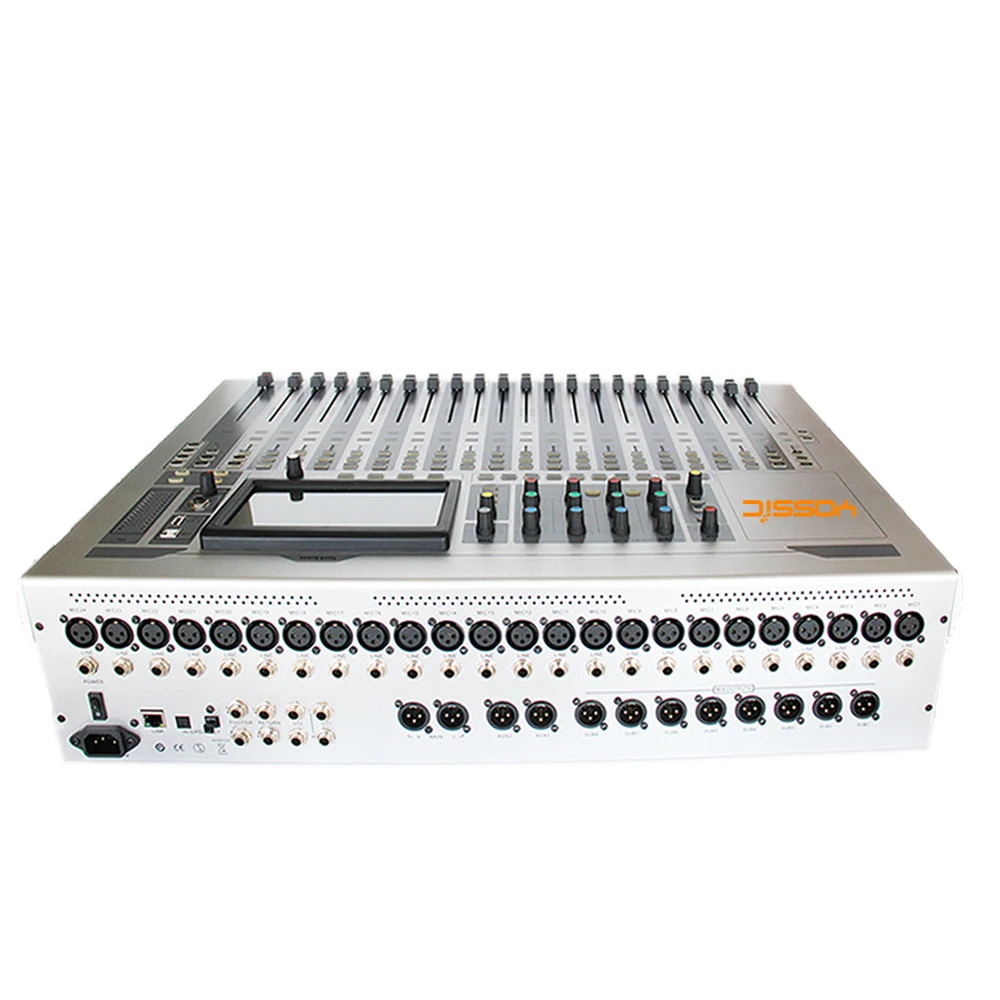

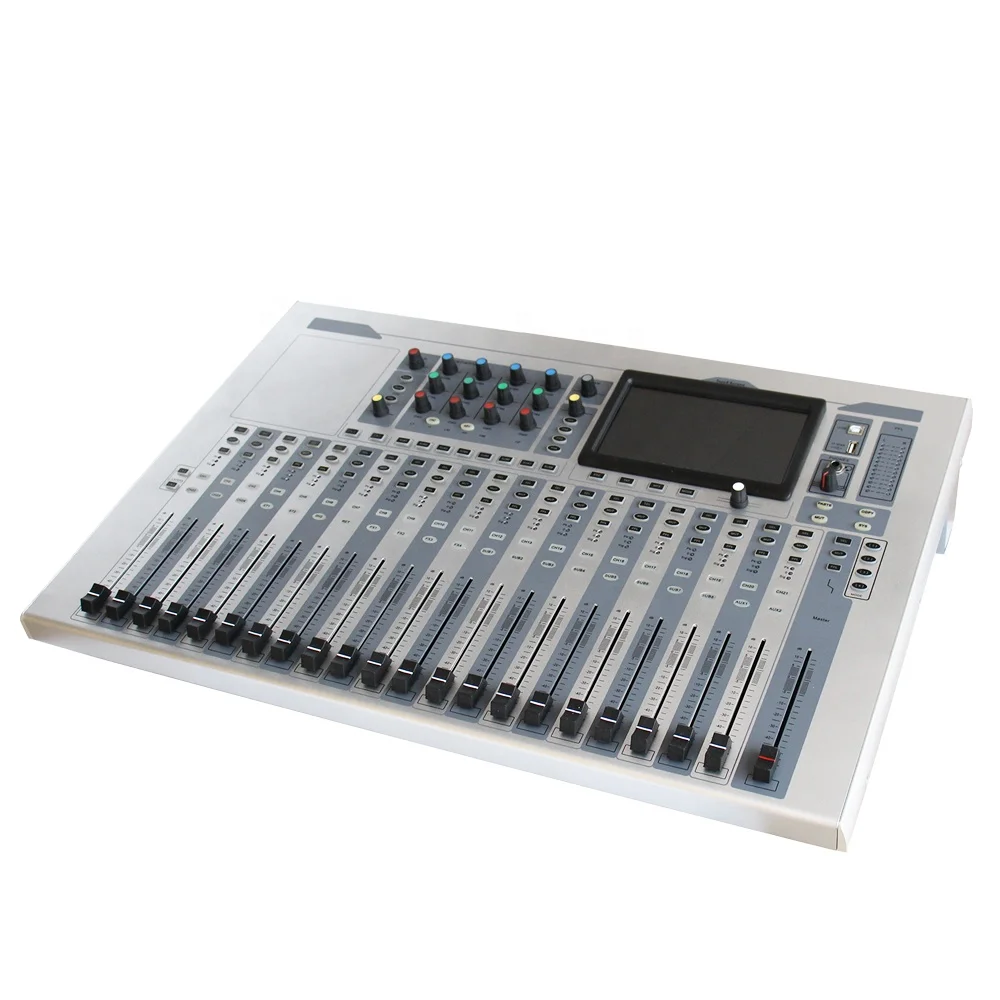

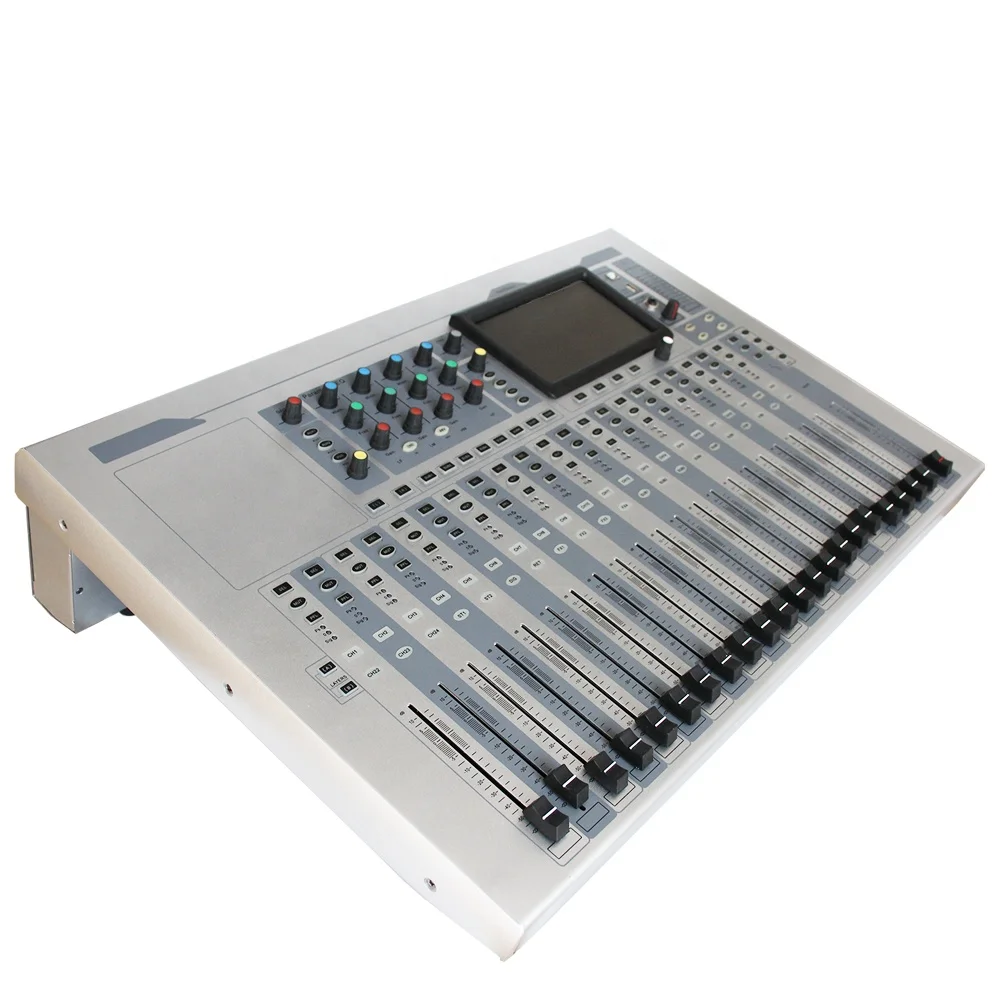

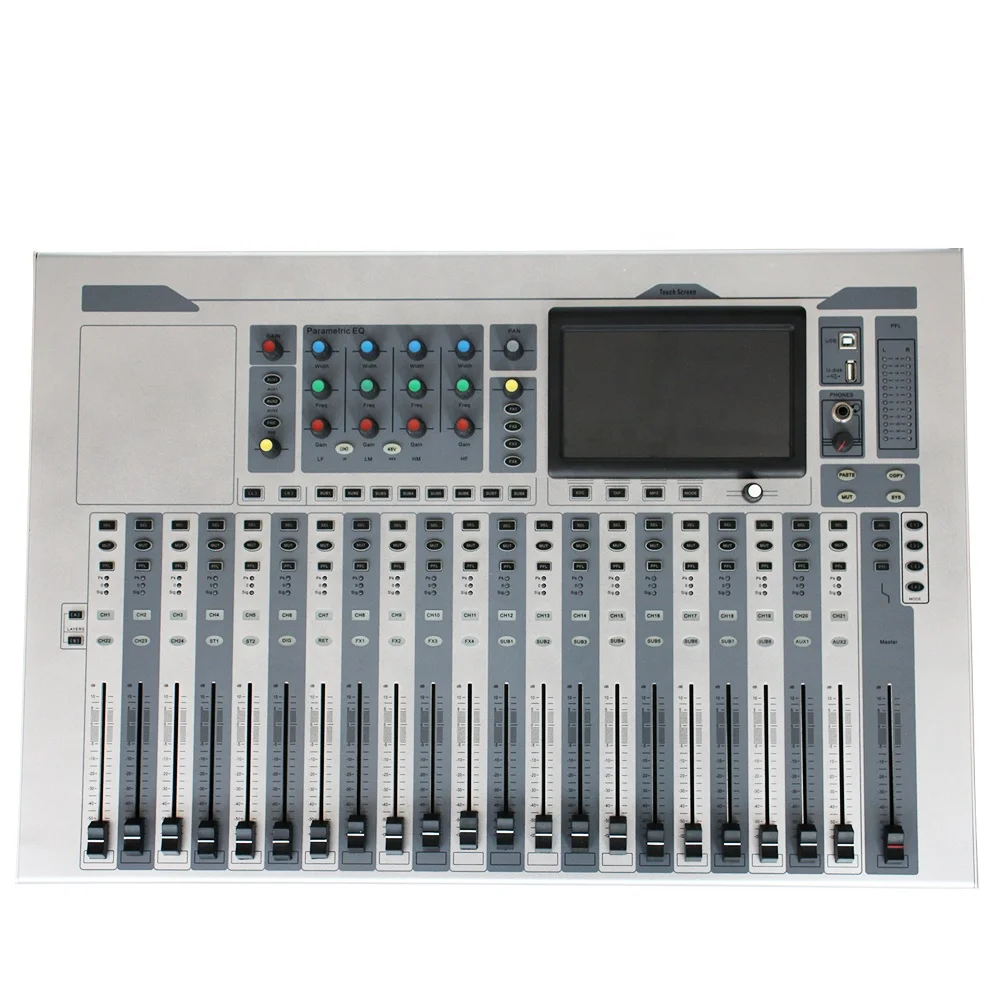

High performance professional 32 channel digital audio mixer console
Function description:
01:24 signal input (16 MIC; 2 stereo; 1 return; MP3 sound card and fiber) 02: input processing; input gain adjustment (electronic gain) preamplifier, high and low pass filtering 4-band parameter equalization, compressor, noise gate, delay, input channel pan balance adjustment 03: MIC input uses digital gain adjustment 04: +48V phantom power (MIC channels can be turned on and off independently) 05: Built-in 6 9-segment graphic equalizers (1-16 input channels can be inserted arbitrarily) 06: Input and output EQ ON/OFF 07: Stereo return input 08: Channel parameter fast copy function 09: Each channel has a multi-function menu, mute button, monitor button 10: Each channel is equipped with 100MM electric fader, signal peak light (17 electric faders)
11:12 signal output (stereo main output, 8 SUB output, 2 AUX output) 12: Output processing, high and low pass filtering, 15-band parameter equalization, compressor, delay, phase
13: SUB output (before the fader, after the fader) 14: Multi-track multi-mode digital recording function 15: Double row 3 color 12-segment level indicator 16: Built-in sound card (MP3/PC directly plays music) 17: 4 quick scene calls (can be managed on the PC side) 18: Storage and recall of user parameters (can be managed on the PC side) 19: Built-in 4 DSP effects 20: FX pedal switch interface 21:7 inch 800*480 HD touch color screen 22: Fiber input and output 23: Multi-OS operating system control software (IOS system, WINDOWS system) Chinese and English switching display 24: Support wired network port adjustment (or external router wireless adjustment) 25: User-customizable layer 26: Parameter lock function
Technical parameter:
Input mic/line Input 1-16 balance, XLR jack input sensitivity (XLR/TRS): -60 to +10db/-50 to +20db Electronic gain: -32 to +10db; 0.7 step Maximum input level (XLR/TRS): +19db/+29db Input impedance (XLR/TRS): >5KΩ/>10KΩ THD+N Uniform gain state 0db: 0.0005%-89db (20HZ-20kHZ, direct output @0db 1KHZ THD+N medium gain +30db: 0.001-75db (20-20KHZ, direct output @0db 1kHZ Output voltage: 4V MAX Headphone output: 7V 220Ω input 4 segments Full parametric equalization: 20HZ-20KHZ, +/-12db, Q value 0.3-15.0 Band 1: Optional Lshelf, PEQ Band 2: PEQ Band 3: PEQ Band 4: Hshelf, PEQ can be selected Input independent delay: maximum 25ms output 15 segments Full parametric equalization: 20-20KHZ, +/-12db, Q value 0.3~15 Output independent delay: up to 35ms Compressor; noise gate: Switch: ON/OFF
Specification
Product name:
Professional digital 32-channel audio mixer with video touch screen
Color:
white&black
Feature:
Economical
Stereo impedance:
100KΩ
S/N ratio:
≥85dB
Mono impedancel:
11KΩ
MIC impedance:
2.4Ω
MAX outputs:
4V/MAX
