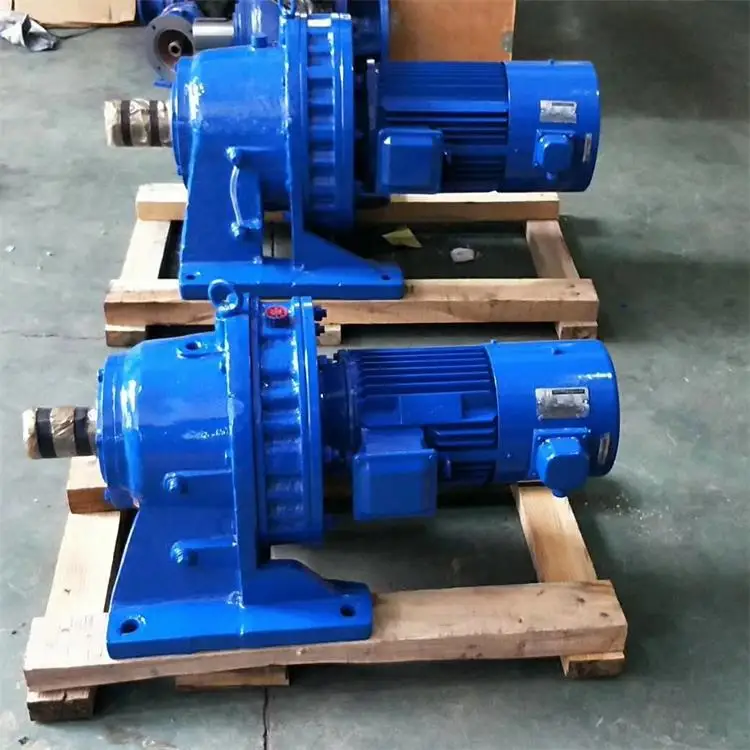

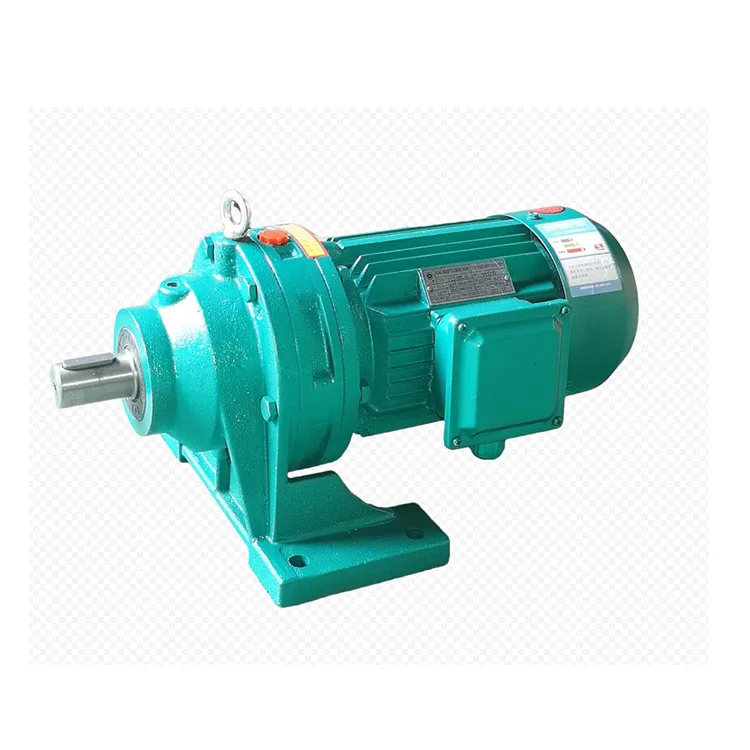

XW2/B0 model planetary cycloidal gearbox with ratio 11,17,23,29,35,43,59,71, 87

Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission with many advantages:

Components:

1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange, Keyed Solid Shaft Input
4. Output Configurations: Keyed Solid Shaft Output

Features:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations

2. High efficiency, the average efficiency is over 90%

3. Compact structure, light weight
4. Stable and reliable operation, low noise

5. Long service life

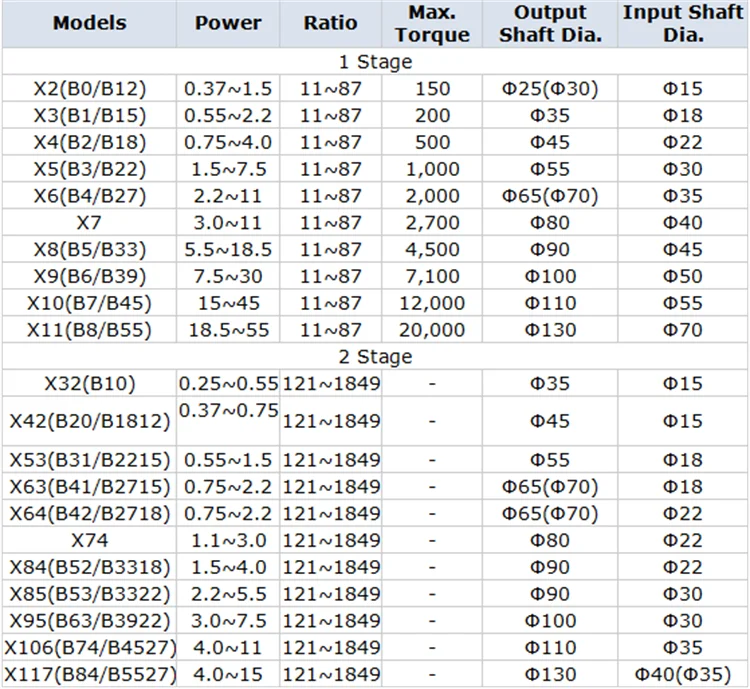

SPECIFICAITON
