Product Overview

Description







Circulation Steel Pallet for precast concrete elements production line designed by Haitian company is a highly automated system allowing for the mass production of reinforced concrete precast elements having a straight surface and a high level finishing, as sandwich walls, solid walls, double-walls and slabs.

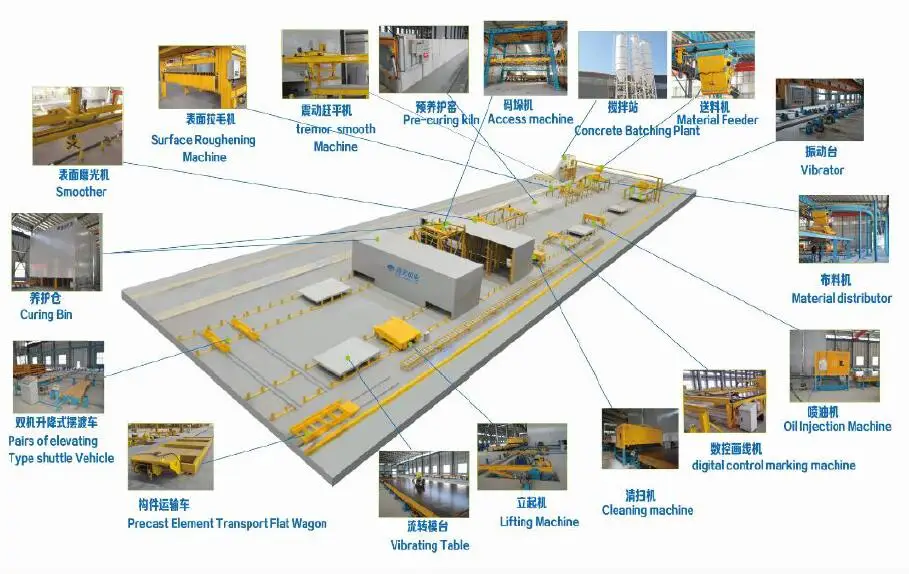

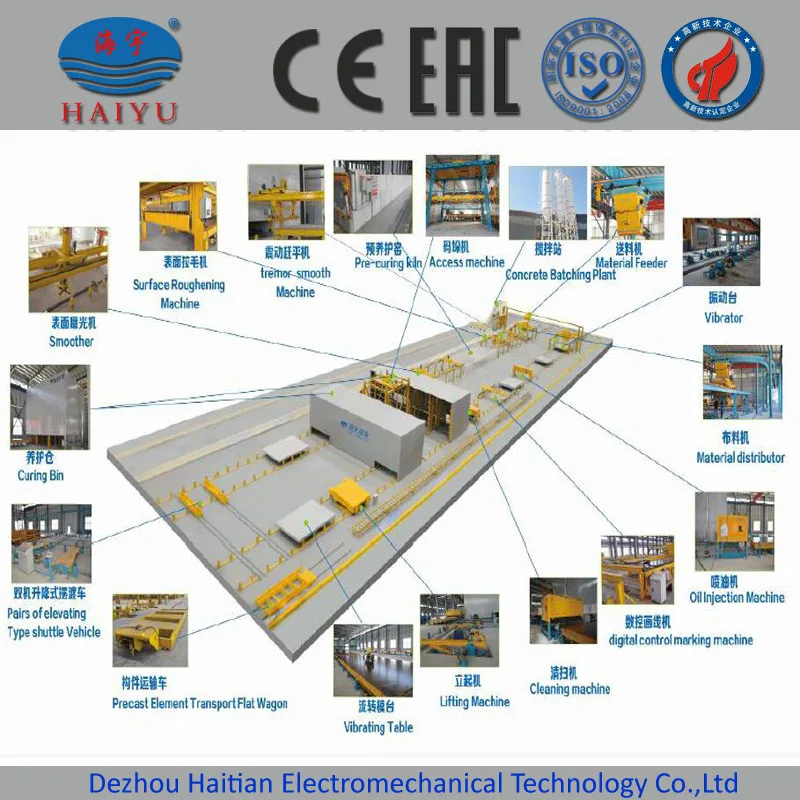

The process is organized in areas or steps of work. This enables the skilled workers to get specialized in each step of the work, thereby optimizing production in terms of:

• optimization of material flow


• mechanization and automation of the different work processes;


• planning and controlling production;


• maximization of the product quality.

By binding the different work phases and determining the work areas, materials and equipment are made available only in specific places, thus reducing the work flow.

Details:

• daily production output: from 150 to 2.200 sq. mt.


• production width: from 1.800 to 4.500 mm.


• element max. length 15.000 mm.


• element max. weight: 22 Ton.

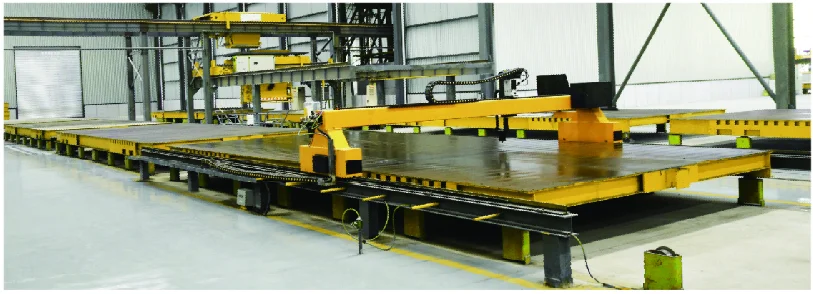

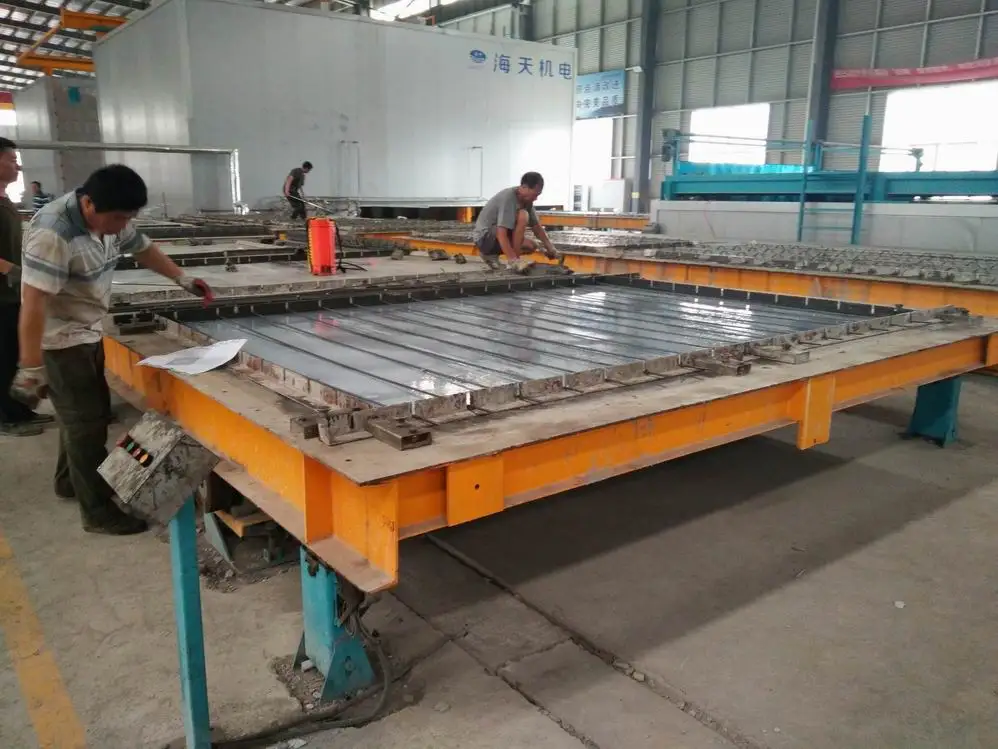

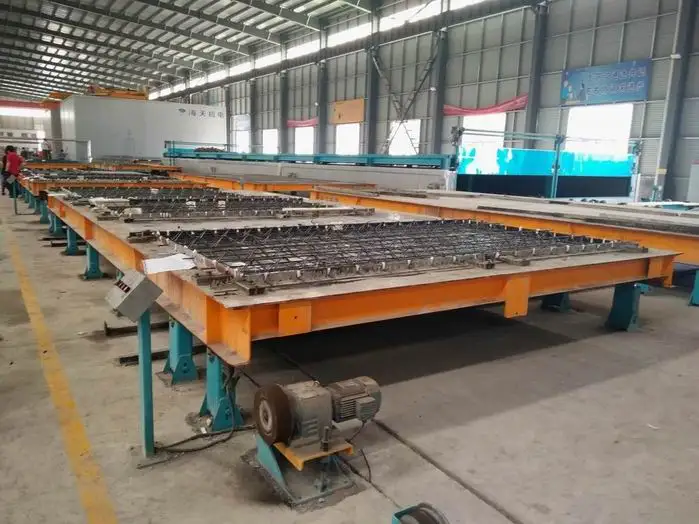

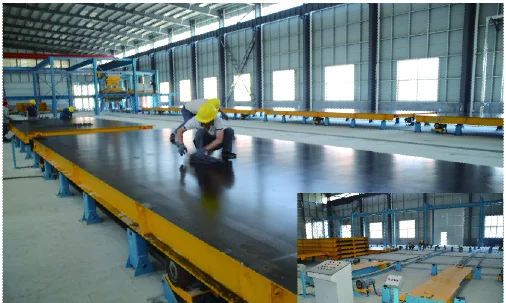

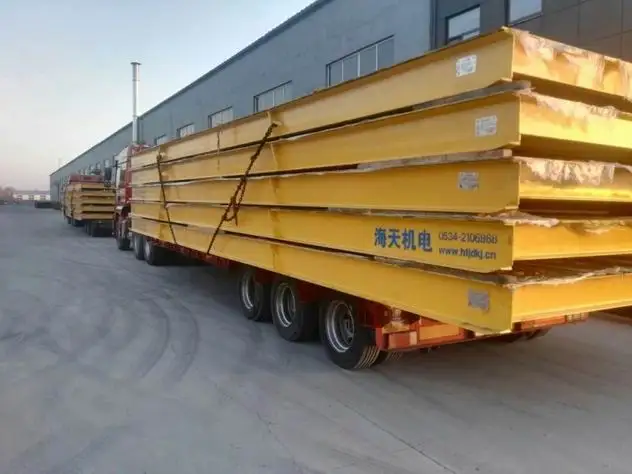

01.Pallet/table: produce concrete flat elements.



1)Material: made of  stainless steel or carbon steel of Q345.

2)Surface technology: surface polishing can be also made.

3)Size: 9m*4m or by your requirements.

4)Steel casting plate thickness : 8mm or 10mm or according to your requirements.

5)Weight: more than 5.7T depending on pallets size.

6)Hardness: 183HB. Standard according to "design code for steel structures" GB50017-2003.



Advantages:Antioxidant stainless steel panel , far higher than the corrosion resistance of carbon steel panels. Not corrode and damage the quality of the product surface contamination.





02.Pallet cleaning&oiling system: clean the pallet and spray release agent.



03.Plotter: the CNC plotter reads CAD data and marks every contour on the pallet surface using water-soluble paint. This incredibly increases the level of automation.

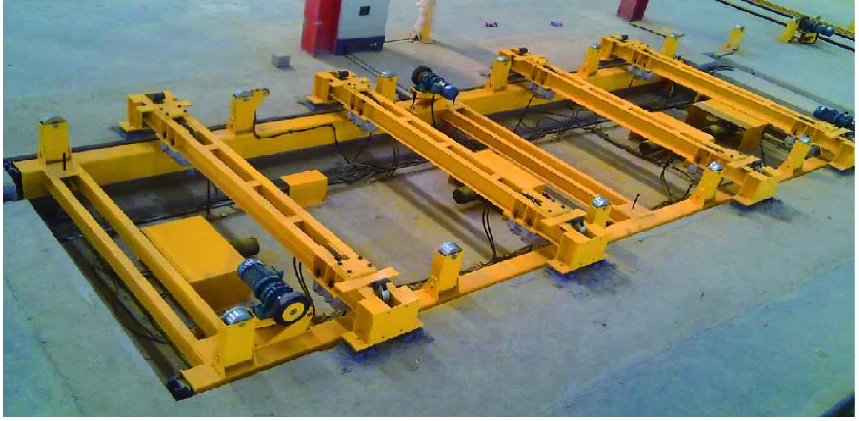

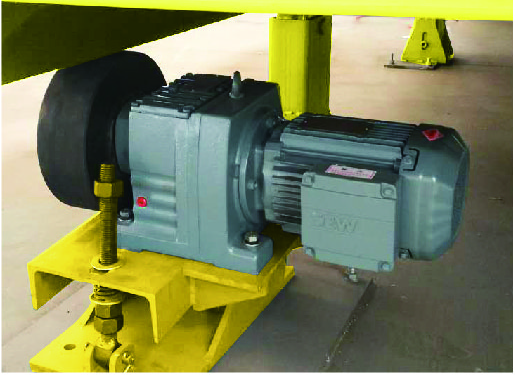

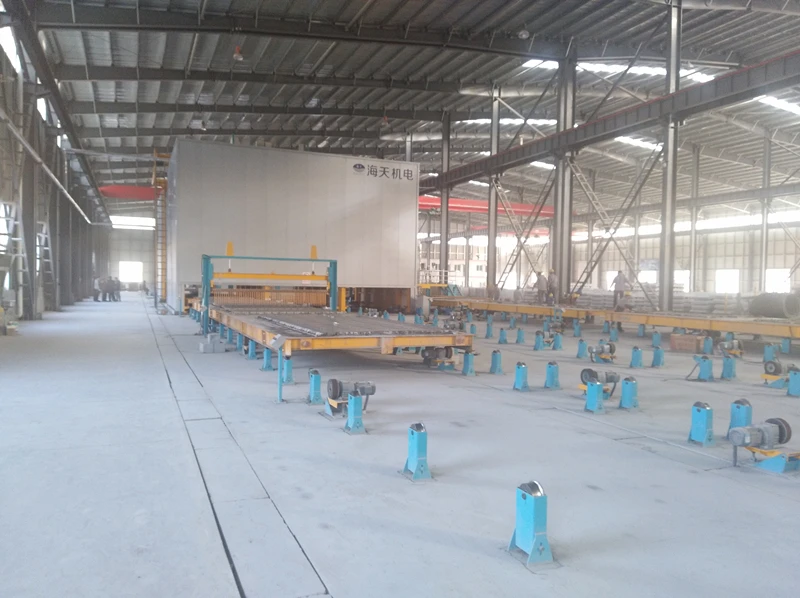

04.Components to provide pallet circulation: Support wheels for lengthwise and transverse pallet movement within the limits of the circulation line. Automation by means of a specific software.

05.Vibrating-compacting system: compact the concrete elements.

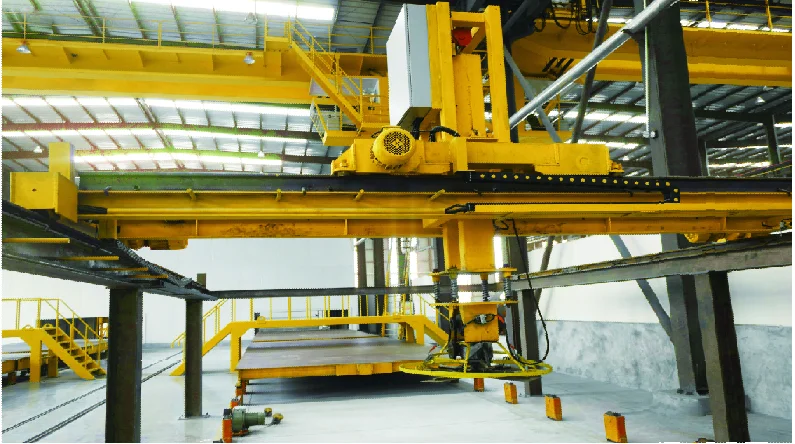

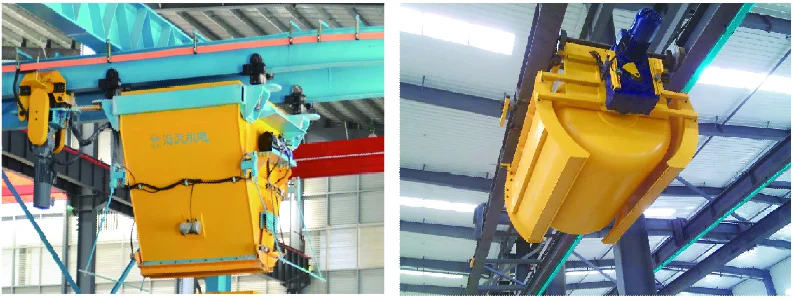

06.Concrete distributor: casting concrete onto the pallets



07.Smoothing system

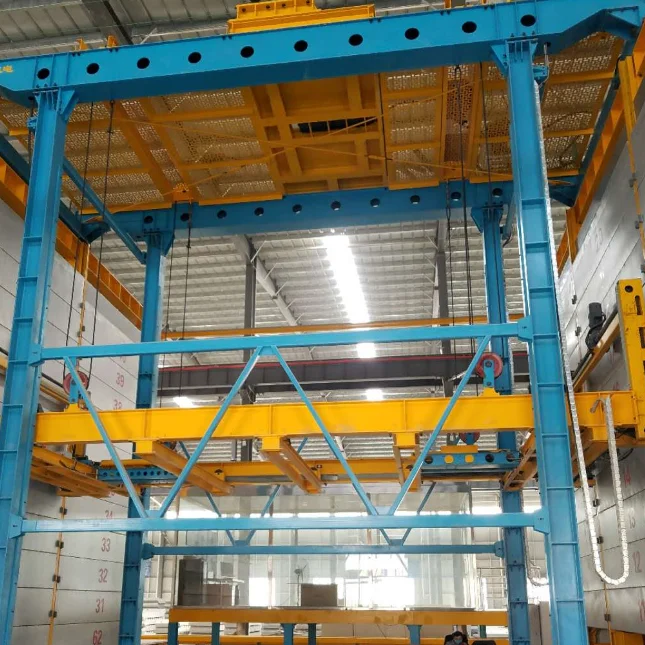

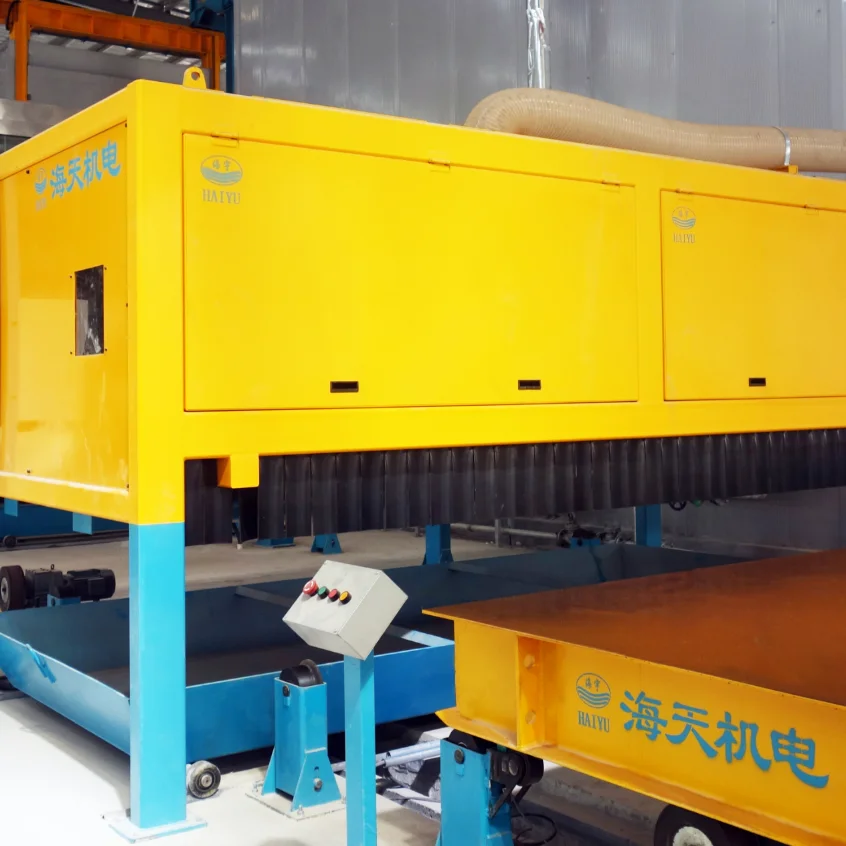

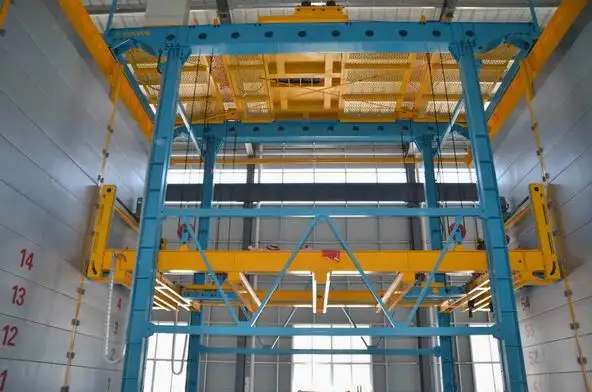

08.Curing chambers

09) Stacking system
