ITEM:6'' 1440*2560 LS060R1SX01 47um MIPI IPS TFT LCD display screen 3D printer Allwinner H3 VR Projector helmet

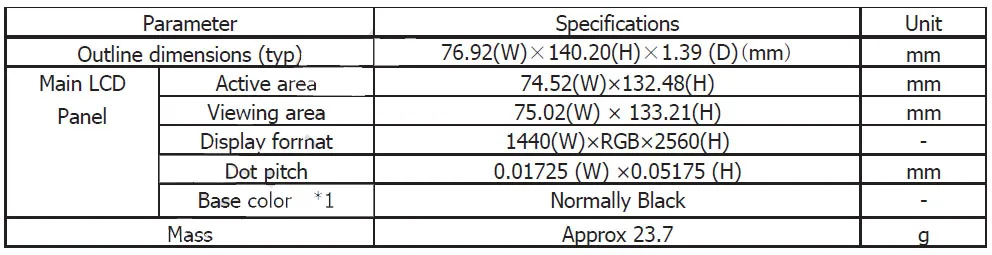

Product Specification
| Screen Size | 6.0 Inch |
| Resolution | 1440x2560 |
| Outline Dimensions | 76.92(W)x140.20(H)x1.39(D)mm |
| Active Area | 74.52(W)x132.48(H)mm |
| Viewing Area | 75.02(W)x133.219(H)mm |
| Display Format | 1440(W)xRGBx2560(H)mm |
| Dot Pitch | 0.01725(W)x0.05175(H)mm |
| Base Color | Normally Black |

Mechnical Drawing


I: Except for LS060R1SX01 inch OLED Display,we have LS060R1SX01 inch OLED Display,please clink this link :
we also have 5.5 inch OLED Dis play that three modules ,please clink the link that you want to buy.
*****************************************************************************
We are professional LCD screen supplier for 3D printer machine.
We have 5.5'' / 6'' / 8.9'' / 10.1'' / 12.5'' / 13.3'' /15.6'' and so on.
*****************************************************************************
1. LCD screen For 3D Printer:

1) If you need "No.1" screen, please click this link:
2) If you need "No.2" screen, please click this link:
3) If you need "No.3" screen, please click this link:
4) If you need "No.4" screen, please click this link:
5) If you need "No.5" screen, please click this link:
https://www.alibaba.com/product-detail/5-5-1440-2560-2K-MIPI_62524034405.html?
spm=a2747.manage.0.0.3f2d71d21ThZGu
6) If you need "No.6" screen, please click this link:
https://www.alibaba.com/product-detail/6-1440-2560-LS060R1SX01-47um-HDMI_62360234605.html?
spm=a2747.manage.0.0.3f2d71d21ThZGu
7) If you need "No.7" screen, please click this link:
8) If you need "No.8" screen, please click this link:
===================================================================================================
2. LCD screen For 3D Printer + HDMI :

1) If you need "No.1" screen + HDMI suit, please click this link:
https://www.alibaba.com/product-detail/UV-curable-3D-printer-5-5_1600061943372.html?
spm=a2747.manage.0.0.30ba71d29vrLMO
2) If you need "No.2" screen + HDMI suit, please click this link:
https://www.alibaba.com/product-detail/5-5-inch-2560x1440-2K-LCD_1600061906545.html?
spm=a2747.manage.0.0.30ba71d29vrLMO
3) If you need "No.3" screen + HDMI suit, please click this link:
https://www.alibaba.com/product-detail/UV-curable-3D-printer-5-5_1600055992801.html?
spm=a2747.manage.0.0.30ba71d29vrLMO
4) If you need "No.4" screen + HDMI suit, please click this link:
5) If you need "No.5" screen + HDMI suit, please click this link:
===================================================================
3. HDMI to MIPI :

1) If you need "No.1" HDMI suit, please click this link:
https://www.alibaba.com/product-detail/5-5-inch-1440x2560-LS055R1SX03-
2K_1600056044240.html?spm=a2747.manage.0.0.722371d2cR5o5O
2) If you need "No.2" HDMI suit, please click this link:
https://www.alibaba.com/product-detail/5-5-inch-1440x2560-LS055R1SX04-
2K_1600056032468.html?spm=a2747.manage.0.0.722371d2cR5o5O
3) If you need "No.3"HDMI suit, please click this link:
If you need other size LCD, please contact us at any time.
