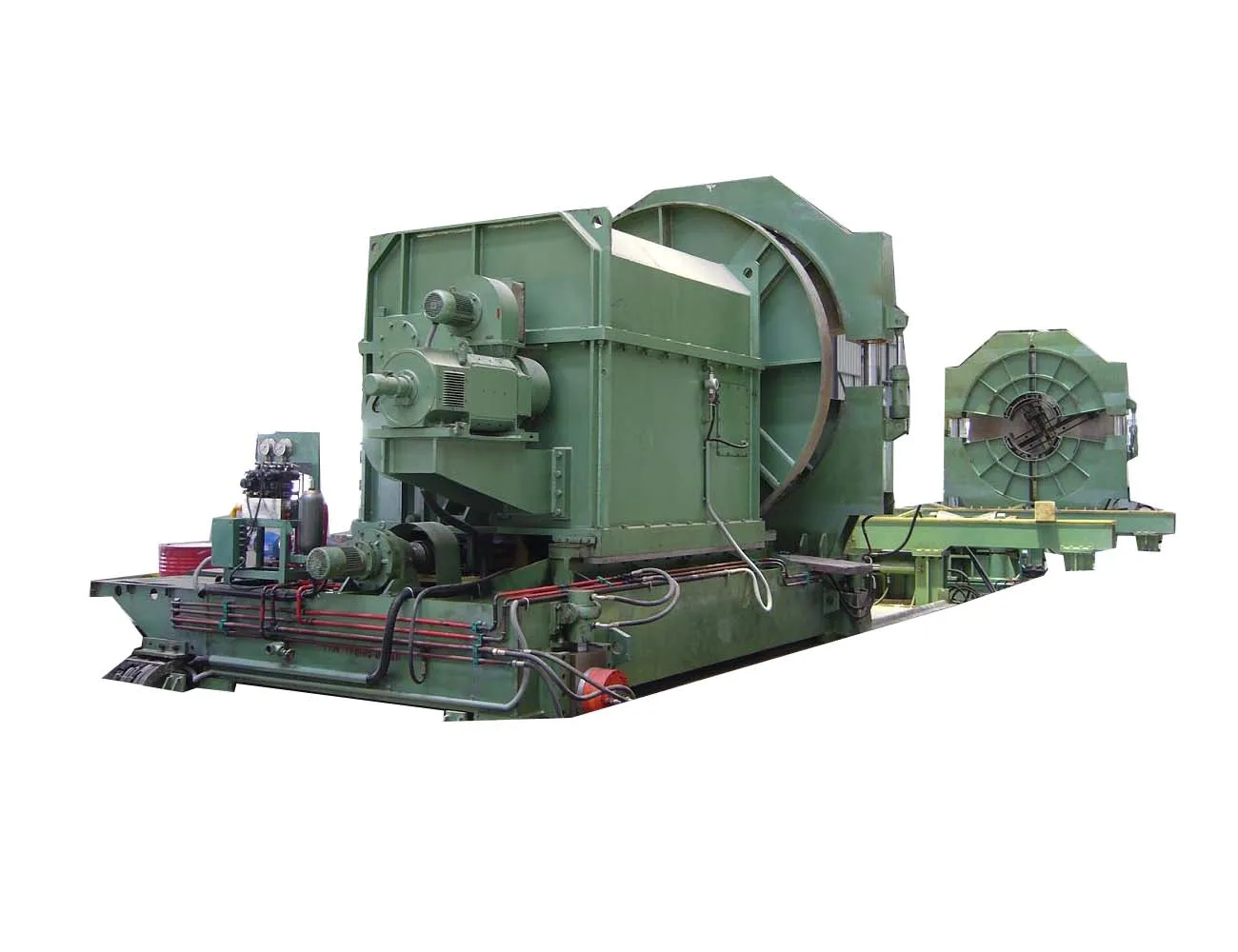

The equipment is arranged on the same axis for a single chamfering head. The chamfering head is equipped with headstock, cutter head and clamp.
The tightening device includes chamfering cutter and flat-head cutter on the cutter head. The chamfering cutter is radial floating, and the steel pipe does not move when working. The clamping device clamps the steel pipe, rotates the cutter head, and the chamfering cutter floats and rotates, so as to process the chamfering of the steel pipe.
The steel pipe clamping device is a set, which is fixed in front of the headbox. It is used for clamping and positioning of the end of steel tube, and can not rotate. Driven by double hydraulic cylinders, the upper clamp seat swings for clamping, the lower clamping and the clamping ring are fixed, and different sizes of clamping rings are used for different pipe diameters.
contact us
\

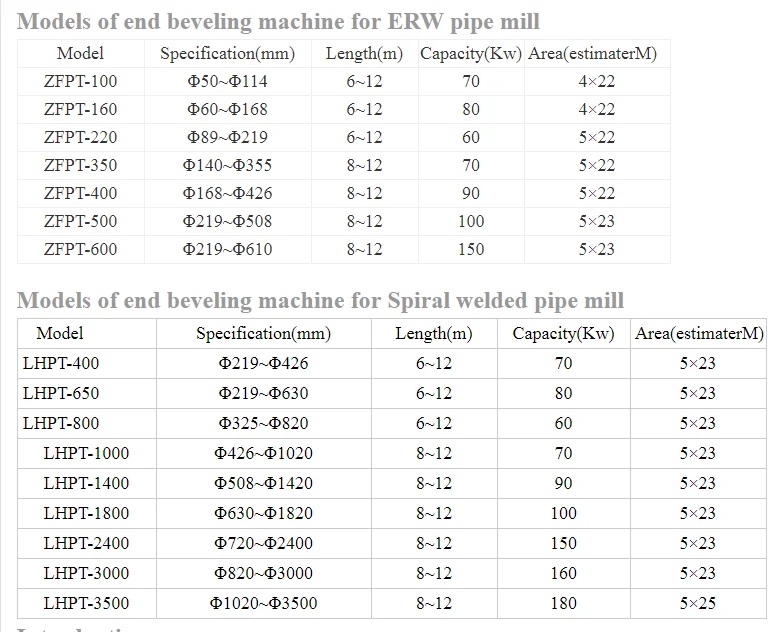

Model
Function
The Use of Machines

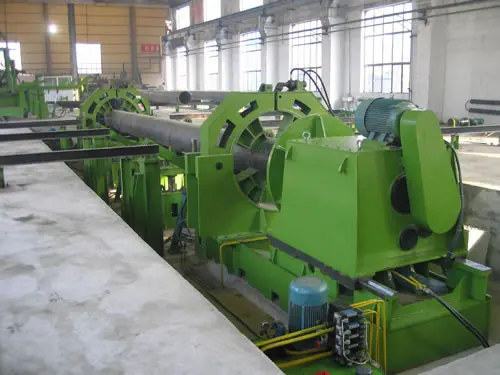

Flat-end chamfering machine is used for chamfering and flattening of welding grooves at both ends of steel pipe.
Our service
A: Do you have after sales support?
B: Yes,we are glad to give you advice and we also have skilled technicians available, we need your machines running in order to keep your business running.
A: Once we have bought a machine for you, are you able to supply us with material?
B: We can assist you in founding the materials to suit your machine.
A: Do you sell only standard machines?
B:Our machines are according to customers request to manufacture.
A: Do you have a warranty on your machines?
B: One year warranty and free spares.
A: What sales terms do you have?
B: T/T or L/C
A:Do you have instruction manuals?
B:We provide you with instruction manuals ,electricity layouts,civil requirements ,and machine drawings.
A:Once the machine arrives at our factory what happens then?
B:We will send you a technician or engineer that will commission and install your machine ,with training for your staff .
A:Why choose you? What is difference between you and other suppliers?
B: We have specialized in this area for over 10 years, certified by ISO and CE. Our machine are exported to Africa,Asia,and South America , more than 10 countries. You can get higher quality product ,better professional service from the same price.
