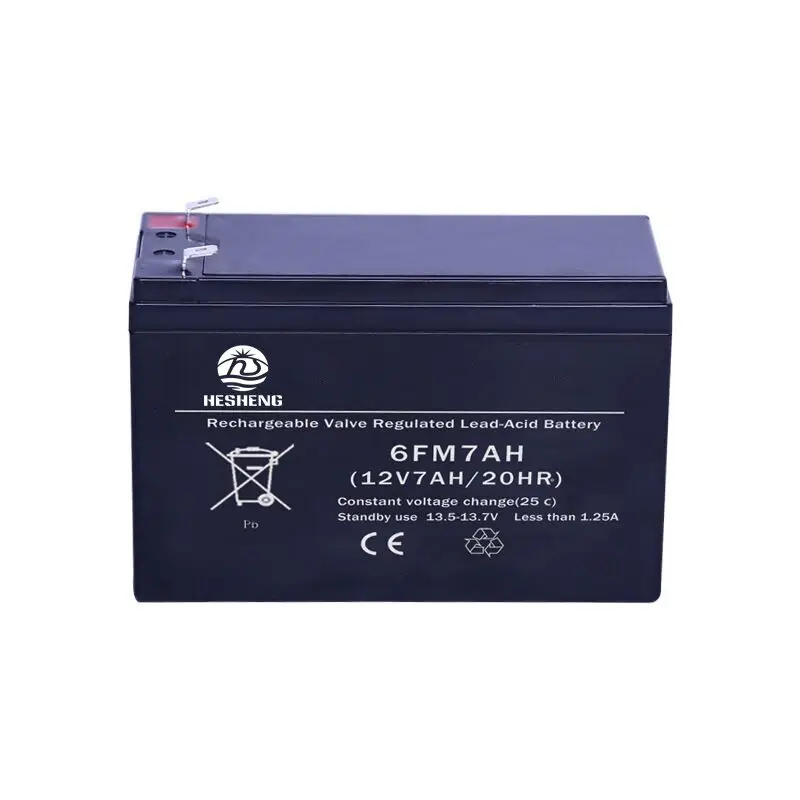

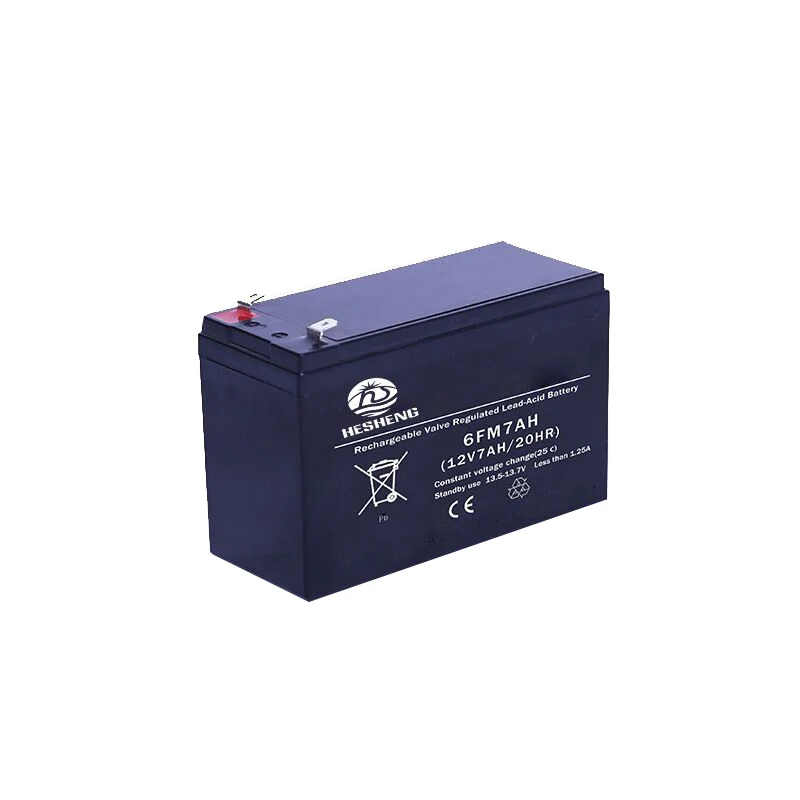

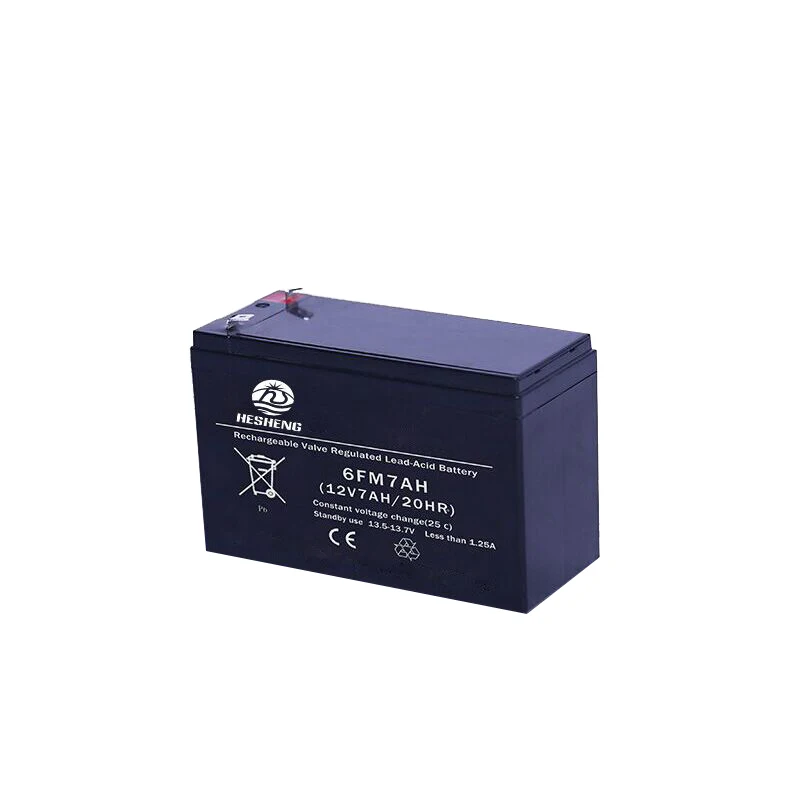

The Most Popular Battery 12v Lead acid Battery 12v7ah For Energy Storage
- Category: >>>
- Supplier: Hunan Hesheng Electronic Technology Co. Ltd.
Share on (62360354900):
Product Overview
Description
We have our own factory and there is no need to worry about quality issues. We can customize it according to the size, size and color you require. All the details can be discussed, including the price. Come and contact me~
PRODUCT DESCRIPTION
Type | Specification |
Nominal Voltage | 12V |
Nominal Capacity | 7AH（20hrs,25°C/77°F） |
6.85AH（10hrs,25°C/77°F） | |
3.9AH（1hrs，25°C/77°F） | |
Dimension | Length:151±2mm |
Width:65±2mm | |
Container Height:94±2mm | |
Total Height(with Terminal):102±3mm | |
Operation Temp Range | Discharge:-15-50℃(5-122°F) |
Charge: 0-40℃(32-104°F) | |
Storage: -15-40℃(5-104°F) | |
Nominal Operating Temp.Range | 25±3℃(77±5°F) |
Cycle Use | 14.4V- 15.0V(25℃/77°F) Coefficient:30mv/℃ (Initial charging current less than 1.95A) |
Standby Use | 13.5V-13.8V(25℃/77°F) Coefficient:20mv/℃ (No limit on Initial Charging Current) |
Capacity affected by Temp. | 102% 40℃(104°F) |
100% 25℃(77°F) | |
80% 0℃(32°F) |
