100ml polished tungsten carbide Lab planetary ball mill grinding jar cup bowl
- Category: >>>
- Supplier: Zhuzhou Tongda Carbide Co. Ltd.
Share on (62360395573):
Product Overview
Description

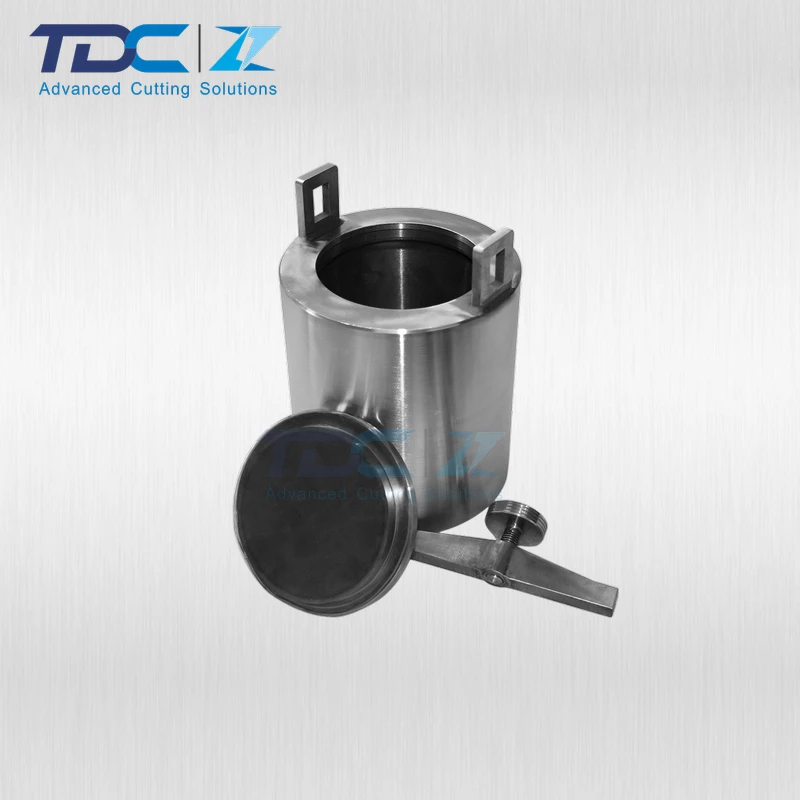

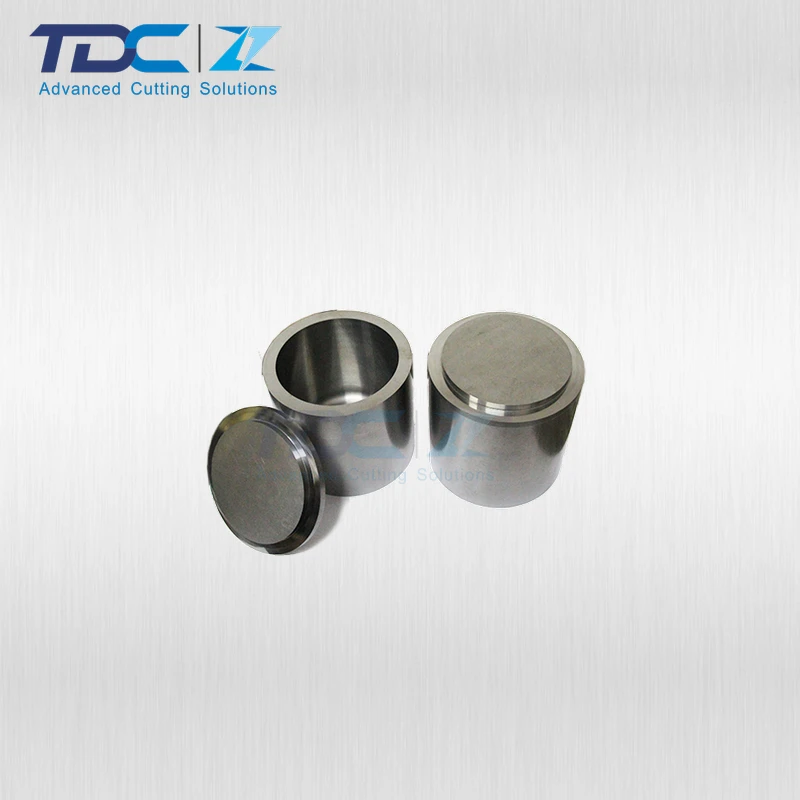

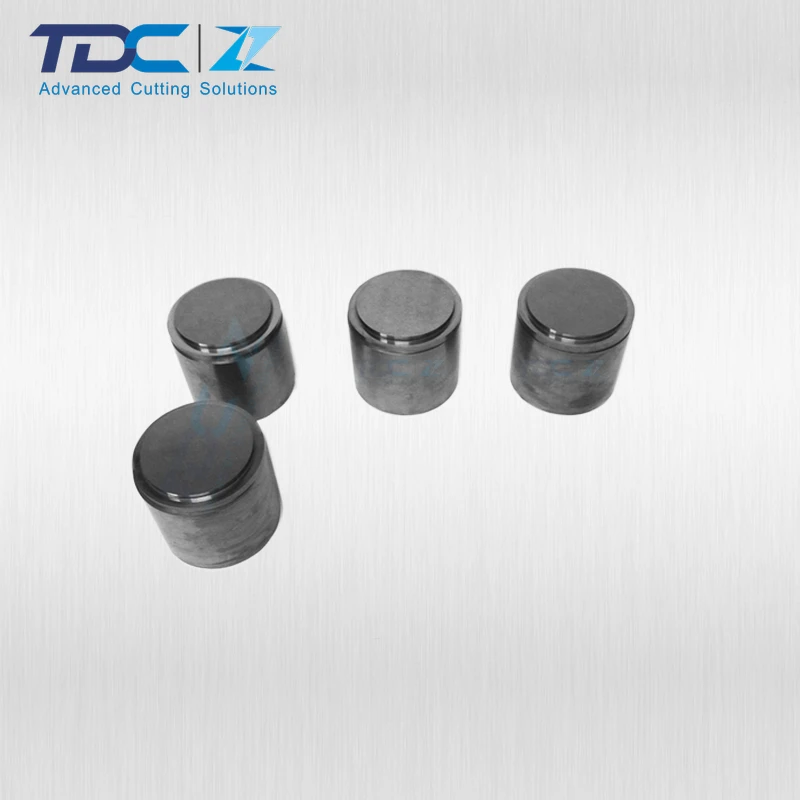

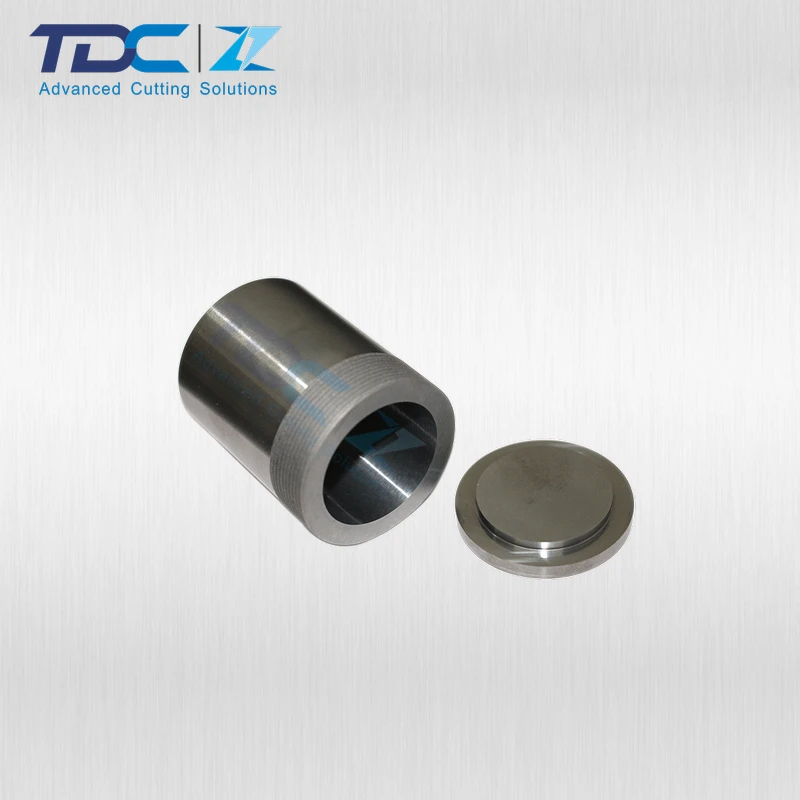

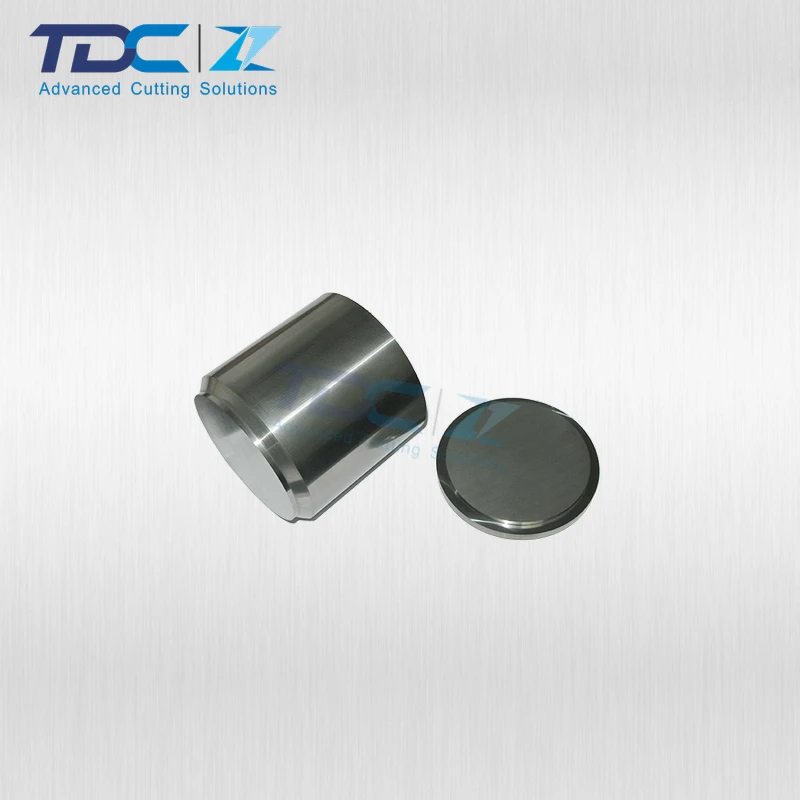

100ml polished tungsten carbide Lab planetary ball mill grinding jar cup bowl
Product Description
| Product name | WC jars tungsten carbide grinding jars |
| Material | WC+CO,100% vingin material |
| Grade | YG6/YG8/YG6X/YS2T/YG15 |
| Application | For Lab Planetary Ball Mill |
| Specification | High wear resistance,high hardness and impact toughness |
| Advantage | Advanced technology , automatic pressing,HIP sintering and precision grinding |
The grade information of WC jars tungsten carbide grinding jars
| Grade | Chemical perference | Physical perferance | ||||
| WC | CO | Density (g/cm3) | Hardness HRA | Impact toughness N.m/cm2 | Bending strengh Mpa | |
| YG6 | 94 | 6 | 14.6~15 | ≥89.5 | ≥2.55 | ≥1420 |
| YG6X | 94 | 6 | 14.6~15 | ≥91 | / | ≥1370 |
| YG8 | 92 | 8 | 14.5~14.9 | ≥89 | ≥2.45 | ≥1470 |
| YG8C | 92 | 8 | 14.5~14.9 | ≥88 | ≥2.94 | ≥1720 |
| YG11C | 89 | 11 | 14.0~14.4 | ≥86.5 | ≥3.72 | ≥2060 |
| YG15 | 85 | 15 | 13.0~14.2 | ≥87 | ≥3.92 | ≥2060 |
| YG20 | 80 | 20 | 13.4~13.7 | ≥85.5 | ≥4.70 | ≥2550 |
| YG25 | 75 | 25 | 12.9~13.2 | ≥84.5 | ≥5.39 | ≥2650 |
Packaging & Shipping
Our Services
1) We will try our best to reply to your within 24 hours.
2) We extend a 100% satisfaction guarantee on all items.
Company Information
Established in 2001 Tongda Carbide is today a worldwide known carbide manufacturer in Zhuzhou, China. Tongda mainly including tungste carbide grinding balls,carbide grinding jars, carbide rings, carbide rolls, carbide nozzles, carbide valves carbide bushes,carbide rods, carbide plates and many other special customized products for applications across a wide range of industry sectors.
High and new advanced equipment: imported 10MPa HIP sintering furnace from Germany.
The unique new technology: vacuum high temperature and high pressure sintering. The product uses pressure sintering at the last stage, greatly reduces the porosity, improves the compactness, and greatly improves the mechanical properties of the product.
If you are interest in our product,please send inquiry to know more details.
FAQ
1. Can I negotiate the Prices?
Yes.
2. What is your minimum order requirement?
We accept the sample and trial order.
3. How long will it take to execute my order?
For the customized items, we will indicate the delivery time in the quotation sheet.
4. Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. For the overseas orders, if there is quality problem, please kind to provide the pictures to show the problems by e-mail . We will provide the replacements to you at our cost according to actual conditions.
