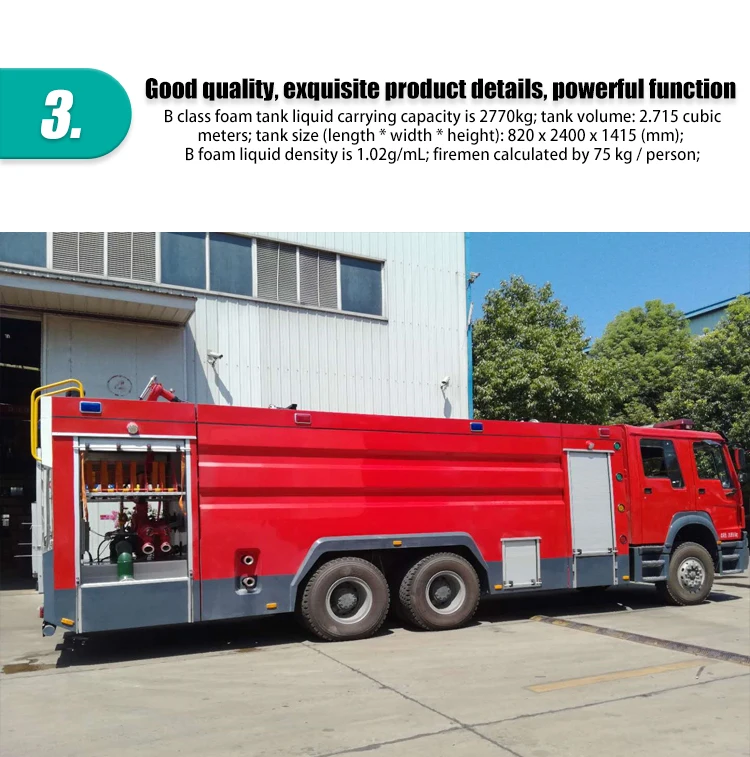

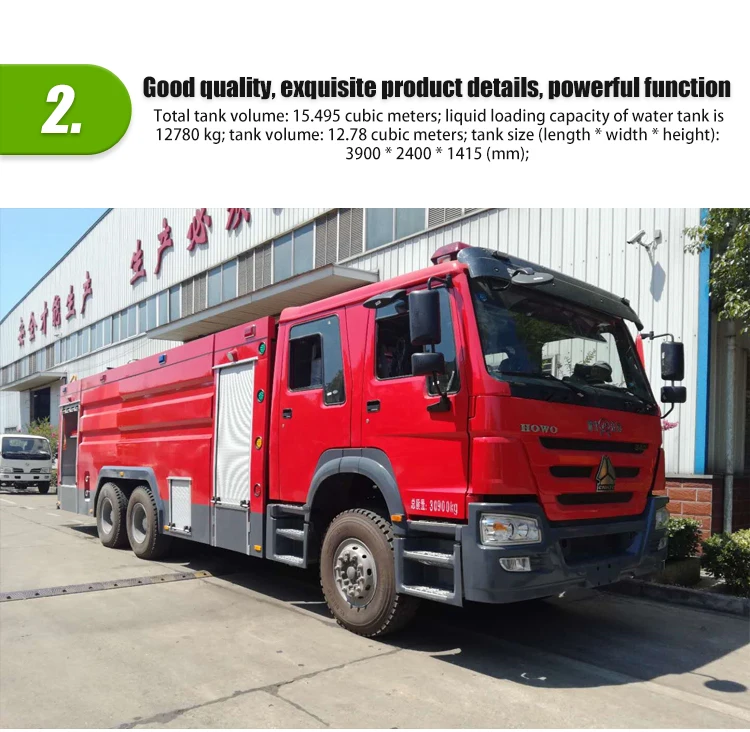

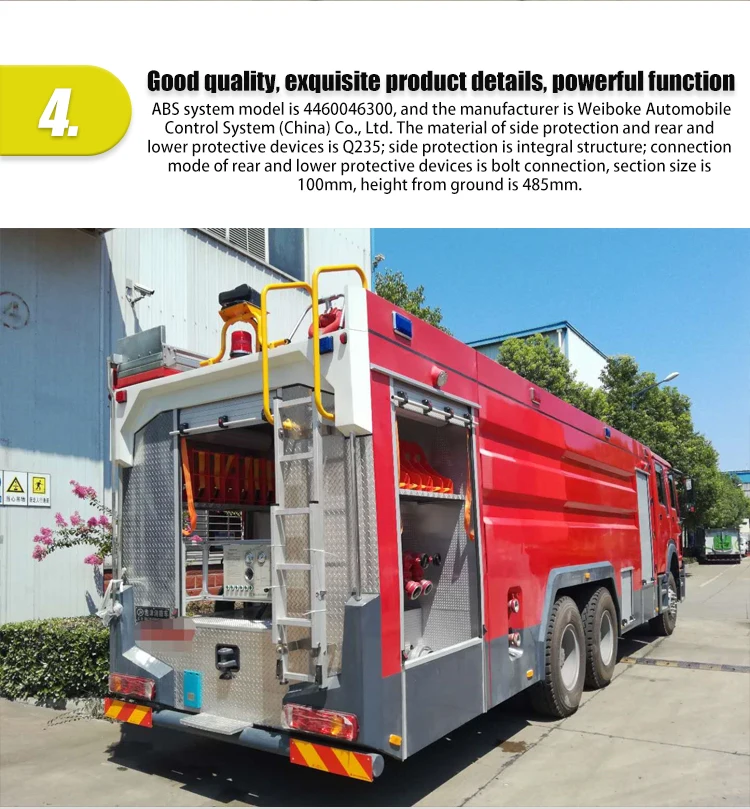

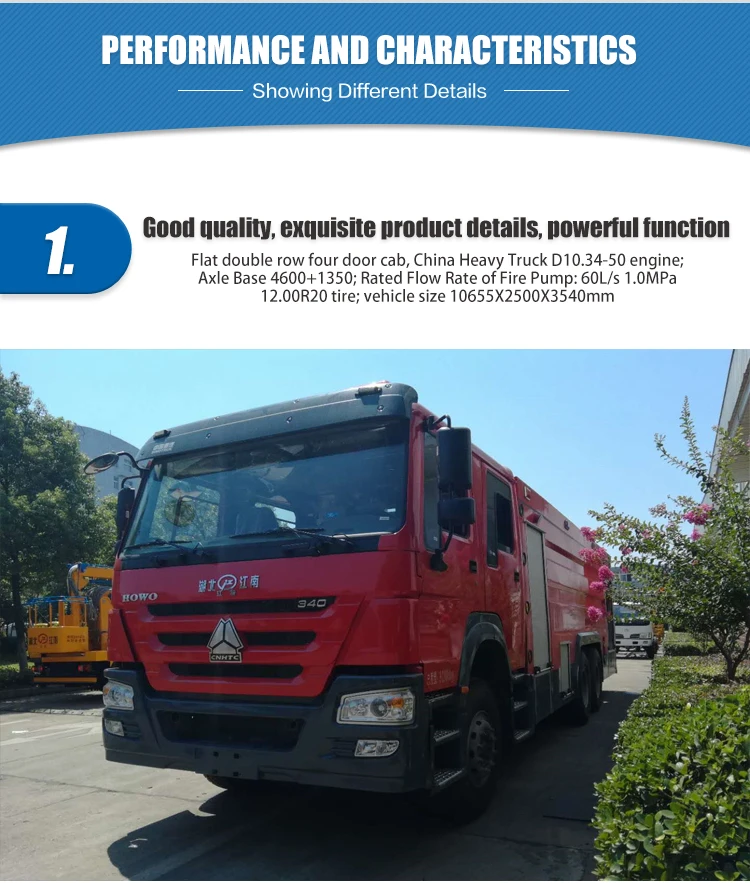

Total tank volume: 15.495 cubic meters; liquid loading capacity of water tank is 12780 kg; tank volume: 12.78 cubic meters; tank Body size (long * width * height): 3900 x 2400 x 1415 (mm); class B foam tank carrying capacity of 2770kg; tank Body volume: 2.715 cubic meters; tank size (length * width * height): 820 x 2400 x 1415 (mm); type B foam The liquid density is 1.02g/mL; firefighters are calculated at 75kg/person; ABS system model is 4460046300, production The company is Weiboke Automobile Control System (China) Co., Ltd. The material of side protection and rear and lower protective devices is Q235; side protection is integral structure; connection mode of rear and lower protective devices is bolt connection, cross-section size is 100mm, height of off-ground is 485mm.
Fire control operation dashboard and alarm light control box are installed on the original vehicle dashboard.
1. Alarm;
2. Control switch and indicator lamp of power takeoff;
3. Additional power switch;
Uploading structure and performance parameters
General layout

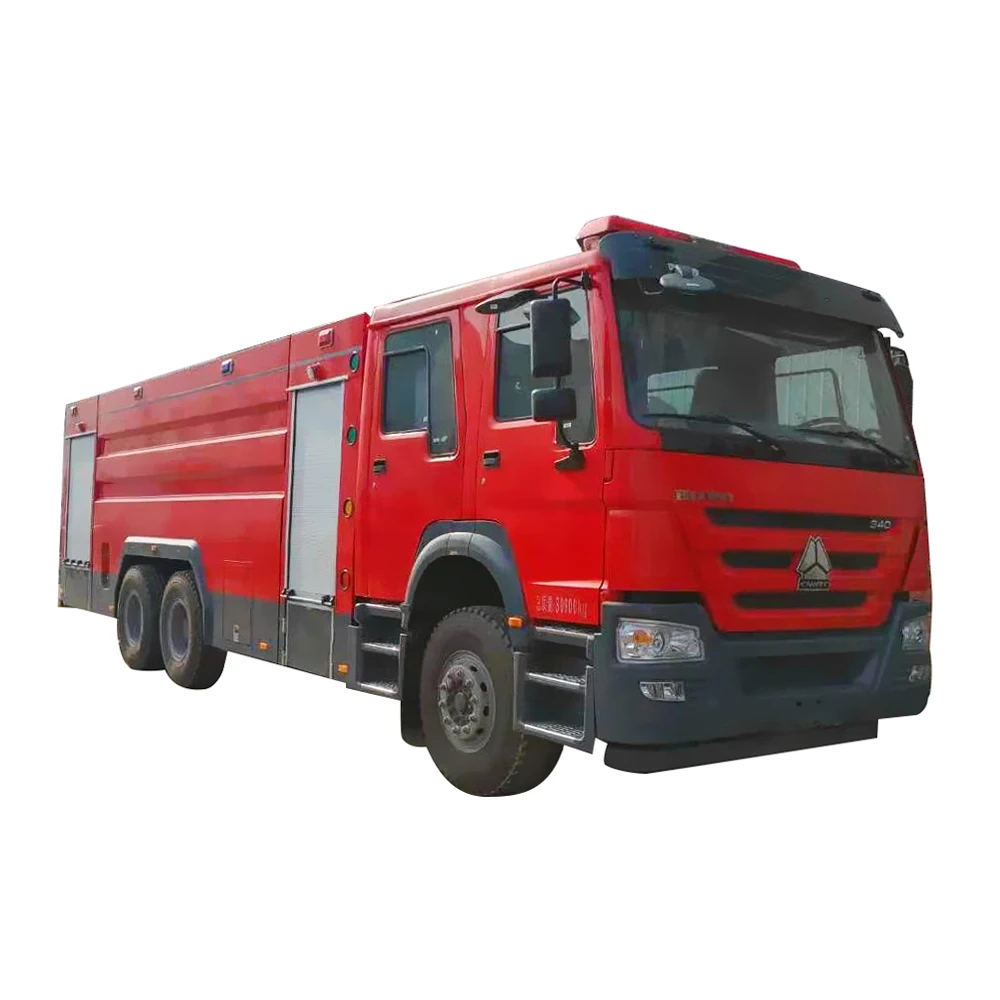

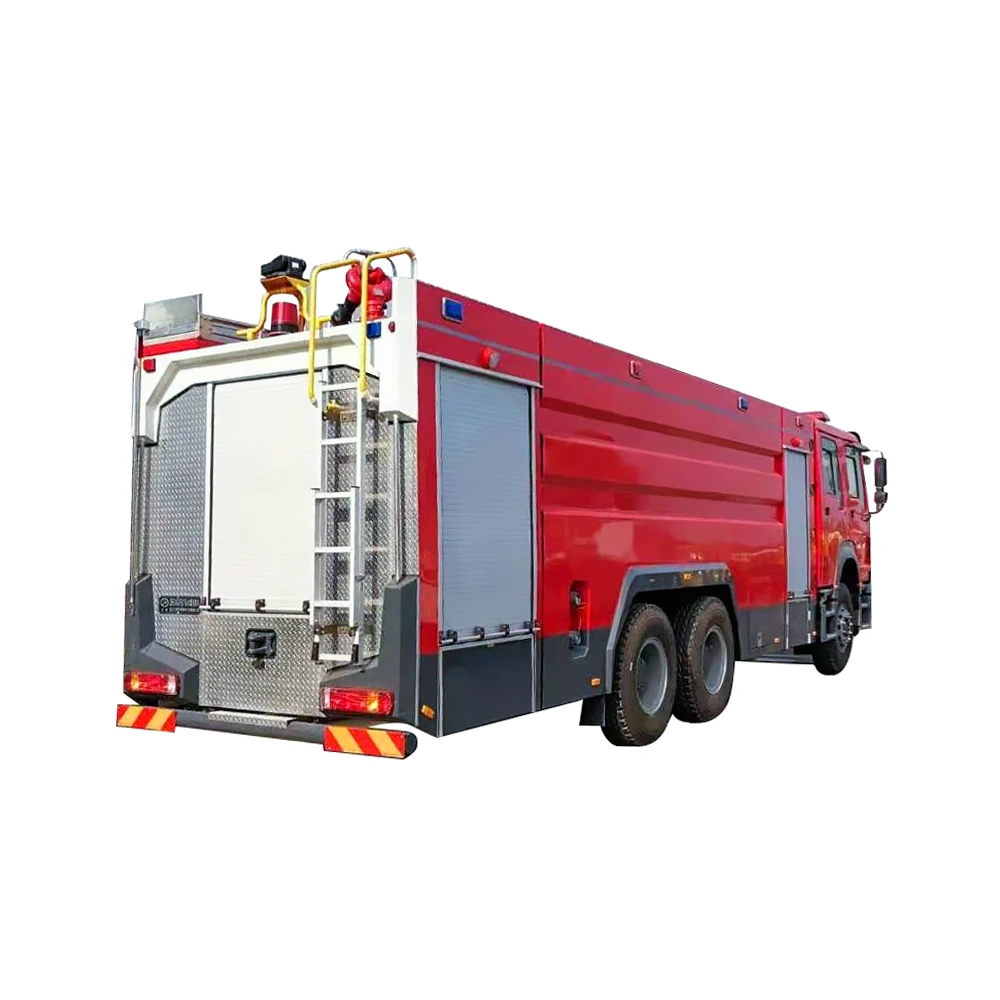

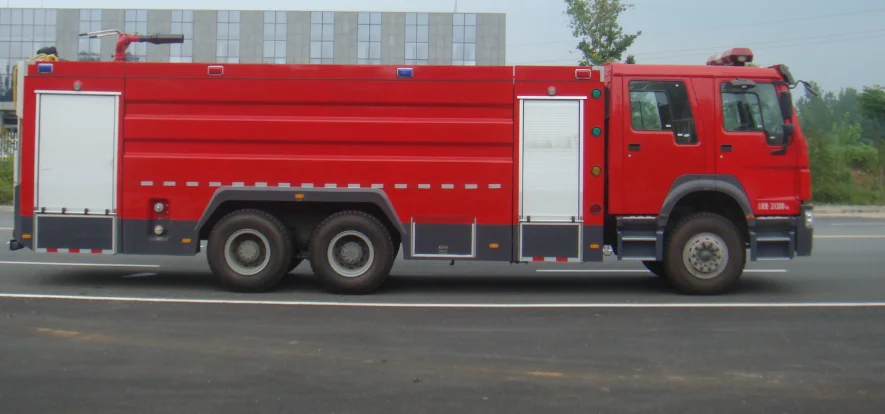

The whole vehicle is composed of two parts: the fire crew room and the car body. The car body is arranged in three-dimensional structure. The front part is the equipment box, the middle part is the water tank, the rear part is the water pump room, and the tank body is the parallel hexahedron box tank.
Equipment box and pump room
structure

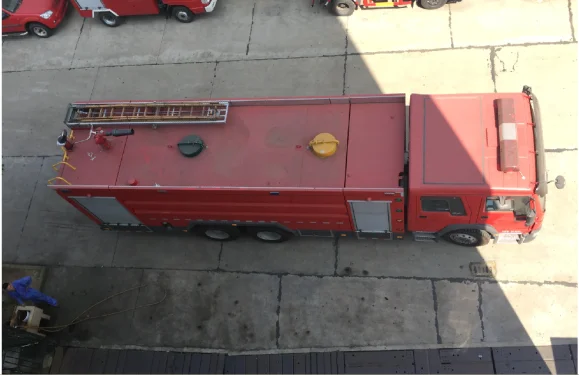

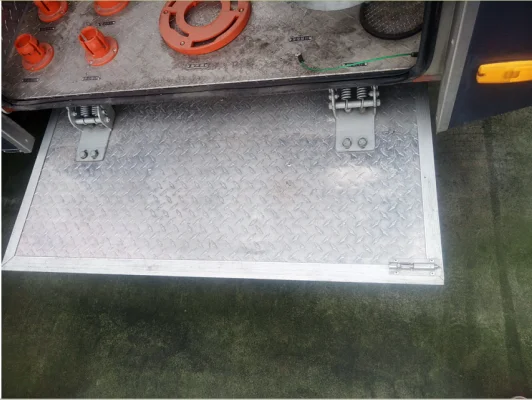

The main frame structure is welded by high quality square pipe, and the outer decorative plate is welded by carbon steel plate. The roof is slippery and walkable, with overturning pedals on both sides and slippery design.
Equipment box
The equipment box is located at the back of the passenger room, with aluminium alloy roll-curtain doors on both sides and lighting lights inside. Storage boxes are provided in the equipment box room according to the requirements. The side skirt is equipped with a toolbox and a rolling shutter door, which can be used for placing small tools.
Pump house

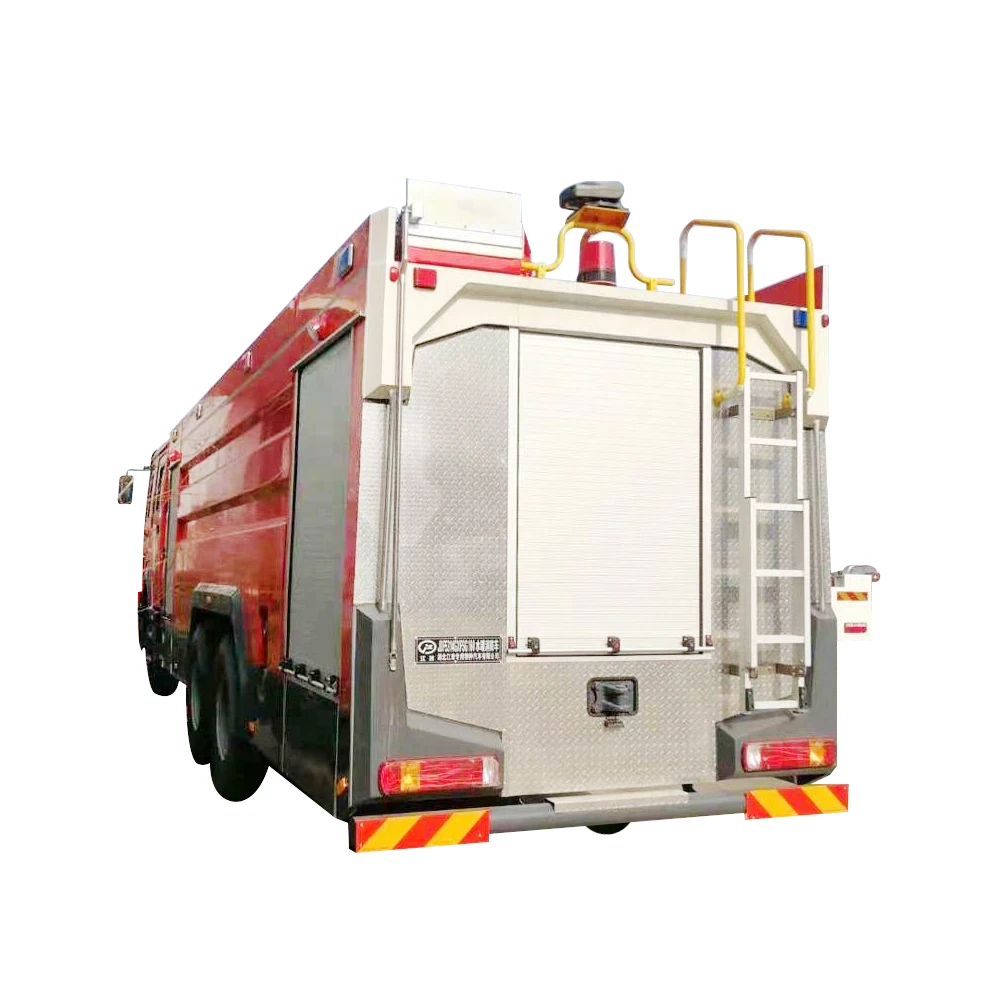

Pumping room is located in the rear of the whole vehicle. Aluminum alloy rolling shutter doors are installed on both sides and behind. Lighting lamps are installed in the pump room. Some common equipment can be placed on both sides of the pump room.
Installation location: Fuel heater (optional according to customer needs)

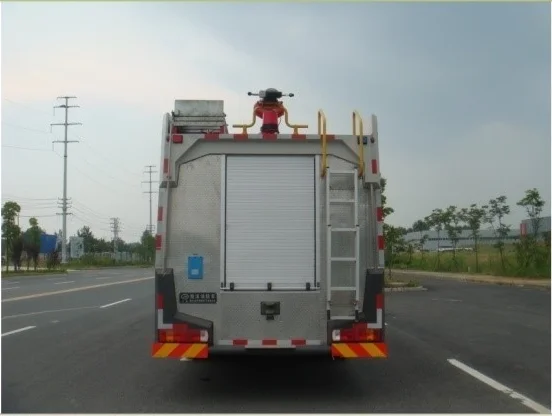

Climbing ladder and car handles
The rear climbing ladder is made of two aluminium alloy overturned climbing ladders. When used, the distance from the ground is not more than 350 mm. The upper handle is made of grooved anti-skid circular steel pipe, and the surface is sprayed with plastic.
