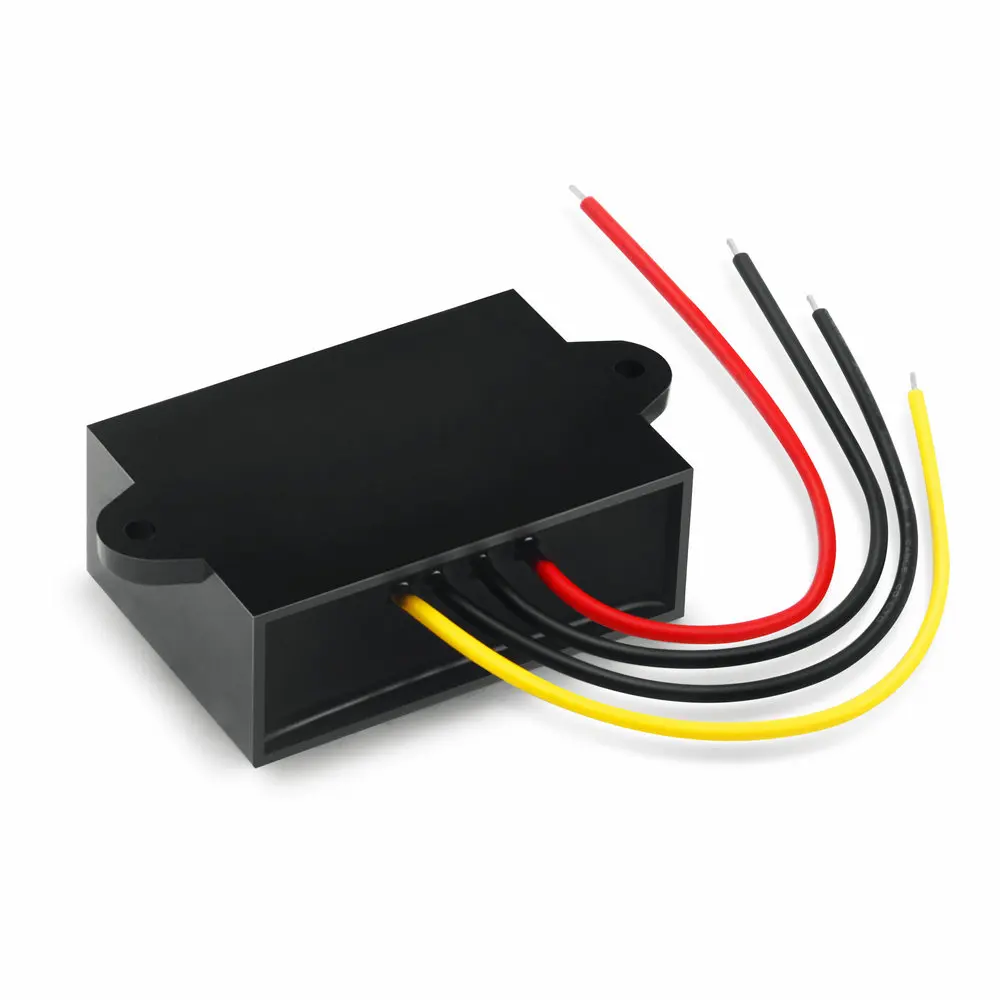

inverter power inverter 12v 24v 36v 48v 60v 20 75v to 5v dc dc buck converter 3A 4A 5A power converter
- Category: >>>
- Supplier: Huizhou Xinwei Technology Co. Ltd.
Share on (62360470122):
Product Overview
Description
Company Profile
Features：
1. Design meeting RoHS / CE
2. High efficiency: 93%
3. Non-isolated between input and output
4. High reliability internal capacitor: NCC & NICHICON
5. 100% full load burn-in test
6. Short circuit, Over load, Over temperature protections and automatic recovery work

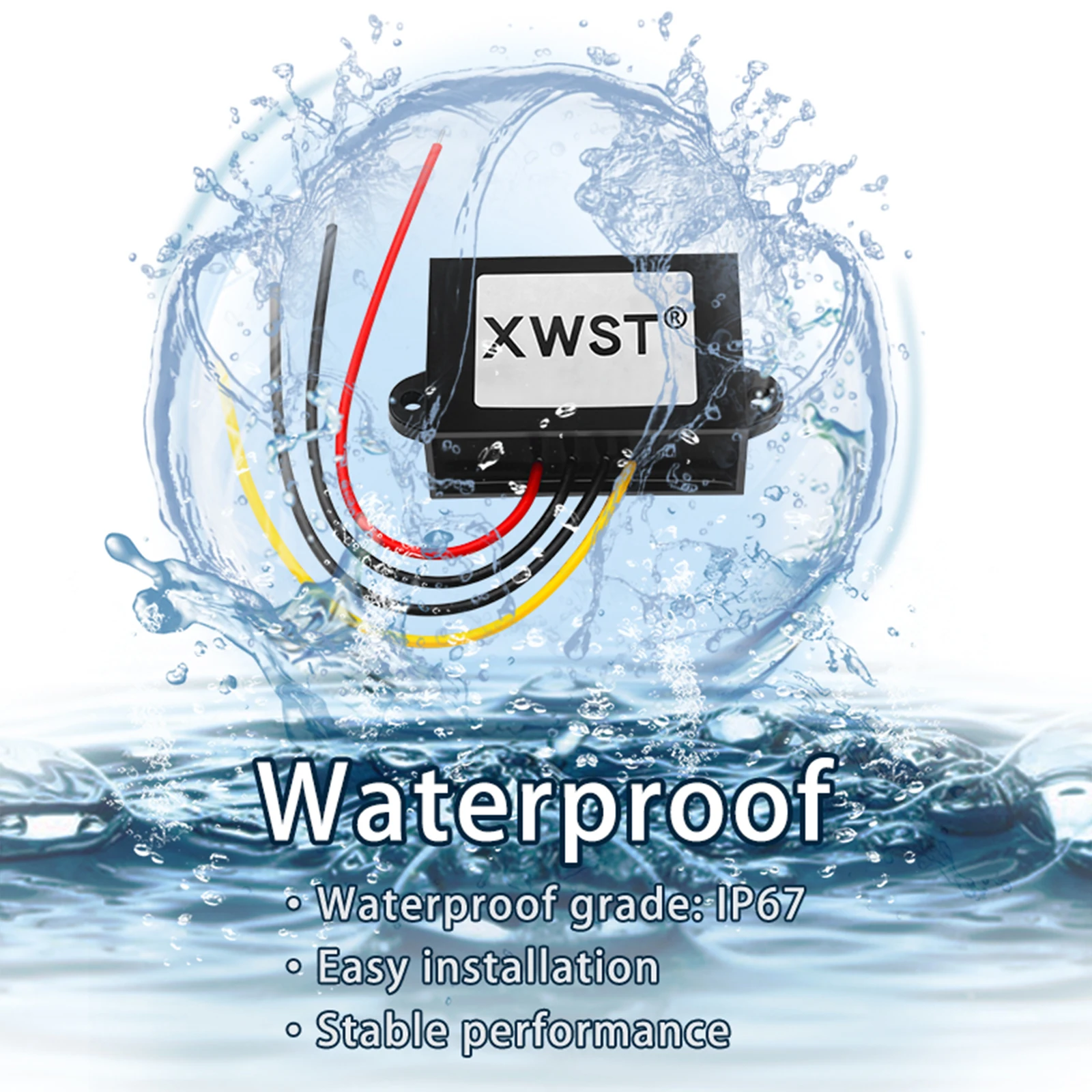

7. Waterproof level IP67
8. Ultra compact size, light weight , high reliability
9.1 year warranty, lifetime up to 100,000 hours
Important Notice: 1. This power supply cannot be used to charge the battery. If you want to charge the battery, please contact
customer service
2. The input has no reverse connection protection, please connect carefully
2. High efficiency: 93%
3. Non-isolated between input and output
4. High reliability internal capacitor: NCC & NICHICON
5. 100% full load burn-in test
6. Short circuit, Over load, Over temperature protections and automatic recovery work
7. Waterproof level IP67
8. Ultra compact size, light weight , high reliability
9.1 year warranty, lifetime up to 100,000 hours
Important Notice: 1. This power supply cannot be used to charge the battery. If you want to charge the battery, please contact
customer service
2. The input has no reverse connection protection, please connect carefully
Specification
Product Name | DC to DC Buck Converter |
Model No. | XW-60-5-15W~25W |
Module Properties | Non-isolated Module |

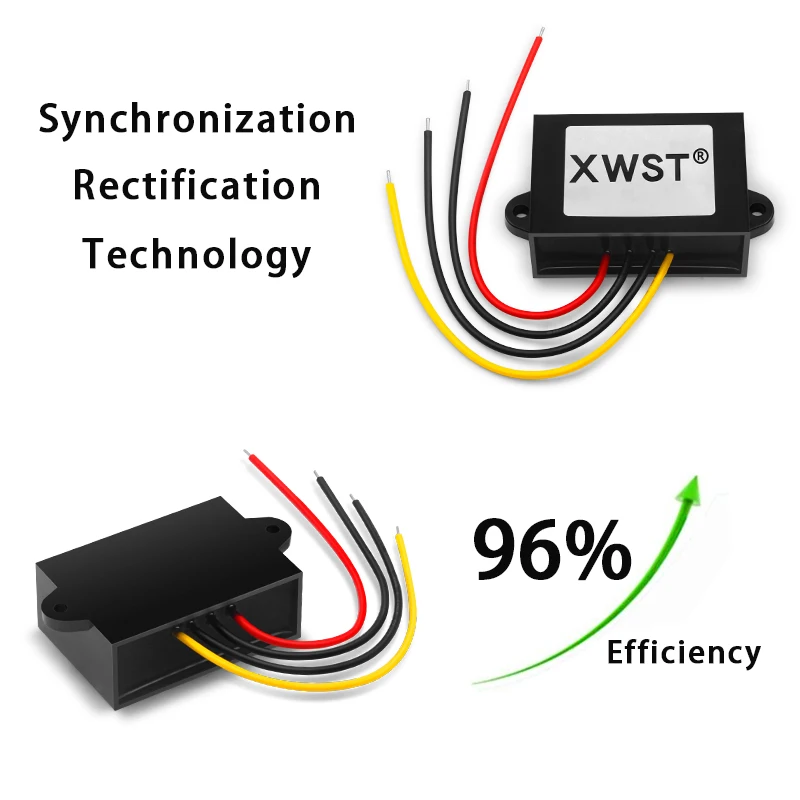

Rectification | Synchronous Rectification |
Input Voltage | DC 60V |
Input Voltage Range | DC 20-75V |
Output Voltage | DC 5V |
Output Current | 3A /4A / 5A |
Output Power | 15W/ 20W/ 25W |
Conversion Efficiency | >93% |
Cable Length | 13-14cm |
Ripple (Full load test) | 40mV |
No-load current | 3.5mA; |
Working Temperature | -40~80℃ ( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP67 |
Protection | Over-current /Over-voltage/Over-heat/Short-circuit Waterproof, Anti-shock , Anti-dust protection |

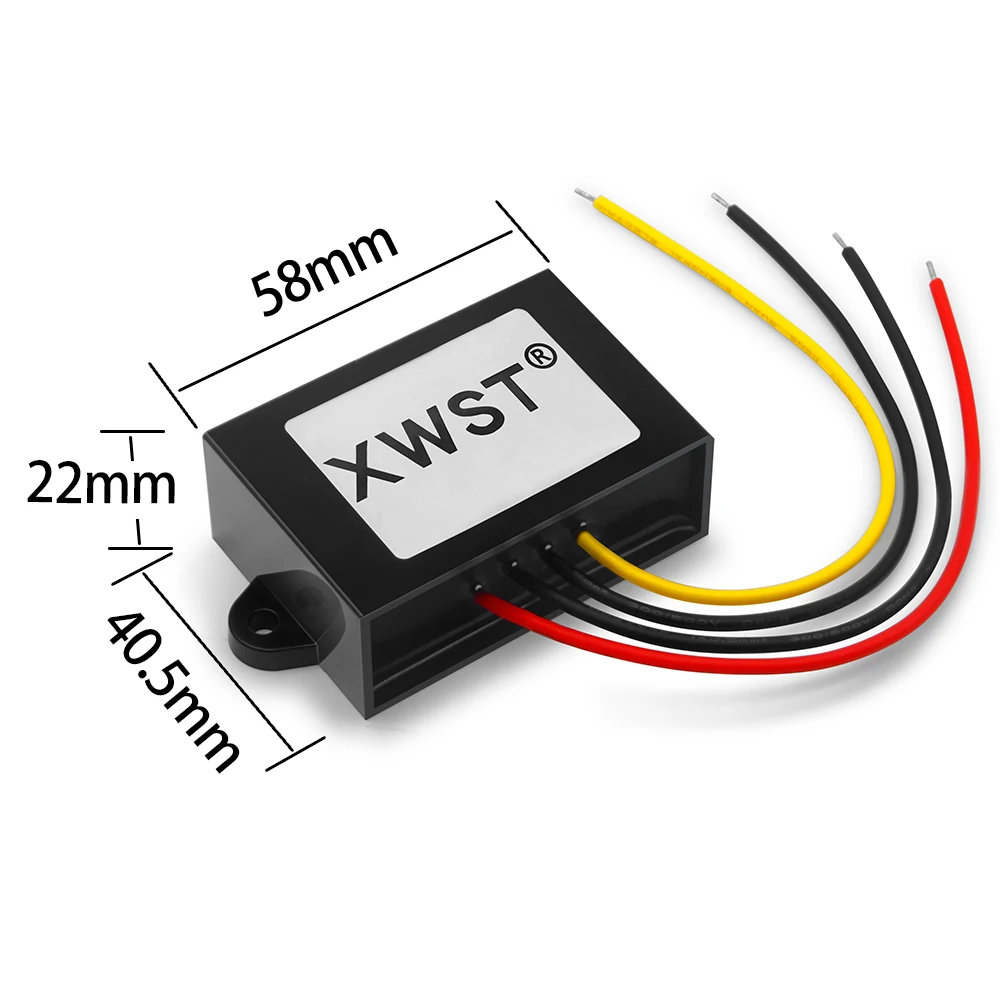

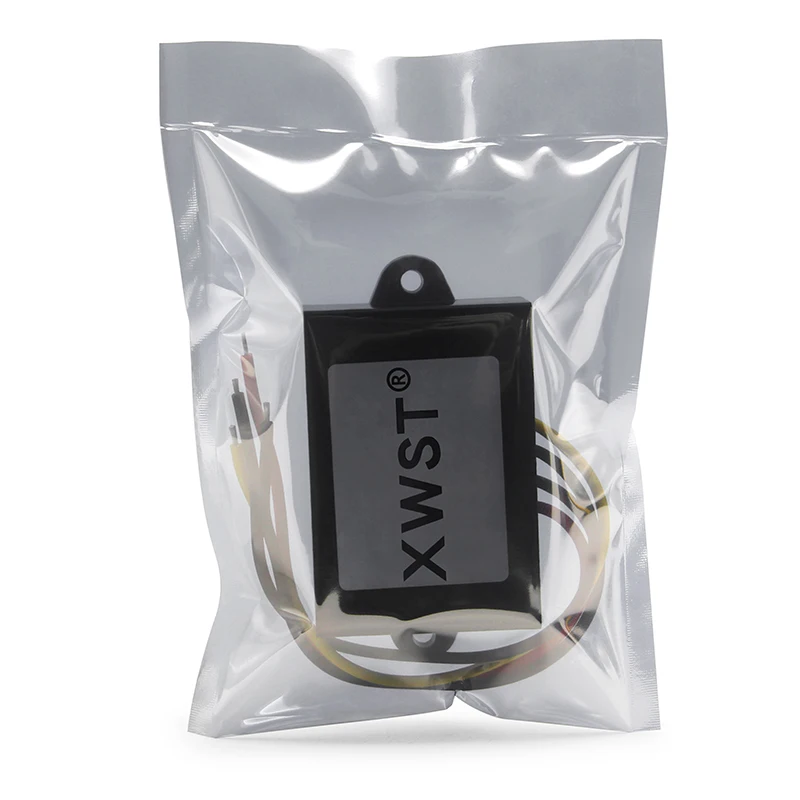

Packing & Size | ABS Plastic 58*40.5*22mm, 90g, Anti-static Bag |
Warranty | 12 months |
Product Description
