Product Overview

Description

Different Capacity Industrial Cement Rotary Drum Dryer Rotary Dryer Price

Description of Cement Rotary Drum Dryer:

Cement Rotary Drum Dryer are widely used for herb dried,mineral processing,building materials,metallurgy,chemical industry,cement plant for dry sand,slag and clay stone,drying a certain humidity or particle size of material.The dryer has strong adaptability to material,can dry all kins of materials, the operation is simple and reliable.Rotary drum dryer mainly consists of rotary body, raw material feeding plate,driving and supporting device.

Details of Cement Rotary Drum Dryer:

Cement Rotary Drum Dryer also named Rotary dryer,has the features of wide application,convenient operation and high running rate.While drying,hot gas transfers heat to materials and evaporates the moisure;meanwhile,under the effect of ventilating device,the drying materials are upgraded continuously to discharge the moisture.



Size of Cement Rotary Drum Dryer:

Model	Rotor diameter      (mm)	Drum length (m)	Main reducer		Speed (r/min)	Power (kw)
			Model	Ratio
Φ0.6×0.8	Φ600	8	JZQ350-16-1		8	3
Φ0.8×1.0	Φ800	10	JZQ450-16-11		7.2	4
Φ1.0×10	Φ1000	10	JZQ450-16-11		6.73	5.5
Φ1.2×12	Φ1200	12	ZL50-16-1		5.8	11
Φ1.5×15	Φ1500	15	ZQ50-1611-2	16.46	4.8	18.5
Φ1.8×14	Φ1800	14	JZQ650-111	18.84	3.2	3.
Φ2.2×18	Φ2200	18	JZQ750-111	31.5	3	37
Φ2.4×14	Φ2400	14	ZL850-13-1	27.6	2.83	45

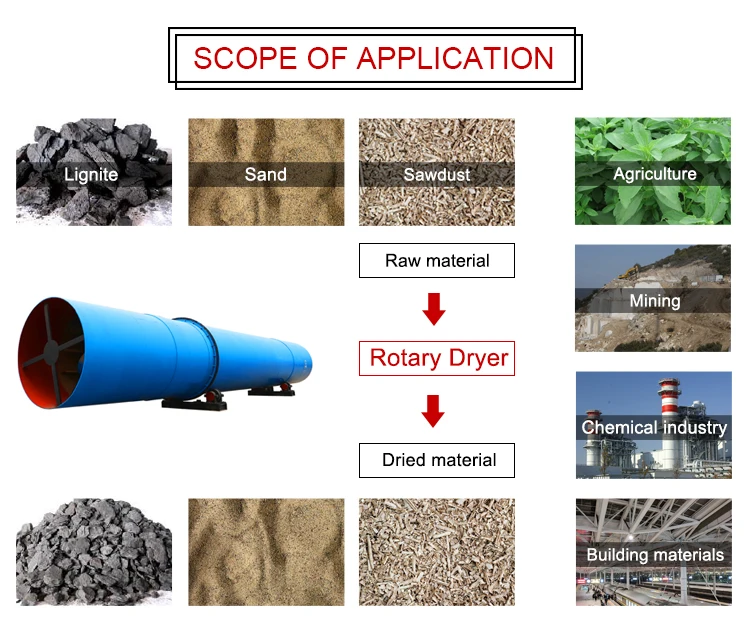

Application of Cement Rotary Drum Dryer:

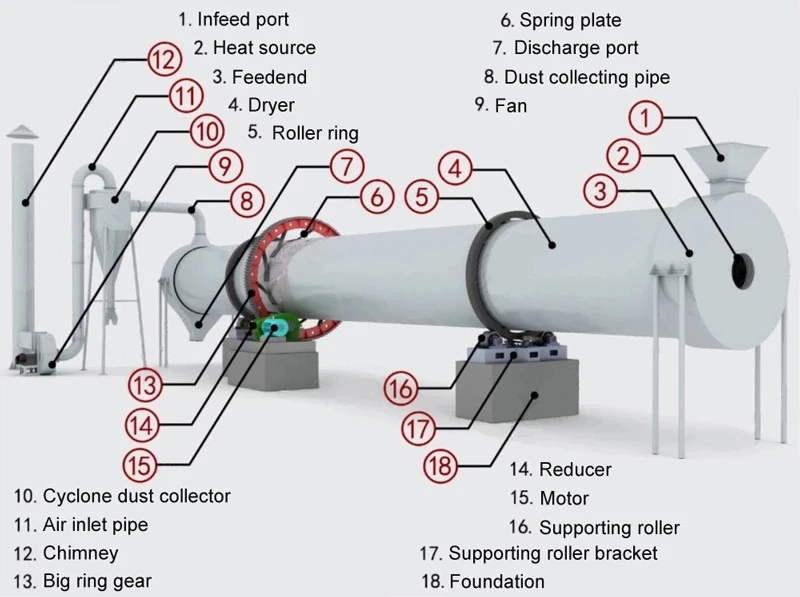

Structure of Cement Rotary Drum Dryer:

The features of Cement Rotary Drum Dryer:
1. The drying system uses a portion of its own product as fuel, without additional fuel. Simply adding the dried wet material to
the system will result in continuous dry material.
2. The Cement Rotary Drum Dryer adopts the fuzzy control principle, and is equipped with online moisture detection and automatic water
control. It not only ensures the product quality, but also greatly reduces the labor intensity of workers.
3.The Cement Rotary Drum Dryer uses a unique method to minimize the possibility of internal combustion explosion, and is equipped with
automatic fire prevention and explosion-proof devices to ensure safe production.
4.High heat efficiency. The principle of heat transfer of the rotary drum drter is heat conduction and the conducting direction
keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for
evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
5. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted.

The working principle of Cement Rotary Drum Dryer:
1.The raw material is transported by the scraper conveyor to the inside of the sawdust dryer. and the front is equipped with a hot
blast stove. The generated hot gas enters the dryer through the fire separating device, and the material is dispersed through the
low-speed rotation and bending plate.

2.So that the high-temperature airflow passes through the material and make heat exchange, the sawdust dryer has a certain angle of
inclination, and sufficient air volume to drive the material forward.

3.Finally, the dried material is discharged from the discharge port.The temperature generated by the heat source enters the long refractory lining chamber to maintain a low temperature. Adding auxiliary air to the chamber to maintain a lower temperature
level.

Advance of Cement Rotary Drum Dryer:
