4 Pairs BC CCA Conductor Shielded Network Cable Cat6 FUTP FTP 305m price

Product Overview

Description

4 Pairs BC CCA Conductor Shielded Network Cable Cat6 FUTP FTP 305m price

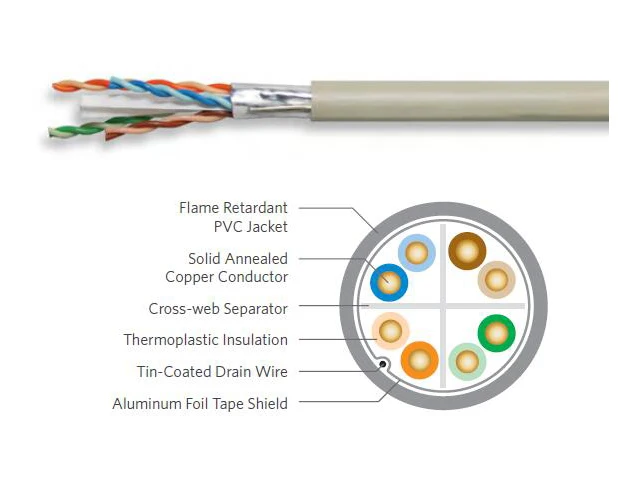

The Category 6 cable with shield contains 4 pairs of solid copper wires (or copper cladded aluminum wires) stranded together, seperated by a cross-web, wrapped by a layer of aluminum foil, then filled with drain wire,  completed by a flame-retardant PVC or LSZH sheath. it is ideal for PoE applications requiring higher levels of current and simultaneously up to 10 Gigabit Ethernet.

Features:

• Assures consistent, worry-free performance;


• Assures ample bandwidth headroom;


• Performance assurance for 10 GbE and multiple highbandwidth applications;


• Allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable;


• Easily identifiable conductor mates even in low-light environments.

Applications:

• Computer network cabling project;


• Broadband network communication;


• Digital ISDN and ATM 155Mbps network;


• Ethernet network;


• Audio and data transmission.

Order Informaton:

Item	Conductor		Nominal   OD (mm)	Shielding	Conductor Resistance in 20°C (≤Ω/km)	Package	Color
	AWG	Diameter (mm)
Cat6 UTP	24AWG	0.50	5.8	No	93	305M/box	Optional
	24AWG	0.52	6.0	No	86.2	305M/box	Optional
	23AWG	0.56	6.2	No	74.3	305M/box	Optional
	23AWG	0.574	6.4	No	70.08	305M/box	Optional
	23AWG	0.58	6.4	No	68.05	305M/box	Optional
Cat6 F-UTP	23AWG	0.56	6.87	Aluminum Foil	74.3	305M/box	Optional
	23AWG	0.574	7.6	Aluminum Foil	70.08	305M/box	Optional
	23AWG	0.58	7.6	Aluminum Foil	68.05	305M/box	Optional
Cat6 S-FTP	23AWG	0.56	7.2	Aluminum Foil +Alloy Braiding	74	305M/box	Optional
	23AWG	0.574	7.6	Aluminum Foil +Alloy Braiding	70.08	305M/box	Optional
	23AWG	0.58	7.6	Aluminum Foil +Alloy Braiding	68.05	305M/box	Optional
