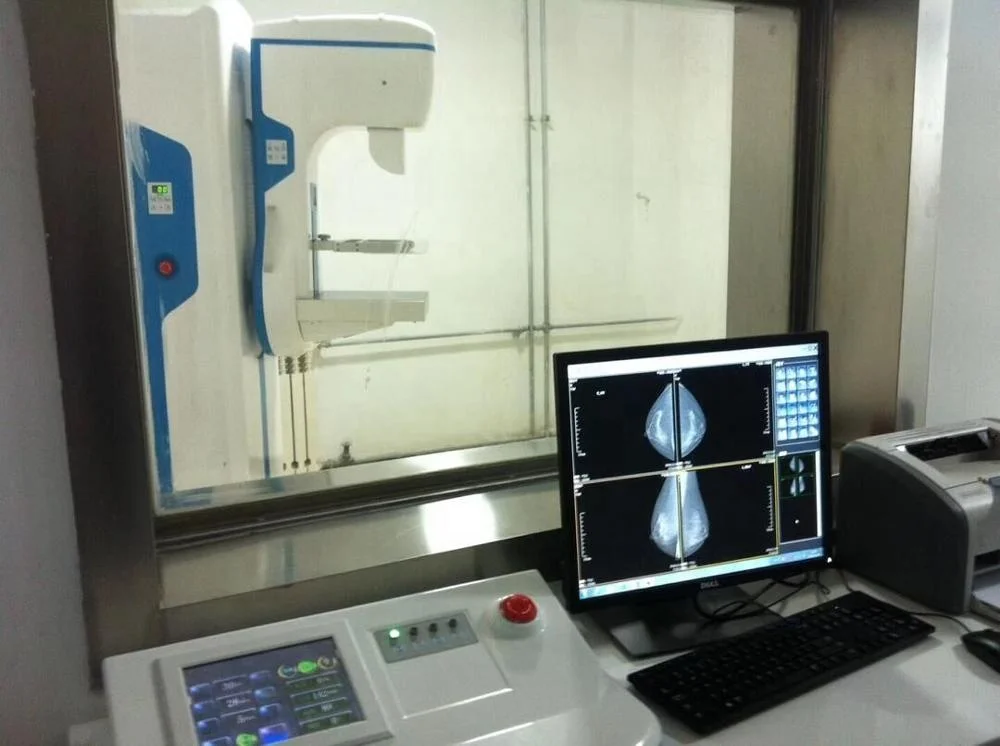

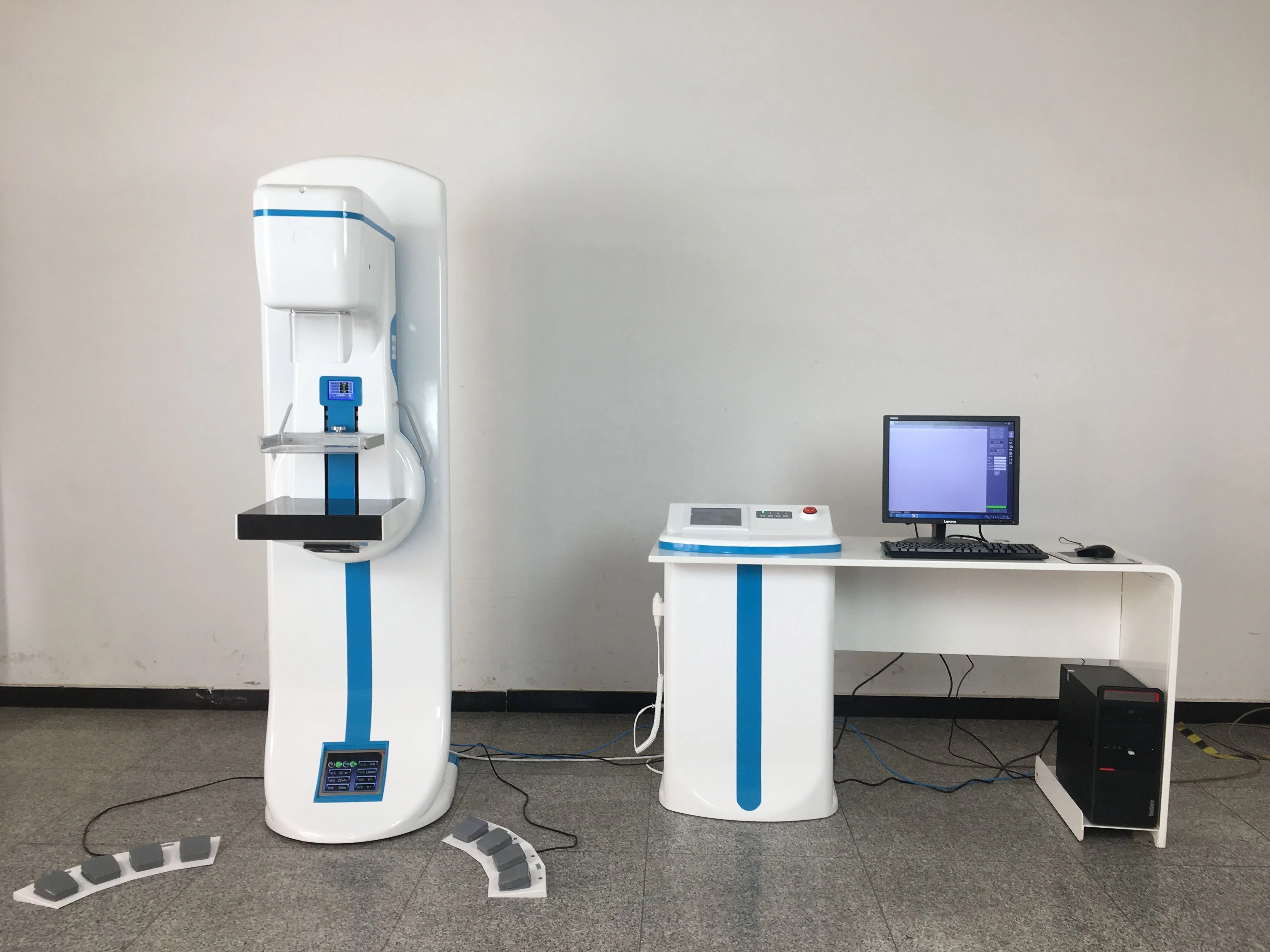

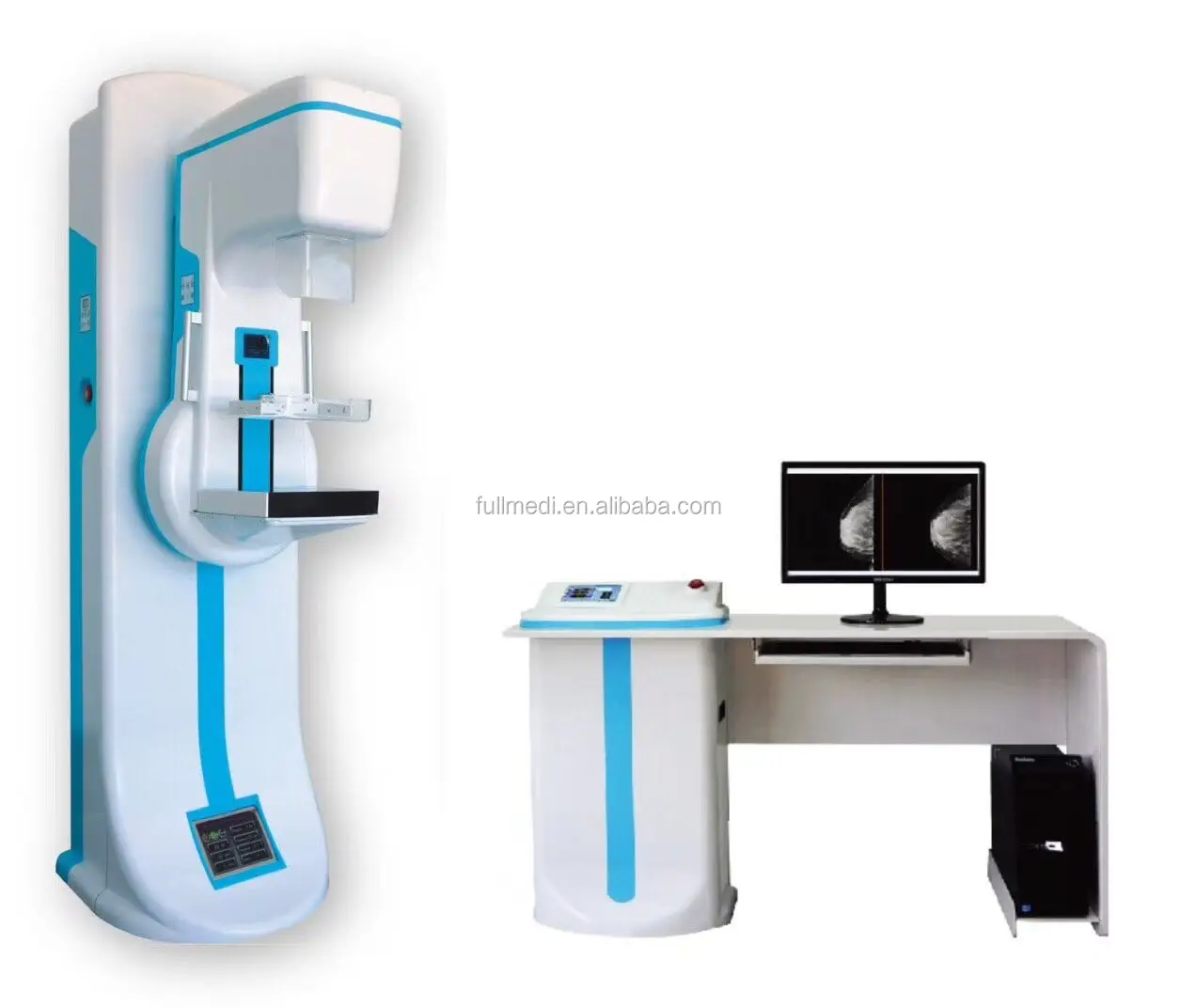

FM-M600 Digital Mammography System, Digital Mammography Machine, Digital Mammography X-ray Equipment
Product Description
I. Application
A mammogram is a special, low-dose X-ray technique used to take a picture of the breast, detecting and diagnosing any abnormal lumps or masses in breast tissue. It is one of the best tools for the early identification of breast cancer. With early identification, breast cancer can be cured while in the first stage, and recovery is more likely.
II. Specification:
Item
Parameter
Remark
X-ray Generator
Generator Type: High Frequency Inverter 80kHz
Self-developed All-solid-state high frequency high voltage x-ray generator
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings:
Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6.2kVA
X-ray Tube
Focal Spot Size: Dual Focus 0.1 / 0.3mm
Model:IAE C339V
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
High-speed anode drive: 2800 /10000rpm
Target angle: 10°/16°
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)

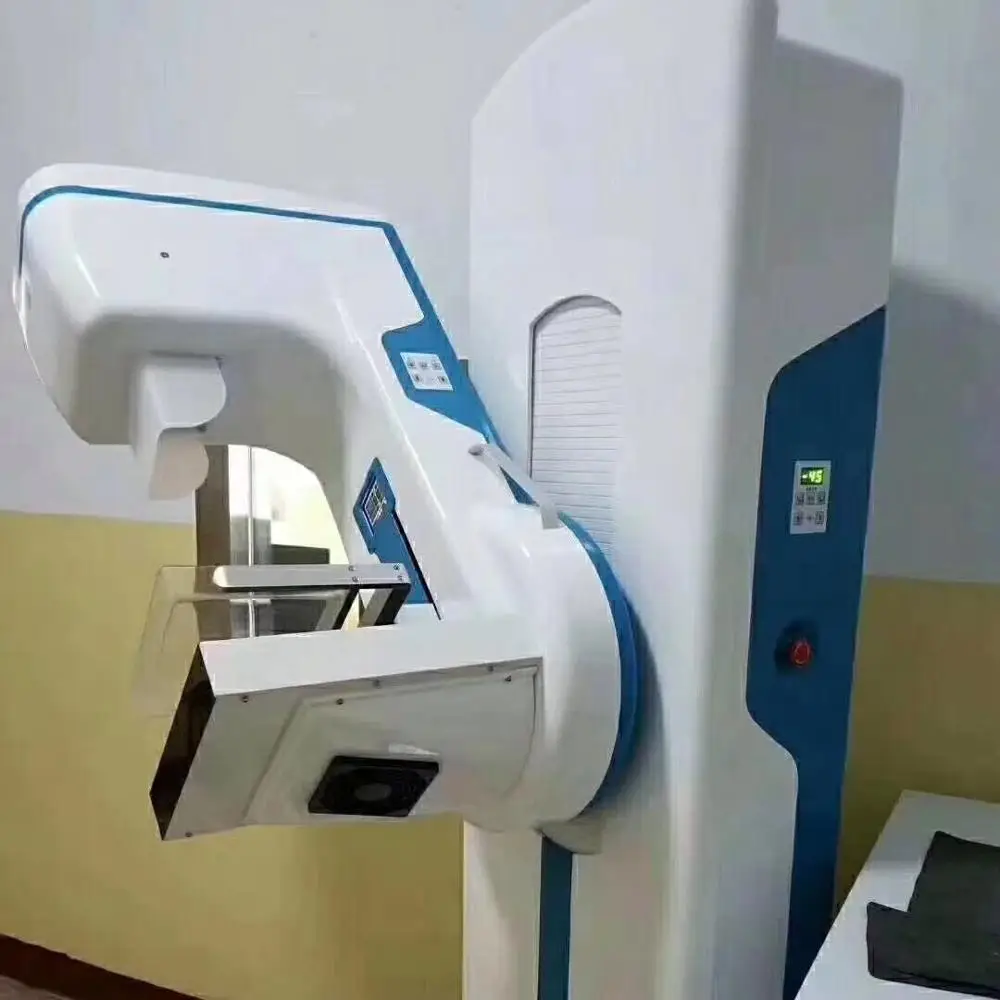

Radiographic Stand
C-ARM:
Vertical Movement: 590mm
Electric Isocentricrotating
Center of electric rotating C-arm
Automatic return function by one key
Rotations Degree: +90°~-90°
Automatically released after the exposure pressure settings display
Compression flexible, stepless speed.
Max. pressure: 200N
Max. travel: 150mm
SID: 650mm
Flat Panel Detector
Detector material: Amorphous silicon
China Flat Panel Detector
24x30cm for optional
Effective coverage of detector: 18x24cm
Pixel matrix: 3072x1944
Limit of spatial resolution: 6.0Lp/mm
DQE value: 70%
dynamic range: 14bit digital output
pixel size: 75μm
High voltage Synchronizer trigger: BNC
Output: Camera Link or Ethernet
Working condition: 10℃-40℃
storage environment: -10℃-50℃
Bucky housing and movement device
Size: 374*304*65mm
Stepless speed regulating range: 0~6cm/s
Movement range: 0.5~2cm
Grid Size: 24x30cm
Grid ratio: 5:1
Grid density: 30lp/cm
Focal distance: 650mm

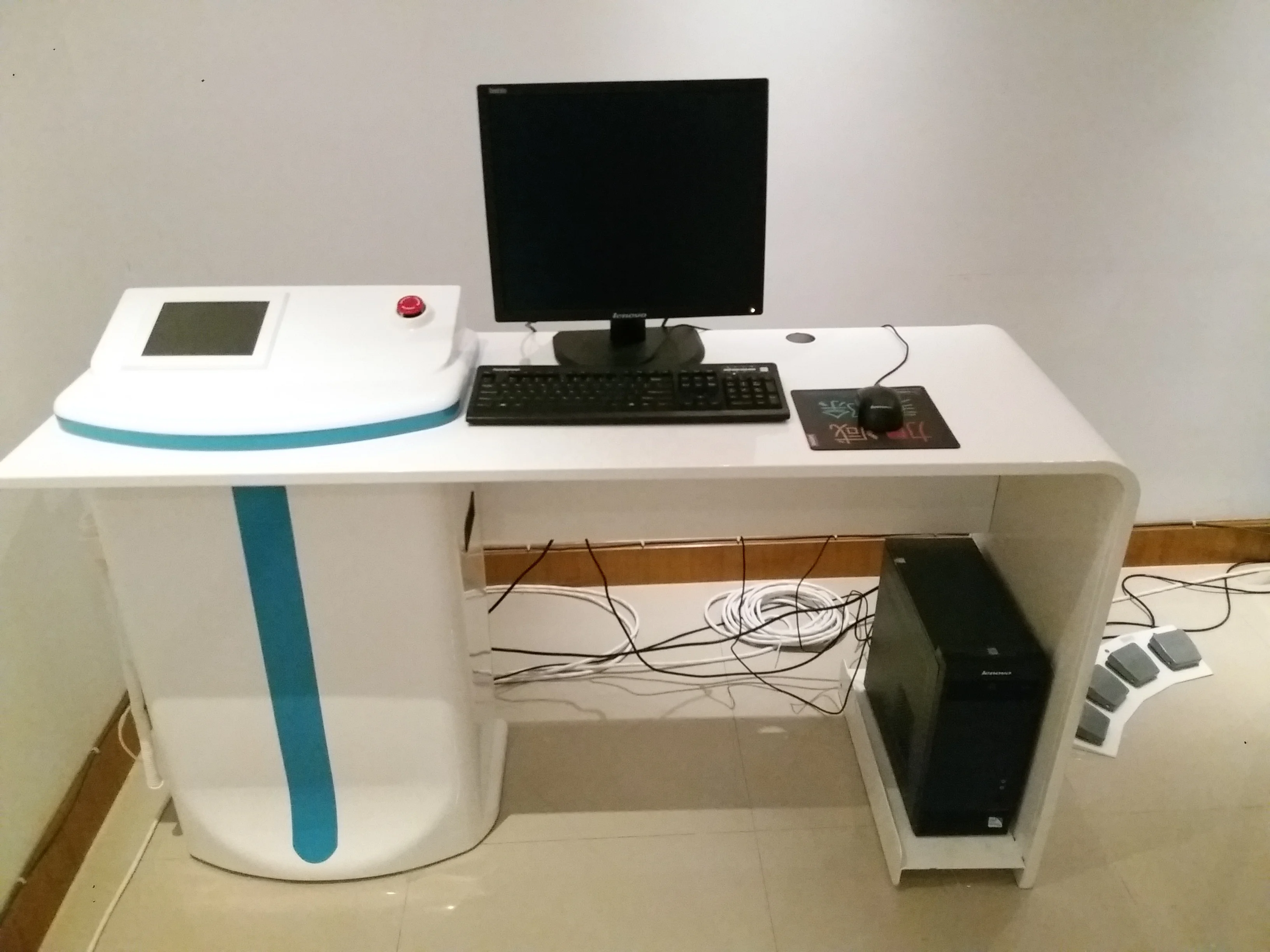

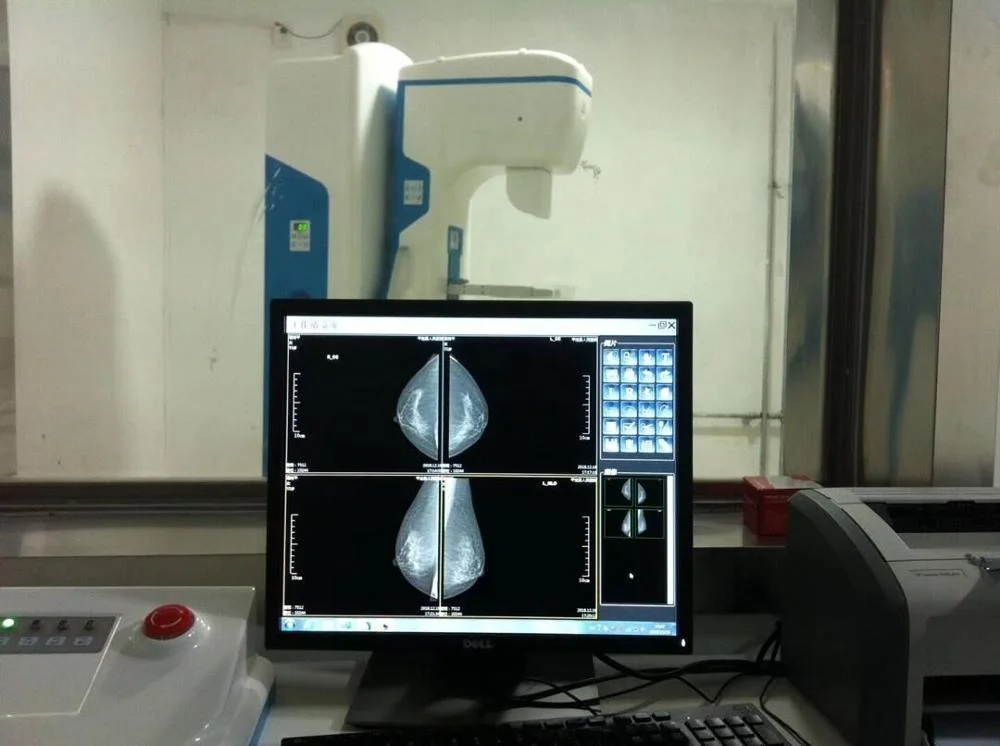

Imageacquisition workstation
CPU≥Intel Core Duo 2.60GHz
Configuration including Diagnose digital workstation
5M medical monitor for optional
Hardware≥250G high speed Hardware
Memory≥2G
Display card≥512MB
high brightness high-contrast LCD,1280*1024 Pixel resolution
Network interface Work-list
DICOM3.0 transmission
100/1000 Gigabit Ethernet
Software:
Imaging software package DMOC V1.0
Line Voltage
220V ac±10%@25A,Single phase
110V for optional
