Product Overview
Description
Product Description
Fiberglass geogrid is a kind of planar mesh material using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt.This grids have some good benefits:
Flexible and durable
High long-term design strength
Lightweight and easily installed
Cost effective
Specification | EGA 25-25 | EGA30-30 | EGA40-40 | EGA50-50 | EGA60-60 | EGA80-80 | EGA100-100 | ||||||||||
Tensile Strength (KN/M) | Warp | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||||||
Weft | 25 | 30 | 40 | 50 | 60 | 80 | 100 | ||||||||||
Elongation(%) | 3 | ||||||||||||||||
Mesh size(mm) | 12.7*12.7 25.4*25.4 42*42 50.8*50.8 76.2*76.2 | ||||||||||||||||
Width(m) | 1-6 | ||||||||||||||||
Specification | EGA120-120 | EGA160-160 | EGA200-200 | EGA260-260 | EGA300-300 | EGA400-400 | |||||||
Tensile Strength(KN/M) | Warp | 120 | 160 | 200 | 260 | 300 | 400 | ||||||
Weft | 120 | 160 | 200 | 260 | 300 | 400 | |||||||
Elongation(%) | 3 | ||||||||||||
Mesh Size(mm) | 12.7*12.7 25.4*25.4 42*42 50.8*50.8 76.2*76.2 | ||||||||||||
Width(m) | 1-6 | ||||||||||||
Applications
50KN Glass Fiberglass Geogrid Asphalt Geogrid by Karl Mayer Machine
This fiber glass grids have been widely used in road surface reinforced,preventing cracks caused by fatigue or reflection, reducing uneven sedimentation, and prolong the lifespan of road.
Parking Areas
Low volume roads
Flexible high-volume roads
Rigid high-volume roads
Airport runways and aprons
Production Process

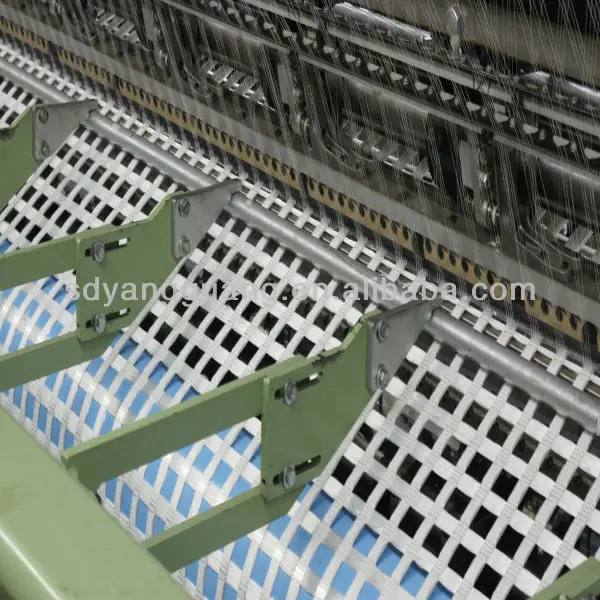

Warp-knitting Production
Our equipments are imported from Germany.
Karl Mayer RS3MSU-N
Liba Copcentra HS-2/ST
Geogrid Coating Production
Four sets of coating equipments
Certifications
Our geogrids have been tested in TRI Environmental, BTTG and FITI. The CE approvals were awarded by BTTG, U.K on Geogrids, Geocomposites and Asphalt Reinforcement Grids.
