Multi-network Connection
	Powerful Battery
	Rugged Design

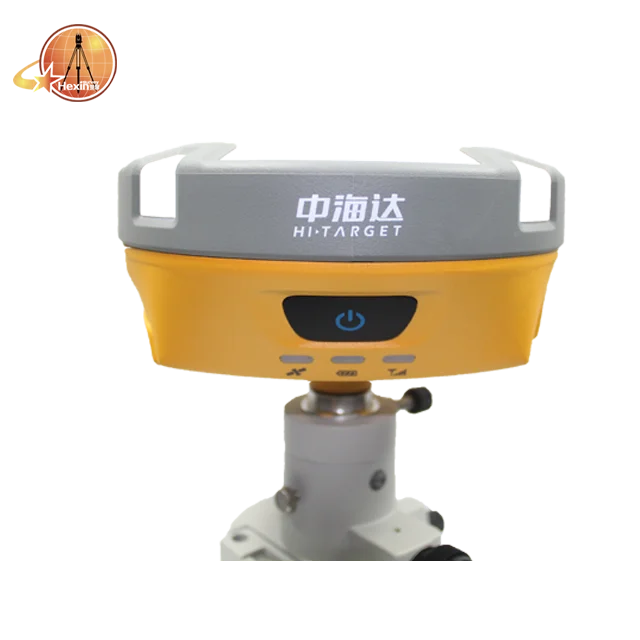

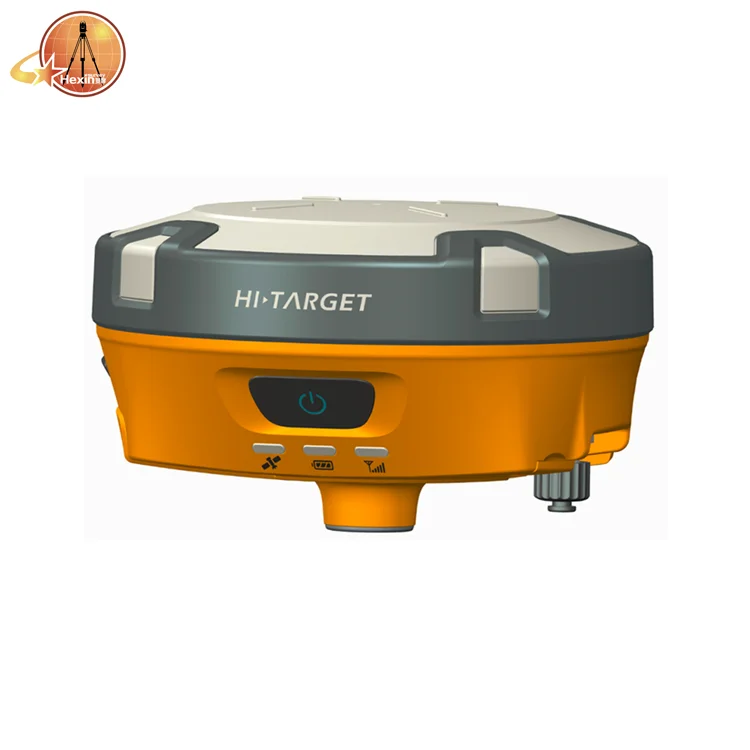

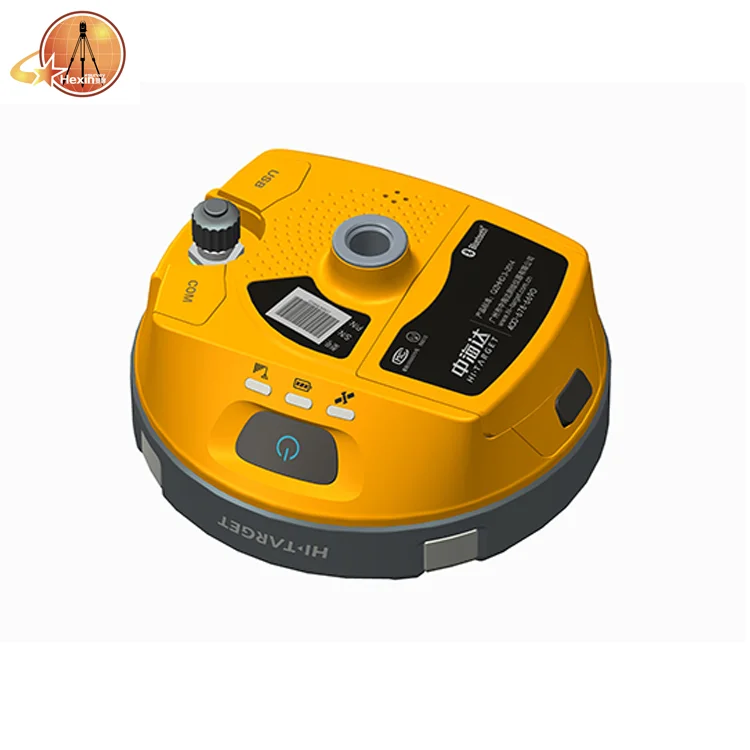

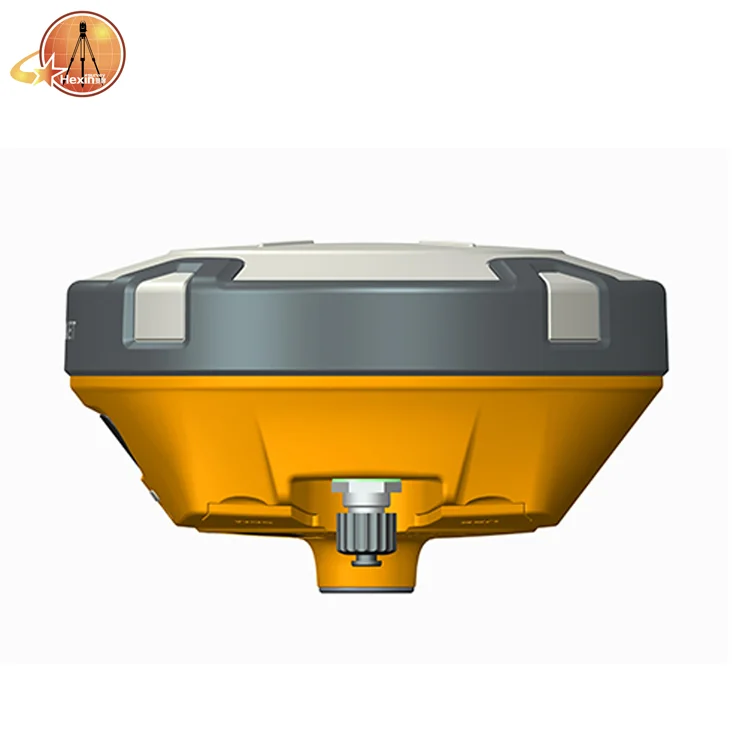

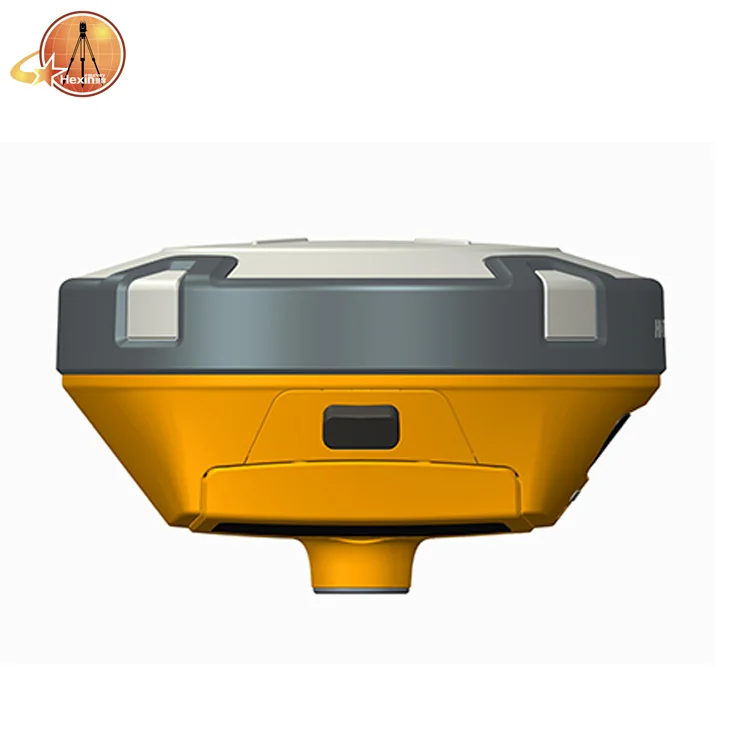

	V90  GNSS RTK SYSTEM
	Optional Transceiver UHF Radio

V90

Multi-constellation Tracking

• 220 tracking channels

• NGS approved full-wave GNSS antenna

• Supports GPS, GLONASS, GALILEO, BDS, SBAS

• Supports a wide range of satellite signals

• A Large receiving area designed for multipath mitigation

• Air dielectric is light and stable

Smart Application

• Offers tilt survey with a maximum tilt angle of 30 degrees

• Supports electronic bubble

• Intelligent voice assistance guides field operations. Voice can be DIY

•Standard Rinex data and HI-TARGET raw data recorded simultaneously

Optional Transceiver UHF Radio

• The transceiver UHF radio enables switchable working modes between base and rover

• Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk© internal UHF radio is compatible with other radios

iHand30 Field Controller

Default Configuration

The iHand30 is designed for intelligent RTK with NFC sensor, a durable keyboard, ultra-long battery Life and sensitive touchscreen, preinstalled free and intelligent Hi-Survey software. Hi-Survey software is the first high-precision survey software of Hi-Target running on the Android platform, supports tilt survey and electronic bubble, can perfectly cooperate with V90 Plus.

1 set packed in 3 cartons:
42*23*37 6.8kg
42*23*37 5.6kg
10*17*145 5kg

V90 PERFORMANCE SPECIFICATIONS

Satellite Signals Tracked Simultaneously

220  Channels

GPS  Simultaneous L1C/A, L2C, L2E, L5

GLONASS  Simultaneous L1C/A, LIP, L2C/A (GLONASS M only), L2P

SBAS  Simultaneous LI C/A, L5

Galileo  Simultaneous L1 BOC, E5A, E5B, E5AltB0C

BDS  Bl, B2

QZSS   L1 C/A, L1 SAIF, L2C, L5

POSITIONING PERFORMANCE

Static and Fast Static GNS5 Surveying

Horizontal 2.5mm+0.5ppm RMS

Vertical 5mm+0.5ppm RMS

Post Processing Kinematic (PPK/ Stop & Gol GNSS Surveying

Horizontal   1cm+1ppm RMS

Vertical   2.5cm+lppm RMS

Initialization time  Typically  10 minutes for base while 5 minutes for rover

Initialization  reliability   Typically > 99.9%

Real Time Kinematic(RTK) Surveying

Single Baseline

Horizontal  8mnn-1 ppm RMS

Vertica  15mm+1 ppm RMS

Code Differential GNSS Positioning

Horizontal  25cm+1 ppm RMS

Vertical  50cm+1ppm RMS

SBAS  0.50m Horizontal, 0.85m Vertical

COMMUNICATION

Network Communication

Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM Wifi frequency is 2.4G, supports the standard protocol 802.11 b/g/n Network RTK (via CORS) range20-50km

HI-TARGET Internal UHF Radio(StandardJ

Frequency   450^470MHz with 116 channels

Transmitting power    1W,2W,5W adjustable

Transmitting speed    9.6Kbps, 19.2Kbps

Working range    5km typical, 8^10kmoptimal

HI-TARGET External UHF Radio (Standard]

Pacific Crest ADL Vantage Pro External UHF Radio

Frequency   390-430MHz or 430-470MHz

Transmitting power   4W to 35W adjustable

Transmitting speed   Up to 19.2Kbps Support most of radio communication protocol

Working range   8-10km typical, 15-20km optimal

HARDWARE

Physical

Dimensions (W x H)   153mm x 83mm (6.02inch x 3.27inch)

Weight 950g [2.09lb)   without internal battery

Operating temperature   -40℃ to +65℃ (-40 °F to +149 °F )

Storage temperature   -55℃ to +85℃ (-67 T to +185 °F )

Humidity   100%, considering

Water/dustproof   IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).

Shock and vibration   Designed to survive a 3m(9.84ft) natural fall onto concrete.

Electrical

Power 6V to 28V DC external power input

Power consumption ≤3.5W

Automatic switching between internal power and external power

Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment

I/O Interface

Bluetooth, NFC X1

standard USB2.0port XI

TNC antenna connector X1

RS232 serial port X1

DC power input (5-pin) X1

MicroSD card port XI

Tilt Survey System Electronic Bubble
