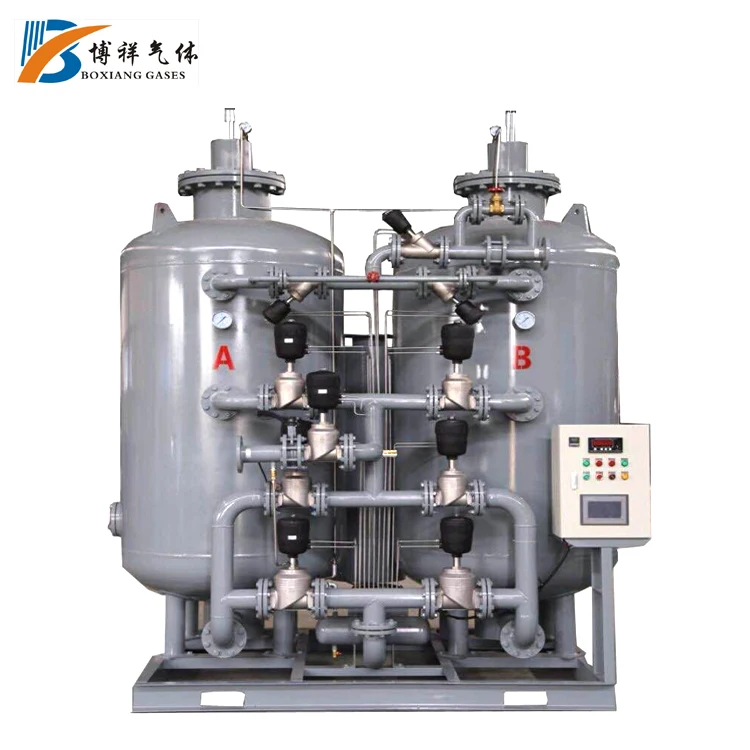

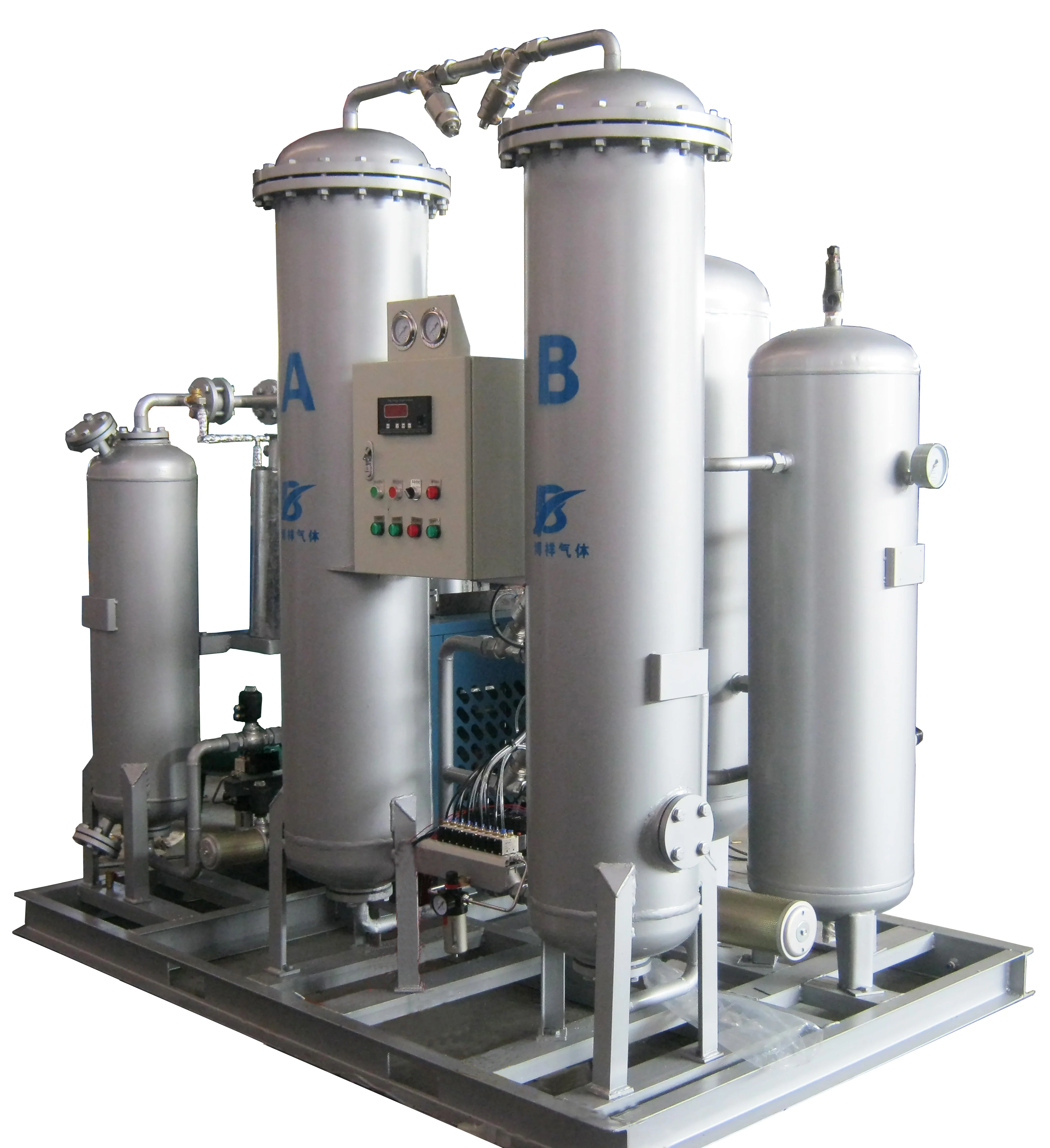

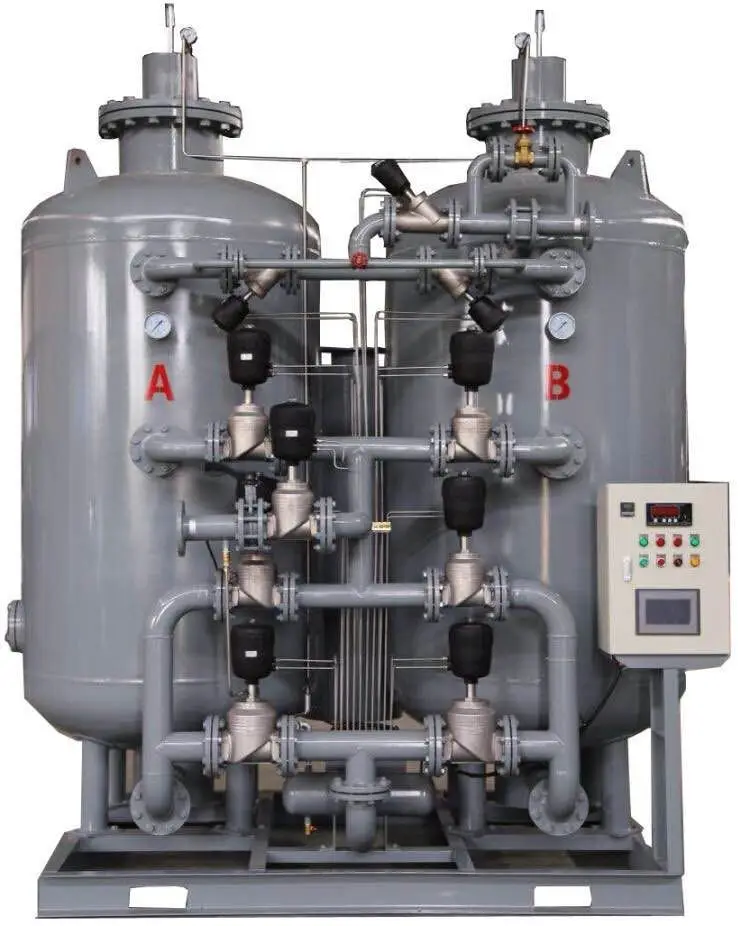

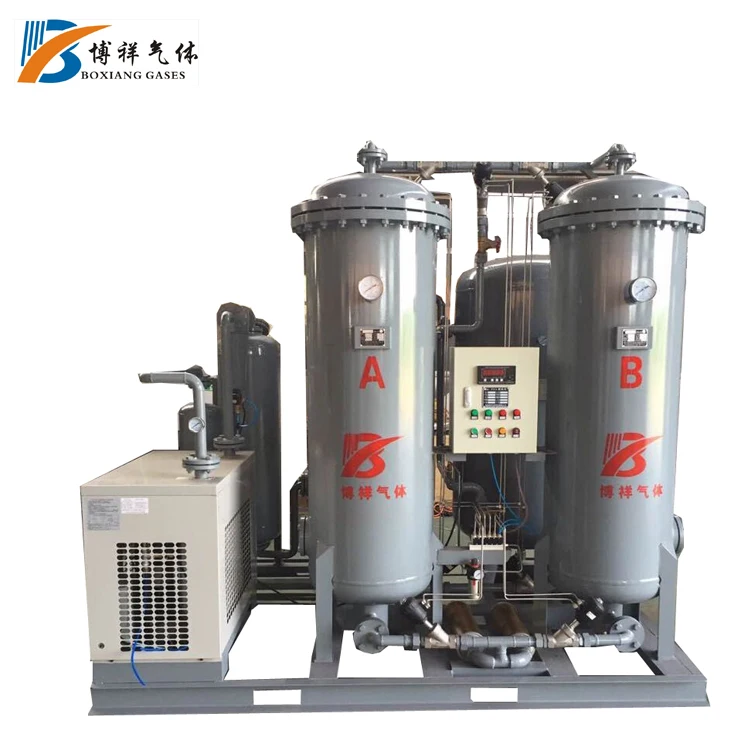

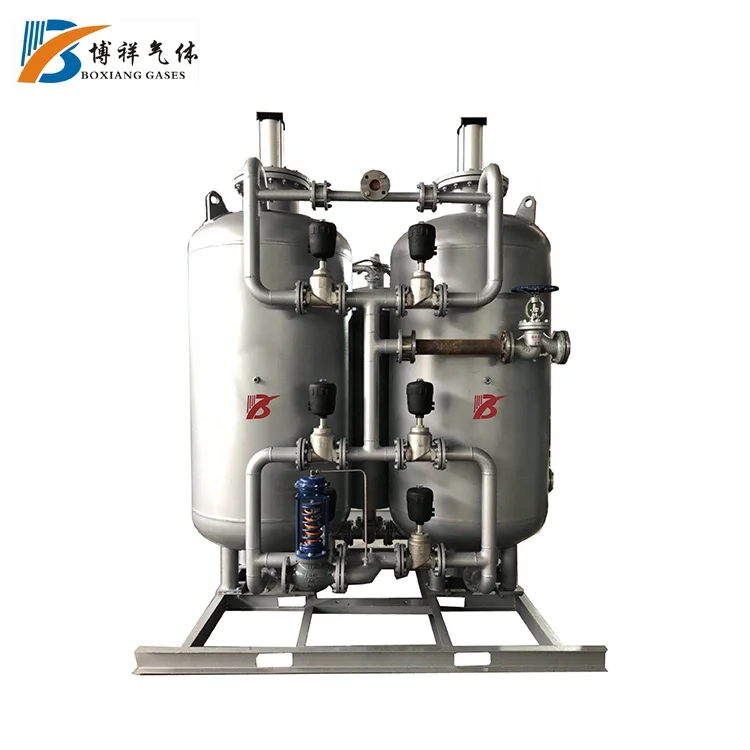

PSA Oxygen generator 100Nm3/h 93% 95% for oxygen gas fillling station
- Category: >>>
- Supplier: Hangzhou Boxiang Gas Equipment Co. Ltd.
Share on (62360728812):
Product Overview
Description
Product Description
PSA Oxygen generator 100Nm3/h 93%--95% for oxygen gas fillling station
PSA oxygen generator adopts high-quality zeolite molecular sieve as adsorbent and uses the principle of pressure swing adsorption(PSA) to obtain oxygen directly from compressed air.
A full installation requires air compressor, refrigerated air dryer, filters, air tank, oxygen generator and gas buffer tank.
We supply full installations but each component, and other optional supply like boosters, high pressure compressors or filling stations can also be bought separately.
Thchnical Index:
| Model no: | BXO |
| Structure: | Skid installation |
| Capacity: | 1~1000Nm3/h |
| Purity: | >80~95%(standard is 93%) |
| Pressure: | 0.1~0.5MPa(adjustable) |
| Dew Point: | -40~-70℃(under normal pressure) |
| Function: | Producing nitrogen gas with designed flow rate, purity and outlet pressure |
| Features: | 1.Intelligent, automatic operation, remote/automatic control 2.Special air distribution system, flow rate control, compaction technology and other technologies ensure stable operation; 3.Oxygen purity, pressure, flow rate on-line monitoring 4.Oxygen purity, flow rate are adjustable, meeting customer flexible needs; |
Product Parameters:
Products Show
Working Principle
According to the press swing adsorption theory,the high quality carbon molecular sieve as the adsorbent, under the certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity,the oxygen is adsorbed largely by the carbon molecular sieve, and the oxygen and nitrogen is separated.
Since the adsorption capacity of the carbon molecular sieve will be changed according to different pressure, once lowering the pressure, the oxygen will be desorbed from the carbon molecular sieve. Thus, the carbon molecular sieve is regenerated and can be recyled.
We use two adsorption towers, one adsorb the oxygen to generate nitrogen, one desorb the oxygen to regenerate the carbon molecular sieve, cycle and alternation,on the basis of PLC automatic process system to control the pneumatic valve open and colse, thus to get the high quliaty oxygen continuously.
Packaging & Shipping
| Packaging Details | wooden case |
|---|---|
| Delivery Time | 30 days |
| Shipping | Shanghai port or Ningbo port |
Application fields
| 1 | Electric furnace steelmaking | 7 | Petrochemical and chemical oxygen use |
| 2 | Wastewater treatment | 8 | Ore treatment |
| 3 | Glass melting | 9 | Aquaculture |
| 4 | Pulp bleaching and papermaking | 10 | Fermentation |
| 5 | Nonferrous metal smelting | 11 | Drinking water |
| 6 | Field cutting construction |
Our Services
Company Information
Related products photo
FAQ
Q1: Are you mancfacturer or trader?
A: We are professtioanl manufacutrer in air separation plant area.
Q2: What's your main products?
A: Our main pruducts are PSA nitrogen generator, VPSA oxygen genertor, PSA oxygen generator, small-sized liquid nitrogen genertor, compressed air and compressed air filters.
Q3 What is the delivery time of your gas generator?
A: Generally 45 days.
Q4: What is your payment terms?
A: TT and L/C are acceptable.
Q5: What's your advantages?
A: We supply excellent quality, vavorable price, good pre-sale service and after-service.
Q6: Where is your port of shipment?
A: FOB Ningbo or Shanghai.
Q7: How to get a prompt quotation?
A: Please tell us the usage, productivity, purity, pressure and your other requirements about the plant.
Q8: Your products are exported to which countries?
A: Our products are exported to Russia, Germany, The United States,Indonesia,Myanmar,Pakistan,Kazakhstan,Uzbekistan,Bangladsh,Malaysia,Brazil and other Countries.
Send Inquiry Please bring the following description, we have more models to recommend to you ~!
Thank you~! Best Regards
| Technical Information | Your Kind Requirement |
| Flow | _________Nm³/h(“N”=2 0℃,Atmospheric pressure) |
| Purity | _____% (30%~93±2%) |
| Outlet Pressure | _________Mpa or Bar |
| Dew Point | _________℃ |
| Power | ________V/ HZ Three-phase four-wire or three-phase five-wire or single phase three-wire |
| altitude | ________m |
| environment temperature | highest ℃ lowest ℃ |
| relative humidity | RH or ppm |
| Control system | DCS centrally monitors OR reserved RS485 communication port YES NO |
| packaging | The small equipment is packed in fumigation wooden box, and the large equipment is bare. |
