MPR5000S:7' Industrial 32 Channel Digital Color Paperless Temperature Humidity Chart Recorder in Universal Inputs
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (62360764878):
Product Overview
Description
-30000 to 30000
Product Show
Specification MPR5000S | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' Color LCD TFT | |||||
Size/Installation Size | 180x150x160mm/ 138x138mm | |||||
Power supply | 100-240VAC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

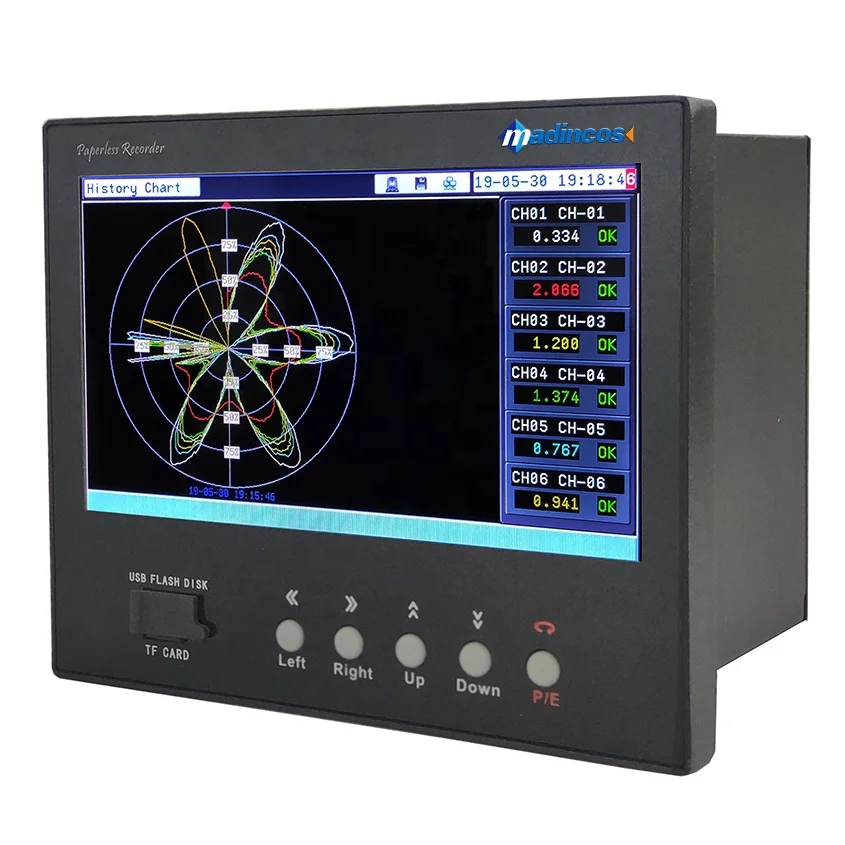

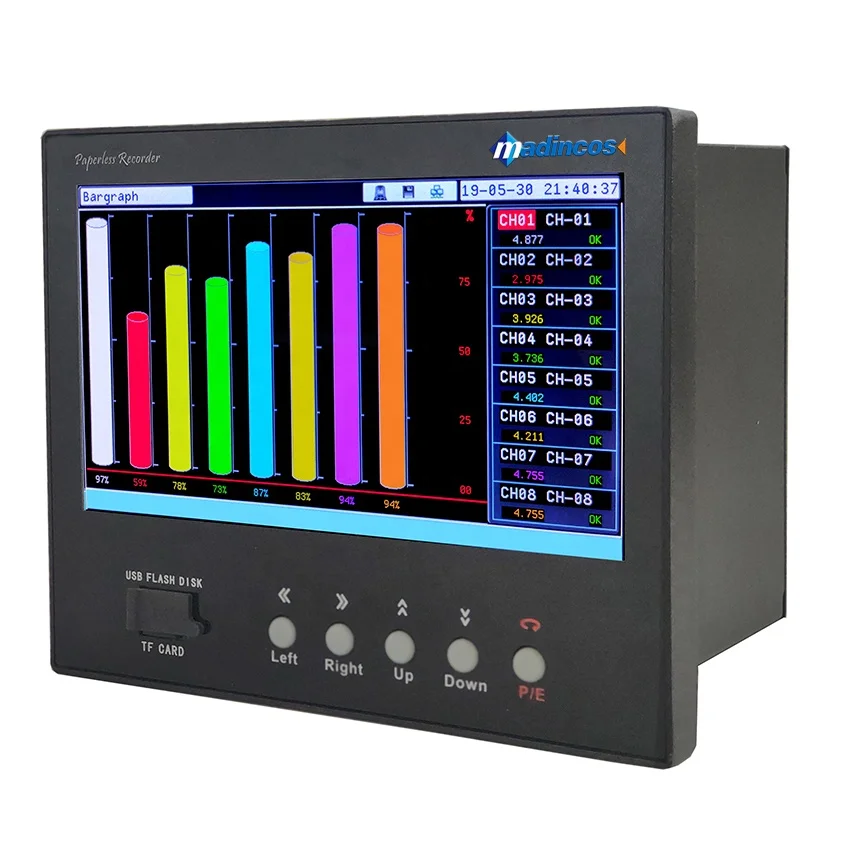

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | ||||||
Univeral Input | Themocouple, RTD, Analog, mV,frequency input; programmable | |||||

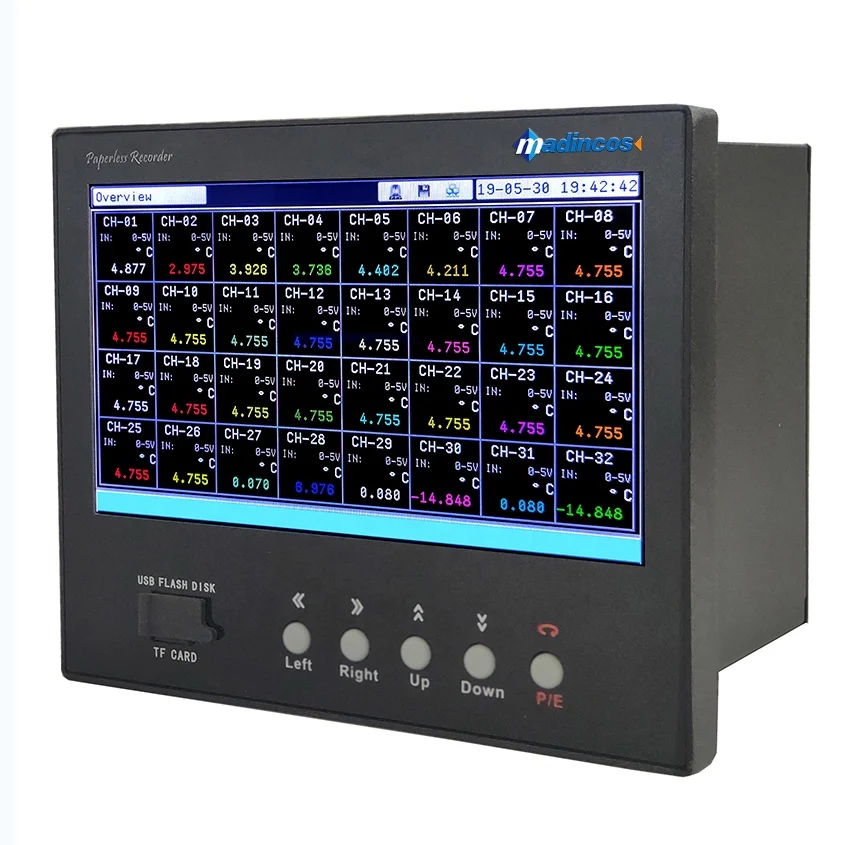

Input Channels | 1,2,3,4,5,6,7,8......16.....24....32, optional | |||||
Channels Isolation | 400VAC photoelectrical isolation | |||||
Sample Rate | 1 seconds /8 channels | |||||
Relay output | 3A, NO, max 16 relay output, configurable for channels | |||||
RS485 communication | standard Modbus-rtu protocol, | |||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | |||||
feed output | auxiliary 24VDC output for transmitter | |||||
Print | printing output for data in digital and curve | |||||
Flow totalizer | with temperature, pressure compensation for channels | |||||
Math | +, -, x, /, ,max, min, average; linear math | |||||
Detailed Images

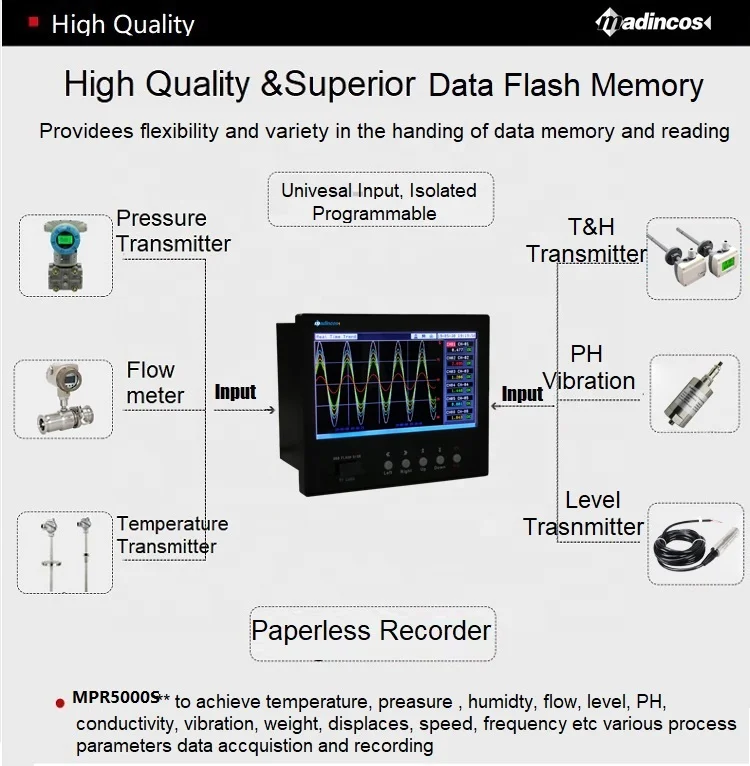

Powerful Universal Input Ioslated Paperless Recorder, Programmable Input type and range etc as variours parameters memery and recording, user-freindly, to achieve ur all kinds of aplication. Support USB pen driver data transferring, also standard RS485 or Ethernet Modbus communciation, printing by software or mini printer
USB Data Transferring, Plug and Play
*Huge Capacity 8G/16G/32G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
.To display and read the memoried data in digital and curve,
.print the chart data. by pritner
.export the data as Excel for further analysis.
.Flow Totalizer Report checking per Week, Month, Year

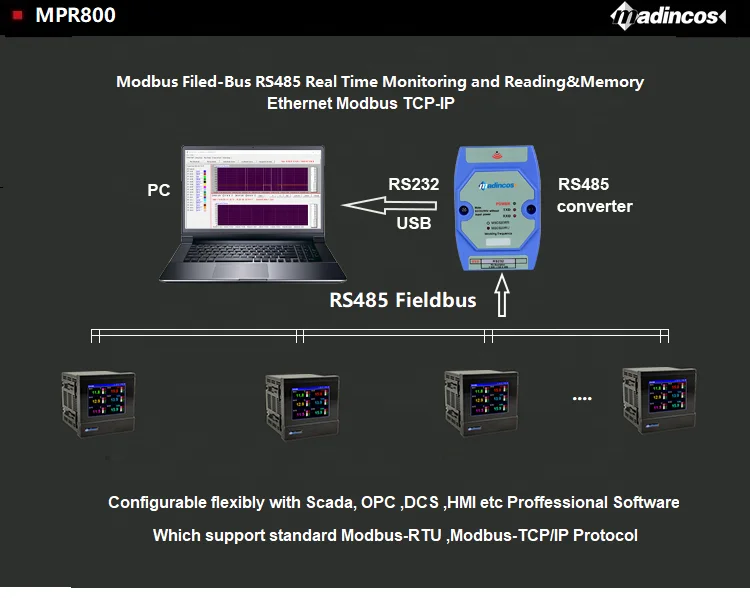

Remote Real Time Reading and Monitoring
*Photoelectrical isolated RS485,Etherent communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server ,IOT cloud for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Packing & Delivery
Packaging | ||
Size | 250(L) * 250 (W) * 230(D)mm | |
Weight | 2.5kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 250L*230W*230HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Related Transmitter
MTH100 Temperature Humidity Sensor Probe
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH300S Wall Type Temperature Humidity Transmitter,0.3%
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH800 Digital Temperature Humidity Transmitter with probe
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
Output:4-20ma, 0-5V,0-10VDC, RS485
MPT2300 Pressure Transmitter
Absolute, Gauge, -100 to 60Mpa
Accuracy:0.2%FS,0.1%FS Range:-100mbar to 400bar
Output: 4-20ma, 0-5V,0-10VDC,rs485
MLT6300 Digital Smart Level Transitter
Accuracy:0.5%FS, 0.2%FS
Range: 0-170m
Output: 4-20ma,0-10VDC,0-5VDC
MDP3000 Diffierential Presure Transmitter,-40 to 100MPA
Accuracy:0.075%FS Range:-100mbar to 400bar
Output: 4-20ma, Hart,
