Product Overview
Description
How to make zipper
Product Description
Plastic Zipper Teeth Injection Machine
Plastic Zipper Teeth Injection Machine | ||
Model | PM-013 | |
Power | 7.0KW | |
Shot speed | 12~15 time/Min | |
Volt | 380/440V | |
Screw Diameter | 28/32 mm | |
Injection Pressure | 100 Mpa | |
Max.Shot Weight | 60 g | |
Injection rate | 33±2 g/s | |
Nozzle Contact Force | 2.0 tons | |
Working Temperature | 180-250 ℃ | |
Material Hopper Capacity | 25 kgs | |
Clamping Force | 25 tons | |
Platen Size | 580×430 mm | |
Ejector Force | 1.5 tons | |
Machine Weight | 1.35 tons | |
Machine Dimensioms(L×W×H) | 2.50×0.85×2.60 m | |
Shipping Weight | 1.5 tons | |
Shipping Measurement(L×W×H) | 1.65×0.8 ×2.18 m | |
Main Features
(1).Simple structure,easy operation
(2).High efficiency,products with high quality and stability
(1).Simple structure,easy operation
(2).High efficiency,products with high quality and stability
(long chain zipper teeth standard strength is 360,our zipper strength reach 500)
(3).Energy saving,normal use 7.0KW by one hour
(4).Easy maintenance
Product Application
(1).Plastic zipper teeth of #3~#30 size
(2).Plastic zipper with mixture color
(3).Plastic decoration chain
(3).Energy saving,normal use 7.0KW by one hour
(4).Easy maintenance
Product Application
(1).Plastic zipper teeth of #3~#30 size
(2).Plastic zipper with mixture color
(3).Plastic decoration chain
Detailed Images

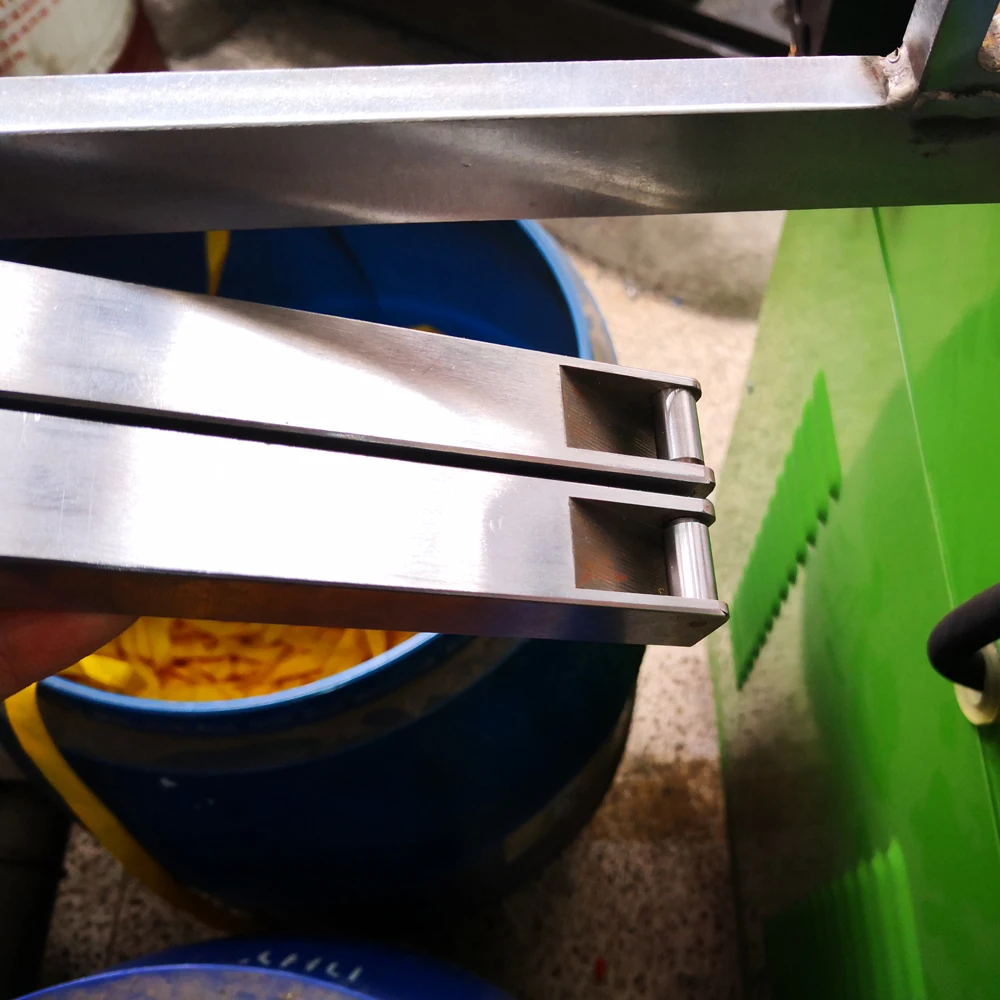

The tape front guide
The front guide keep the two tape go into injection mold in the right way,not let them move and pull them straight
Keeping straight guide
those two part guide is heavy,when the tape come into here,the part will pull the tape down,so the tape is straight.
the front roller rotate when the tape come here,it protect tape safe

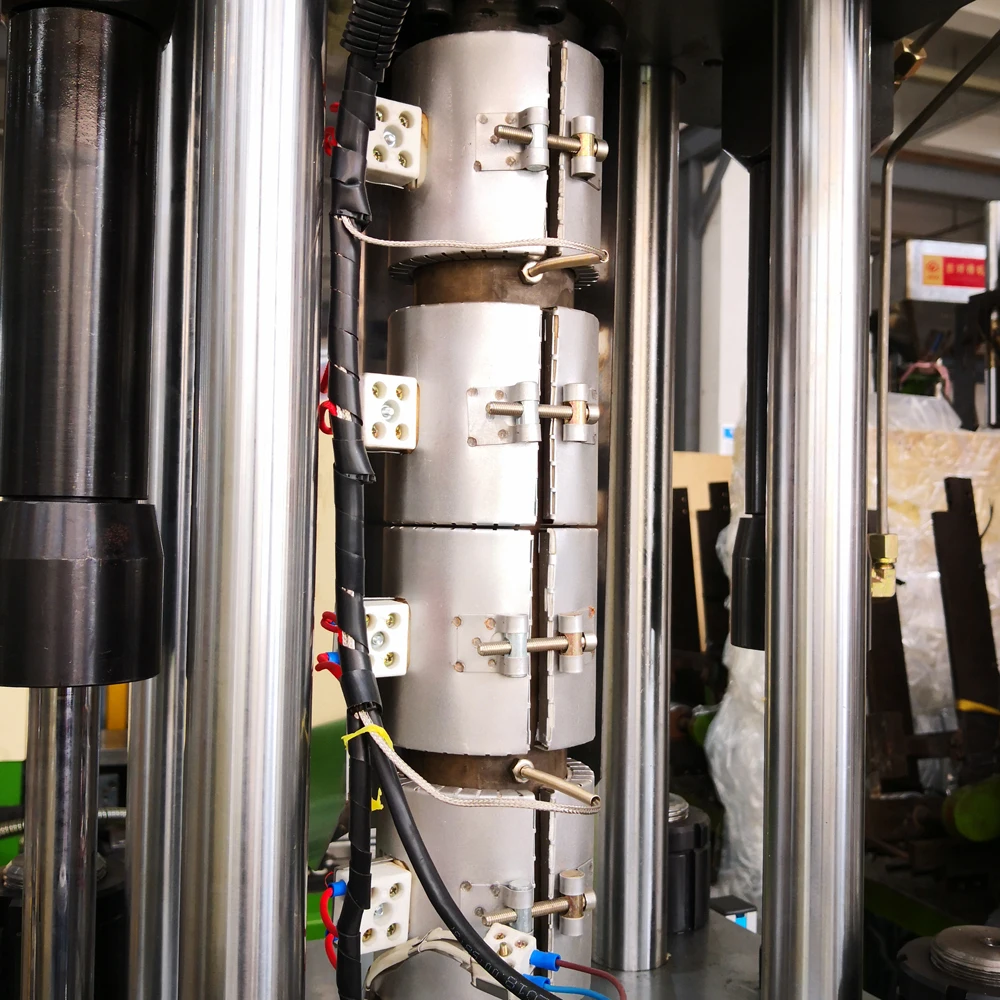

Heating ring system
It is total 5pcs heating rings surround the barrel,it is short to heat the material
Injection mold system
The injection mold fit and move out easily,
Puller zipper system
The puller clamp push zipper tighten and pull the final zipper out of injection mold.
The pressure roller system.
The pressure roller press the zipper and let the zipper go out the machine

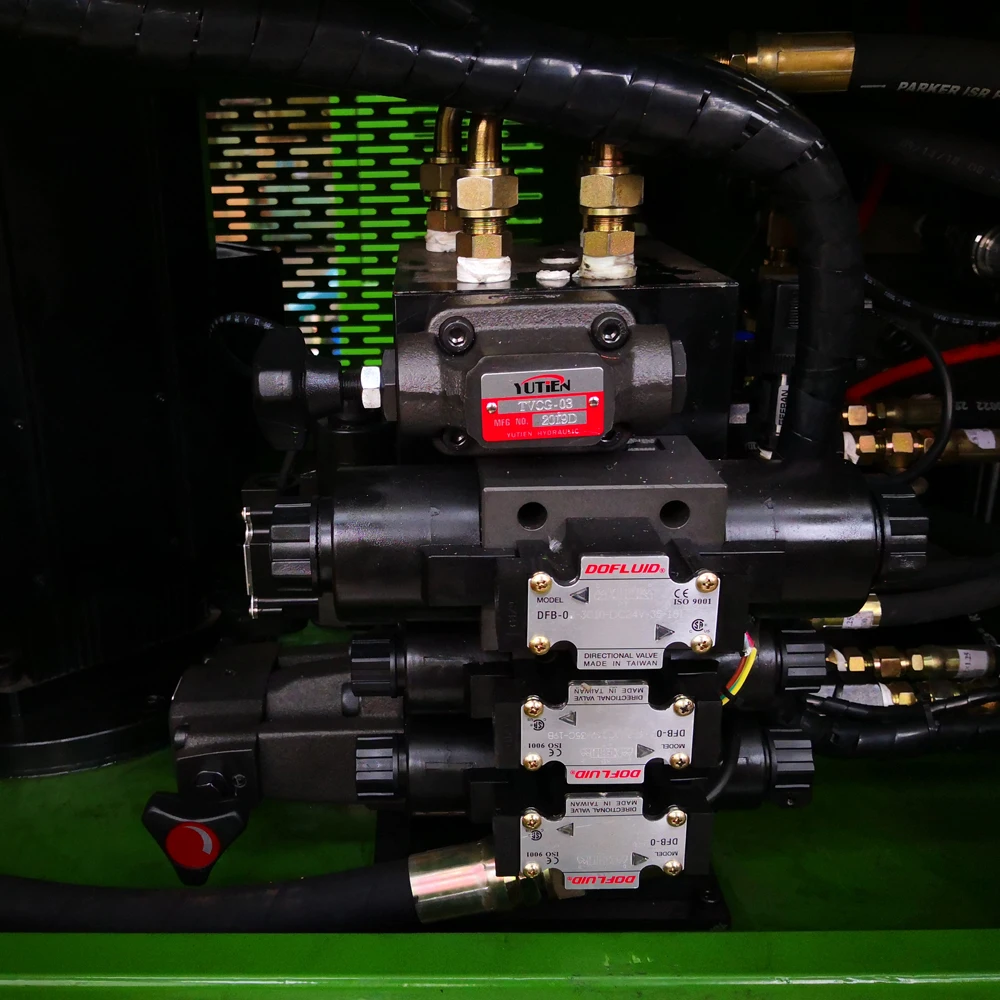

Electromagnetic valve
Use electromagnetic valve to control the all pressure of machine
Cooling system
Connect with cold water and use the water to cool the machine temperature

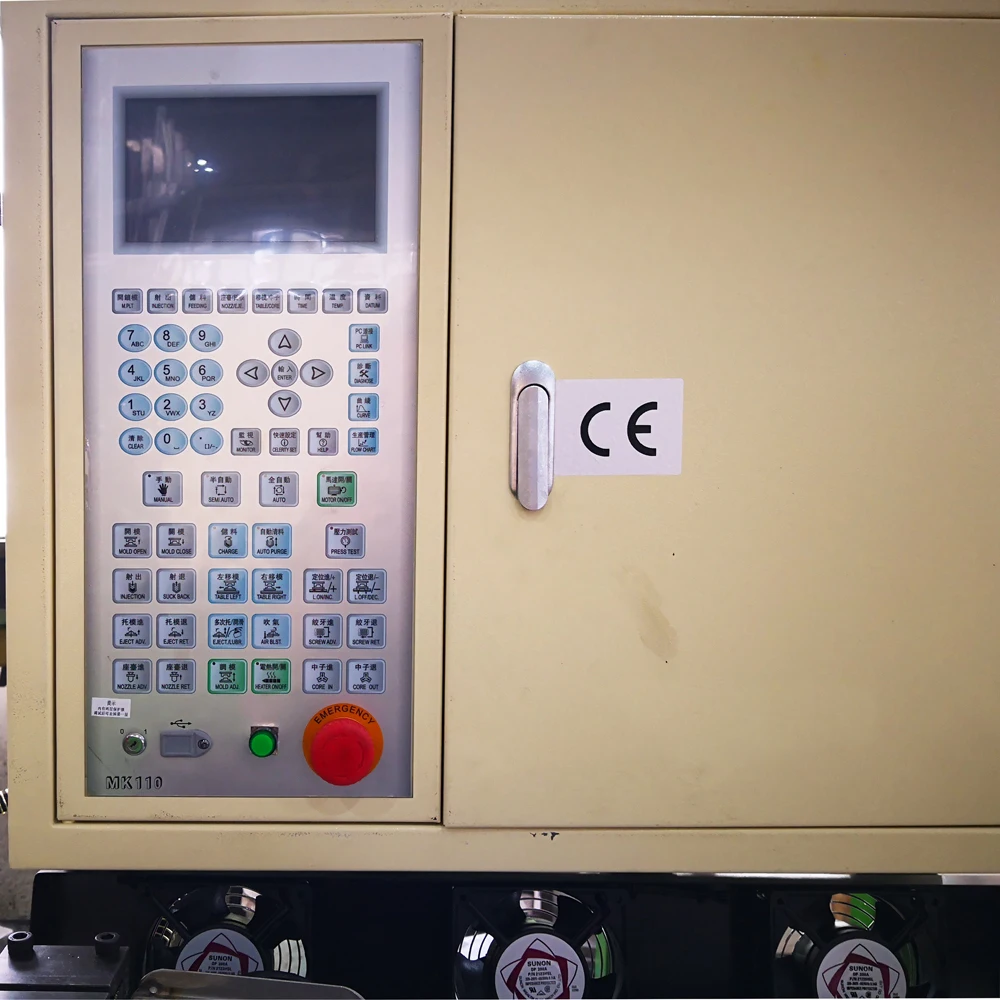

The control screen system.
Operate the machine by the screen,the screen will show the problem and solution when the machine meet
Injection motor system
Use the high quality oil motor to supply power to inject material to zipper,it is not oil leak
