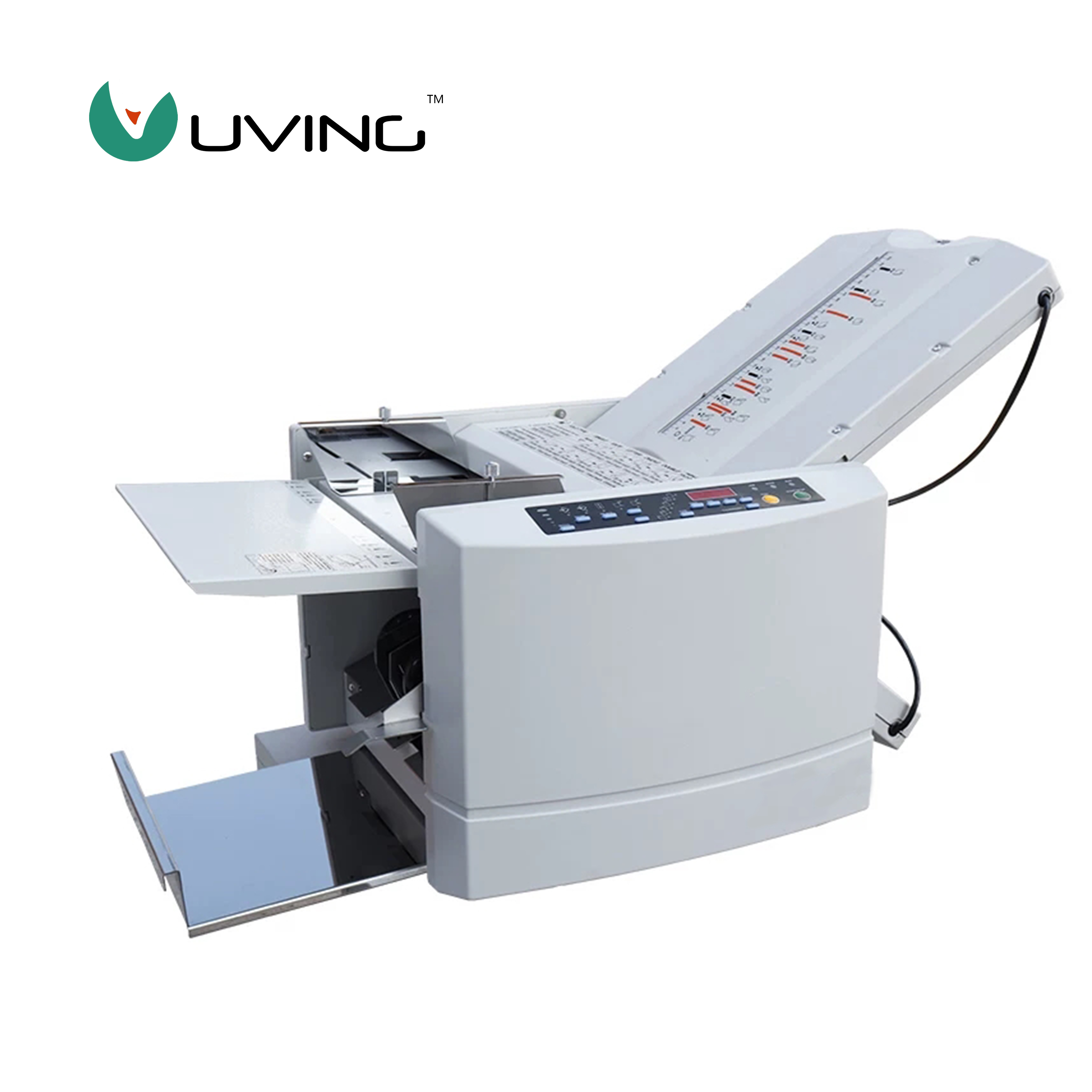

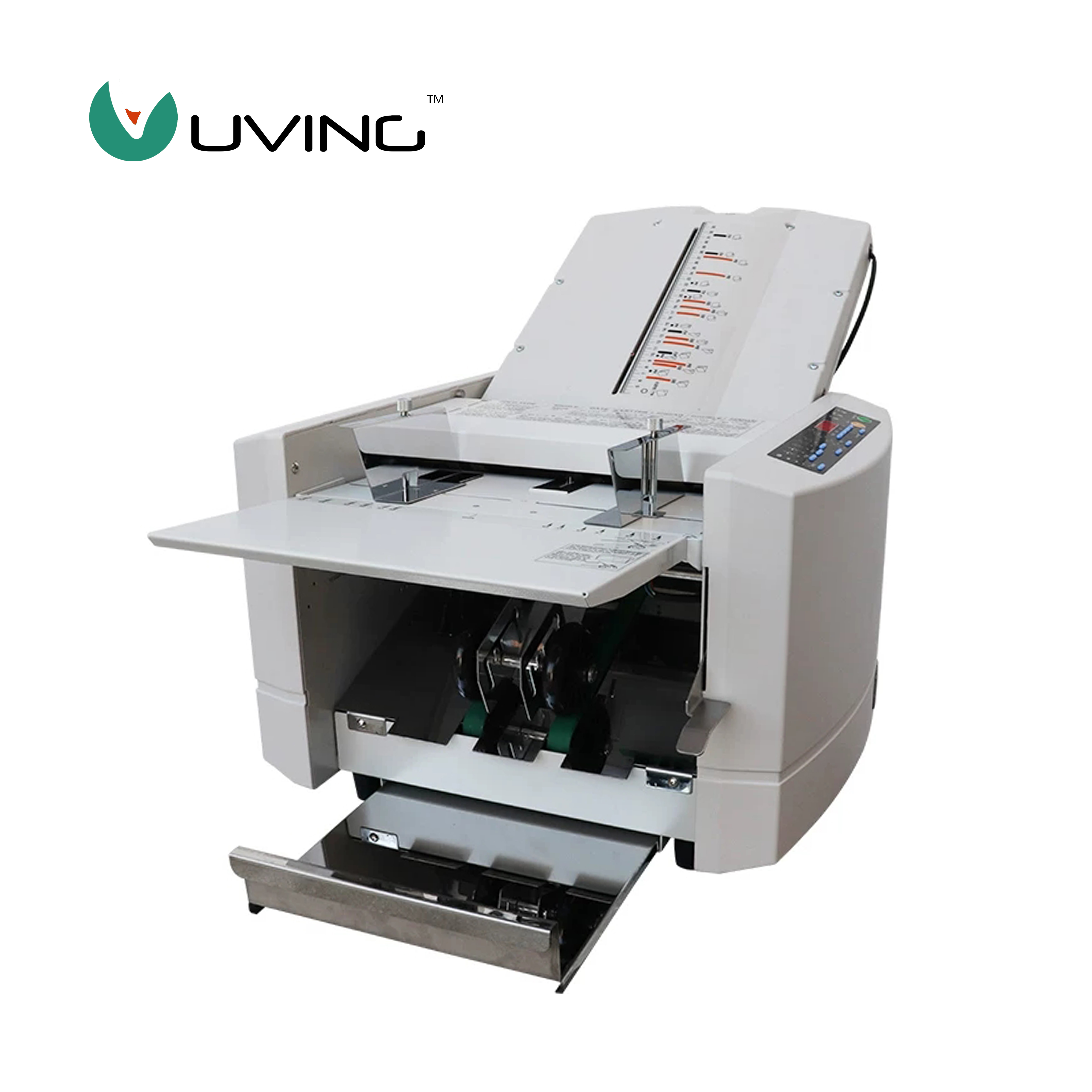

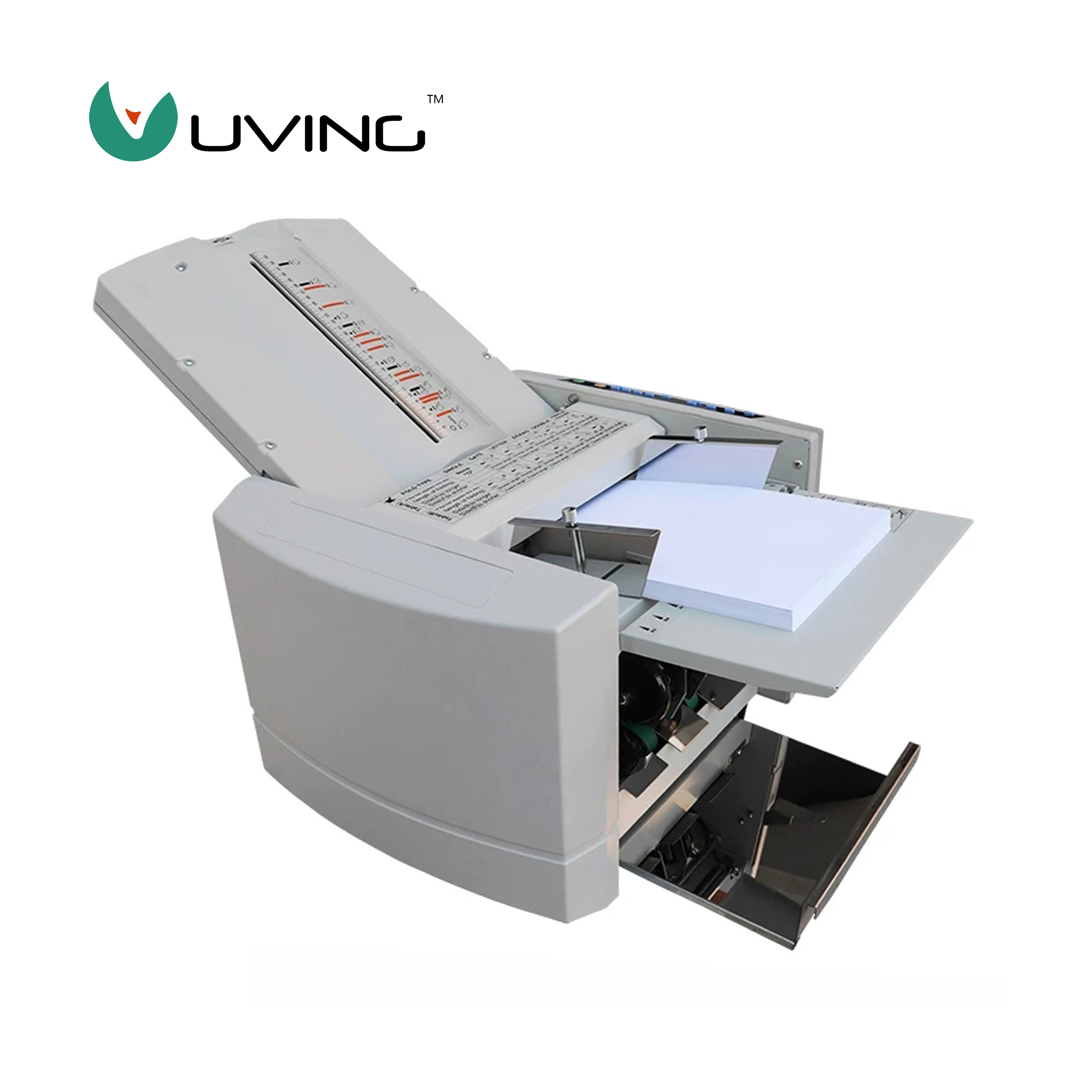

U F450 Automatic paper folding machine a3 booklet maker
- Category: >>>
- Supplier: Hangzhou Fuyang Uving Office Equipment Co. Ltd
Share on (62361108358):
Product Overview
Description
Product Description
Model | U-F450 |
Max folding paper size | 330x420mm(A3+) |
Min binding paper size | 125X176mm(B6) |
Working speed | 10000sheets/h(5 gear) |
Paper thickness | 60-160g(>135g only half fold) |
Max Paper feeding/receiving capacity | 500sheets |
Paper feeding system | 3 rubber wheels friction input system |
Control system | Built-in microcomputer automatic setting |
Detection function | support |
Voltage/power | 220v/50hz,75w |

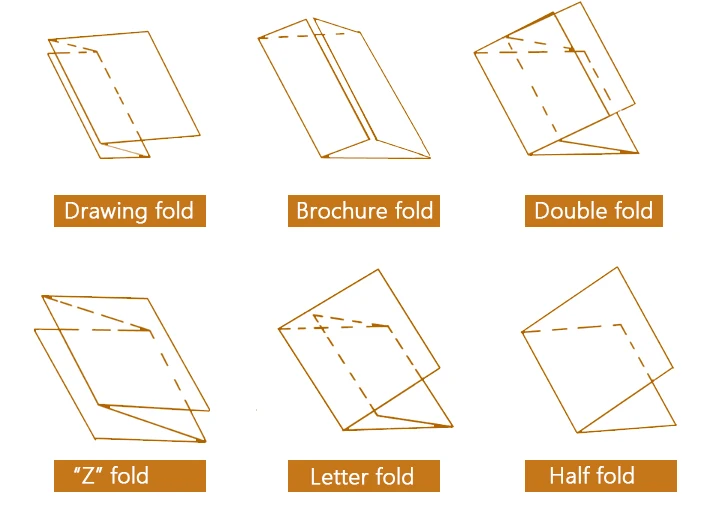

Folding types | drawing fold,brochure fold,letter fold,"Z"fold,double fold,half fold |
Machine size | 870x530x520mm |
G.W. | 38KG |
Package | 620x590x470cm |
Details Images

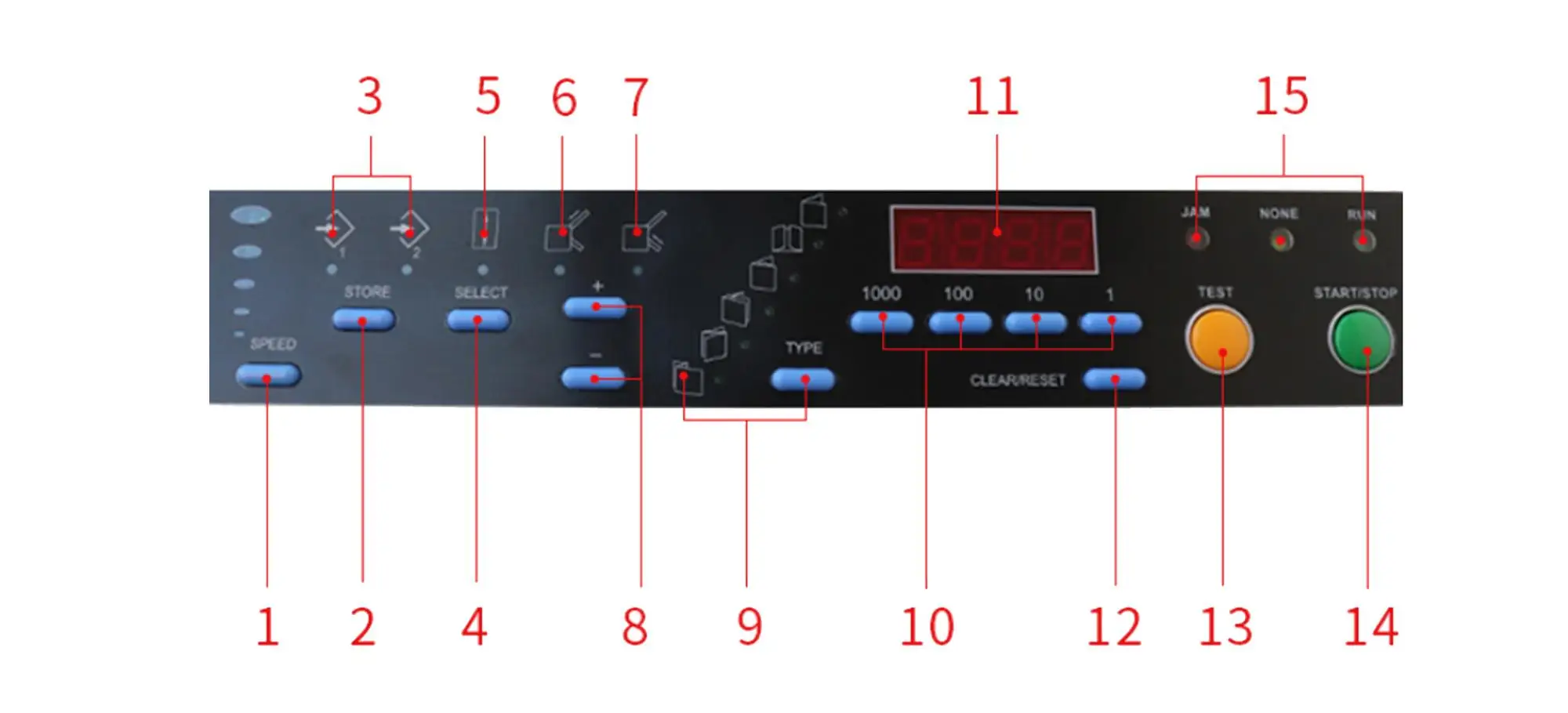

No | Key name | Function Description | |
1 | Speed adjustment key | Used to adjust the folding speed | |
2 | Storage Key | Select 1/2 storage location, storage fold position after adjustment | |
3 | Storage light | ||
4 | Select key | select the length of the paper and the feeding position of baffle A、B. | |
5 | Paper length input mode | When the light is on, the paper size and specification are displayed. | |
6 | Baffle A up and down movement mode Light | ||
7 | Baffle B up and down movement mode Light | ||
8 | +/—key | Used to adjust the upper and lower positions of baffle A、B | |
9 | Folding type key | Six folding types can be selected and stored | |
10 | Numeric keys | Input the reduced quantity of the subtraction counter and the length of non-standard paper | |
11 | Display | Displays the number of paper, the position of baffle A、B, and the size and size of the paper. | |
12 | Clean/ Reset key | Clear the count indication and reset the error，when the paper length light is on, press this key to enter the non-standard paper length | |
13 | Test key | Move the stopper A,B to the position to be folded, press this key and do a paper test | |
14 | Start/Stop key | ||
15 | Fault Detection light | When there is a lack of paper and paper jam or the machine parts are not in the working position, the light flashes | |

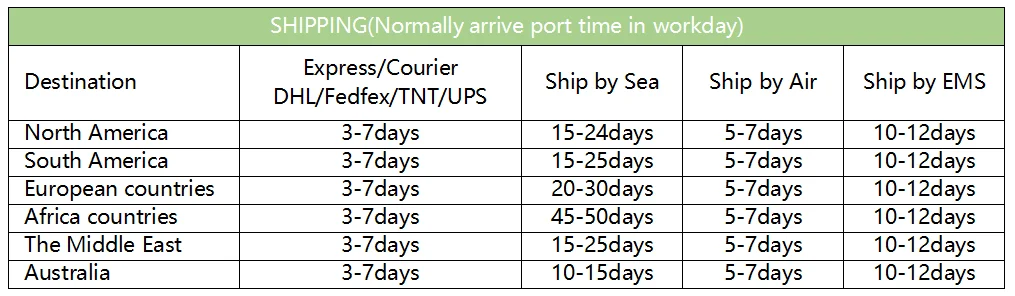

Packing&Shipping
