1812L110/16DR PTC RESET FUSE 16V 1.1A 1812
US $0.10-$0.20

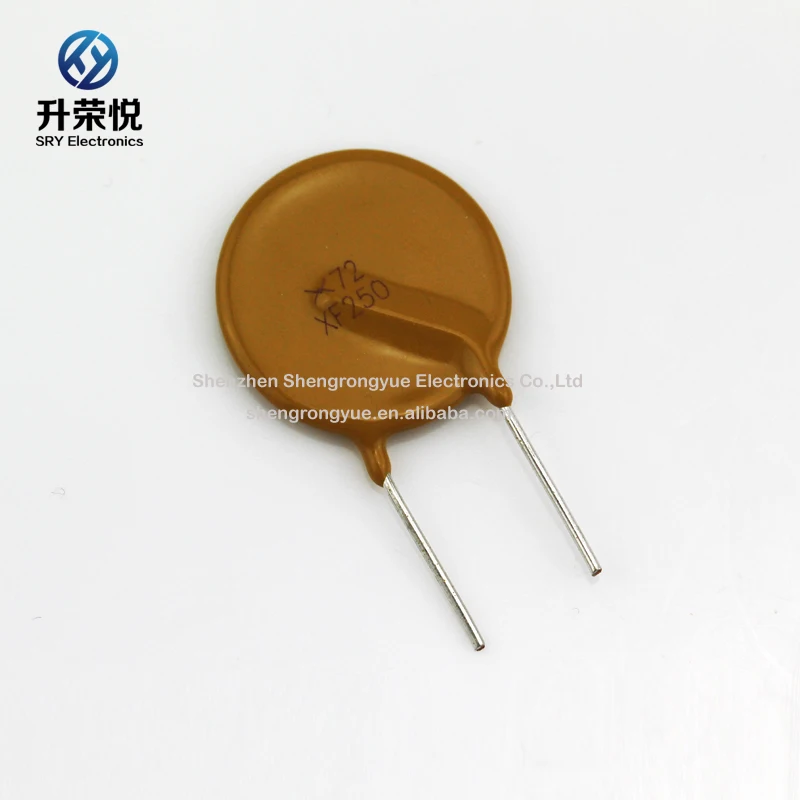

Tyco/Raychem PTC resettable fuse RXEF250 DIP fuse 2.5A 72V Ploy Switch resettable fuse
- Category: Circuit Protection >>>
- Supplier: Shenzhen,SRY,Electronic,Co.,Ltd.,[Guangdong,China]Shenzhen
Share on:
Product Overview
Description
Description
Tyco/Raychem PPTC resettable fuse DIP fuse 200mA-5A 72V Ploy Switch resettable fuse
Images
Demension
Space
Tyco/Raychem,Radial Leaded resettable fuses,72V series, designed in America
Electrical properties
|
Part Number |
Ihold (A) |
Itrip (A) |
Vmax (VDC) (VAC RMS) |
Imax (DCADC) (ACARMS) |
Pd typ (W) |
Max Time -to-trip (A) (S) |
Rmin (Ω) |
Rmax (Ω) |
R1max (Ω) |
Lead Size [mm2(AWG)] |
|
0.20
|
0.40
|
72 72
|
40 40
|
0.41
|
1.00 2.2
|
1.83
|
2.75
|
4.40
|
[0.205mm2(24)]
|
|
|
0.25
|
0.50
|
72 72
|
40 40
|
0.45
|
1.25 2.5
|
1.25
|
1.95
|
3.00
|
[0.205mm2(24)]
|
|
|
0.30
|
0.60
|
72 72
|
40 40
|
0.49
|
1.50 3.0
|
0.88
|
1.33
|
2.10
|
[0.205mm2(24)]
|
|
|
0.40
|
0.80
|
72 72
|
40 40
|
0.56
|
2.00 3.8
|
0.55
|
0.86
|
1.29
|
[0.205mm2(24)]
|
|
|
0.50
|
1.00
|
72 72
|
40 40
|
0.77
|
2.50 4.0
|
0.50
|
0.77
|
1.17
|
[0.205mm2(24)]
|
|
|
0.65
|
1.30
|
72 72
|
40 40
|
0.88
|
3.25 5.3
|
0.31
|
0.48
|
0.72
|
[0.205mm2(24)]
|
|
|
0.75
|
1.50
|
72 72
|
40 40
|
0.92
|
3.75 6.3
|
0.25
|
0.40
|
0.60
|
[0.205mm2(24)]
|
|
|
0.90
|
1.80
|
72 72
|
40 40
|
0.99
|
4.50 7.2
|
0.20
|
0.31
|
0.47
|
[0.205mm2(24)]
|
|
|
1.10
|
2.20
|
72 72
|
40 40
|
1.50
|
5.50 8.2
|
0.15
|
0.25
|
0.38
|
[0.520mm2(20)]
|
|
|
1.35
|
2.70
|
72 72
|
40 40
|
1.70
|
6.75 9.6
|
0.12
|
0.19
|
0.30
|
[0.520mm2(20)]
|
|
|
1.60
|
3.20
|
72 72
|
40 40
|
1.90
|
8.00 11.4
|
0.09
|
0.14
|
0.22
|
[0.520mm2(20)]
|
|
|
1.85
|
3.70
|
72 72
|
40 40
|
2.10
|
9.25 12.6
|
0.08
|
0.12
|
0.19
|
[0.520mm2(20)]
|
|
|
2.50
|
5.00
|
72 72
|
40 40
|
2.50
|
12.50 15.6
|
0.05
|
0.08
|
0.13
|
[0.520mm2(20)]
|
|
|
3.00
|
6.00
|
72 72
|
40 40
|
2.80
|
15.00 19.8
|
0.04
|
0.06
|
0.10
|
[0.520mm2(20)]
|
|
|
3.75
|
7.50
|
72 72
|
40 40
|
3.20
|
18.75 24.0
|
0.03
|
0.05
|
0.08
|
[0.520mm2(20)]
|
Vmax=Maximum voltage device can withstand without damage at rated current (Imax).
Imax=Maximum fault current device can withstand without damage at rated voltage (Imax).
Ihold=Hold Current: Maximum current device will sustain for 4 hours without tripping in 25oC still air.
Itrip=Trip Current: minimum current at which the device will trip in 25oC still air.
Pd=Power dissipated from device when in the tripped state at 25oC still air.
Ri=Minimum/Maximum resistance of device in initial (un-soldered) state.
R1max=Maximum resistance of device at 25oC measured one hour after tripping.
Caution=operation beyond specified ratings may result in damage and possible arcing and flame.
