ODOELEC Capacitor 4.7UF 400V P25 475J 400V CBB22 Ceramic Capacitor

1)This is constructed from metallized polypropylene film dielectric, non-inductive construction.
2)Epoxy resin coating, radial CP wire.
3)Very small dissipation factor at high-frequency, very small inner temperature rise.
4) Good stability of capacitance, excellent insulation resistance property.
5) excellent self-healing property.
6) suitable for DC, pulse, high-frequency large-current application widely used in display, sound equipment, audio-visual devices, telecommunication equipment, data transmission and process facility and various electronic equipment.

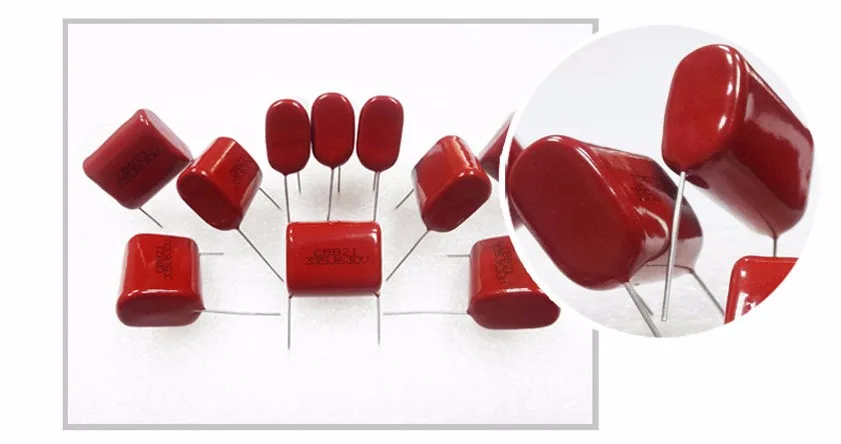

Detailed Images

                       Outline Drawing

  MPP 474J 400V

Specification

Reference standard	GB/T 10190-88 IEC384-16
Climate category	40/085/21
Rated voltage	100V 160V 250V 400V 630V DC
Capacitance range	0.01-4.7uf
Capacitance tolerance	J (±5%), K(±10%)
Voltage proof	1.6Ur(5s)
Insulation resistance	CR≤0.33UF, F≥30000MΩ
		CR≤0.33UF, F≥10000MΩ.uf (20°C,1 min)
Dissipation Factor	≤0.001 (20°C,1kHz)

Dimension

RV	400VDC
CAP(uf)	W	H	T	P	D
0.47	17	12	7	15	0.8
							24	17	10	22	0.8
0.47	22	14	7	20	0.8

Note

ODOELEC Capacitor 4.7UF 400V P25 475J 400V CBB22 Ceramic Capacitor

General size listed in above from, special value on size is available by consulting on request. Please specify requirements of size when sampling and purchasing capacitors.
