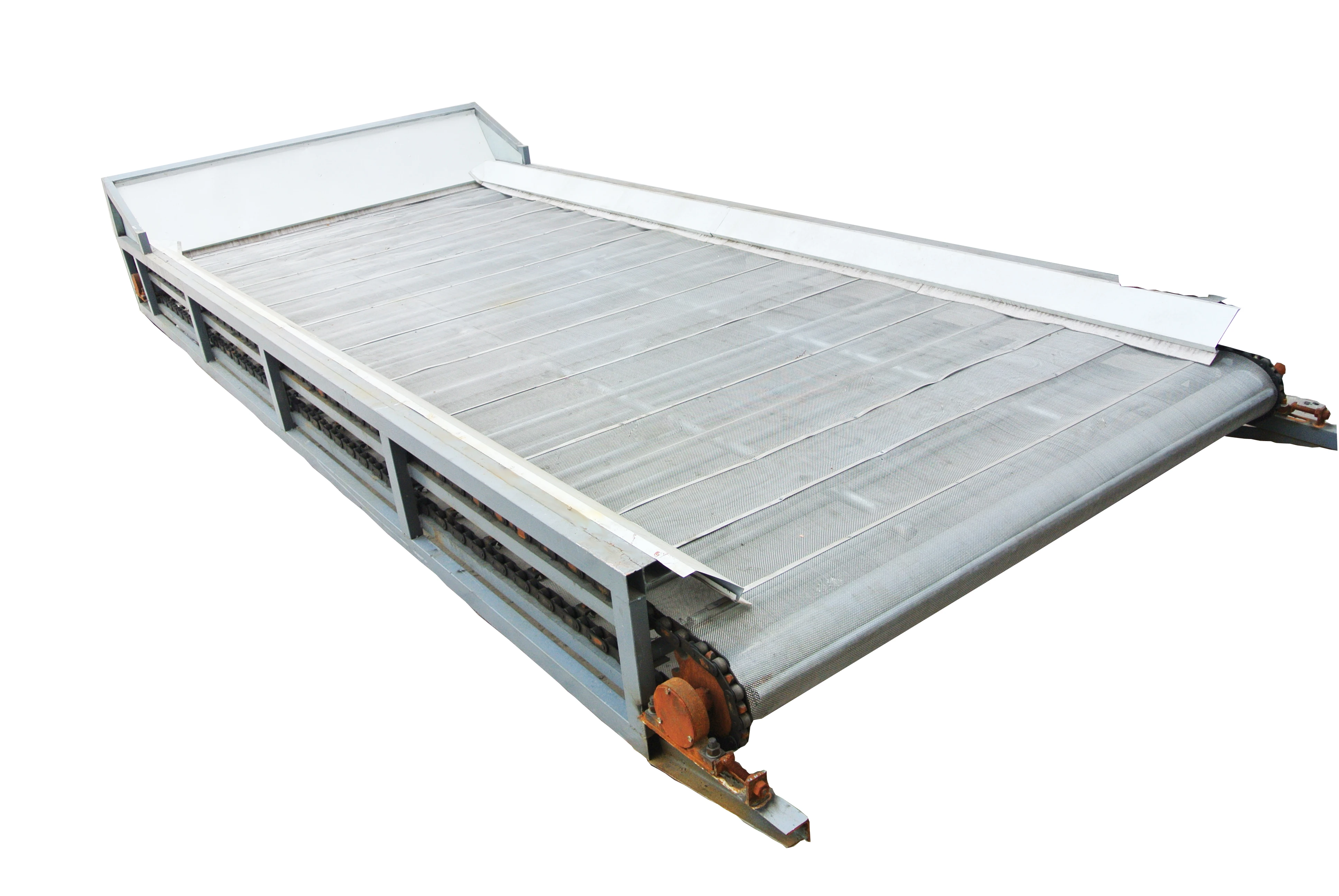

Mesh belt dryer is a kind of continuous production drying equipment,the main heating way has electric heating,steam heating,hot air heating.Its main working principle is to spread the material evenly in the network,the transmission device drive the belt move in the dryer cylinder,the hot air from the bottom of dryer machine enter into the dryer,rise step by step,the water vapor will be discharge through the dehumidify hole,so as to achieve the purpose of drying.
Model | BX-1.5*6m | BX-2*8m | BX-2*9m | BX-2*10m | BX-2*12m |
Area of dry(m2) | 36 | 64 | 72 | 80 | 96 |
Thickness of the material | 50-200mm
| ||||
Operation temperature | 40-120℃ | ||||
Drying time | 0.5-5 hours | ||||
Motor power | YCT-1.1kw | YCT-1.5kw | YCT-1.5kw | YCT-2.2kw | YCT-3kw |
Evaporation capacity | 300-500kg/h | 300-500kg/h | 300-500kg/h | 300-500kg/h | 300-500kg/h |
The size of input furnace | 3.2*1*2.7 | 3.9*1.26*3 | 3.9*1.26*3 | 4.7*1.5*3 | 4.7*1.5*3 |
Fan | 11Kw | 15Kw | 15Kw | 22Kw | 30Kw |
Exhaust fan | 1.5Kw | 3Kw | 3Kw | 3Kw | 4Kw |
Output conveyor | 0.12Kw | ||||
Total power | 14.9Kw | 20.7Kw | 24.2Kw | 28.4Kw | 37.2Kw |
Henan Baixin Machinery Equipment Co.,Ltd, which located in Gongyi, Henan province, is a modern enterprise which sets the scientific research, production and sales as a whole.We have a modern management system, the first-class processing art, perfect detection means, high quality science and technology talent team and after-service system. Our main products are drum dryer, mesh belt dryer, microwave drying machine, box-type dryer, air dryers, fluidized bed dryer, vertical dryer, food drying machine,etc.
1. we have our own factory, our own workshop, not rent.
2. we have qualified technical workers, ensure the food dryer machine well-made.
3. we have our own technical team and installation department, we can guarantee overseas services.
5. we have rich stock for check,also can delivery machine as soon as possible.
