Manufacturer smooth two drum sail vibratory road roller
US $4300-$4400
Construction machine road roller XCMG official XS143J 14ton new road roller price
- Category: Road Machinery >>>
- Supplier: XCMG E-Commerce Inc.
Share on (62361269476):
Product Overview
Description
Product Description
Construction machine road roller XCMG official XS143J 14ton new road roller price
XS143J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
* Use the H-series, water-cooling, fourcylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction. Engine fulills the requirements of China stage II emission standards.
* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
* Use the mechanical gear box with synchro mesh unit to realize convenient operation.
Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.
Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.
* Clutch is directly installed on the engine flywheel, and the operation mechanism of main clutch is the air assisted mechanism which greatly reduces the operating force.
Product Paramenters
ltem | Unit | XS143J | ||||
Service mass | kg | 14000 | ||||
Distributed mass of driving wheel | kg | 7300 | ||||
Distributed mass of vibration wheel | kg | 6700 | ||||
Static line load | N/cm | 315 | ||||
Vibration frequency | Hz | 28/33 | ||||
Theoretical amplitude | mm | 1.9/0.95 | ||||
Exciting force | kN | 274/190 | ||||
Range of speed | Forward | I | km/h | 2.85 | ||
II | km/h | 5.08 | ||||
III | km/h | 11.17 | ||||
Backward | I | km/h | 2.88 | |||
II | km/h | 5.02 | ||||
Wheel base | mm | 3040 | ||||
Compaction width | mm | 2130 | ||||
Theoretical gradeability | % | 30 | ||||
Minimum turn radius | mm | 6800 | ||||
Diameter of vibration wheel | mm | 1523 | ||||
Minimum ground clearance | mm | 431 | ||||
Engine | Model | SC4H140.1G2 | ||||
Rated speed | r/min | 1800 | ||||
Rated power | kW | 103 | ||||
Overall dimension (length x width x height) | mm | 6150*2300*3200 | ||||

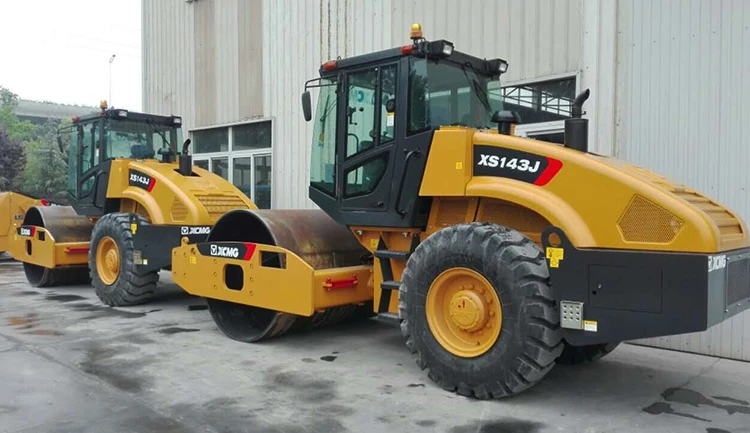

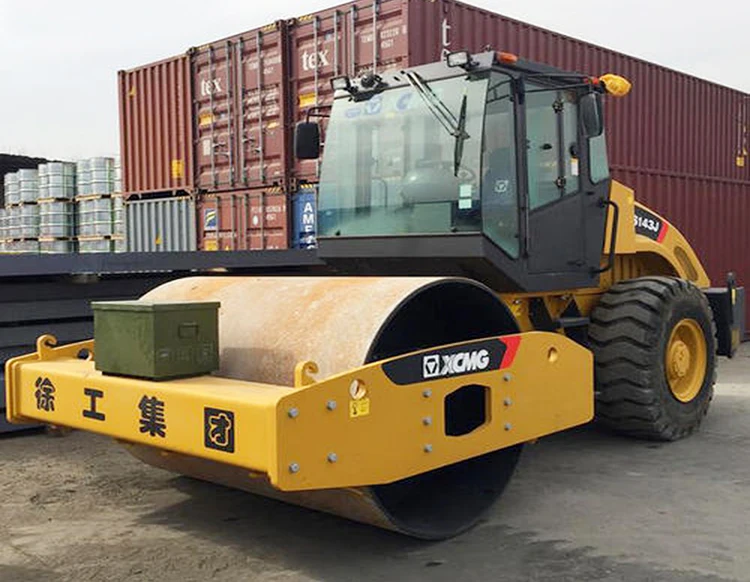

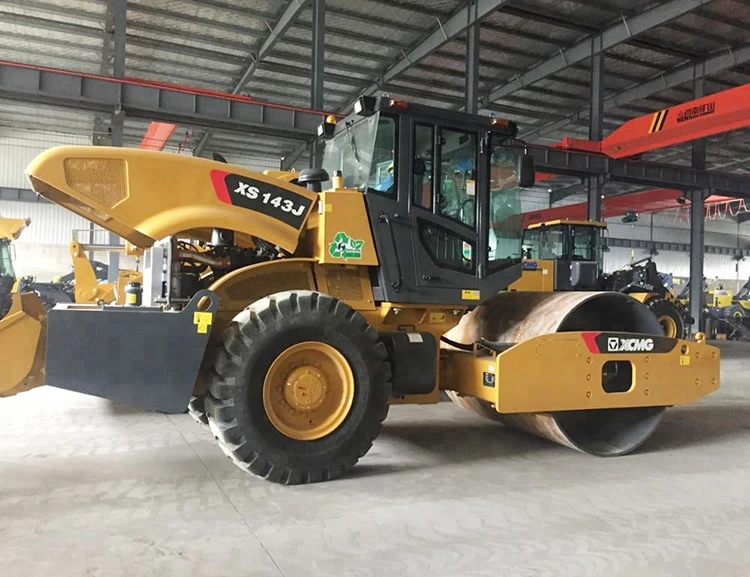

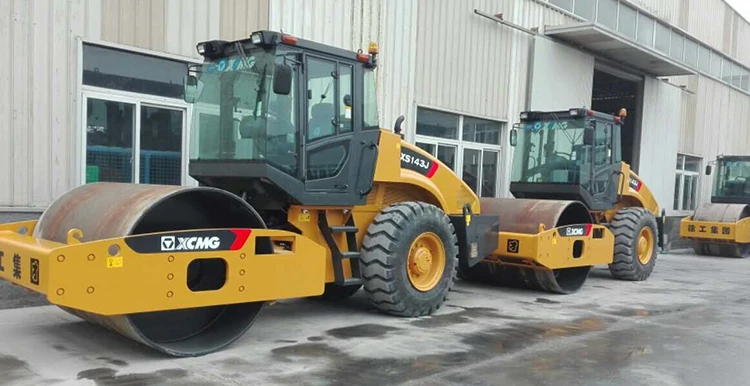

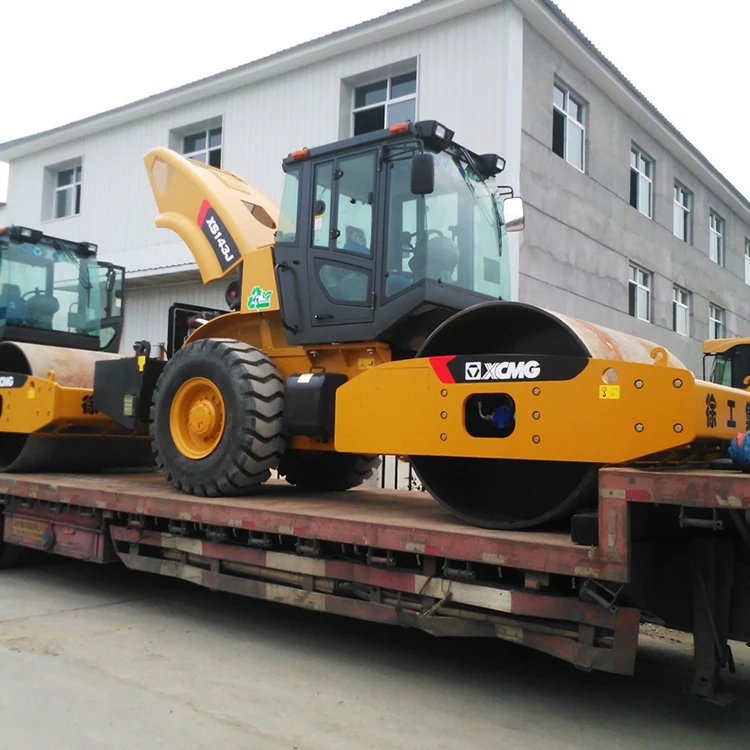

Product Show
Related Products To Choose
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
A: The MOQ is 1 pcs.
