Movable Steel Prefabricated Prefab Concrete Houses In Puerto Rico For Sale
- Category: >>>
- Supplier: Foshan Nanhai Bingcheng Steel Structure Building Co. Ltd.
Share on (62361329085):
Product Overview
Description
Product Description
Item Name | Material | Specification | Unit |
Dimension | 13.0*8.9*7.023 | m3 | |
column 1 | Q235B | 200*200*6.0mm square tube | T |
column 2 | Q235B | 100*100*3.0mm square tube | T |
column 3 | Q235B | 80*80*2.0mm square tube | T |
canopy beam | Q235B | 80*80*2.0 square tube | T |
roof frame beam | Q235B | C80*35*15*2+50 square tube | T |
flooring beam | Q235B | HN298x149x5.5x8mm | T |
roof purlin | Q235B | C80*35*15*2 | T |
flooring purlin | Q235B | HN248x124x5.5x8mm | T |
ring beam | Q235B | 80*80*2 square tube | T |
free supporting | Q235B | L50*3.0 | T |
gusset plate | Q235B | T | |
material loss | Q235B | 5% | T |
component making | includes the cutting, welding, painting, etc | T | |
component paint | coating painting | T | |
roof panel | L*960*50mm rock wool sandwich panel with 0.5mm color steel sheet (Huaguan brand) | ㎡ | |
external wall panel | L*950*50mm rock wool sandwich panel with 0.5mm color steel sheet (Huaguan brand) | ㎡ | |
partition wall panel | L*950*50mm rock wool sandwich panel with 0.426mm color steel sheet (normal brand) | ㎡ | |
sandwich panel cutting charge | ㎡ | ||
steel decking | 1000-50-0.8 | ㎡ | |
L shape block materials for the steel decking | galvanized | m | |
glass wall | 13000*2400H | ㎡ | |
manual rolling door | 1600*2400H | ㎡ | |
aluminm sliding windows 1 | double glazing glass. 1130*1000H*8 pc | ㎡ | |
aluminm sliding windows 2 | 1130*1000*1 pc | ㎡ | |
aluminm sliding windows 3 | 1130*1000*2 pc | ㎡ | |
aluminm sliding windows 4 | 600*600 for toilet | set | |
steel door | 880*2040*8 pc | set | |
sandwich panel door | 750*2000*4 pc for toilet | set | |
stair | with handrail | set | |
flashing materials | Steel plate bending, self tapping screw, Latin, silica gel, etc | ㎡ | |
galvanized groove | for fixed the panles | m | |
chemical screws | M20 | set | |
high strength screw | M20 | set |

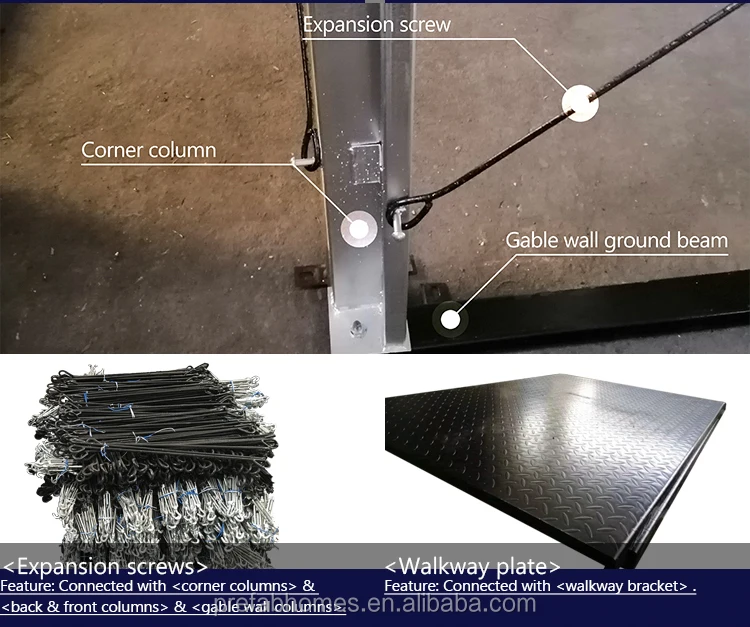

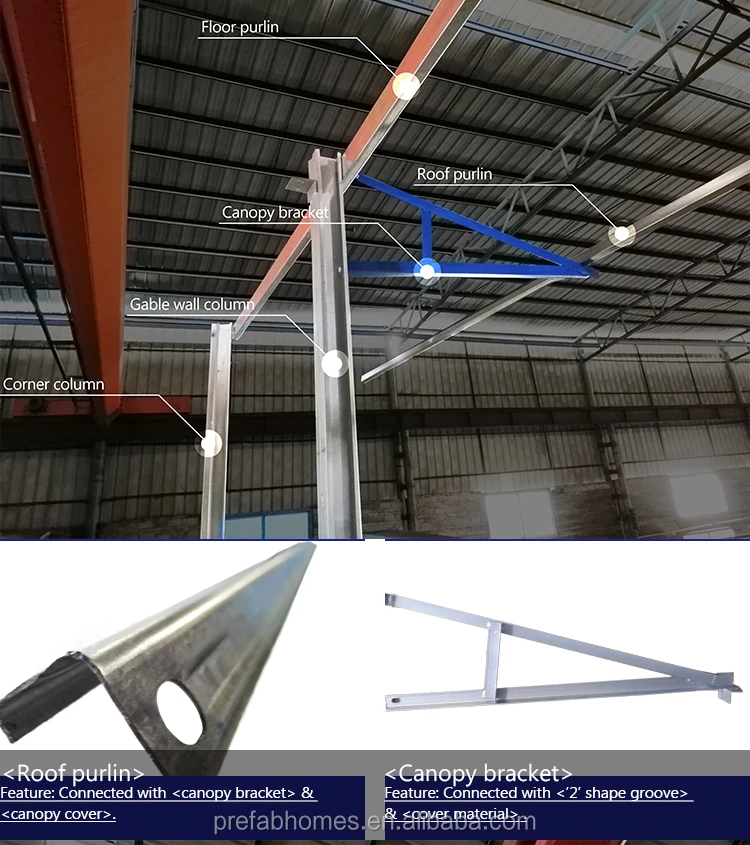

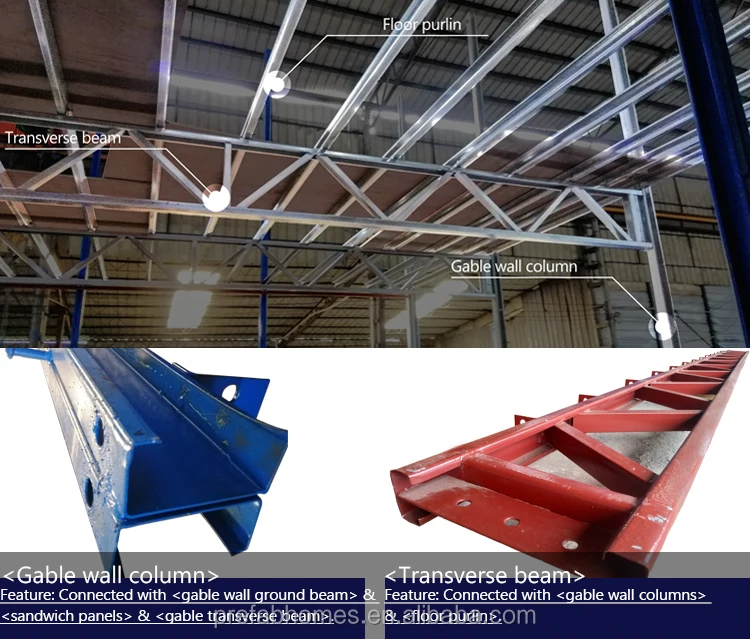

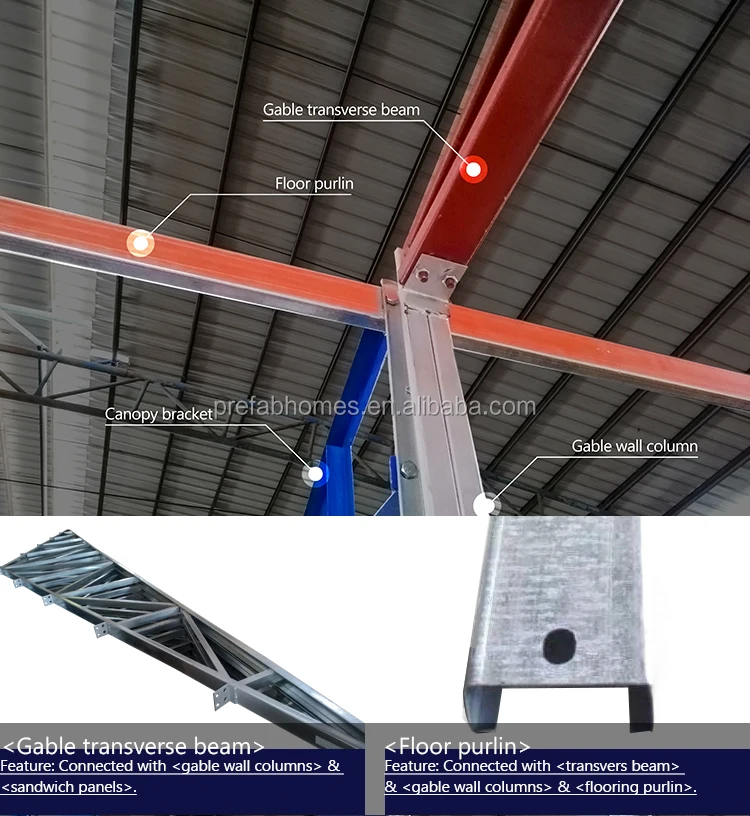

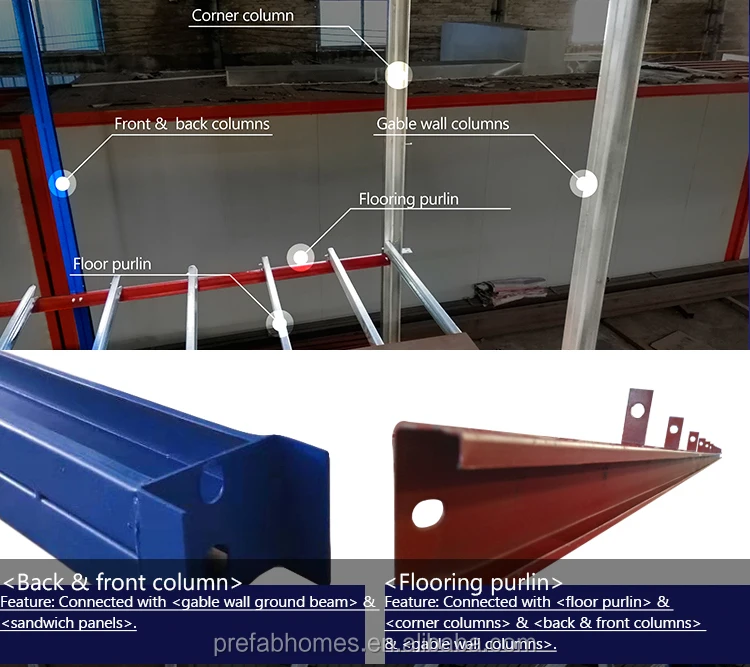

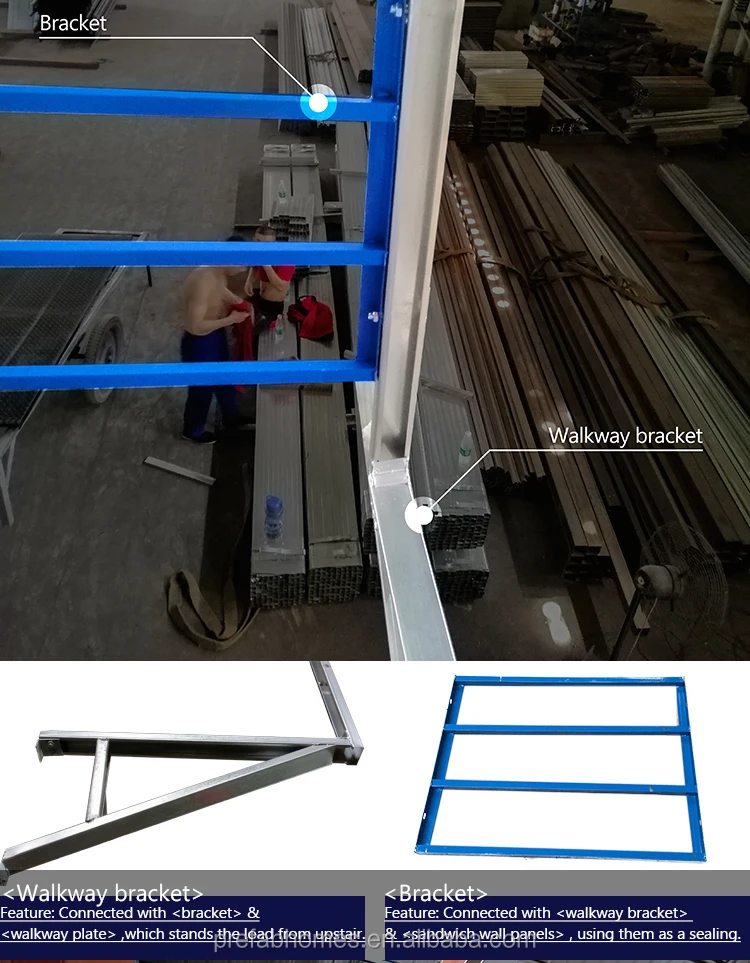

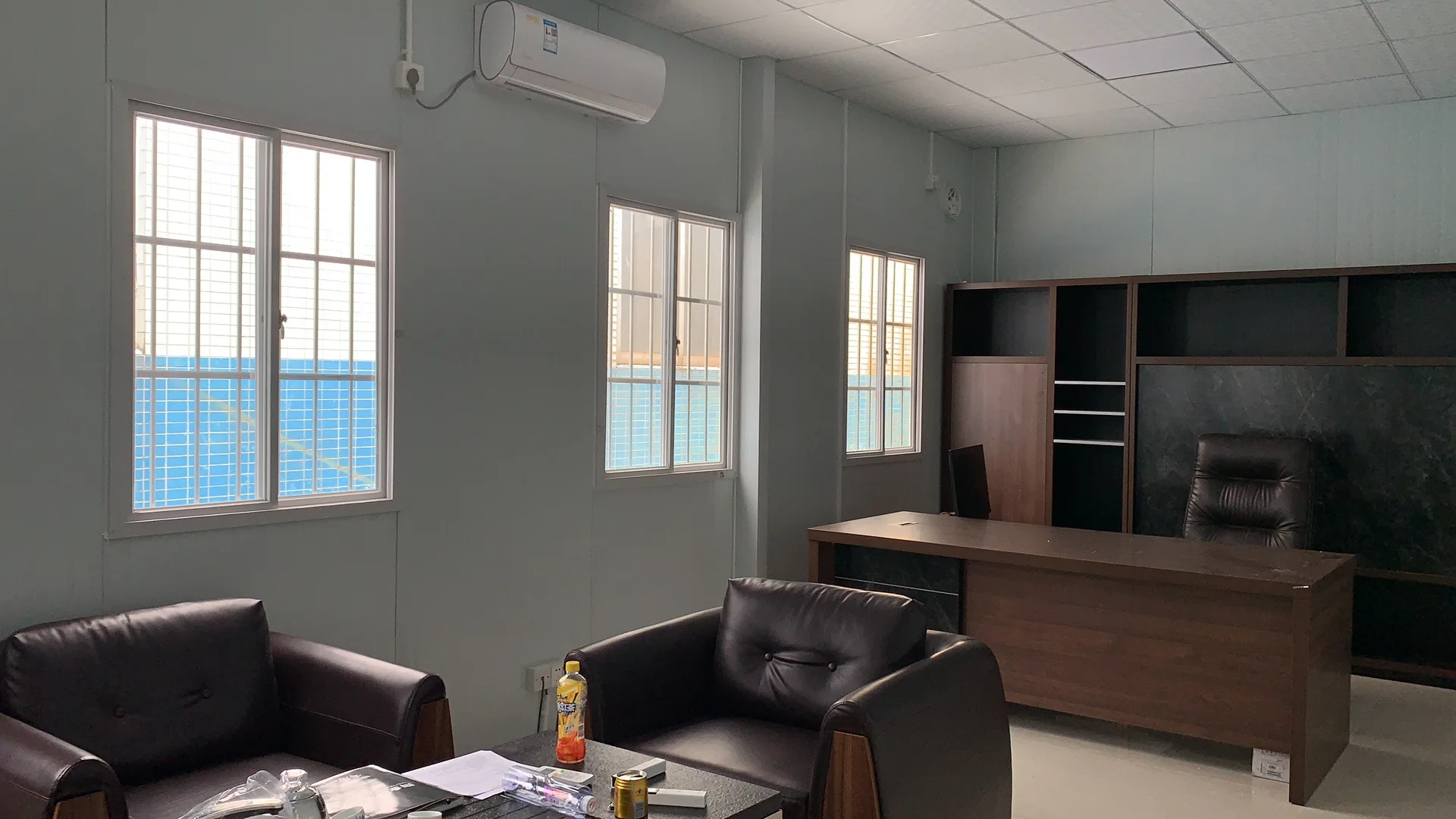

Detailed Images

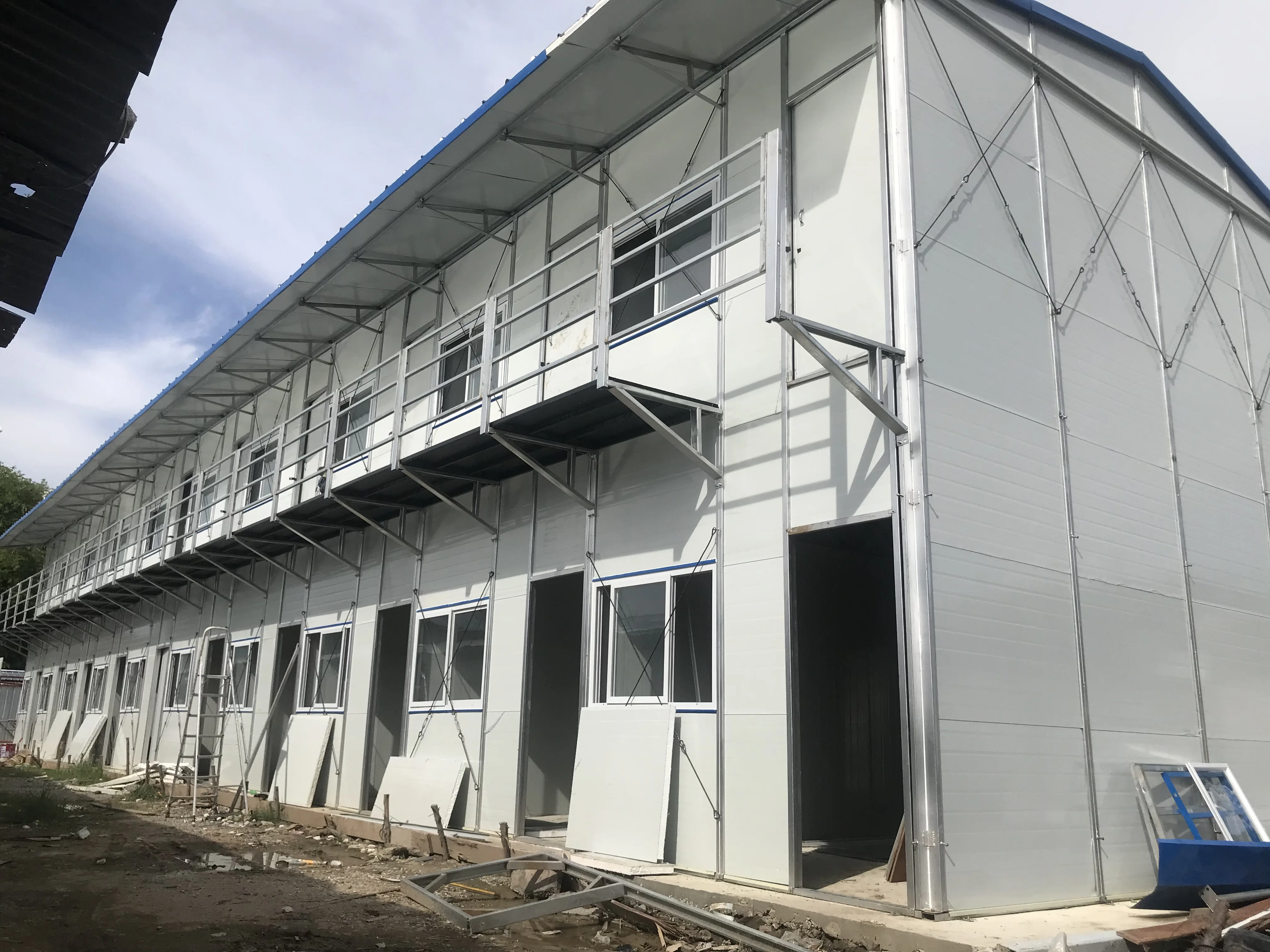

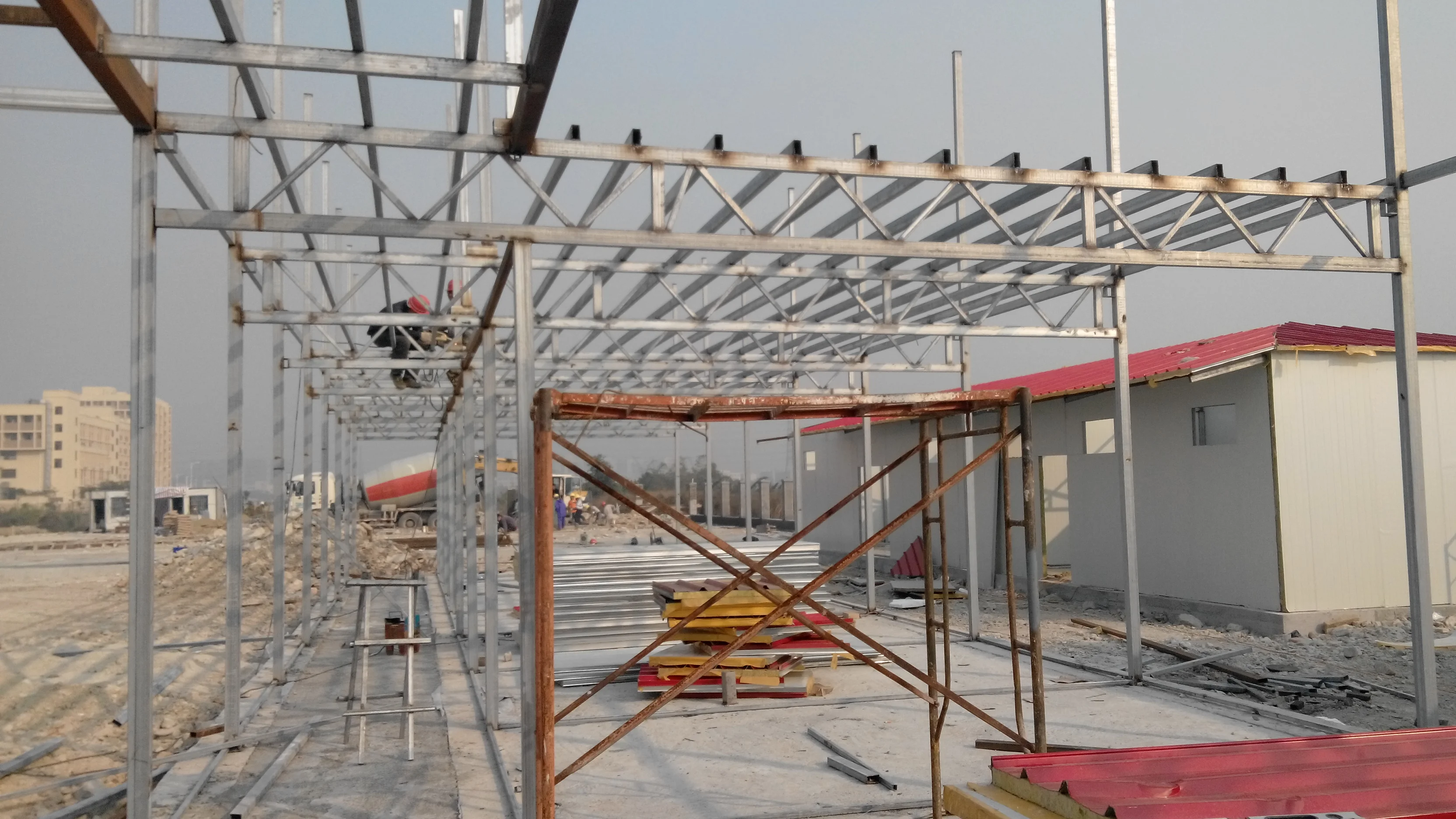

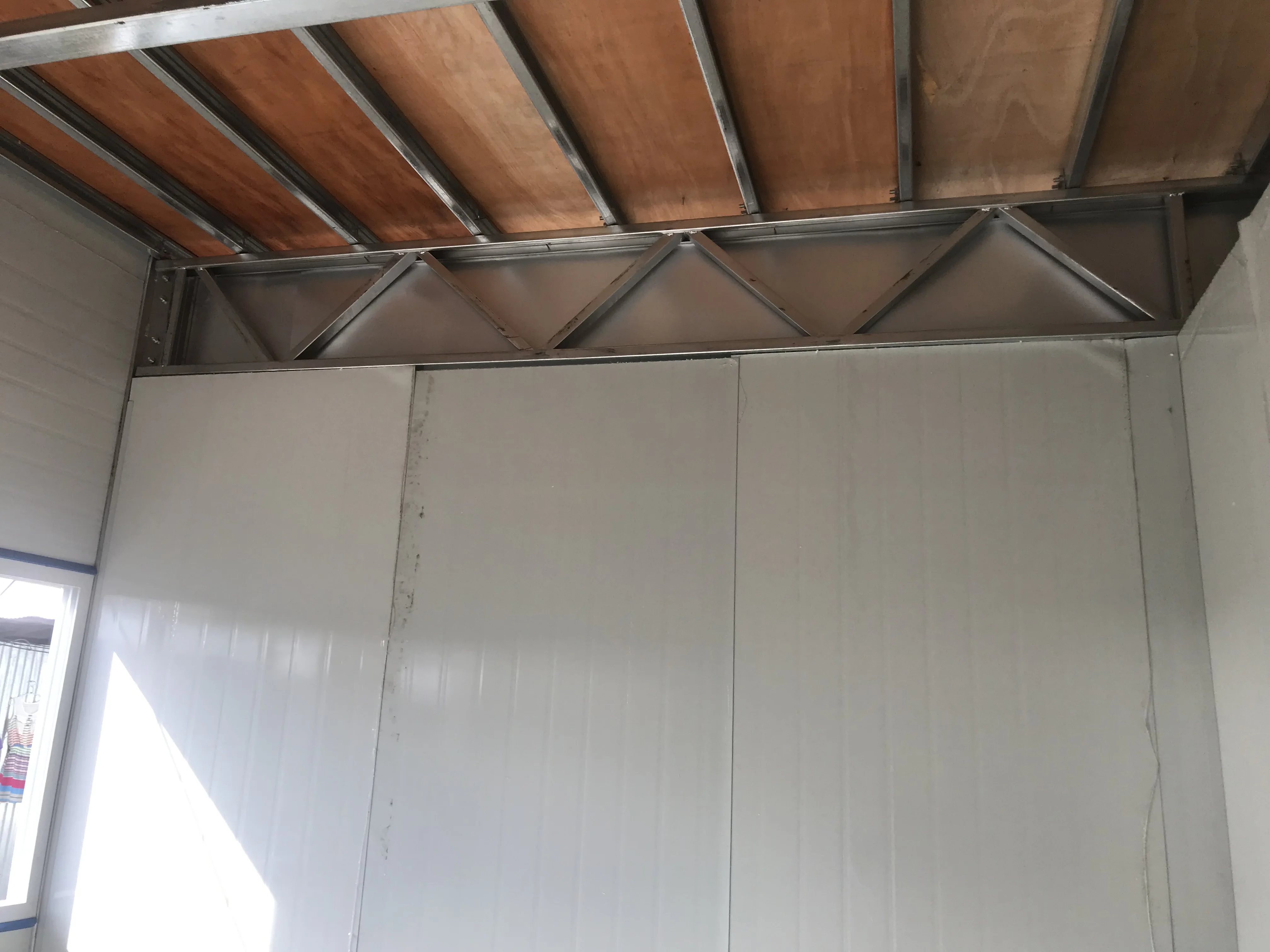

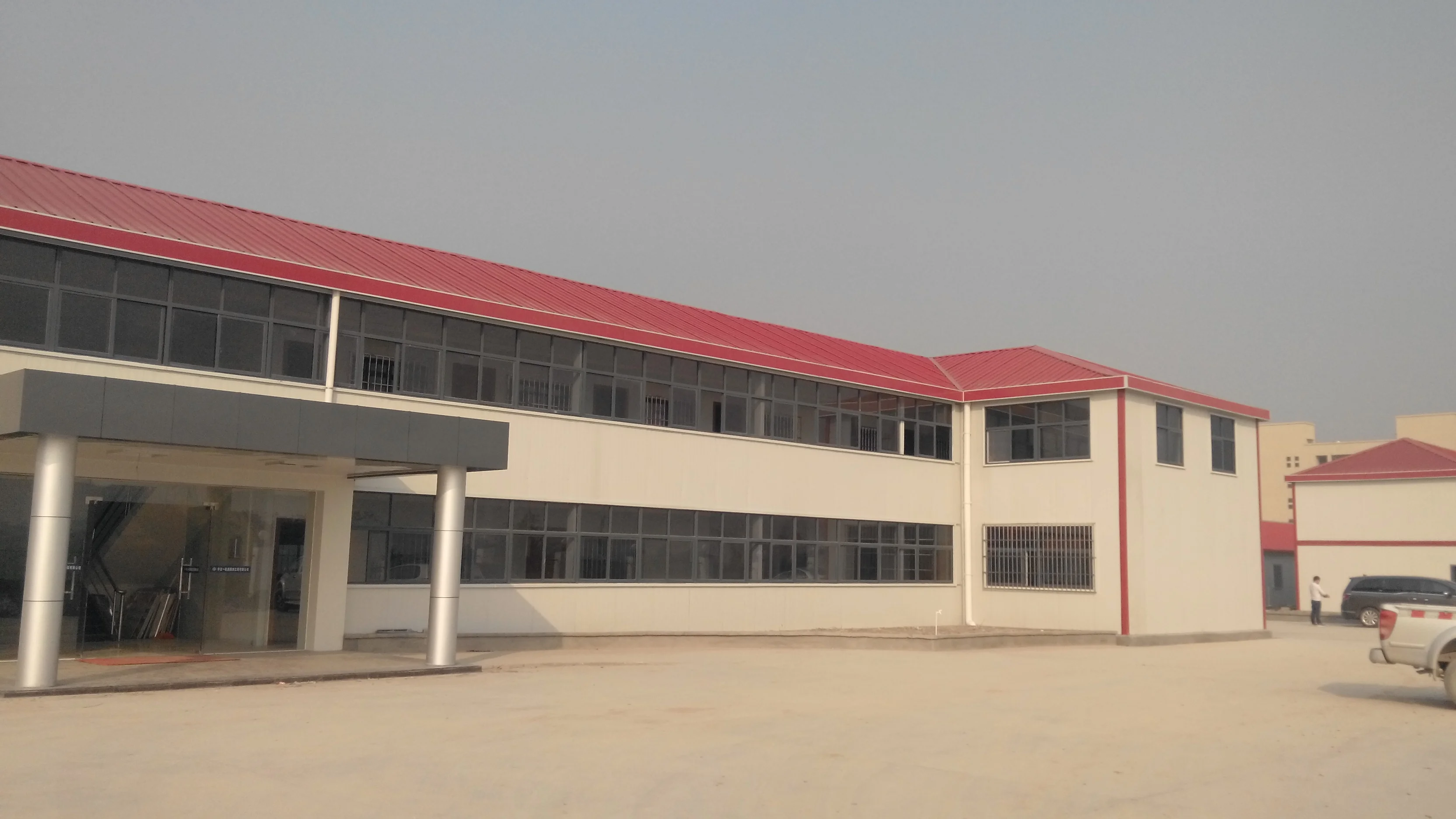

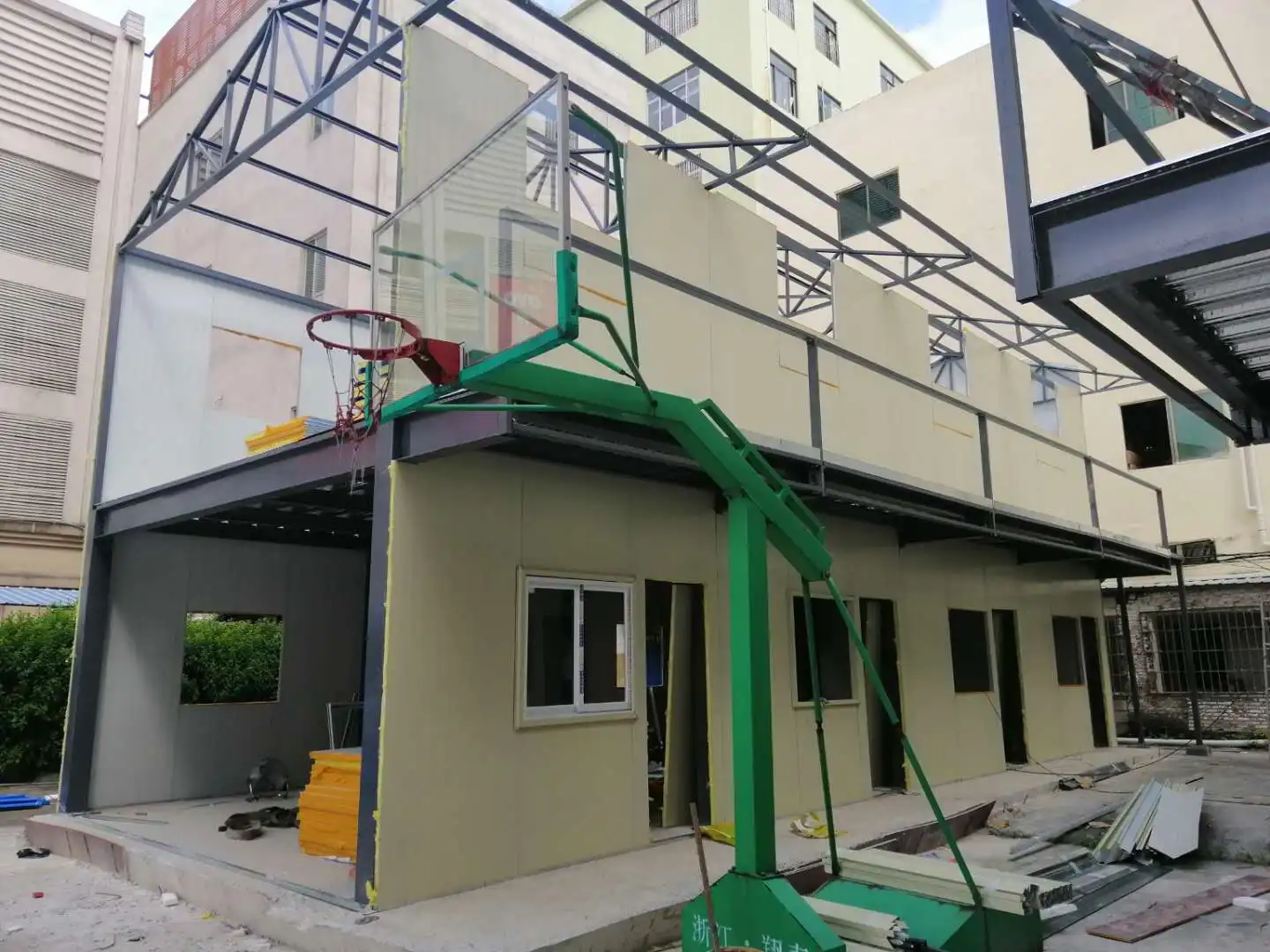

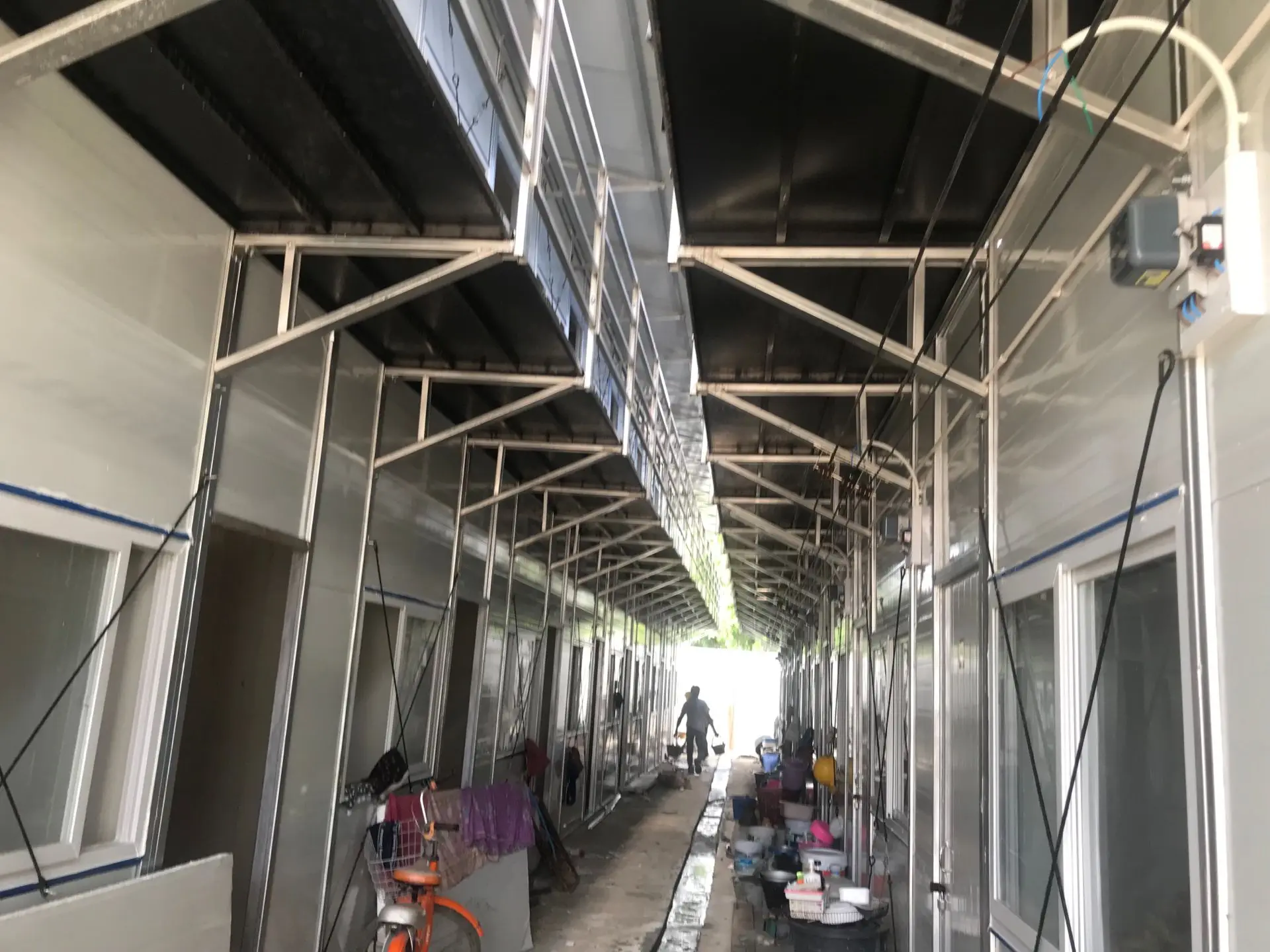

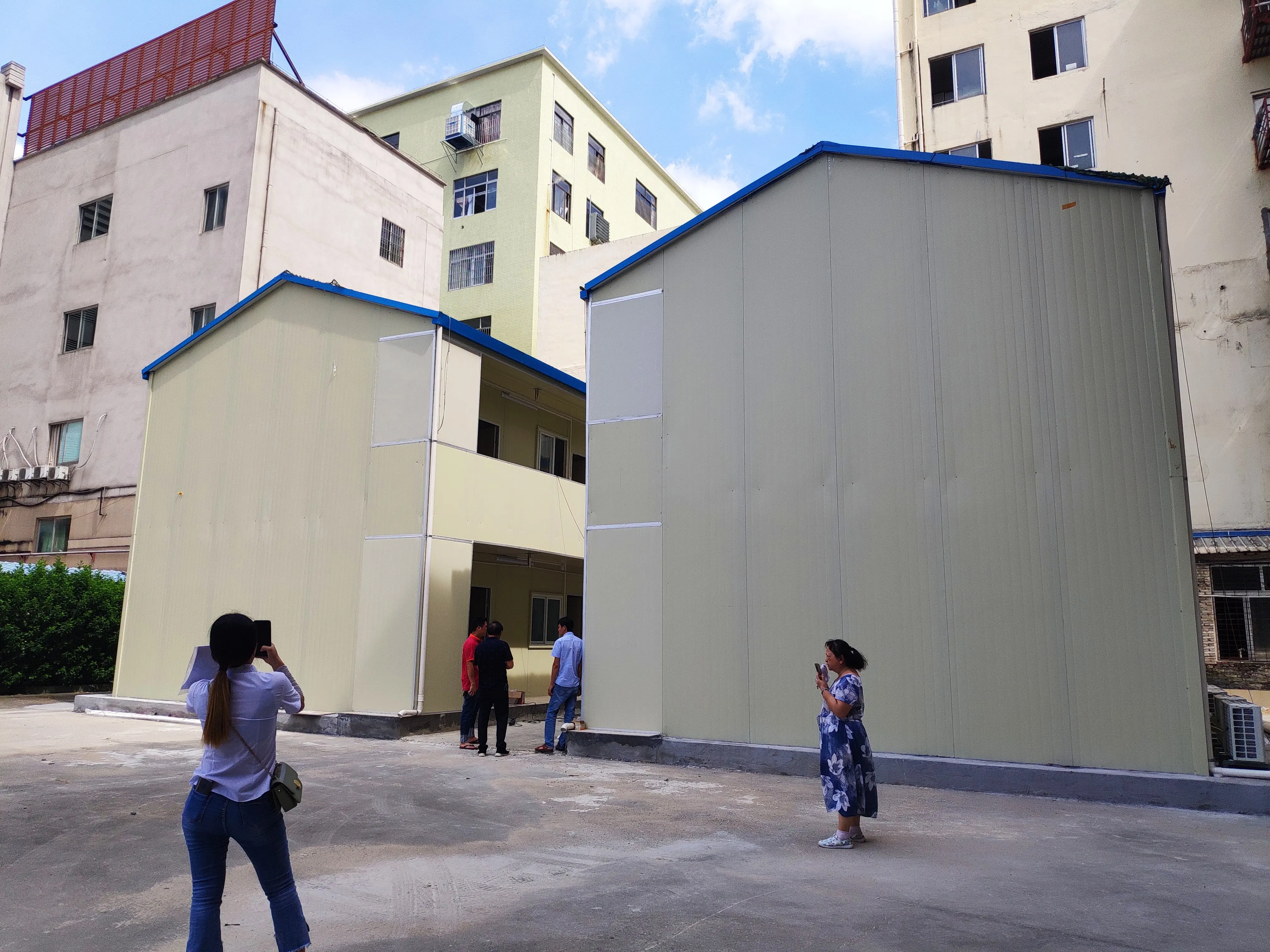

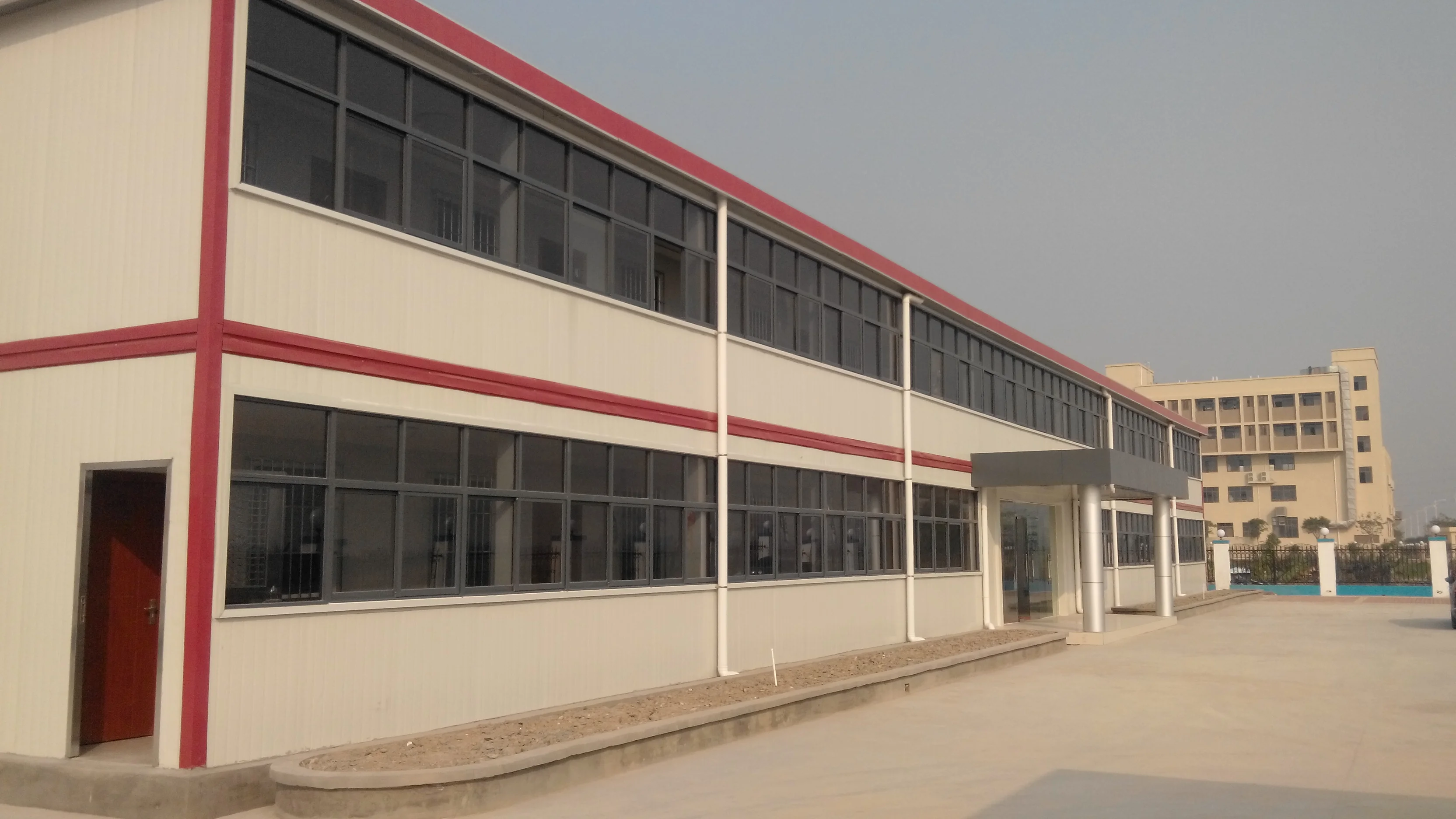

Projects
Mixed Steel Structure Prefab House（Hard & Light）
____________________________________________________________________________________________
TIME | LOCATION | AREA | APPLICATION |
2019 | China | 2800 sqm | Accommodation |
2015 | Cambodia | 2400 sqm | Hotel |
Large Span Light Steel Structure Prefab House
____________________________________________________________________________________________
TIME | LOCATION | AREA | APPLICATION |
2017 | China | 8700 sqm | Accommodation |
2015 | Cambodia | 2400 sqm | Hotel |
TIME | LOCATION | AREA | APPLICATION |
2019 | Thailand | 20000 sqm | Accommodation |
2015 | Cambodia | 2400 sqm | Hotel |
Small Steel Structure Prefab House
____________________________________________________________________________________________
TIME | LOCATION | AREA | APPLICATION |
2019 | China | 110 sqm | Office |
2015 | Cambodia | 2400 sqm | Hotel |
TIME | LOCATION | AREA | APPLICATION |
2019 | China | 40 sqm | Accommodation |
2015 | Cambodia | 2400 sqm | Hotel |
Related Products
Certificate
Patent Certificate Introduction about a portable cabin
Certificate Introduction
ISO9001
Certificate Introduction
ISO9001

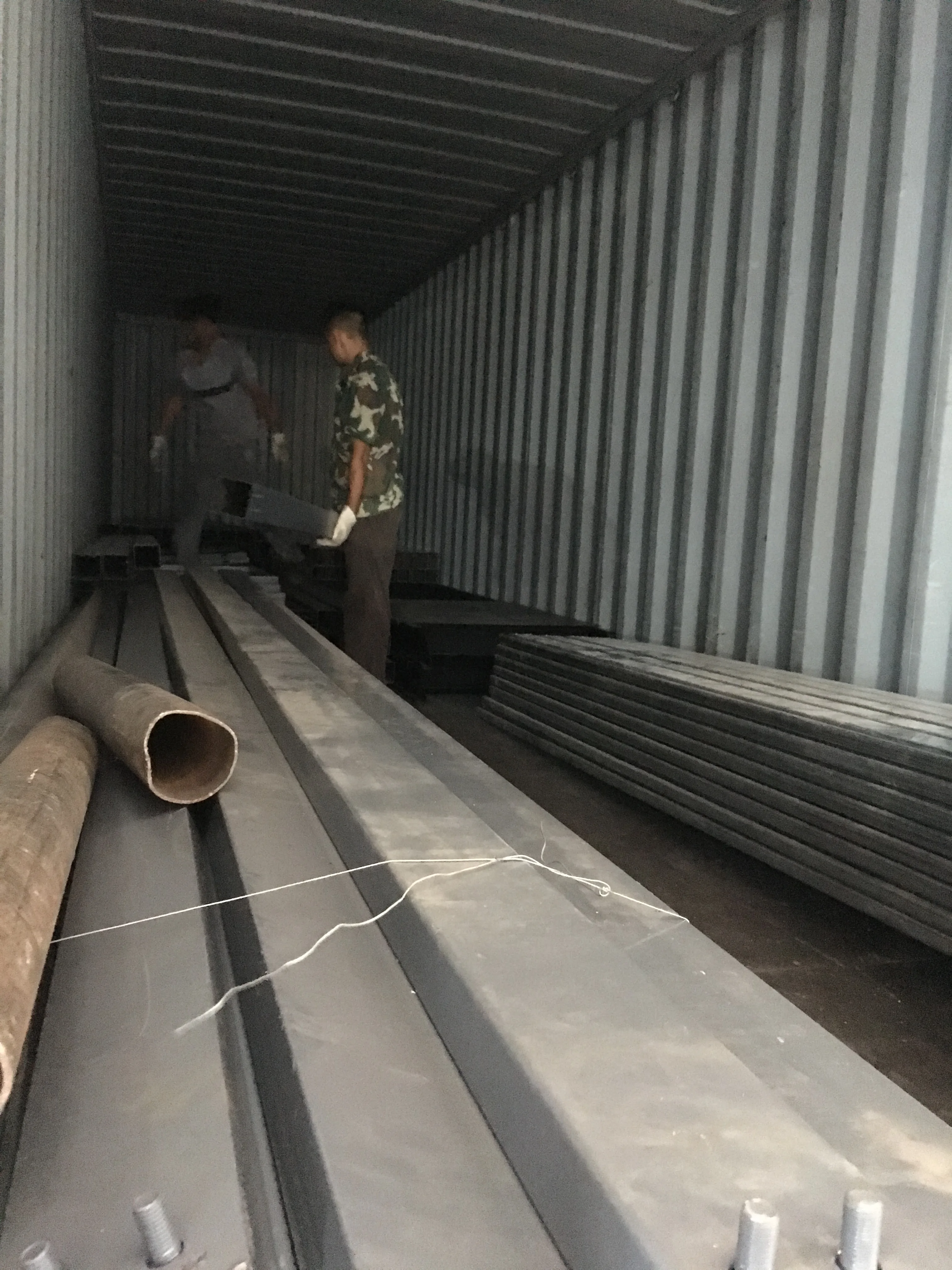

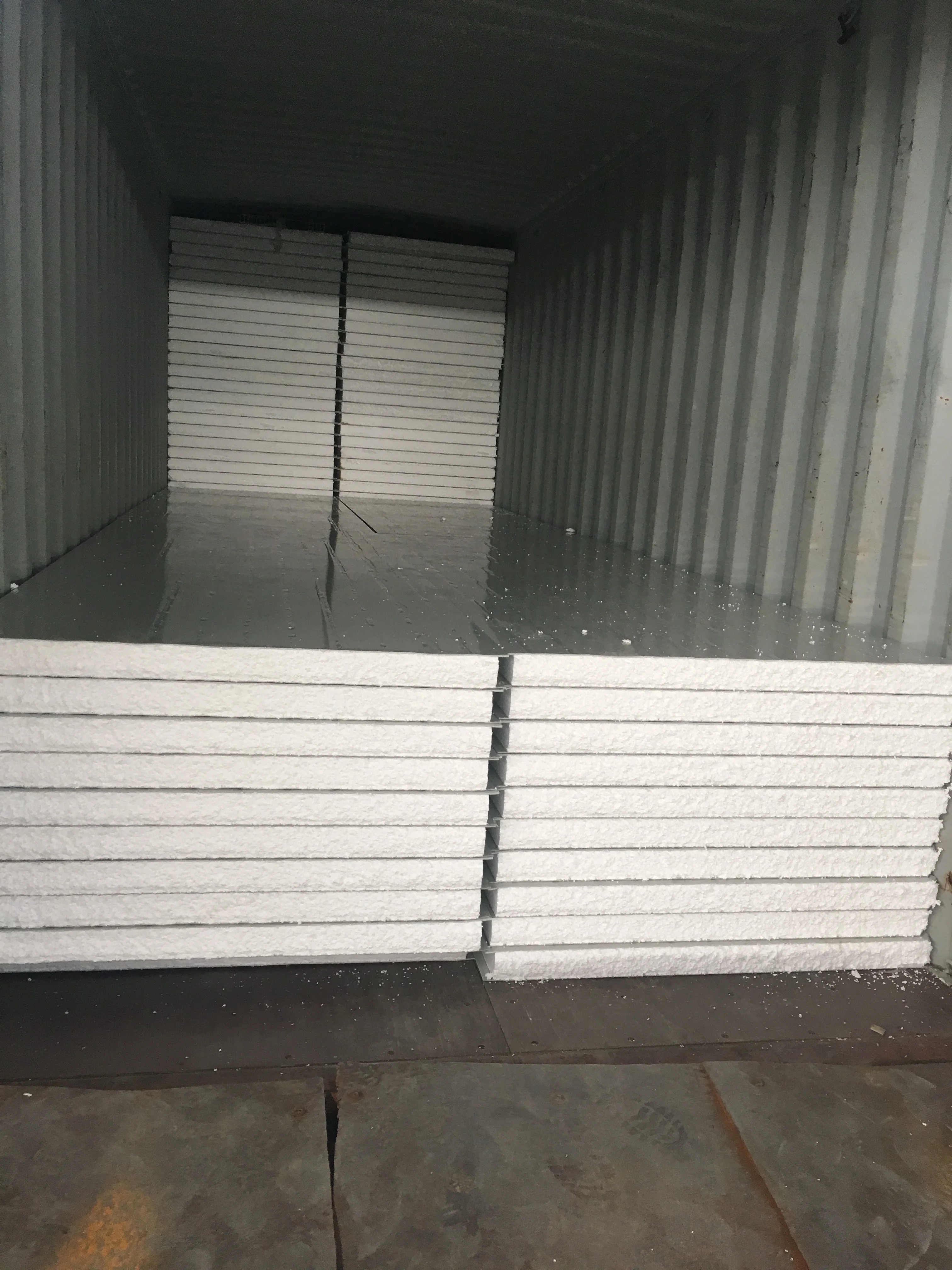

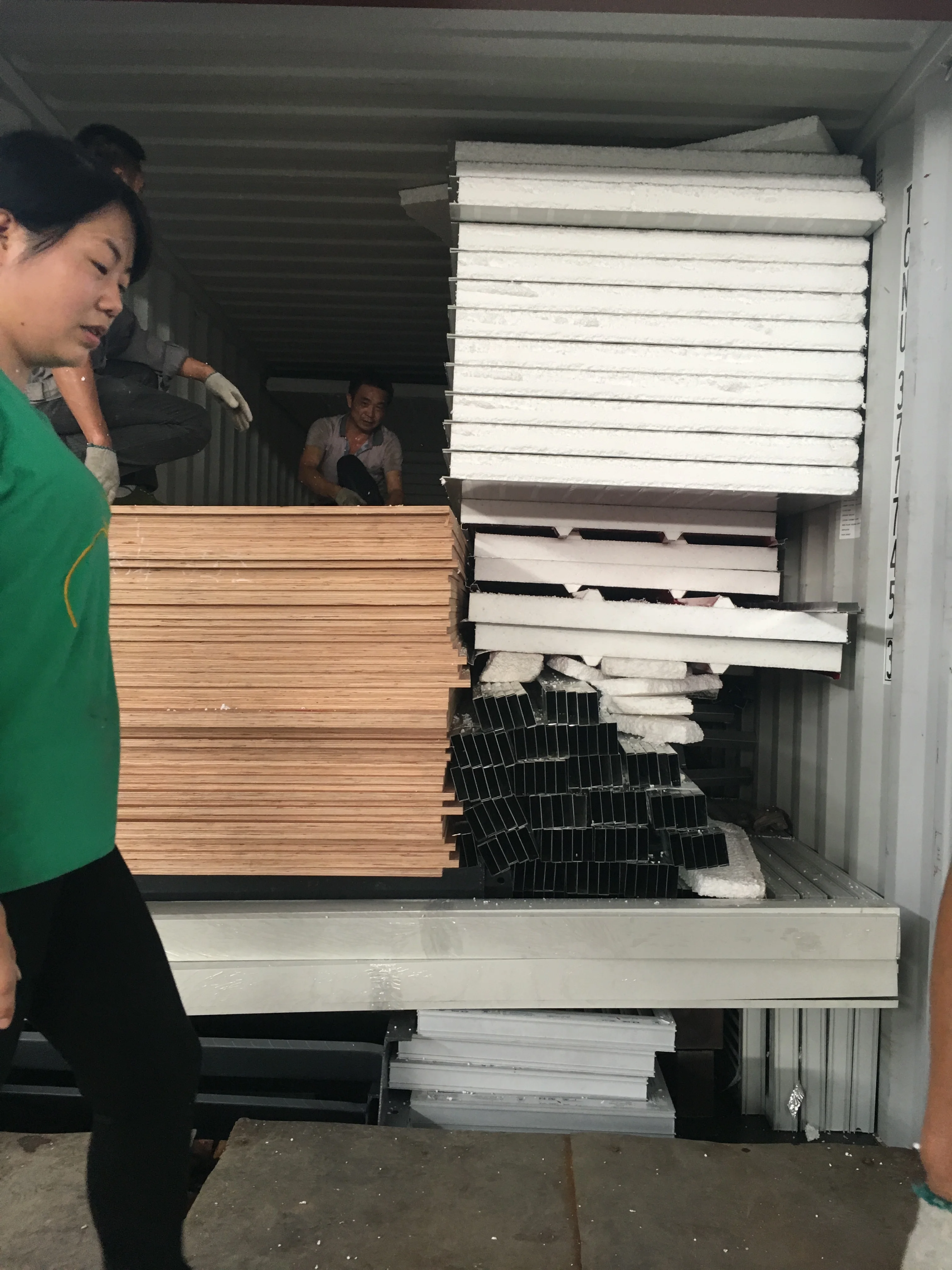

Packing&Shipping
Company Introduction
Foshan Bingcheng steel frame house Co.,Ltd
Bingcheng ,found in 2009,started earning a good reputation since 2015 for extraordinary export service and skillful production of custom steel frame.
There are more than 100 employees , 20% of whom are experienced engineers.People from Bingcheng managed successively to improve its products’ quality, such as the sandwich panel production line, C shape steel production line and welding line. Bingcheng has an annual production of 200,000 m2 steel frame house.
There are more than 100 employees , 20% of whom are experienced engineers.People from Bingcheng managed successively to improve its products’ quality, such as the sandwich panel production line, C shape steel production line and welding line. Bingcheng has an annual production of 200,000 m2 steel frame house.
Our Services & Strength
We have <C steel profile machine>,<Spray coating machine>, <Sandwich panel profile machine >,<Manipulate welding line > in which are composed of more than 40 employees .80% of them have rich experience about composition of steel frame house .

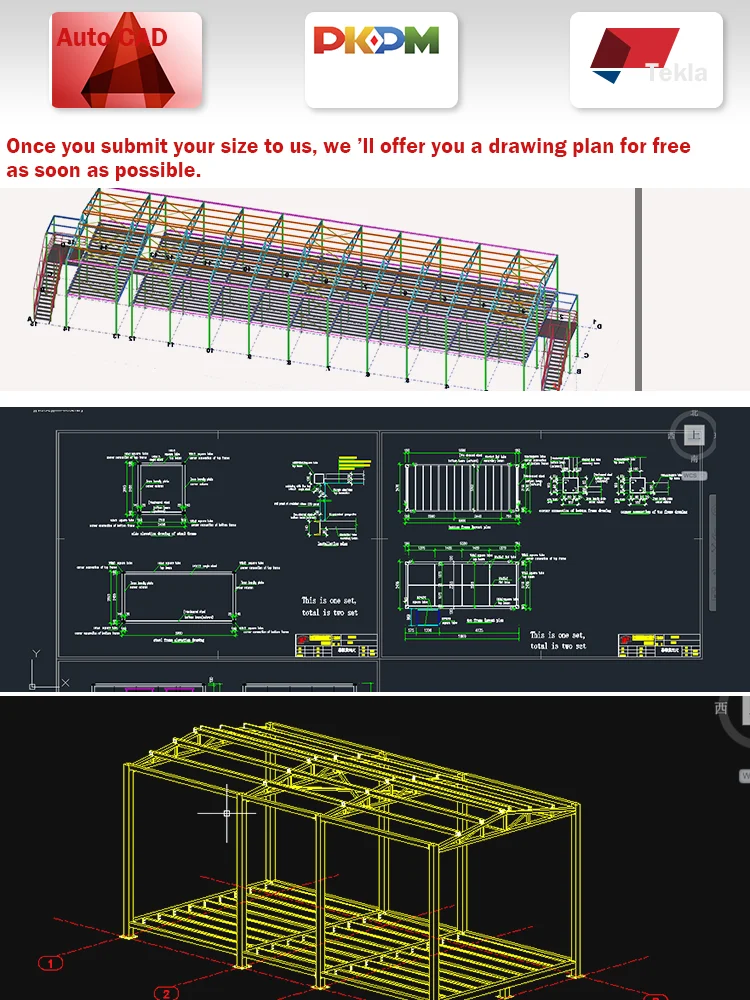

To clients who is firstly contact with us ,we are pleased offer 2D CAD drawing for your plan ,if we have made more progress 3D drawing would bee available for your plan if that 's necessary
FAQ
Q1 --Are we the manufacturer of prefab house ?
We are the manufacturer who focuses on custom steel frame products like warehouse/ workshop /modular house .
Q2 --Where is the location of our factory ?
We have two factories for production ,both of them ,are in Foshan city ,Guangdong ,China ,getting very close to ports.
Q3 --What port do we usually use for shipping?
1.Shekou,Shenzhen.
2.Nansha,Shenzhen.
2.Nansha,Shenzhen.
