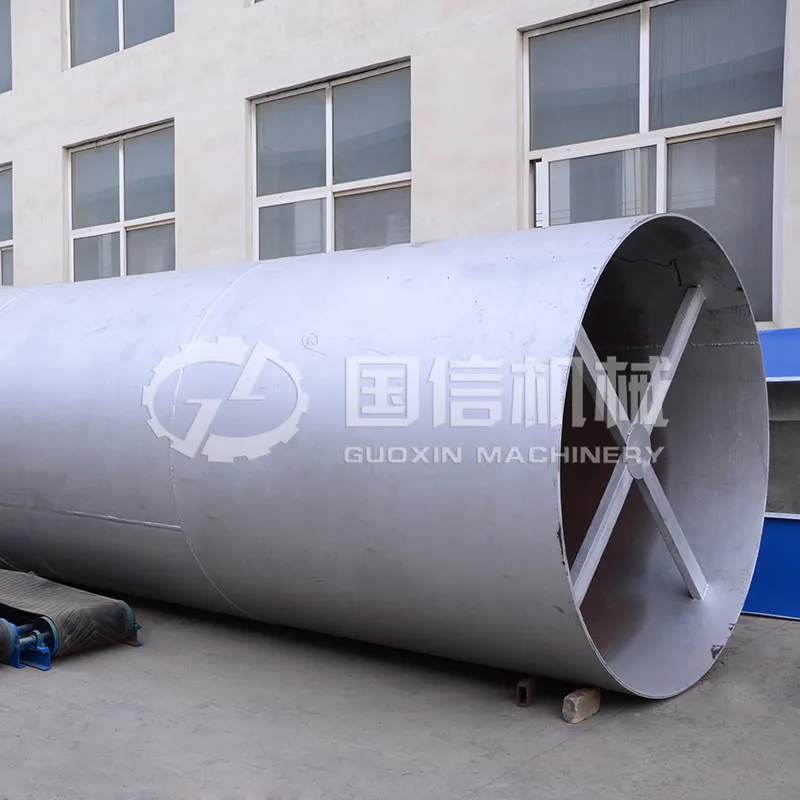

High Profitable Straw Forage Rotary Dryer Machine Verbena Tumbling Barrel Dehydrator

Brief Desciption of Verbena Tumbling Barrel Dehydrator:

TVerbena Tumbling Barrel Dehydrator is a new technology machine developed by Guoxin. It is suitable fordrying sand, sawdust, forage, slag, clay, coal, iron powder, ore powder and other mixed materials, dry mixed mortar of construction industry, yellow sand and other raw materials of chemical industry and casting industry. with high efficiency and good drying effect. Can dry all kinds of material to 10-15%. The drying temperature and speed of the drying equipment can be controlled.

Structure of Verbena Tumbling Barrel Dehydrator:

1,hopper; 2.dosing machine; 3.incoming material feeder; 4.heating resources; 5.drying roller; 6.discharge feeder; 7.cyclone; 8.draft fan; 9.belt conveyor; 10.variable motor; 11.reduction gear.

The characteristics of Verbena Tumbling Barrel Dehydrator:

The rotary dryer of our company focuses on solving the balance of the three elements "heat source, raw material and wind", so as to improve the thermal efficiency of the dryer, greatly improve the output, reduce energy consumption, this technical transformation has the following characteristics:

1. High degree of mechanization, large production capacity, precise manufacturing, simple operation, is an ideal drying equipment;

Compared with the similar dryer, the production is increased by 50-80%, and the heat source consumption is saved by 50-70%.

2. The resistance of the dry medium through the rotating cylinder is small, the dust sealing performance is good, maintenance is convenient;

3. Strong adaptability to materials, stable and convenient operation, and low operating costs;

Appropriate increase of drum speed, increase of material lifting rate, reduce energy consumption, greatly increase output.

4. The rotary dryer has strong overload resistance, large handling capacity, less fuel consumption and low drying cost;

Optimize the parameters of the process system and give full play to the thermal efficiency of the system.

5. Adopting the downstream drying method, the flue gas and wet materials enter the dryer from the same side. The high-temperature flue gas can be used to obtain high evaporation intensity.Low outlet temperature and high thermal efficiency;

6. The operating parameters can be changed according to different material properties, so that the material can form a stable full-break fabric curtain in the dryer barrel, and the mass and heat exchange is more sufficient;

7. The new feeding and discharging device can eliminate the phenomenon of rotary dryer feeding clogging, discontinuity, uneven and return, and reduce the load of dust removal system;

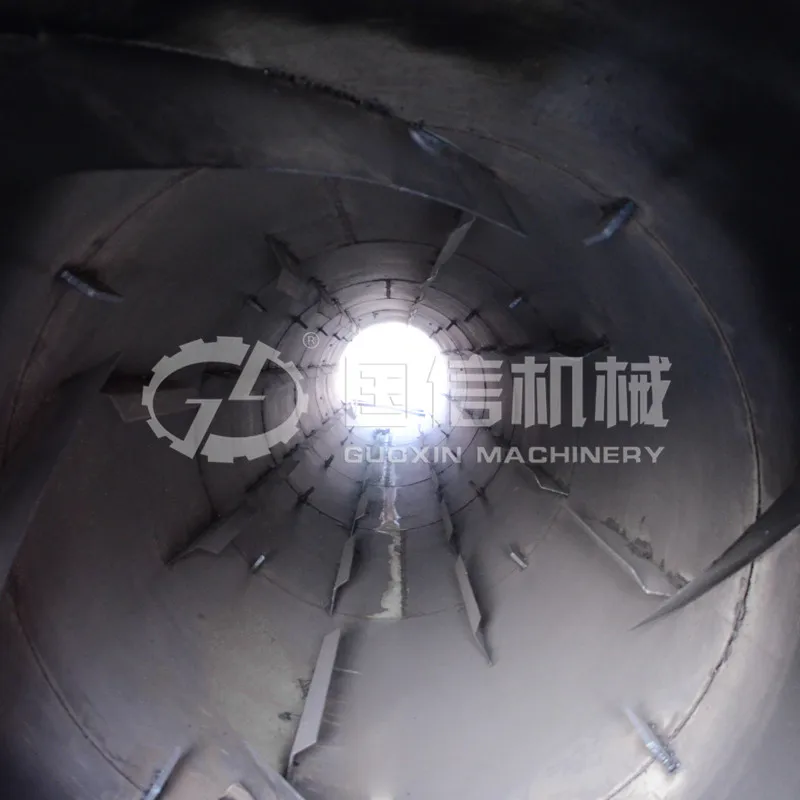

8. The new internal structure strengthens the cleaning and heat conduction of dispersed materials, eliminates the adhesion phenomenon of the inner wall of the cylinder, and has a stronger adaptability to the moisture and viscosity of materials;

Adopt new type combined material lifting device, unique structure, form even material curtain.

9. Under appropriate working conditions, the patented multi-air duct high-temperature hot blast furnace is adopted, the temperature of the furnace can be controlled at 800℃, and the temperature can be adjusted conveniently.

The structure and parameters of the dryer can be adjusted according to the size of drying material and water content required by the user.

Technical parameters of Verbena Tumbling Barrel Dehydrator:

The features of TVerbena Tumbling Barrel Dehydrator:

1. The drying strength is large. Because the material is highly dispersed in the gas stream, the total surface area of the particles is extremely dry and effective.

2, Short drying time.

3. The Verbena Tumbling Barrel Dehydrator has a simple structure, a small footprint, and it is easy to construct and maintain.

4. Large processing capacity and high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
