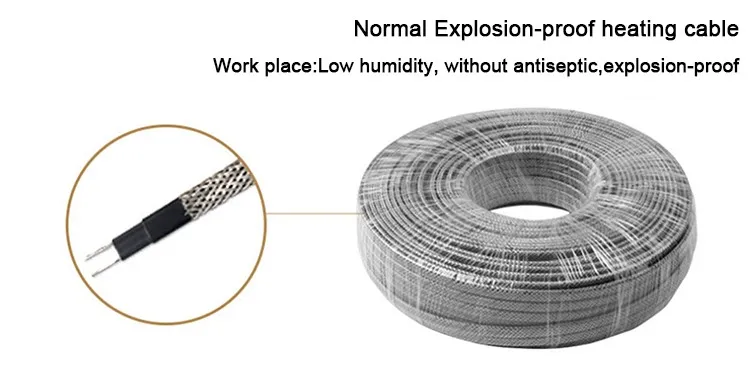

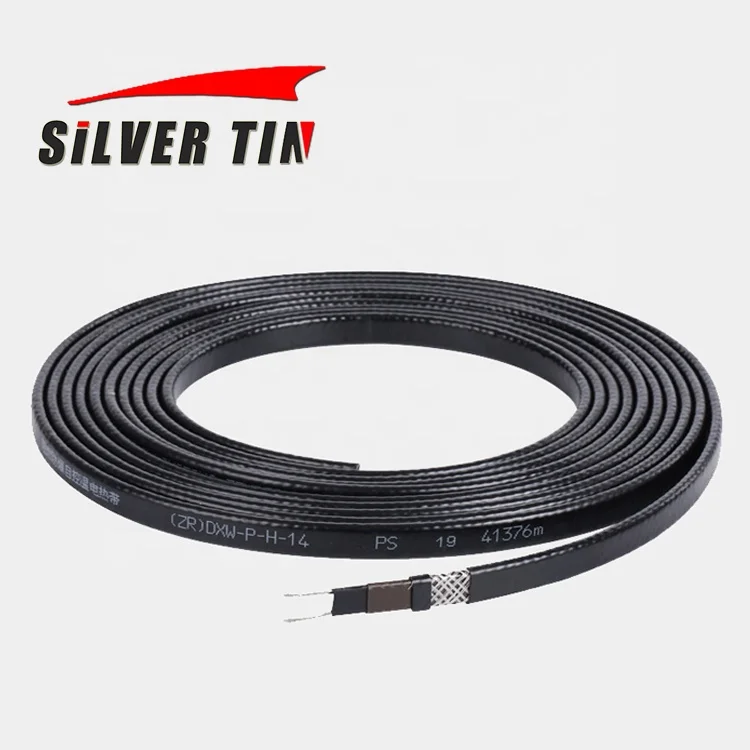

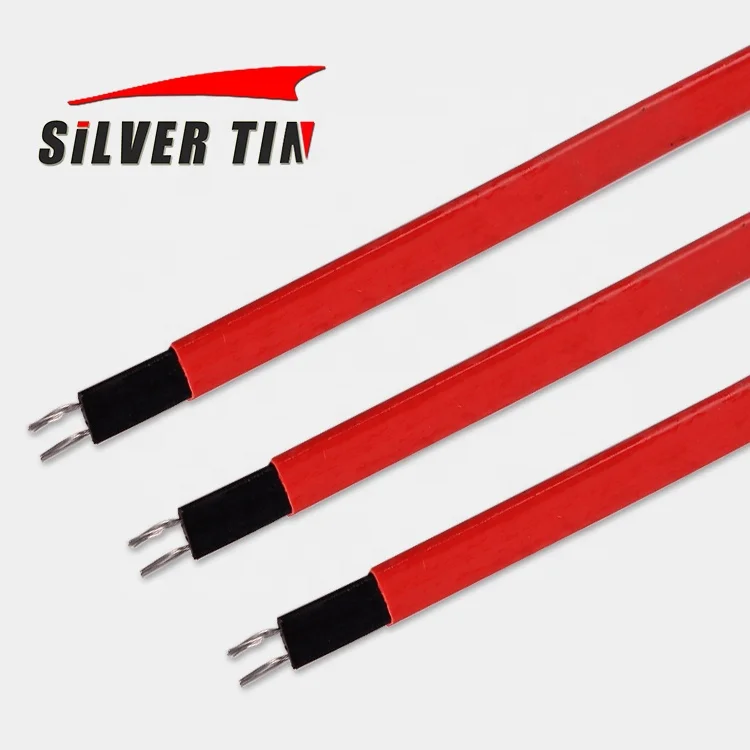

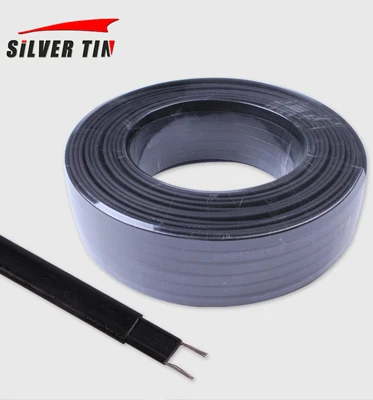

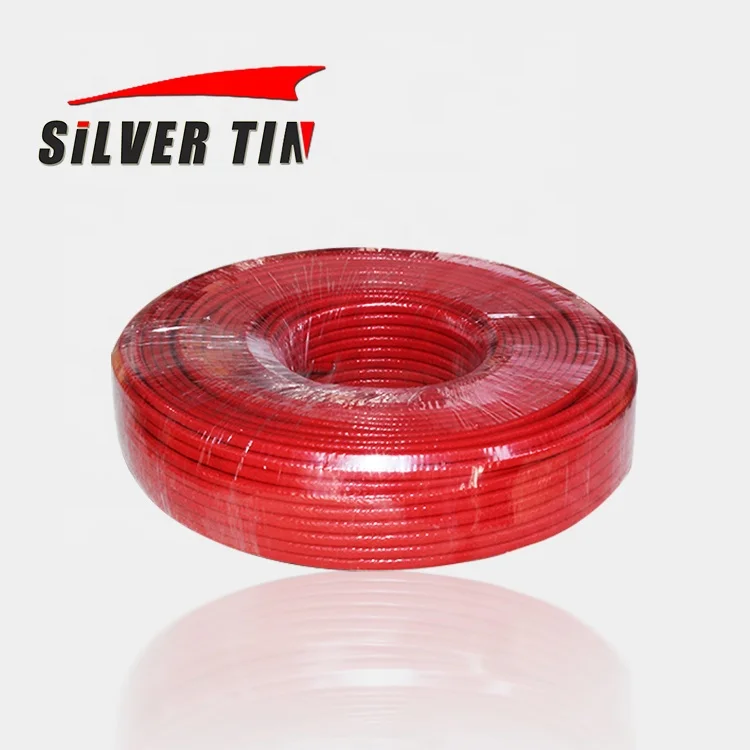

Explosion proof electric self regulating heat tracing cable
- Category: >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (62361739414):
Product Overview
Description
Product Description
Self-regulating / self-limiting heating cable, often called heat trace cable or heating tape, automatically adjusts heat output based on surface temperature. Ideal for freeze protection and low temperature process maintenance such as water pipe heating and roof & gutter freeze protection.
Self-regulating heating cable provides safe, reliable heat tracing for process temperature maintenance and freeze protection of pipes, valves, tanks and similar applications.
Cable structure | Specifications | ||||
1. Copper-core wire: double | 1. Standard color: black, (custom) | ||||
2. Conductive heating element | 2. Temperature range: Max. Working temperature 60±5°C | ||||
3. Insulation of heating element | 3. Working voltage: 220~240V 50/60Hz | ||||
4. HD polyolefin outer jacket | 4. Power: big orders can customize | ||||

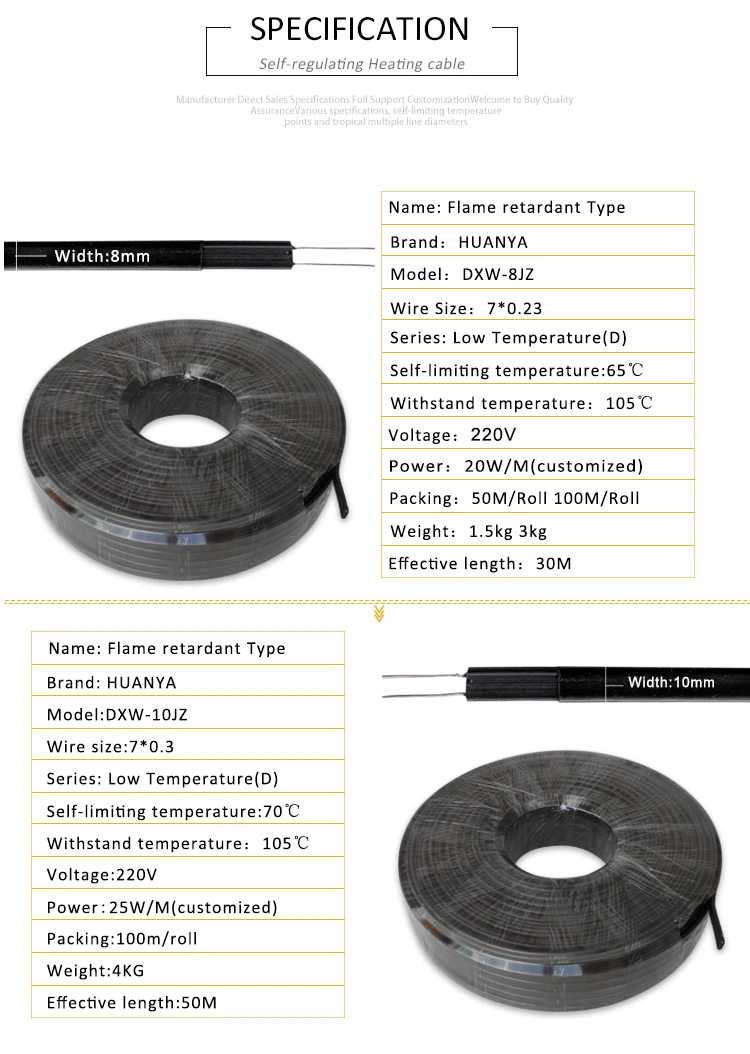

Detailed Images

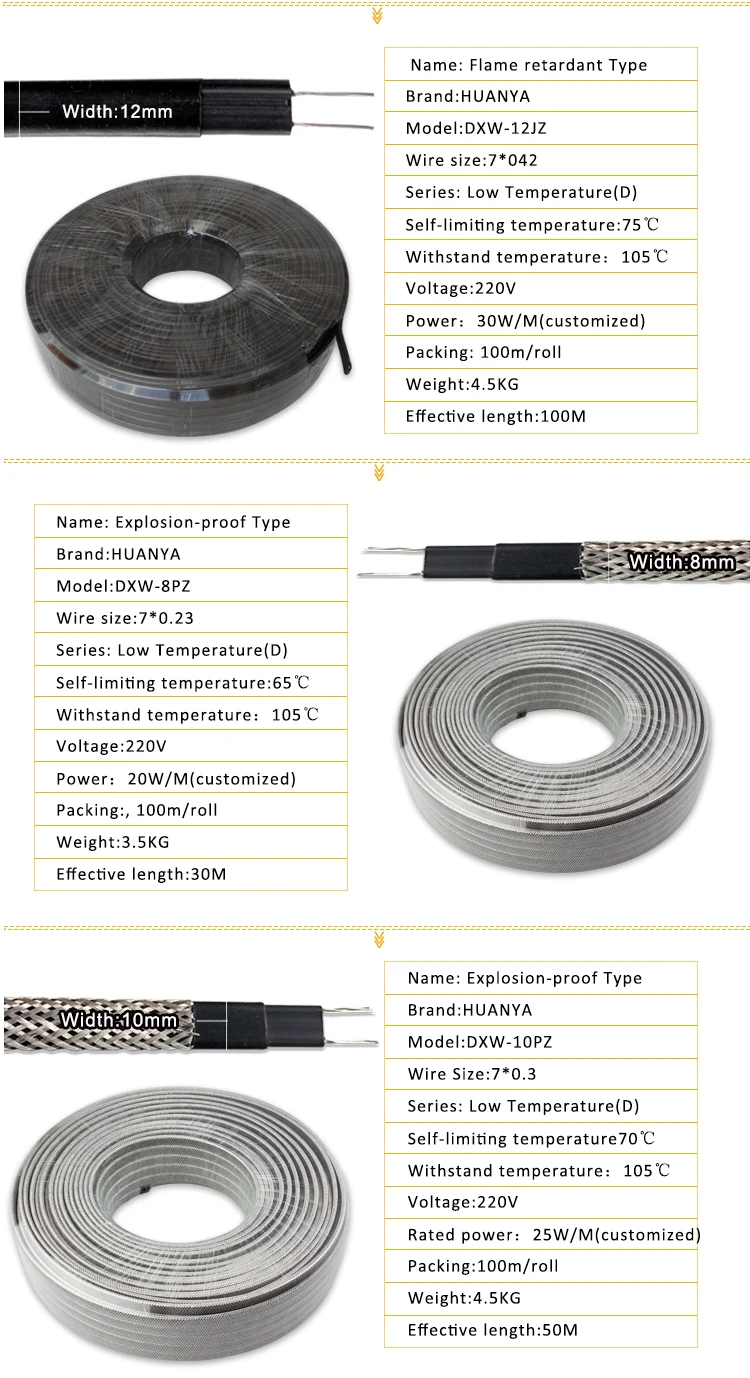

DXW-8PZ(Low Temperature D series )
Self-Regulating Temperature65℃ Maximum temperature 105℃ Power rating:20W/M
Width:8MM Useful Length:30M Package Size:100M/Roll Weight: 3.5KG Strand Wire:7*0.23MM
DXW-10PZ(Low Temperature D series )
Self-Regulating Temperature 70℃ Maximum temperature 105℃ Power rating:25W/M
Width:10MM Useful Length:50M Package Size:100M/Roll Weight: 4.5KG Wire:7*0.3MM

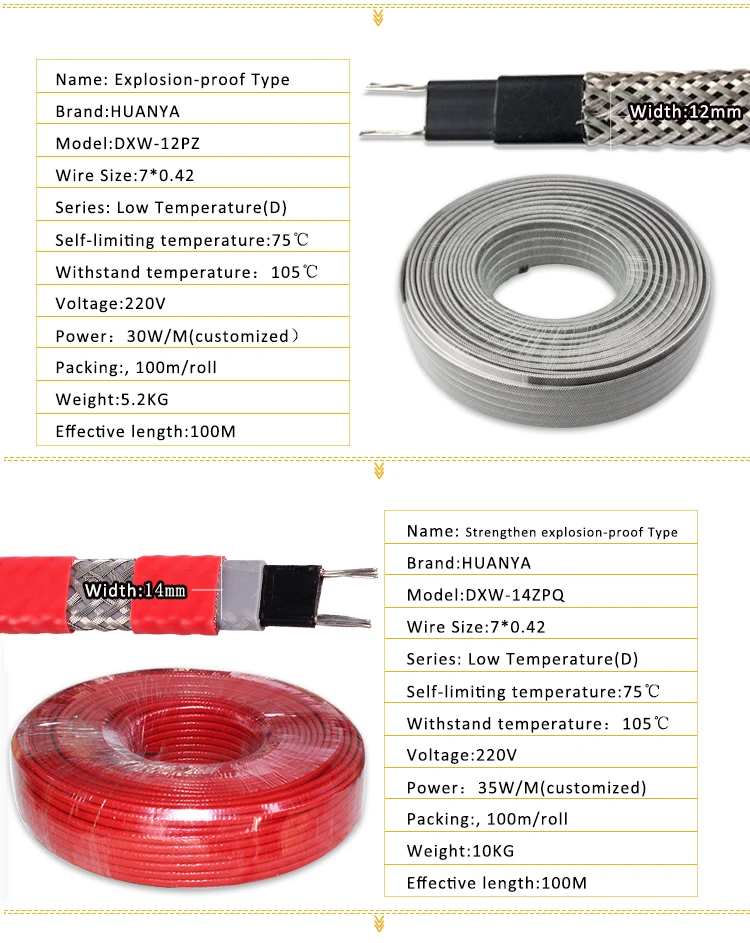

DXW-12PZ(Low Temperature D series )
Self-Regulating Temperature 75℃ Maximum temperature 105℃ Power rating:30W/M
Width:12MM Useful Length:100M Package Size:100M/Roll Weight: 5.2KG Wire:7*0.42MM
Feature
*Saves energy because self regulating heating cable will throttle itself back as it senses increasing temperatures.
*Self-regulating effect makes an over-temperature condition virtually impossible.
*Less maintenance, expense, and downtime.
Fire resistive material
Fire retardant
