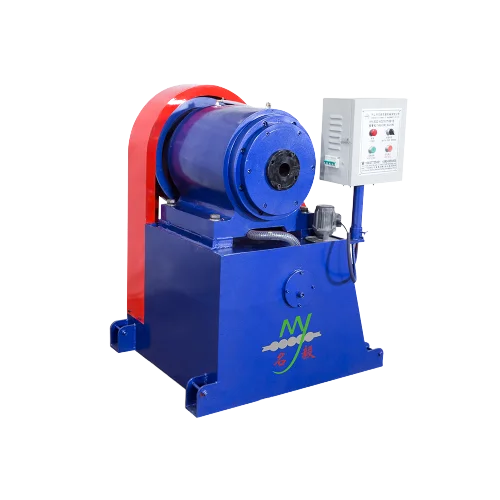

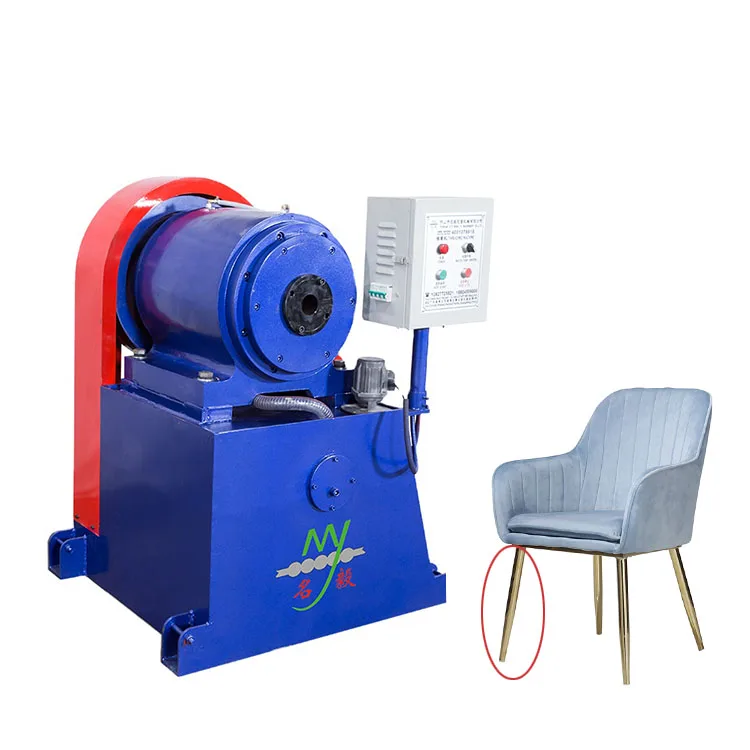

Ming Yi Tube Taper Machine

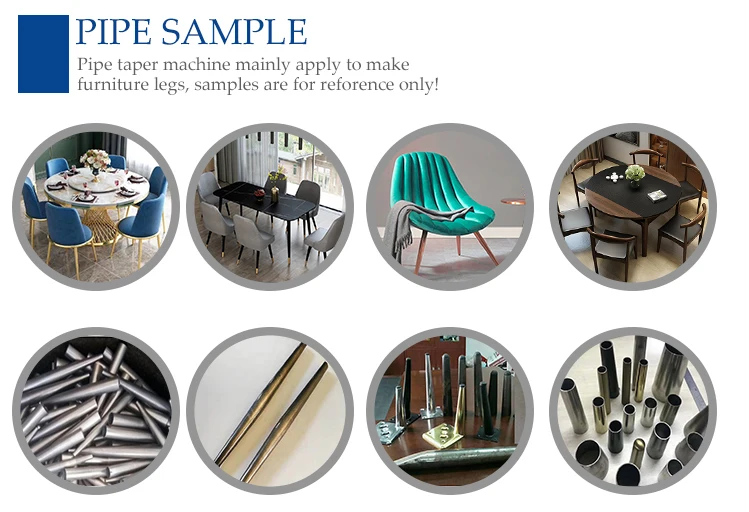

Tube taper machine use cast iron body, more stable, lower noise.Mechanical parts and electrical parts are arranged neatly, more easier to repair.This machine can process wall thickness(0.5-2.0mm),diameter(φ10-φ76mm) metal pipes,such as stainless steel pipes,iron pipes,copper pipes,aluminium pipes and so on.Widely used in furniture industry.
Parameter
Product model | MY-C38*300 | MY-C50*400 | MY-C76*300 | MY-C76*400 | MY-C76*500 |
Mold size(mm) | 300*36*44 | 400*50*44 | 300*60*50 | 400*60*50 | 500*60*50 |
Processing range(mm) | φ10-φ38 | φ16-φ51 | φ38-φ76 | φ38-φ76 | φ38-φ76 |
Workpiece thickness(mm) | 0.5-1.2 | 0.7-1.5 | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 |
Forming length(mm) | 290 | 390 | 290 | 390 | 490 |
Forming time(s) | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 |
Main motor(kw) | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Sprindle speed(rev/min) | 300 | 200 | 200 | 200 | 200 |
Sprindle center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Total weight of equipment(kg) | 1000 | 1300 | 2000 | 2000 | 2500 |
- The tube taper machine have many different models,in oder to recommend the best one for you, please tell me your pipe information below：
- 1)Pipe material
- 2)Original pipe wall thickness
- 3)Tapered pipe diameter, both big side and small side
- 4)Pipe taper length

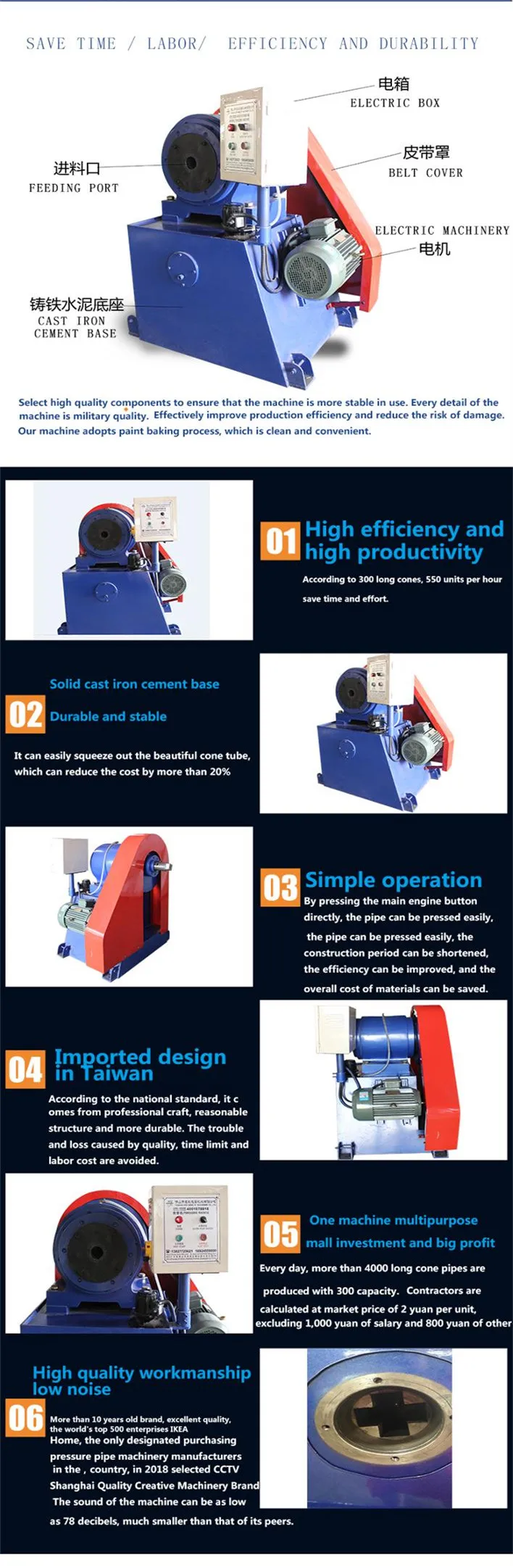

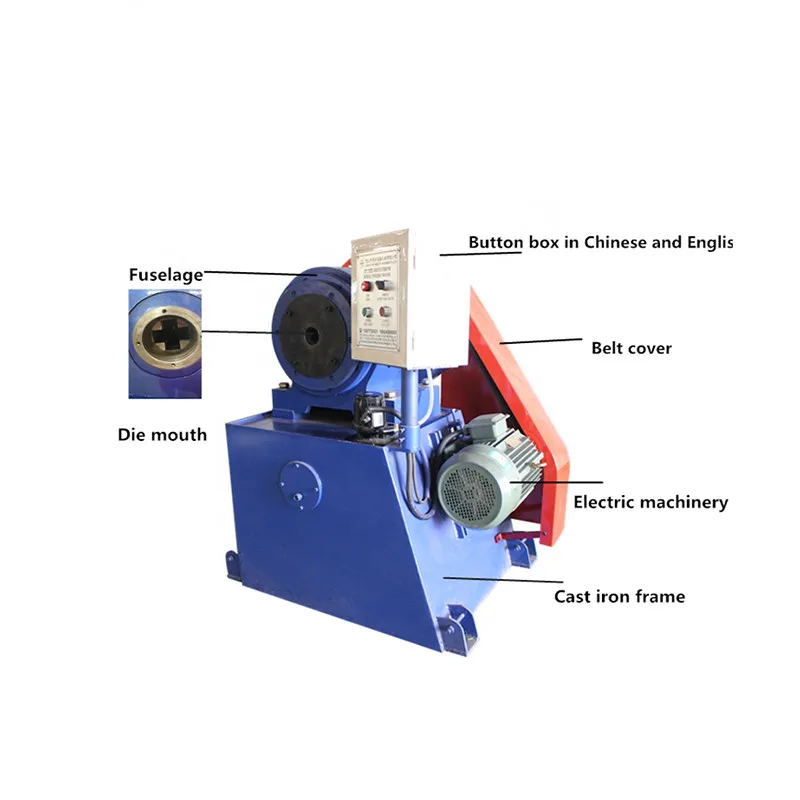

Machine Description
Machine Install
1. The machine is fixed on the flat ground, and the machine should be left enough space for operation and debugging.
2.Plus 80% to 90% of the hydraulic oil into the tank.（Use No. 46 hydraulic oil）。
3.Connecting the power supply, connecting the control electric box and power supply by four - core cable,(Pay attention to use the core cable that can carry the power of the main motor,when wiring must distinguish between Zero line and Fire line, respectively, is one Zero line, three Fire line.)
4.Test the direction of rotation after the machine is started,turn on the power switch first,start the machine (The green button is the start button),the rotating direction of the host and the cooling pump is clockwise direction. If the rotation direction is opposite,turn off the power first,then the 4 core cable in any of the two fire line exchange connected,the rotation direction will be right.
Our Company
Packing & Delivery
1. Are you a manufacturer?
Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery over 10 years.We have mature product lines. If you want to come andvisit, we absolutely welcome and we are willing to arrange the travel for you.
2. How can i find a most suitable pipe taper machine?
We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for any technology problems.
3. How about payment terms?
The payment terms are optional, customer can choose at your convenience. 【T/T, Alibaba Secure Payment, Western Union, Paypal, L/C】
4. How to ensure transportation on time?
The customer can place an order in Alibaba, this is a third party and it will provide supervise and protect for buyer. If seller didn’t deliver the product in time, buyer can apply for a refund through the Ali platform to avoid losses.
5. How about after-service?
Our warranty period is 12 months. If there is a problem with your machine during this period, we can provide the parts for free to solve the problem. And customers who have reached a friendly transaction with us can enjoy lifelong technical support. If you need it, we can help you solve the problem through online communication, video and other means.
6. Can you accept OEM/ODM?
Our products can be customized design for our customer by OEM/ODM.
7. Is there any benefits for becoming a dealer?
Of course. If you have the strength and willingness to become our distributor, we will not only adjust the price. Secondly, we can provide you with customized machines according to the sales habits of the buyer's market. More importantly, technically, we will send professional engineers to give you on-the-spot guidance, so that you become the most understanding of the machine.
8. Where is your factory located?
Our factory is located in Foshan City, Guangdong Province. You can fly to Foshan airport directly.We will pick you up if necessary.
Our factory is located in Foshan City, Guangdong Province. You can fly to Foshan airport directly.We will pick you up if necessary.
