2021 News fishery Diesel Aerator Fish Pond aerator powered by diesel Shrimp Farming 16 impellers Aerator

Product Overview

Description



DIESEL ENGINE AERATOR
Can custromized in 8wheels to 22 wheels or more wheels with diesel engine,suitable for a place which is      lack of electric support .Diesel engine brand is CHANGFA ,also can choosen another brand.Paddle wheel aerator all the spare parts all in high level ,like materials are stainless steel 304 solid shaft and impeller shaft,even the screws.Can used in sea water.The diesel engine powerc is from 16hp tp 22hp ,so the speed can reached to 2200r/min ,the impeller speed can reached to 15r/min.Aeration performance is over 7.8kg/h oxygen, but noise is lower than 78dB(A).

Diesel engine aerator common set:
12wheels aerator work with 12 hp diesel engine
16wheels aerator work with 16hp diesel engine

Common choose for diesel engine:
1.Electric start with fan cooling type ,can add LED light,(need start up with battery)
2.Hand rolling start with water cooling type

Zhejiang Fulanke Factory Water Machine Fishing Farming Aerator Paddle Wheel Aerator

WELCOME to FULANKE:https://fulankepump.en.alibaba.com

16HP Aquaculture Aerator Diesel Aerator
Diesel  power		12/16/22

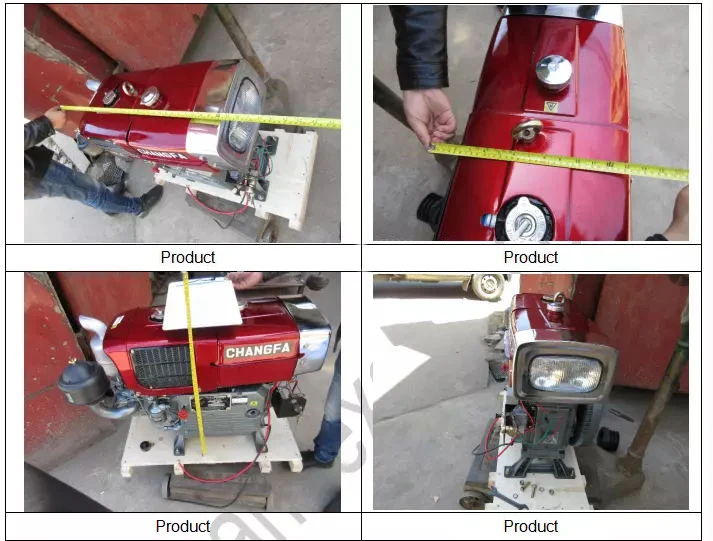

Diesel brand		CHANGFA BRAND
Aeration rate		7.8kg/h oxygen
Impeller speed		157r/min
Engine speed		2200r/min



https://fulankepump.en.alibaba.com/?spm=a2700.7756200.0.0.703771d2Du5fKj

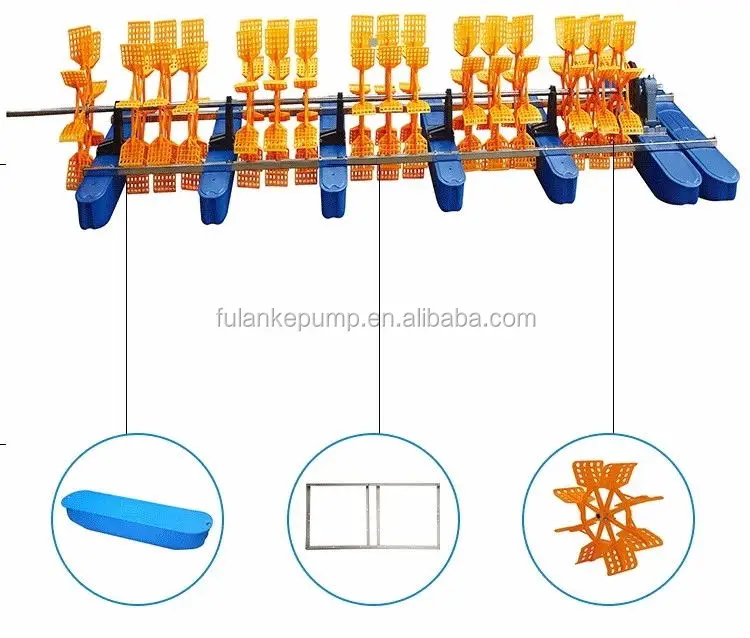

Name	Size	quantity	material

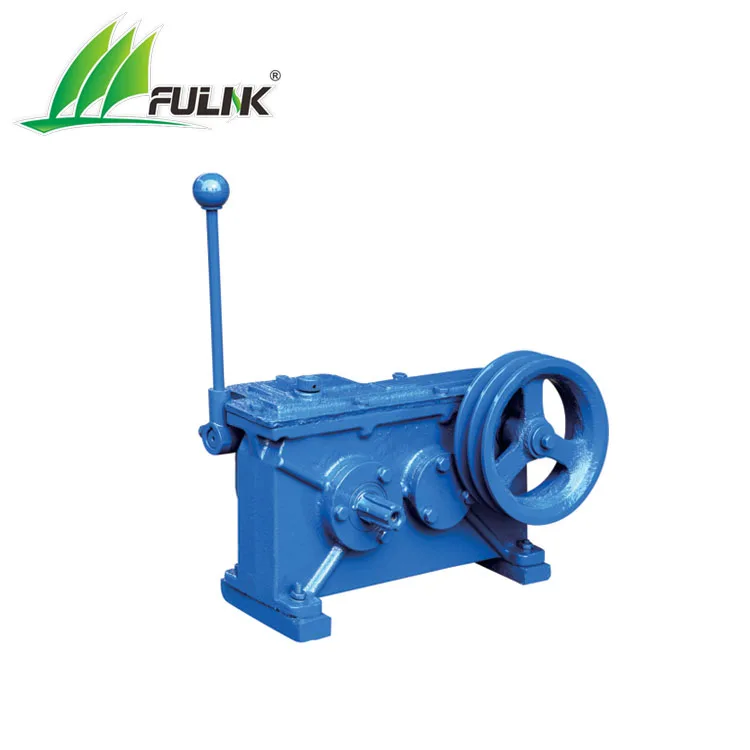

Diesel engine and gear box	270mm*290mm*490mm	1PC	Cast iron and copper
Split connecting rod	4830mm	2PC	304#SS
Solid impeller shaft	4370mm	1PC	304#SS

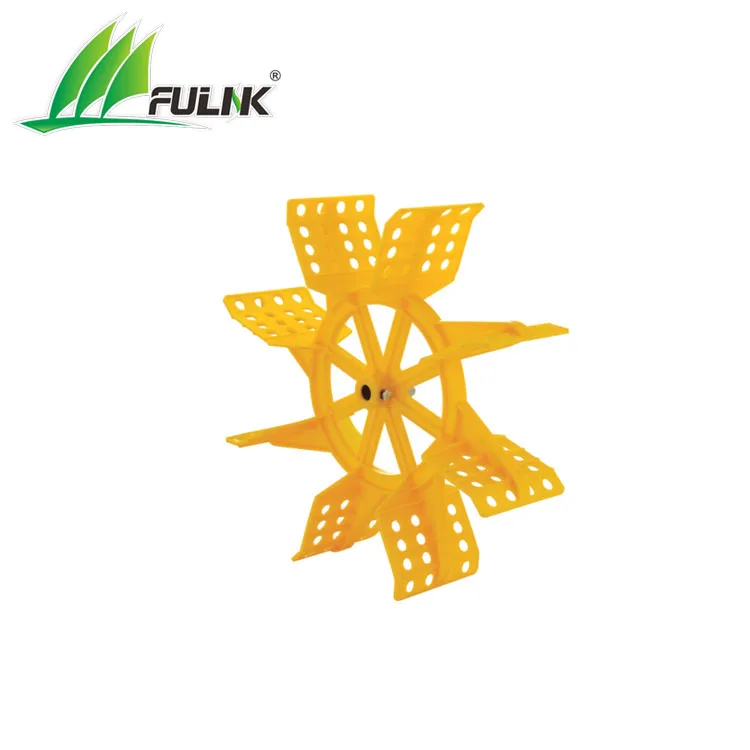

Impeller	660mm*660mm*200mm	16PC	100% NEW PP
Float	1650mm*270mm*200mm	6PC	100% NEW HDPE
Connector	180mm*180mm*16mm	2PC	Cast iron
universal coupling	200*10*10	2PC	Cast iron
Bearing bracket	260mm*135mm*205mm	5PC	Nylon
Transmission shaft	3000mm	1PC	304#SS
Bearing bracket	270mm*300mm*230mm	1PC	Cast iron
Bracket	275mm*260mm*50mm	1PC	PP
Bolt and nut	/	/	304#SS





                                   WELCOME to FULANKE:https://fulankepump.en.alibaba.com
