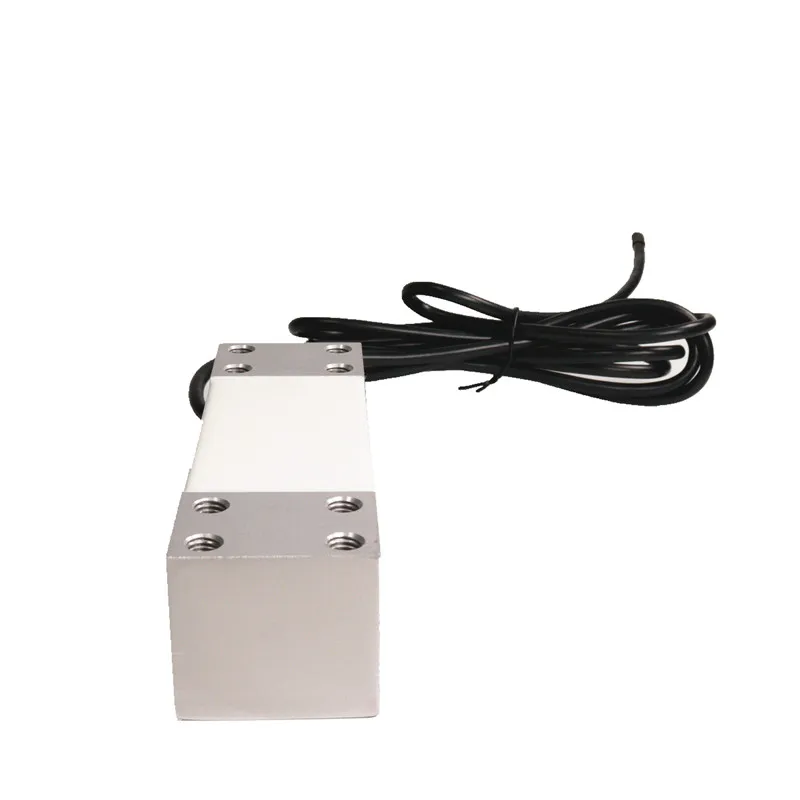

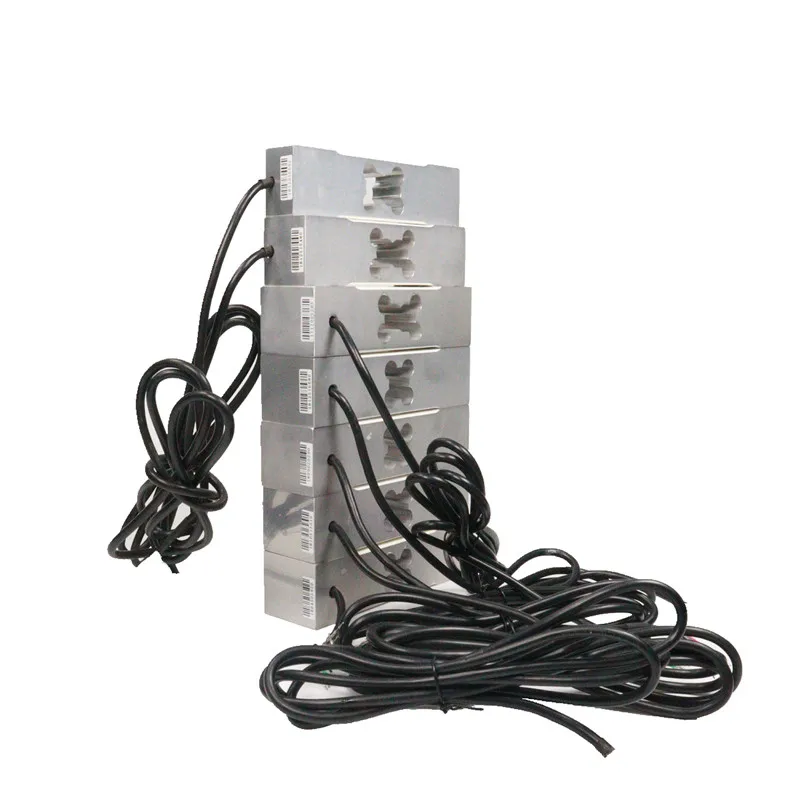

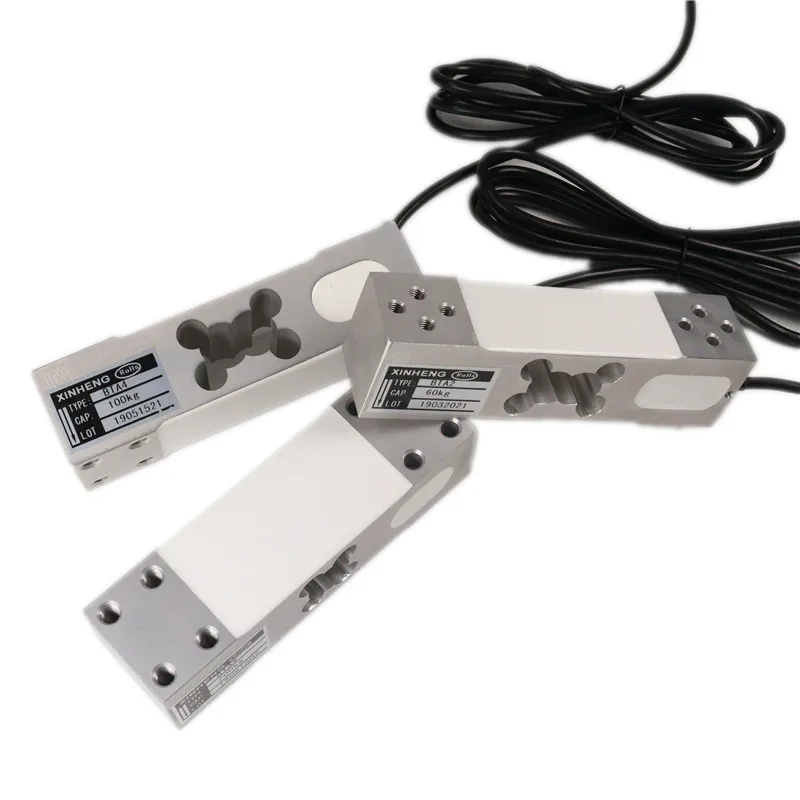

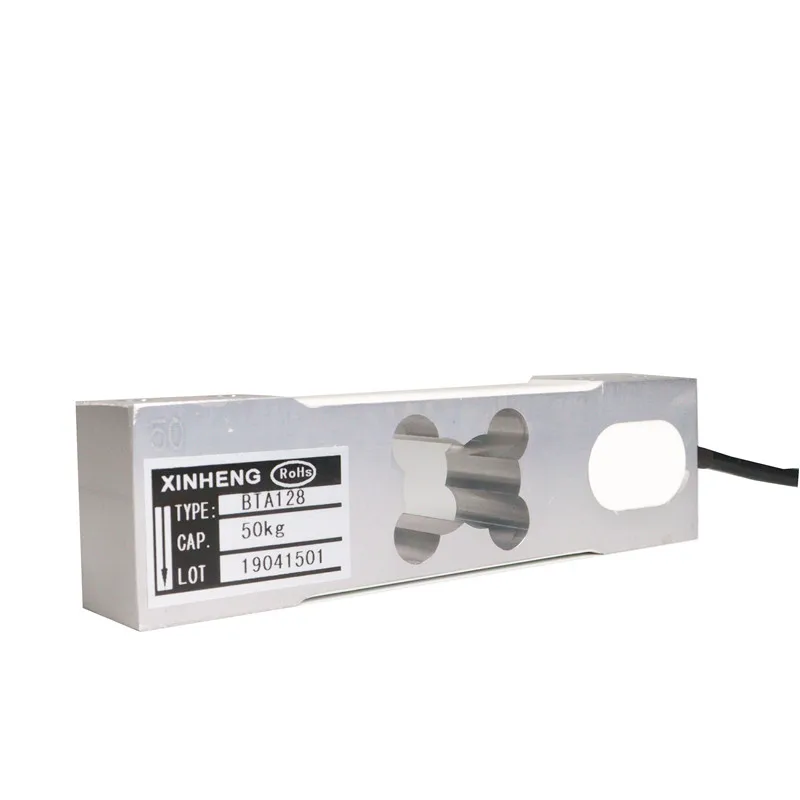

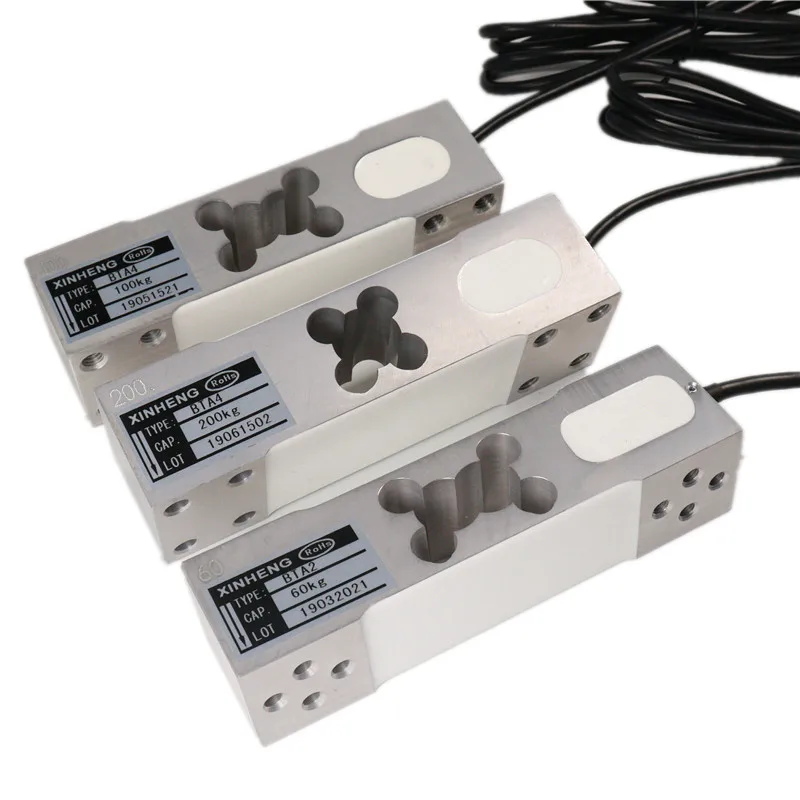

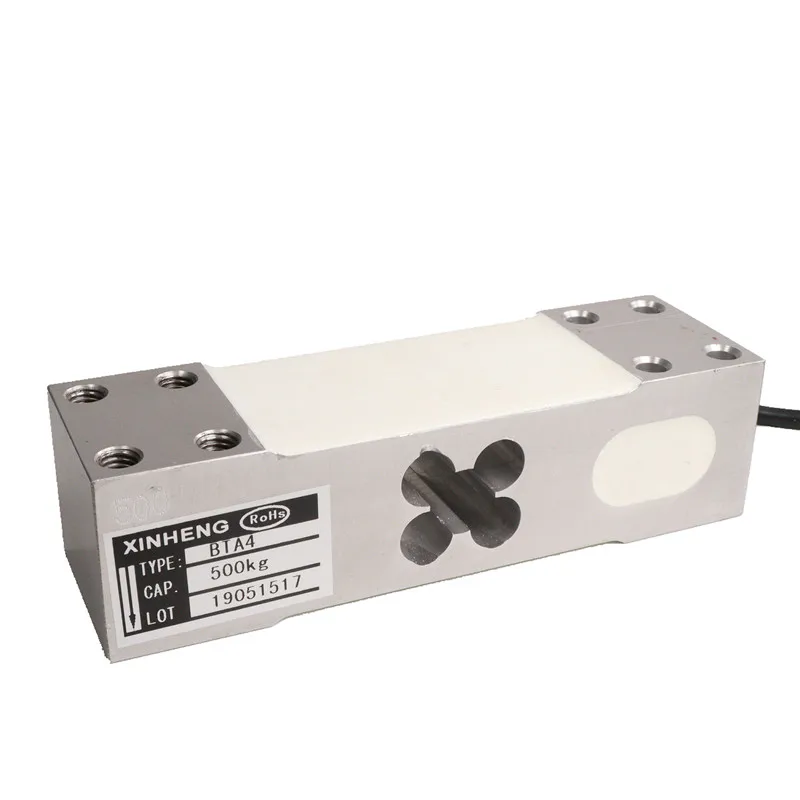

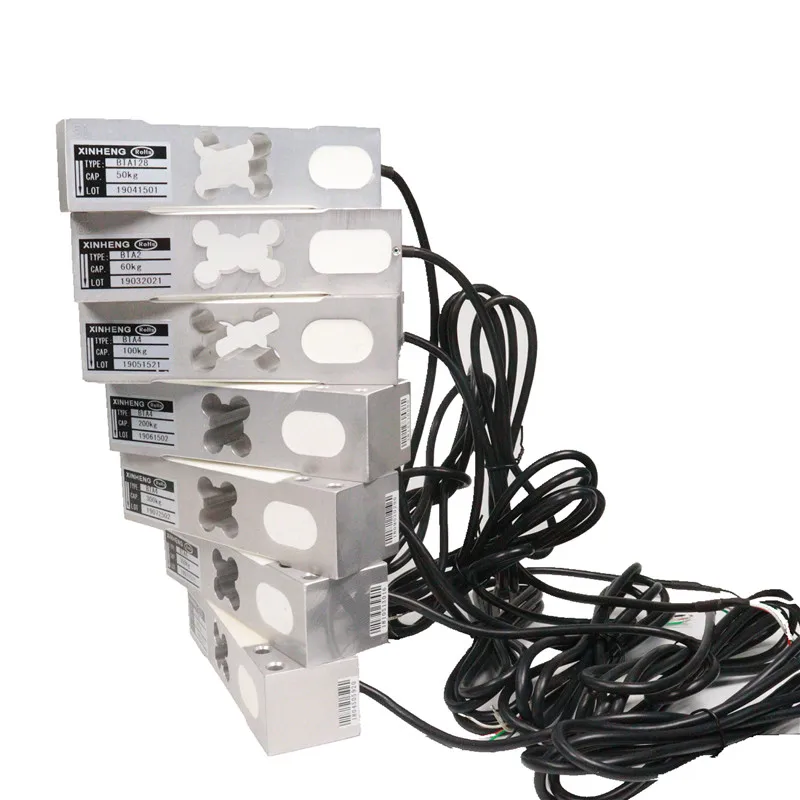

Custom 50KG 60KG 100 Kg 150 Kg Load Cell,200 Kg 300 Kg Load Cell Weighing sensor

Product Overview

Description

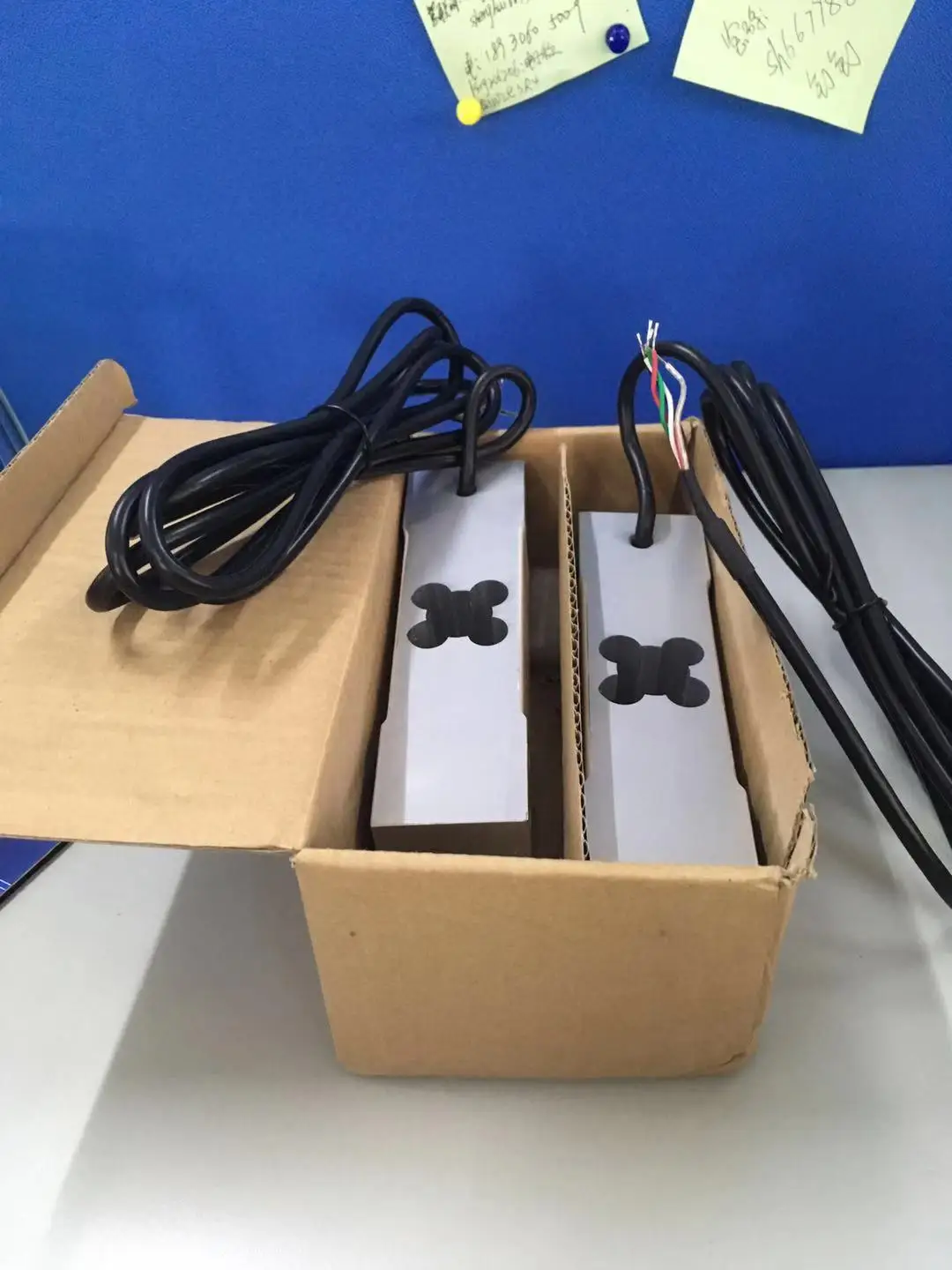

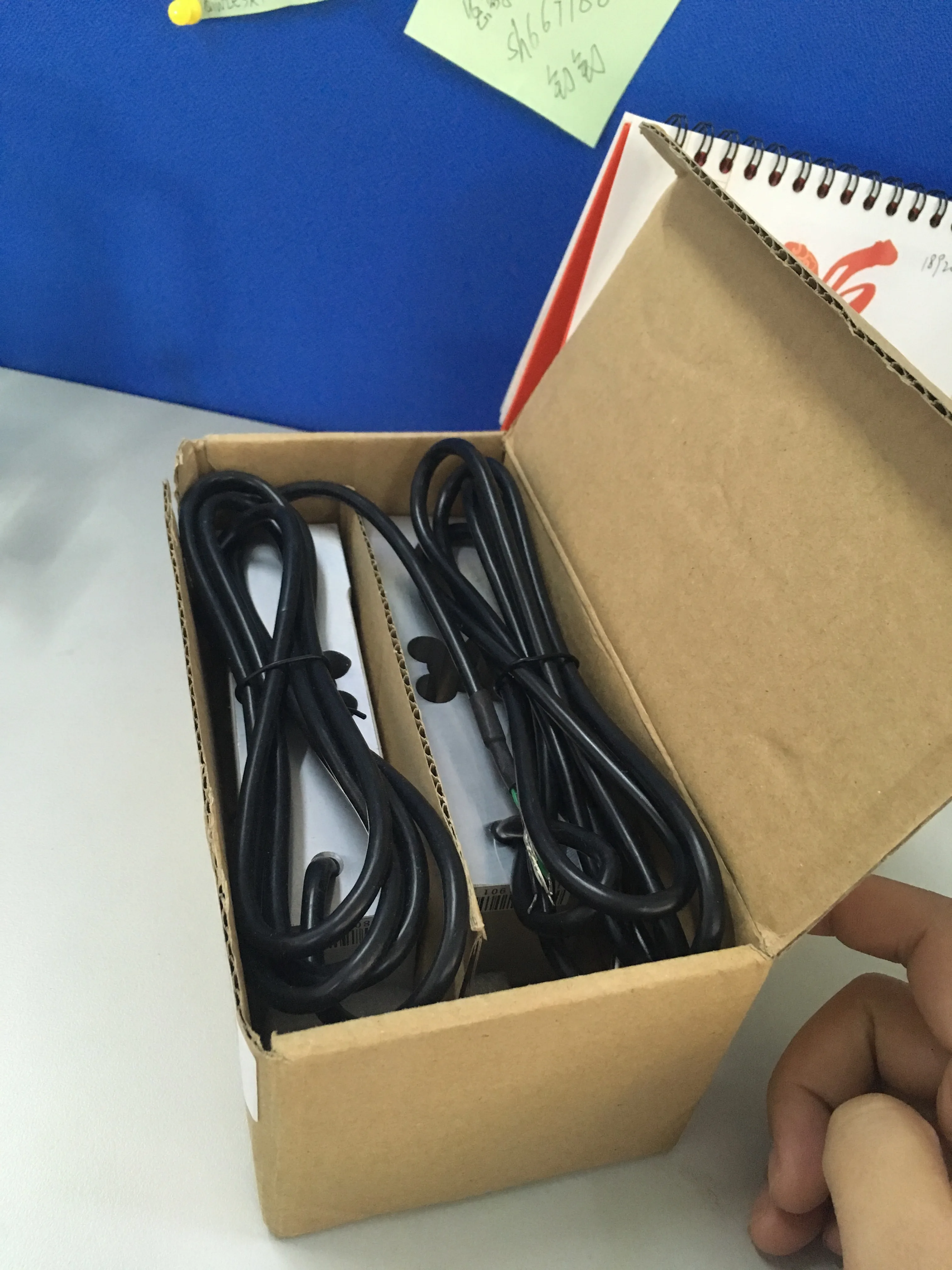

Packaging includes

One pair  includes two pieces, two pieces/box

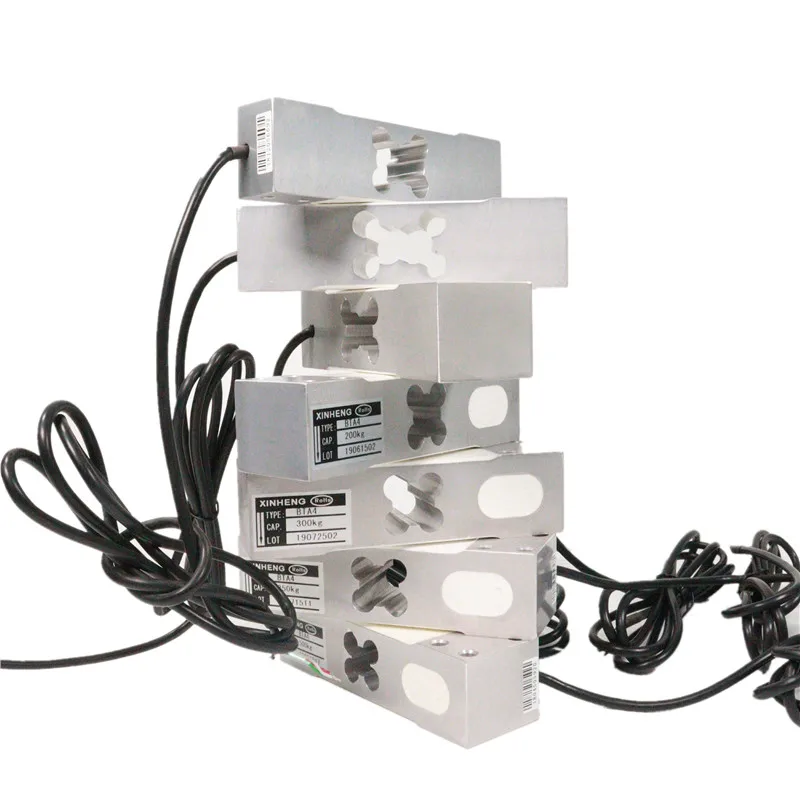

There are six Weighing capacity ranges to choose from 50KG 60KG 100kg 150kg 200kg 300kg,All prices are the same, please leave the capacity you need to order, otherwise random delivery.



Rated Capacity

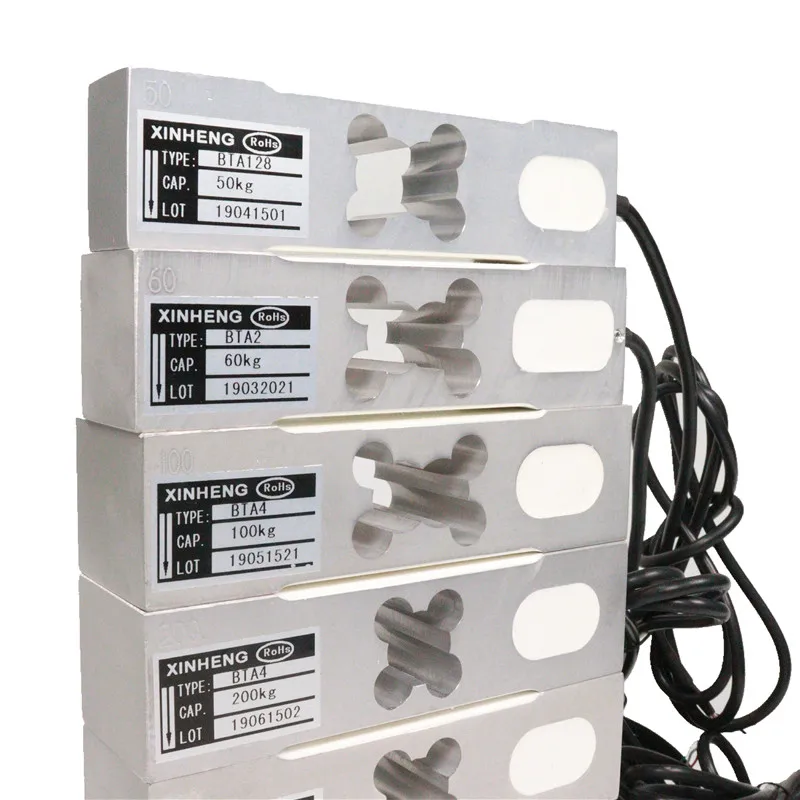

	50KG 60KG 100kg 150kg 200kg 300kg
Accuracy Class	C3
Rated Output	2.0±0.2mv/v
Non-linearity	±0.02% F.S
Creep(30min)	±0.0016% F.S
Input Impedance	406±10Ω
Output Impedance	350±3Ω
Operation Temperature	-10~+40°C
Safe overload	150%F.S
Destructive Load	200%F.S
Excitation Recommended	4~12VDC,  Max:15vDC

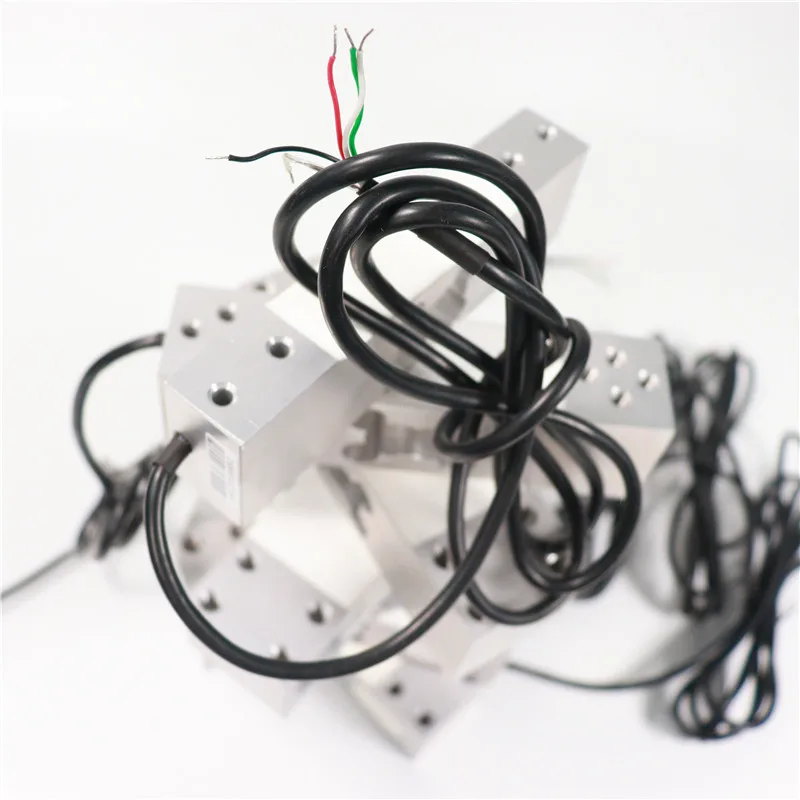

Cable	Length: 2m	Exc+( red),          Exc-(black),
	4-wire with shield	Sig+(green), Sig-(White)
Construction	aluminum or Alloy Steel or stainless steel, IP67
Application for	bench/counting scales,check weighing etc

Use Special Note:
The sensor is a precision parts, severe vibration , fall , collision ,
overload , overvoltage , etc. , are very likely to cause permanent damage to the sensor or
affect the accuracy and linearity , if you do not necessarily understand the parts ,
please buy carefully . After all, the resistance and capacitance transistors and other components
compared to other electronic components to be more fragile .
