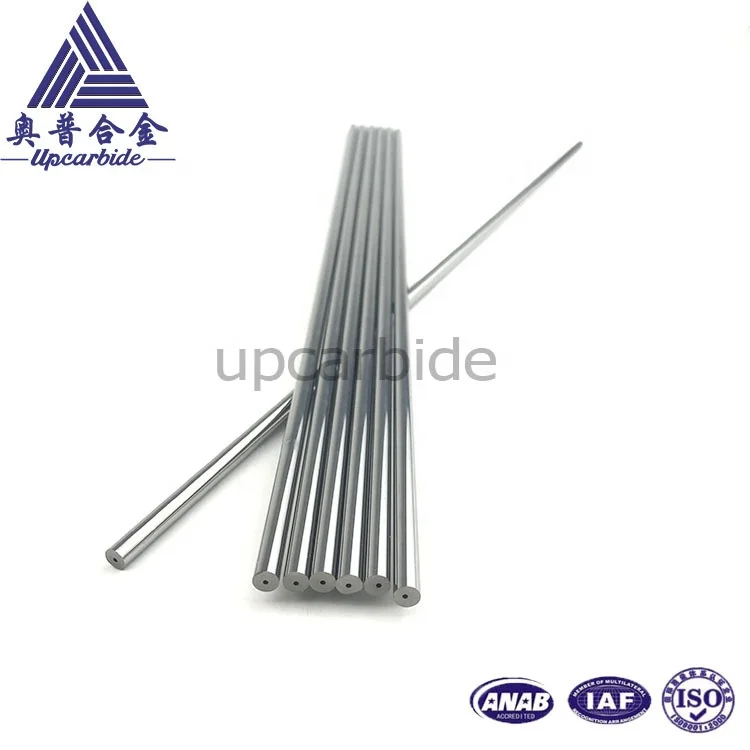

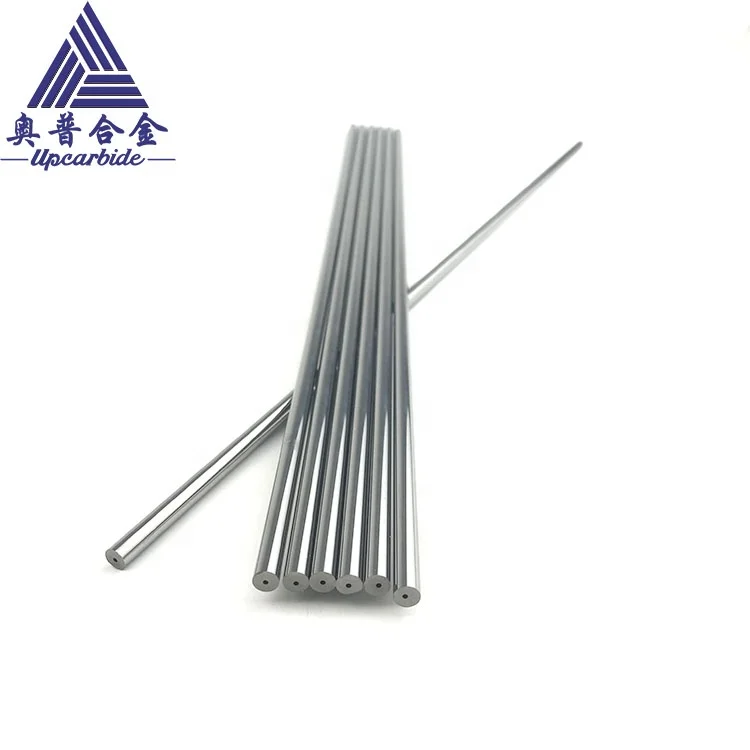

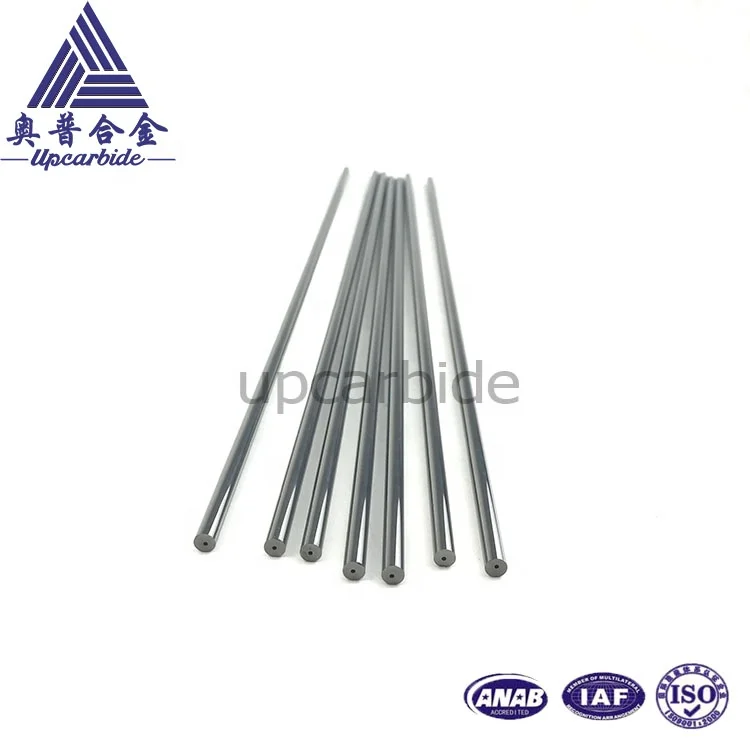

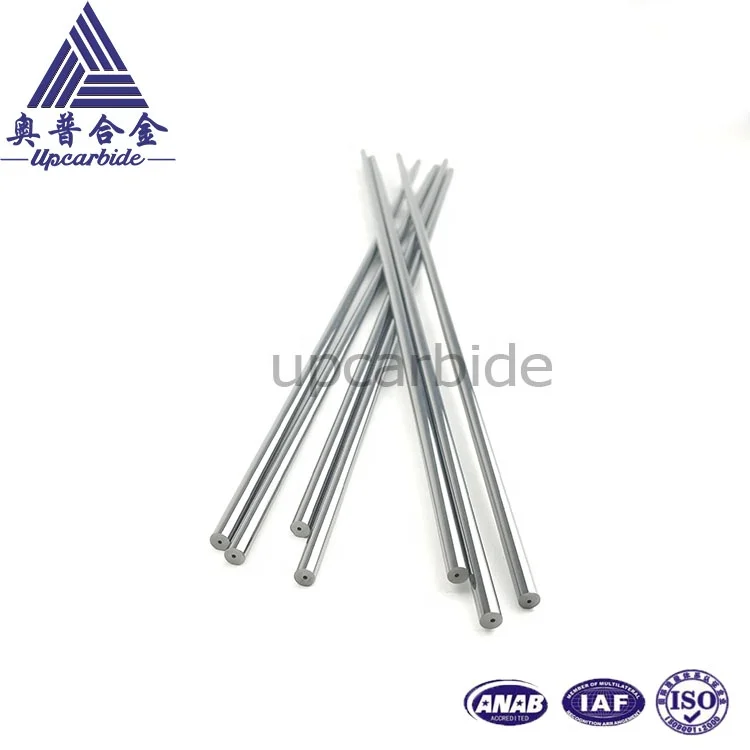

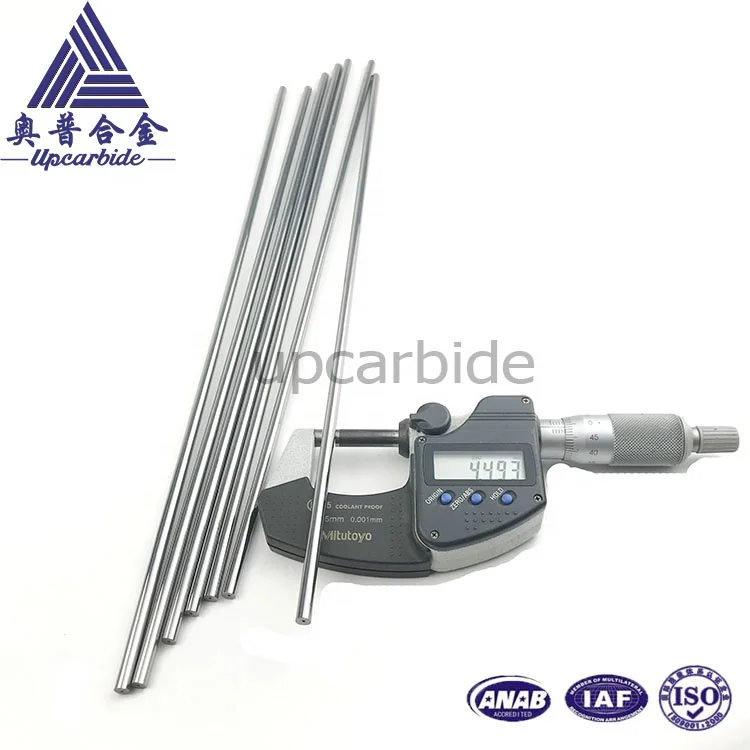

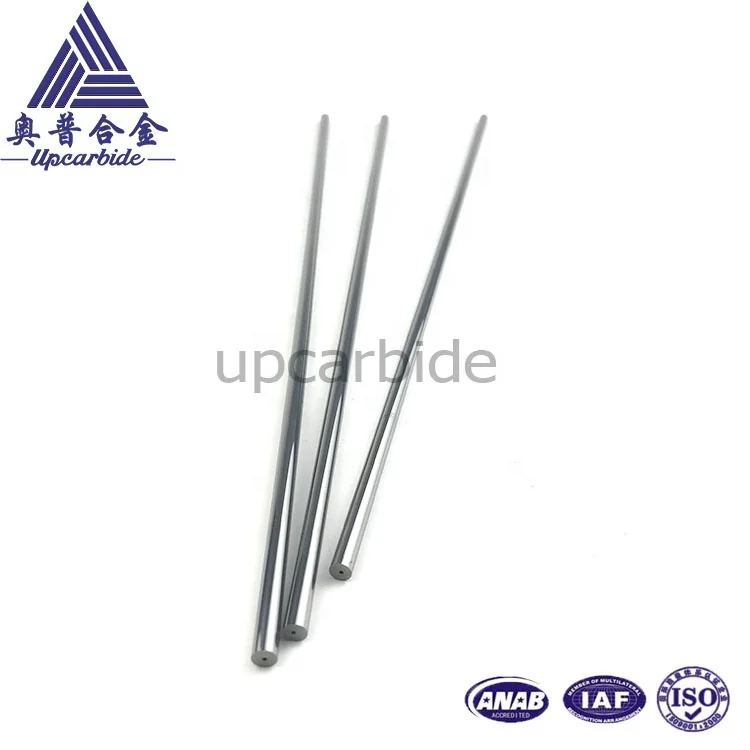

91.5HRa 10% Co OD4.5*ID1.5*L330mm polished tungsten carbide tube
91.5HRa 10% Co OD4.5*ID1.5*L330mm polished tungsten carbide tube
Product Description
Specifications
A. Overpressure sintering tungsten carbide rodhave excellent red toughness,high hardness,good wear resistance,high elasticmodulus,high strength,good chemical stability,acid,alkali,high temperatureoxidation),Low impact toughness,low
expansion coefficient,thermal conductivity,the characteristics of the conductive similar to iron and other alloy.
1. having all kind sizes for your choose,can suply less than 1000mm length.
2.Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. suply blank plate with tolerance(-0.15~+0.15)or (0~+0.3).
4. can grinding and polishing the diameter, making chamfer,sharper rod end.
5. process the carbide rod according your request and tolerances.
Products Show
Grades choosing
Grade
Density(g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain size (μm)
Composition (%)
Equal to ISO
YU12
14.1~14.15
.≥92.5
≥4000
0.2~0.5
12% CO 88% WC
K40~K50
YL10.2
14.4~14.6
≥92.2
≥4000
0.6~0.8
10% CO 90% WC
K20~K30
YG6X
14.85~15.0
≥92.0
≥3860
0.8~1.0
6% CO 94% WC
K05
YG15
14.0~14.1
≥85.0
≥2800
1.2~2.0
15%Co 85% WC
K30~K40
YG10
14.5~14.6
≥85.5
≥2600
1.2~2.0
10%Co 90% WC
K20
YG8
14.65~14.85
≥89.5
≥2320
1.2~2.0
8% CO 92% WC
K20
YG6
14.85~15.05
≥90.0
≥2150
1.2~2.0
6% CO 94% WC
K10
Sizes choosing
Diameter(mm)
Length(mm)
grinding and polishing
0.3~1.0
5~330
h6,h7,H6 or H7
1.0~3.0
5~330
h6,h7,H6 or H7
4.0~80
5~1000
h6,h7,H6 or H7
Applications having high red hardness, good weldability and the characteristics of high hardness, high wear resistance, mainly used in making solid wood processing, density board, grey cast iron,Non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake materials.When using, should according to specific purpose to choose the right material of tungsten carbide bar.
Packaging & Shipping
Packing details
Shipping ways
Our Services
Zhuzhou Up Cemented Carbide Co.,Ltd services:
1.more than 10 years manufacture experience in tungsten carbide
2.Implement strict quality testing and control procedure to make superior quality. (ISO9001)
3.we can accept all kinds of international payment.(L/C, D/A,D/P,T/T, Paypal,western union,money gram, etc.)
4.we can accept all trade terms
5.Reply your inquiry within 10 hours
6.We are professional factory, so our price is lower than others
7.Professional sales person
8.Perfect Oral English communication service
Company Information
our factory specializes in manufacturing a series of Tungsten Carbide products.such as:
tungsten carbide Saw Tips
tungsten carbide Buttons for Rock Bits
tungsten carbide Inserts for Road Milling, Plaing Bits
tungsten Carbide Inserts for Coal Cutter Picks
tungsten Carbide Inserts for Snopw Plow Blades
tungsten Carbide Inserts for Mining Tools
tungsten Carbide finished or blank Round Rods (dia from 1.0 to 25.4 mm,length 1.0 to 330mm)
