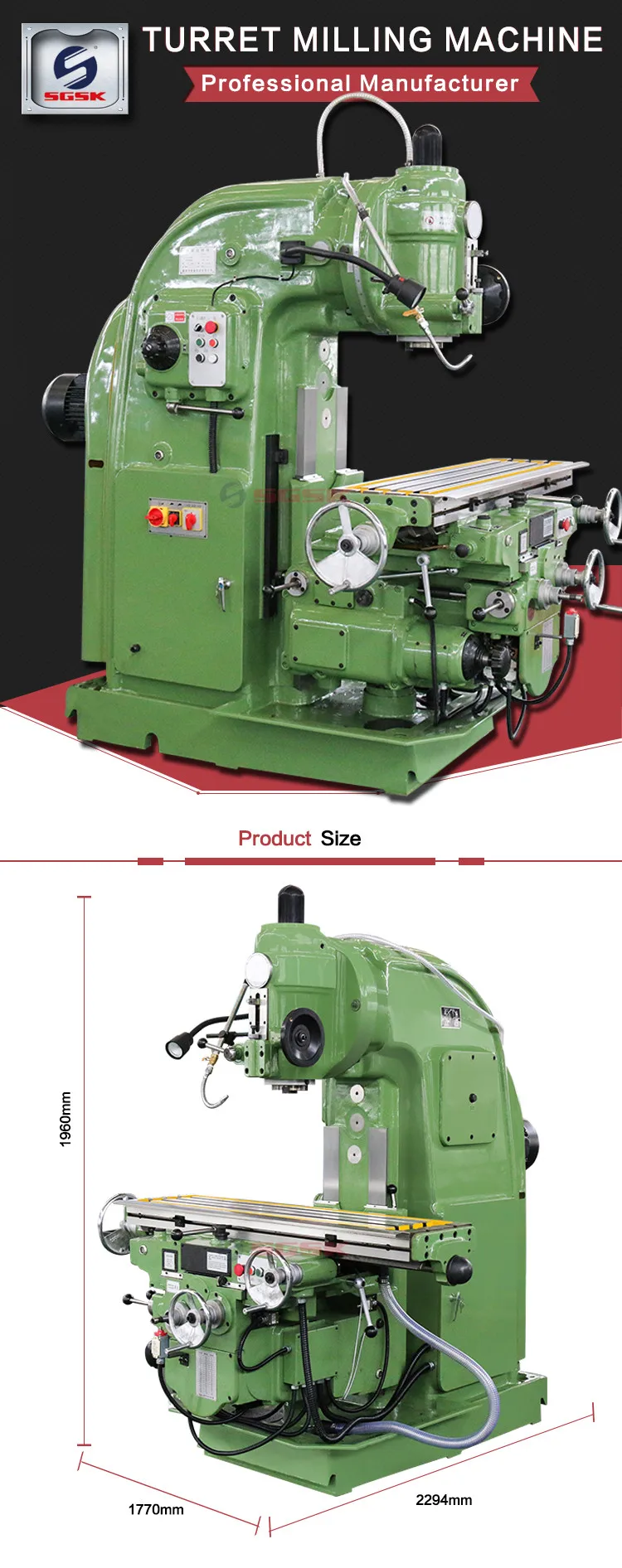

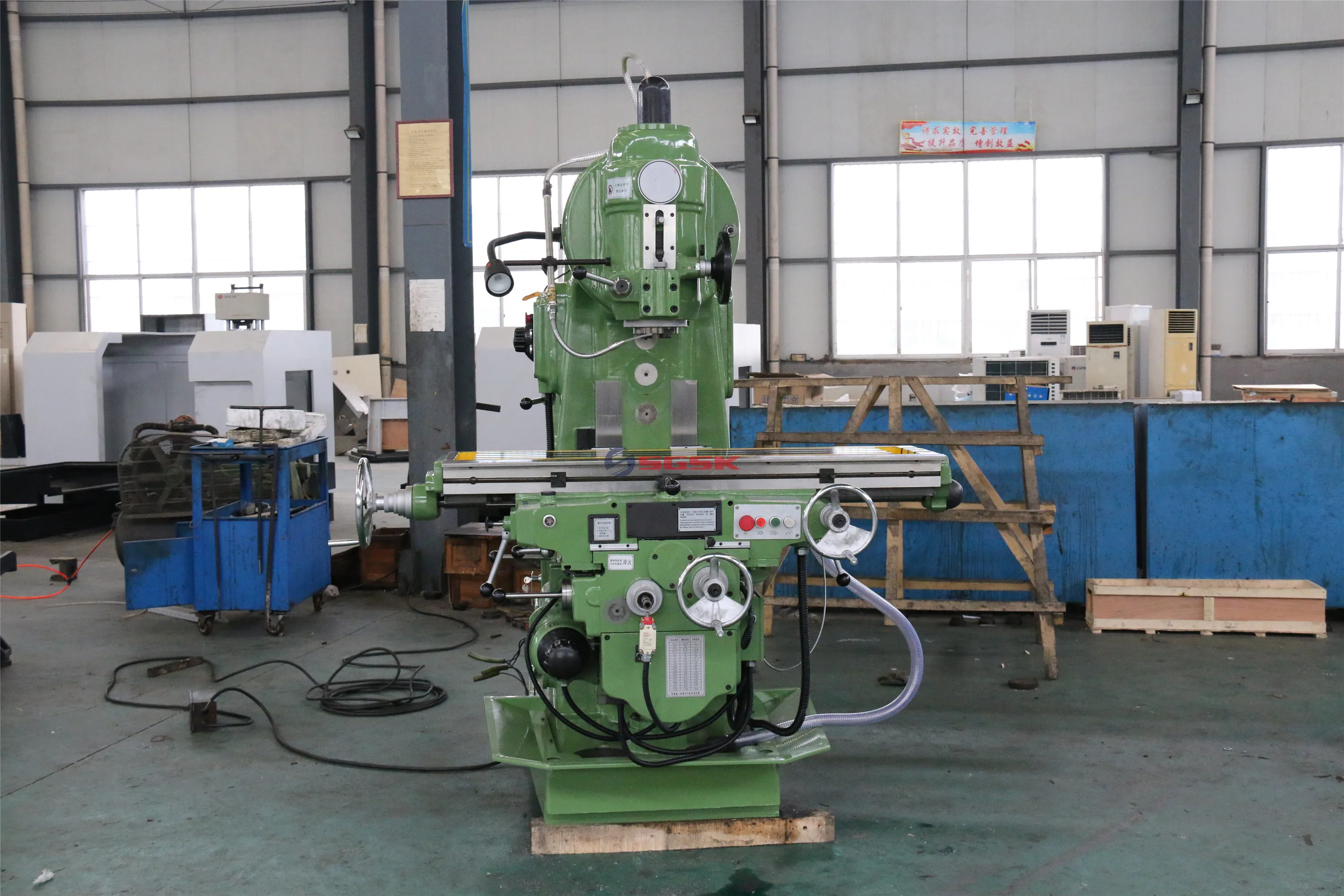

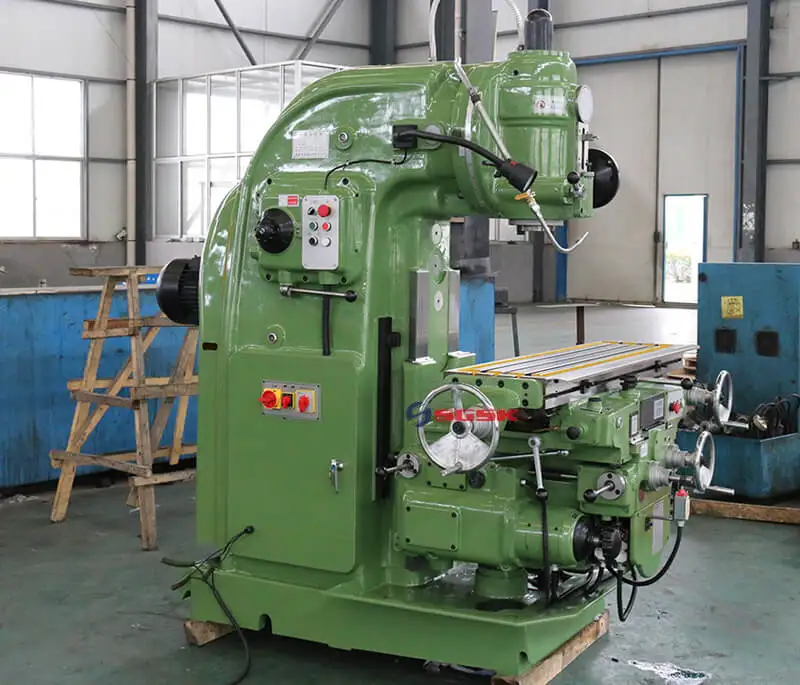

optimum milling machine X5032 milling machine tools on sale
Products Description
Details Display

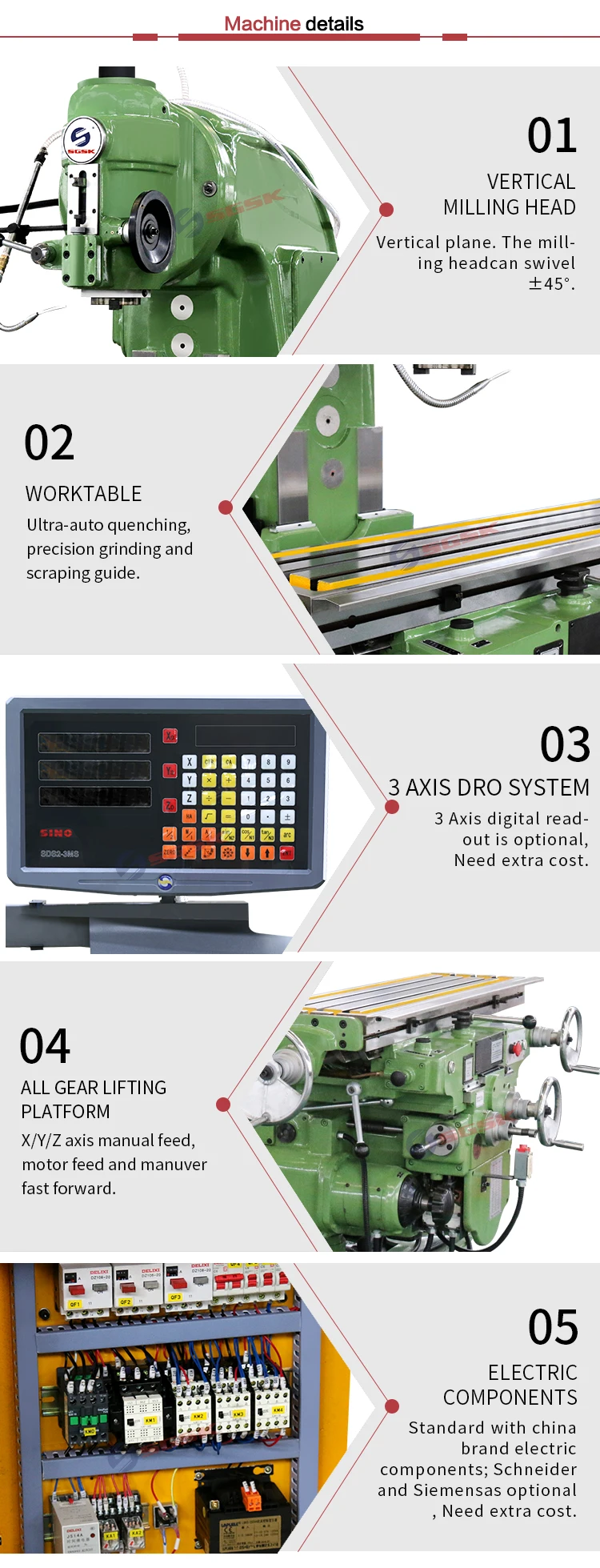

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.

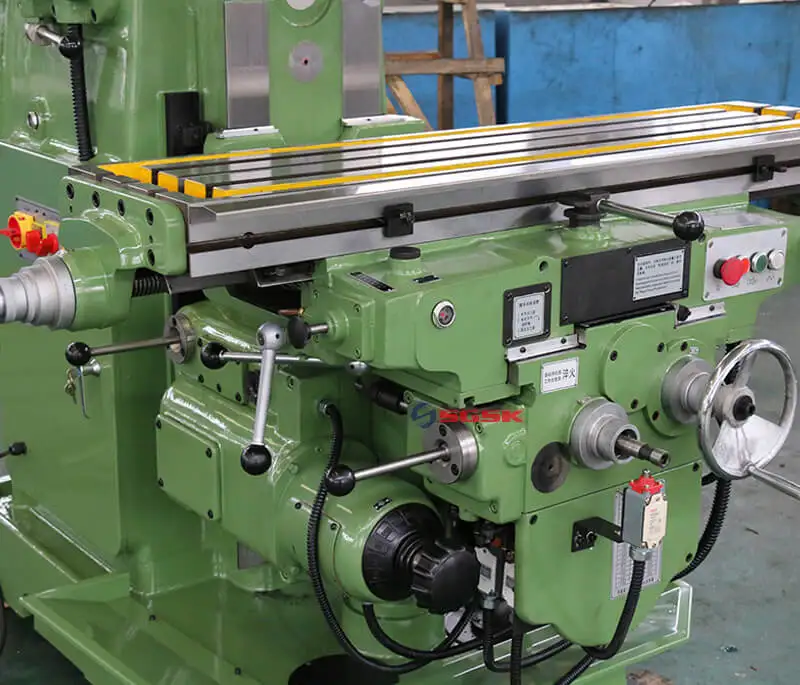

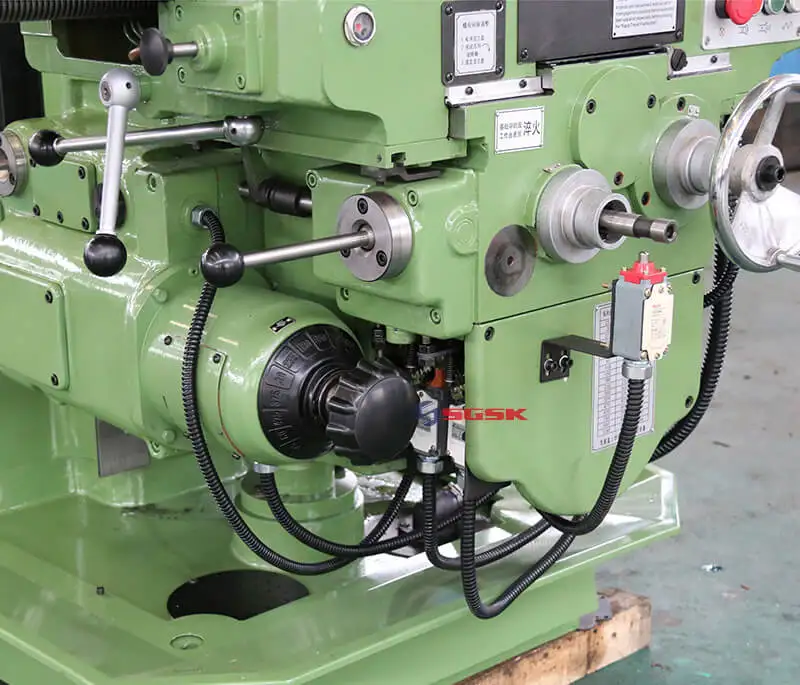

3. Work bench X. Y.Z are gear drive automatic feed and manual operation

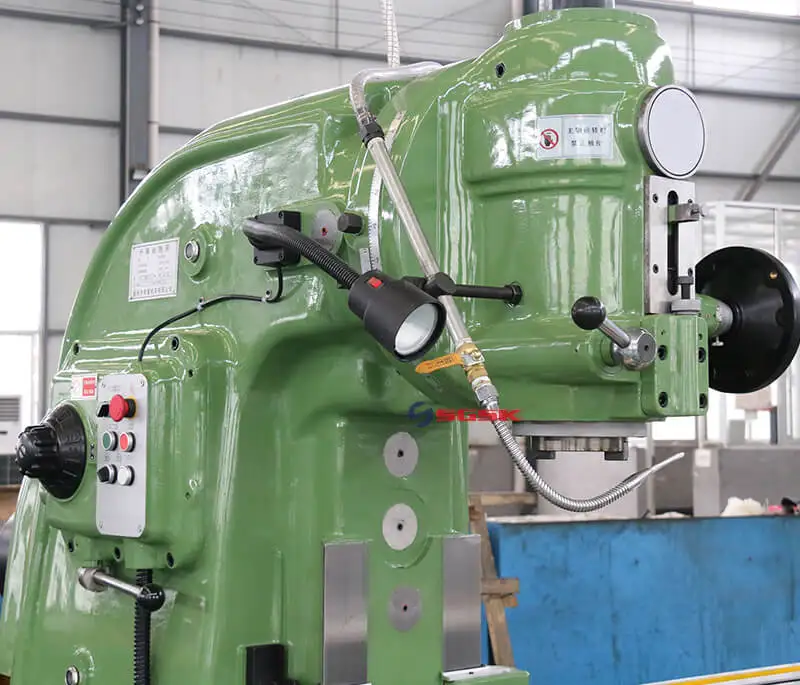

4. Milling head can be rotated 45 degrees.
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees.
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
Specifications | Units | X5032 |
Table size | mm | 1325×320 |
Table load | kg | 500 |
T slot(number-width-pitch) | mm | 3-18-70 |
Table travel | mm | 700/680 255/240 370/350 |
Range of table feed | mm /min | XY:23.5-1180 Z:8-394 |
Rapid speed of table | mm /min | XY:2300 Z:770 |
Spindle taper | ISO50 7:24 | |
Spindle speed range | rpm | 30-1500 (18 steps) |
Swivel angle of vertical milling head | ° | ±45 |
Distance between spindle nose and table surface | mm | 45-415 |
Spindle motor power | kw | 7.5 |
Feed motor power | kw | 1.5 |
Weight | kg | 2900/3200 |
Overall dimension | mm | 2300×1770×2000 |
