Spinning band distillation wiped film molecular evaporator machine for CBD distillation
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62362140068):
Product Overview
Description
Product Description
cbd oil extraction machine shortpath molecular distillation system.
It is a stilling method under high vacuum. The average free path of steam molecular is less than the distance between evaporating surface and condensing surface. Components in the mixing liquid will be separated according to different evaporating rate.
It is a special liquid-liquid separating technology. Its working principle is advanced more than traditional boiling point separating method. Supporting by this technology, our SPD series short path molecular distillation device is a high efficient plant essential oil refining equipment. It can help you get highly purified essential oil.

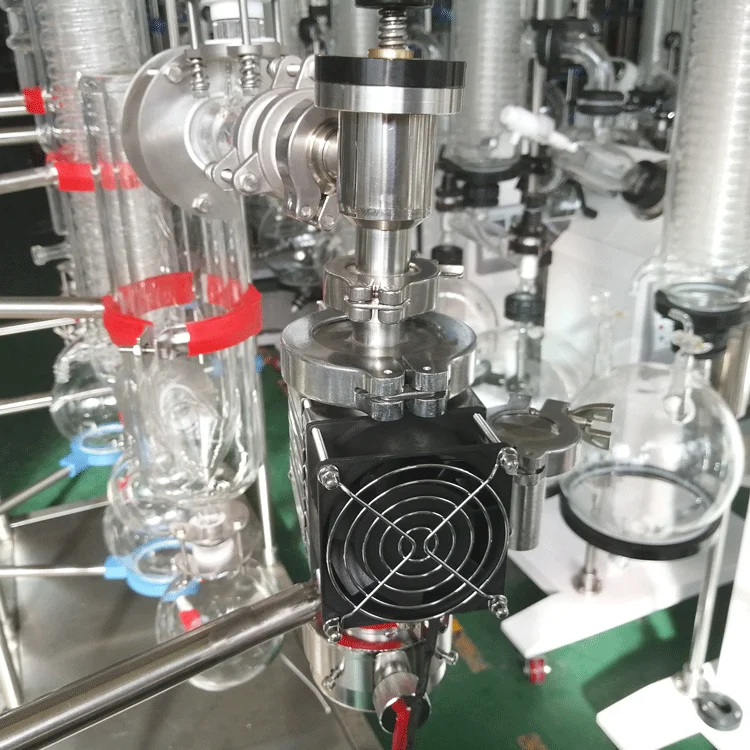

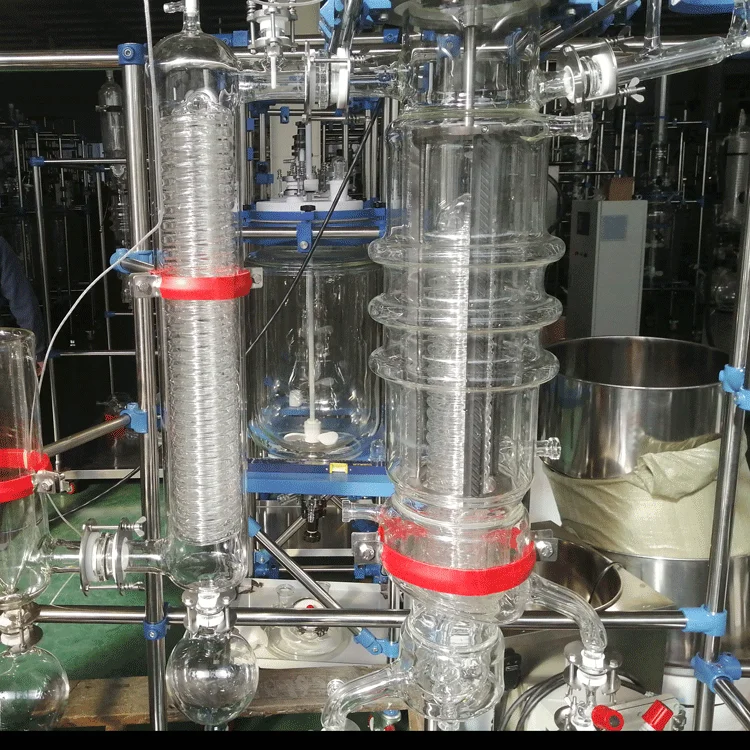

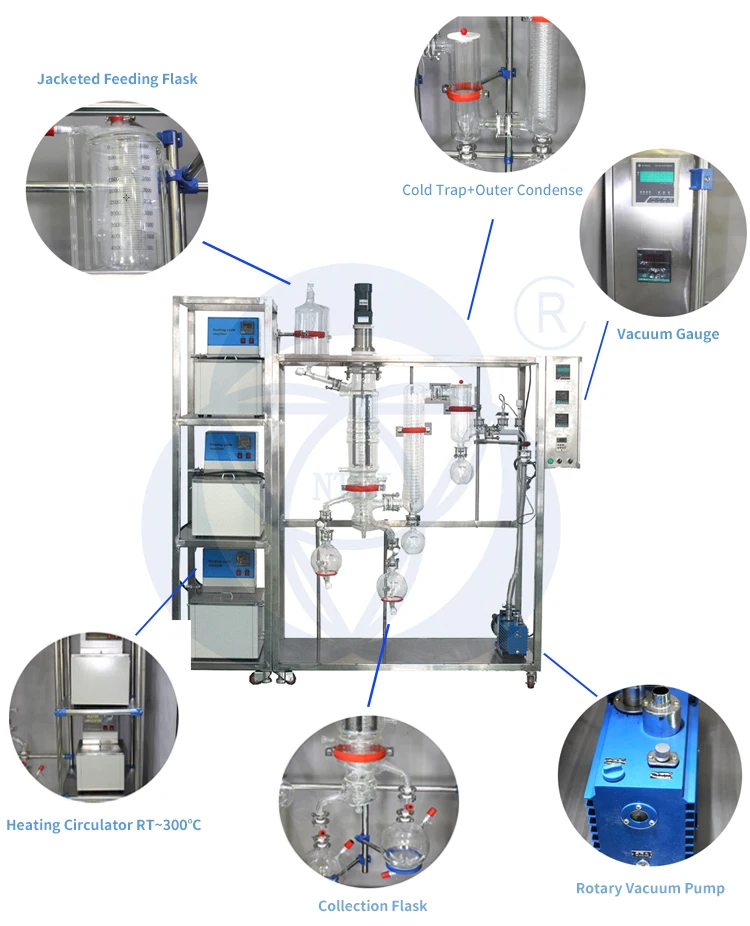

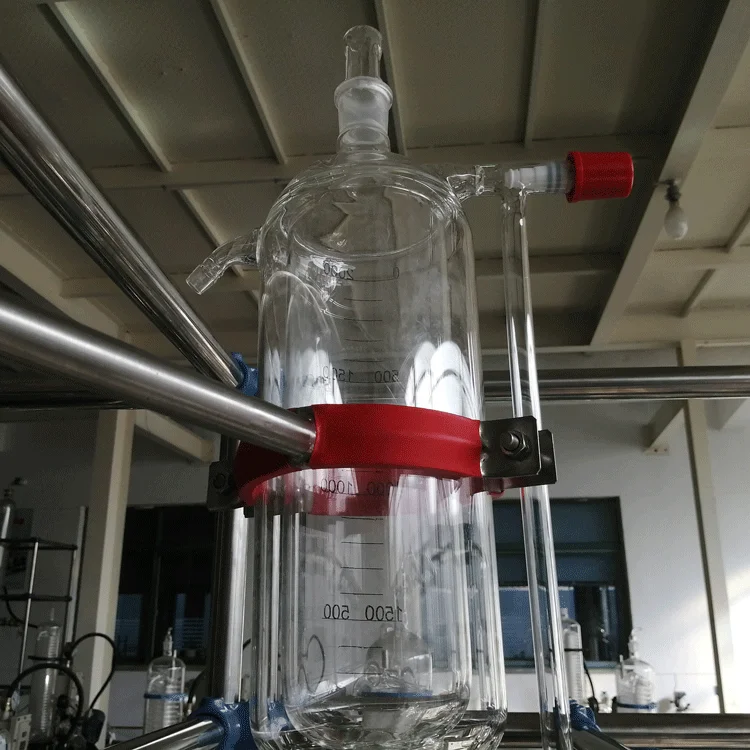

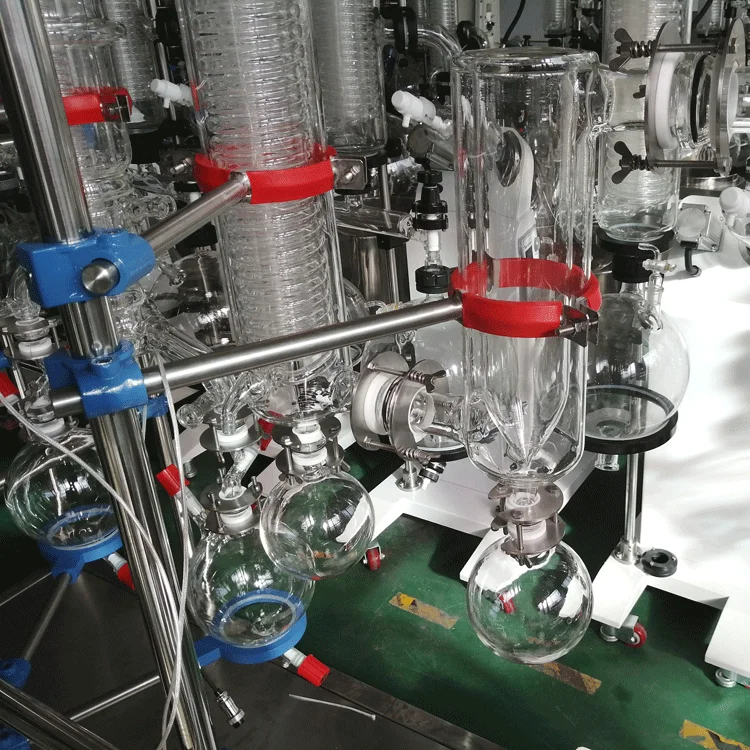

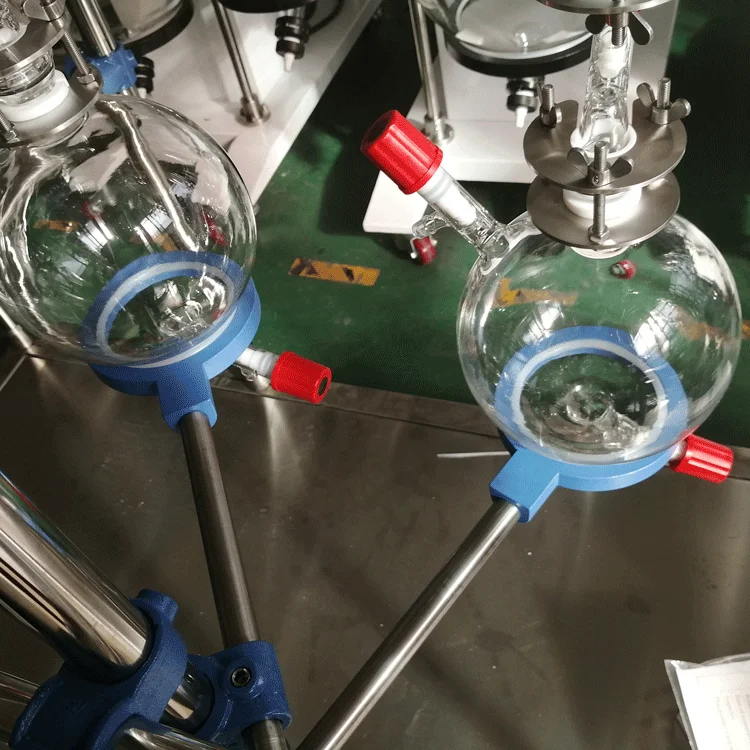

Product Appearance
| Main body | Model | SPD-80 |
| Feed Rate(kg/h) | 4 | |
| Effective Evaporationn Area(sqm) | 0.1 | |
| Barrel Diameter (mm) | 80 | |
| Feeding Funel volume (L) | 1 | |
| Internal Condenser Area (sqm) | 0.2 | |
| Distillate Receiving Vessel Volume(L) | 1 | |
| Residue Receiving Vessel Volume(L) | 1 | |
| Electrical system | Motor power (W) | 120 |
| Vacuum power (KW) | 1.1 | |
| Rotation speed (rpm) | 50-500 | |
| Vacuum system and capacity | Vacuum degree (ba) | 1 |
| Capacity (L/H) | 0.3-2 | |
| Machine size | L*W*H (mm) | 2,120 X 1,740 X 628 |
