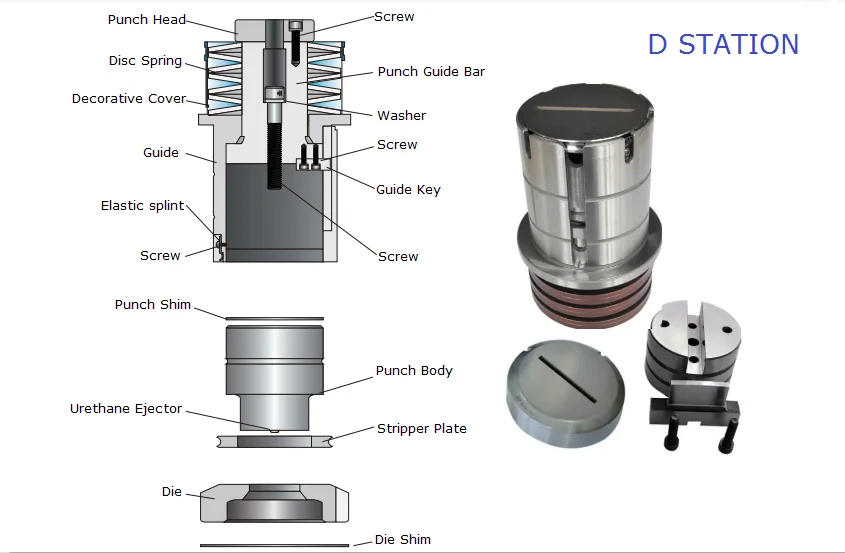

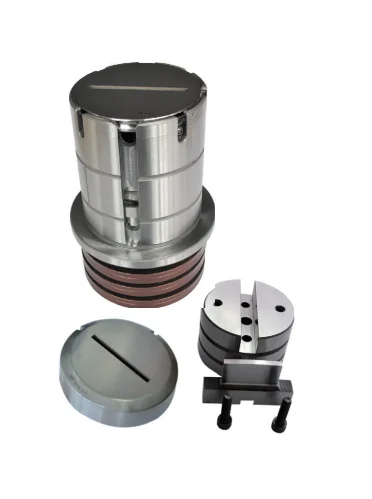

Manufacture CNC turret punch tooling thick turret Precision tools square shape for amada

Product Overview

Description

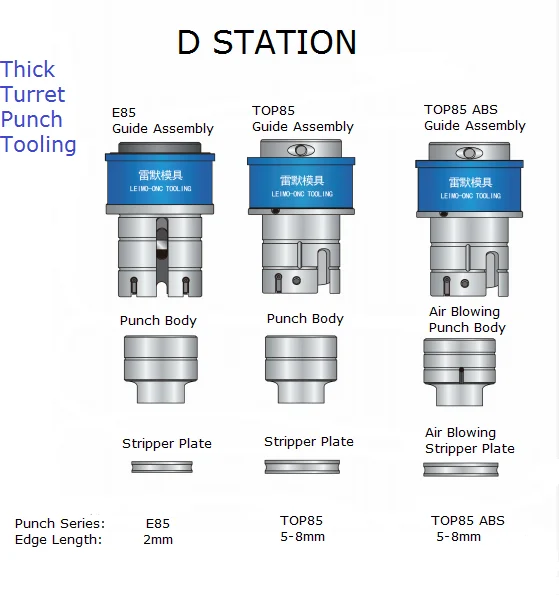

Usage of E/E ABS Standard Mold:

1.General old structure mold, any parts can be exchanged with the

   foreign mainstream products.

2. The unique surface treatment technology makes the guide more wearable

   and not rusting.

3. Five specifications of A,B,C,D,E available.





Warm Notice:

1. Standard structure mold could exchange and matching with

    international mainstream brand.

2. Guide standard slot defaults to 0°, 90°.

3. After punching, add a gasket to adjust to the original height of 84mm.





Parameters:



Station	Shape	Size	Max. Thickness of Medium carbon steel plate
D(3-1/2'')	RO/RE/OB/SQ/HX	50.81-88.90mm	6.3mm





Different Shapes have different price, please contact supplier.
