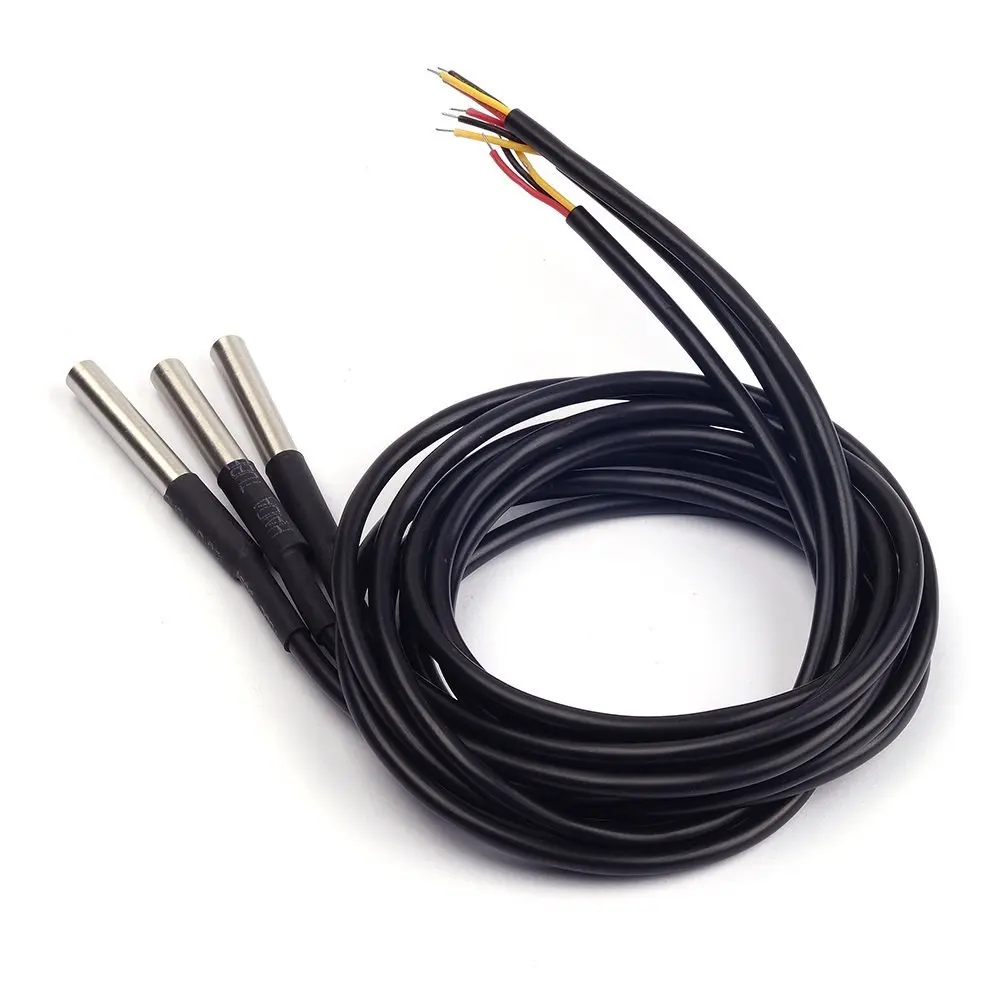

Original Maxim DS18B20 Temperature Sensor With Stainless Steel Probe Waterproof 1 Wire Digital Thermometer Can Be Customized

Share on (62362233770):


Price:$1.70 - $2.00

Quantity:


Product Overview

Description


Original Maxim DS18B20 Temperature Sensor  With Stainless Steel Probe Waterproof 1 Wire Digital Thermometer Can Be Customized



Related Products NTC




Product Description

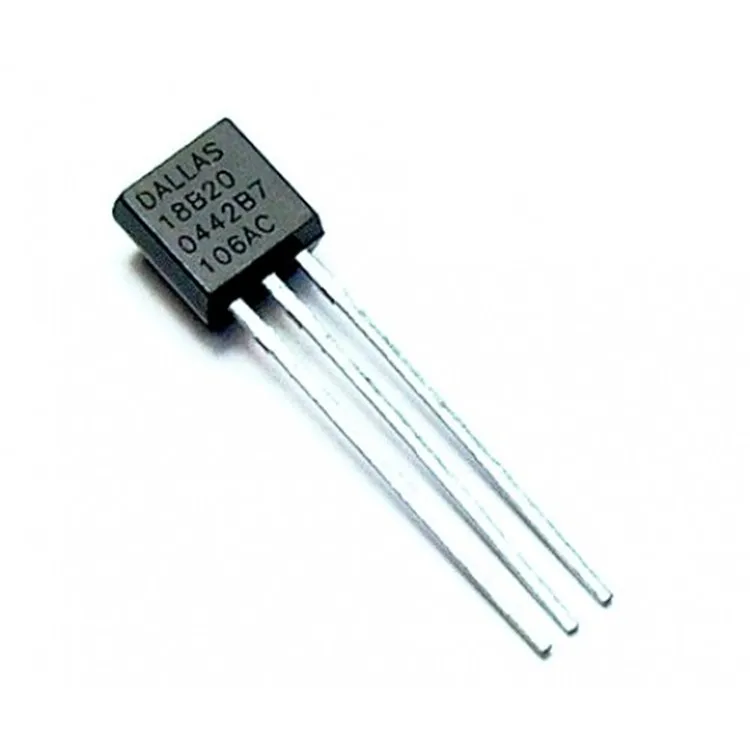

Thermistor: Original Maxim DS18B20
Temperature range: -50~125C (-67F to +257F)
Accuracy: ±0.5°C at -10°C to +85°C
Probe: SUS304 6X50mm
Waterproof: IP67, With heat shrink tube
Wire: UL2464
Wire length: 1m, can be customized
Power Supply Range: 3.0v to 5.5v
Output Lead: Red(VCC), White(DATA), Black(GND)
Connector: naked, but can be customized
weight: 35gDS1MNC-001 (1).pngDS1MNC-001 (2).jpgDS1MNC-001 (1).jpgDS1MNC-001 (4).jpgDS1MNC-001 (13).jpg
