Product Overview

Description

Products Name	Ferrite Pot Magnet With Through Hole
Size	D24mm,D32mm,D45mm,D50mm,D67mm,D80mm,D100mm,D126mm and etc.
Pull Force	From 3KG to 70KG
Material	Ferrite Magnet + Steel Cup
Shape	Round

Ferrite pot magnets, also called Cup Magnets, Magnetic Holders, are made of permanent magnet encased in a metal pot, and feature a hole, thread, boss or removable hook in centre of the magnets. The pot is an essential part of the magnetic circuit. the active magnet face is not enclosed. When Pot magnets hold any metal parts, the magnetic force in this circuit is stronger than that of alone magnet. It is the most efficient design for gripping, also provide an easy, non-destructive way to suspend objects or attach them to metal.

Our Services - Size and Pull Force

1.Ferrite pot magnet

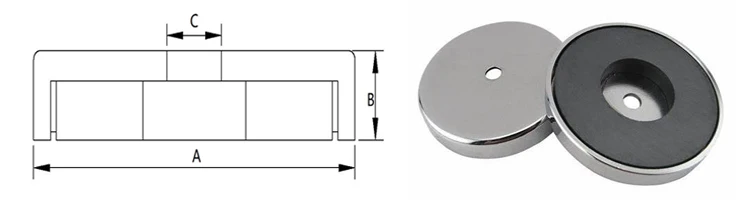

Model	Pot			Pull Force (KG)
	A	B	C
KMPOTF06-24	24	4.9	3.2	3
KMPOTF06-24	24	4.9	6.75	3
KMPOTF06-32	32	6	6	6
KMPOTF06-36	36	7	4.8	7
KMPOTF06-46	46	7.1	4.76	10
KMPOTF06-50	50	10	8.5	18
KMPOTF06-60.3	60.3	8.9	6.4	19
KMPOTF06-63	63	14	6.5	29
KMPOTF06-67	67	9.5	7	29
KMPOTF06-71	71	15.3	10.5	35
KMPOTF06-80	80	18	6.5	47.5
KMPOTF06-80	80	10.5	7.2	29
KMPOTF06-88	88	18	8.5	55
KMPOTF06-95	95	12.7	12.7	62
KMPOTF06-100	100	22	10.5	68
KMPOTF061-24	124	12.7	12.7	70



You may also like

Pot Magnet Read More

Badges Name Magnet Read More

Magnetic Pin Read More



Double Side Fishing Magnet Read More

Single Side Fishing Magnet Read More

Magnetic Hook Read More



Packing and Shipment

1.Standard carton and pallets packaging.

2.We will suggest the best solution of shipment according to your quantities for your  reference .
