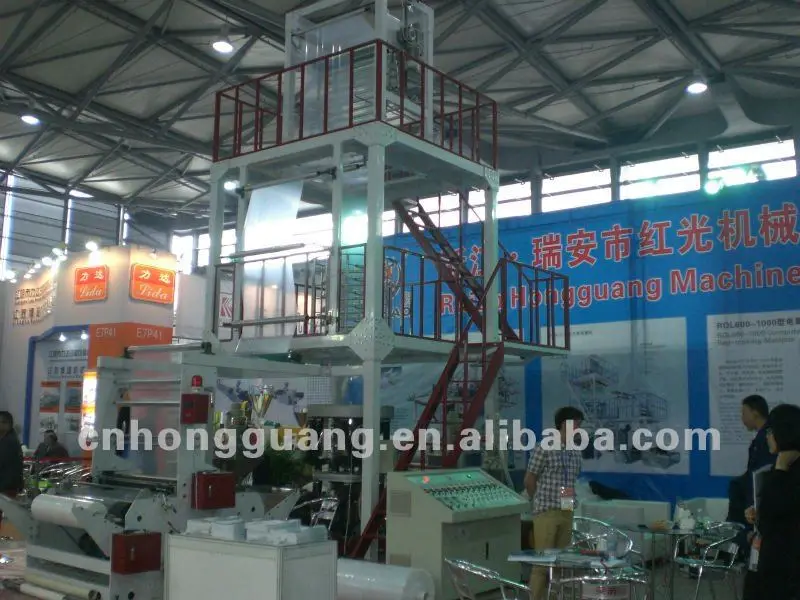

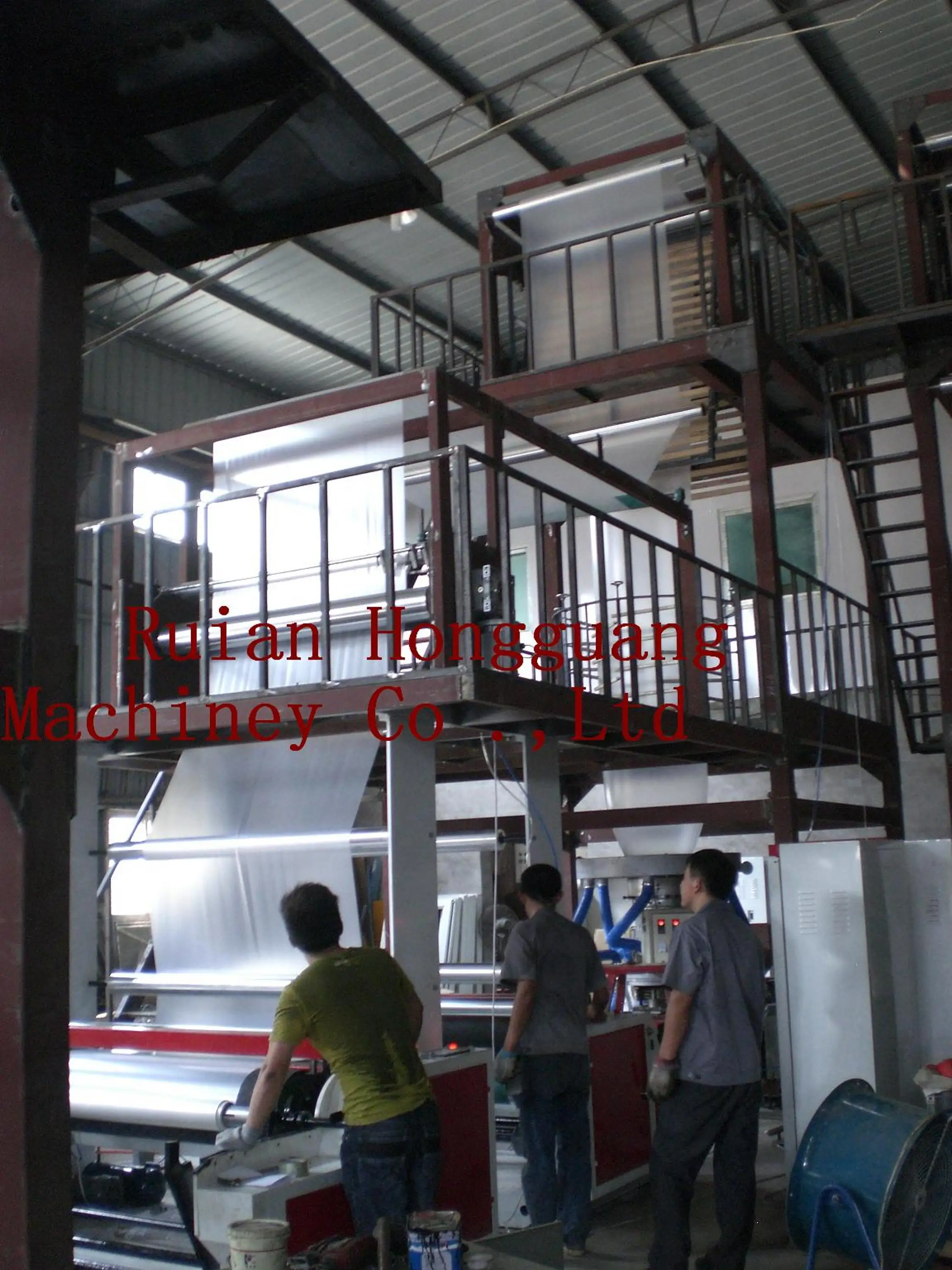

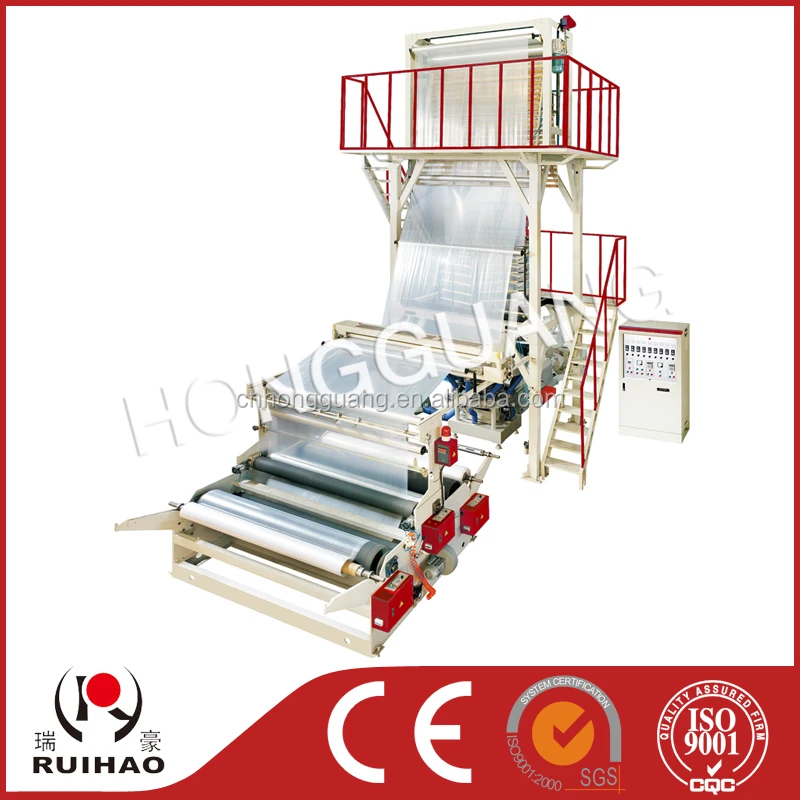

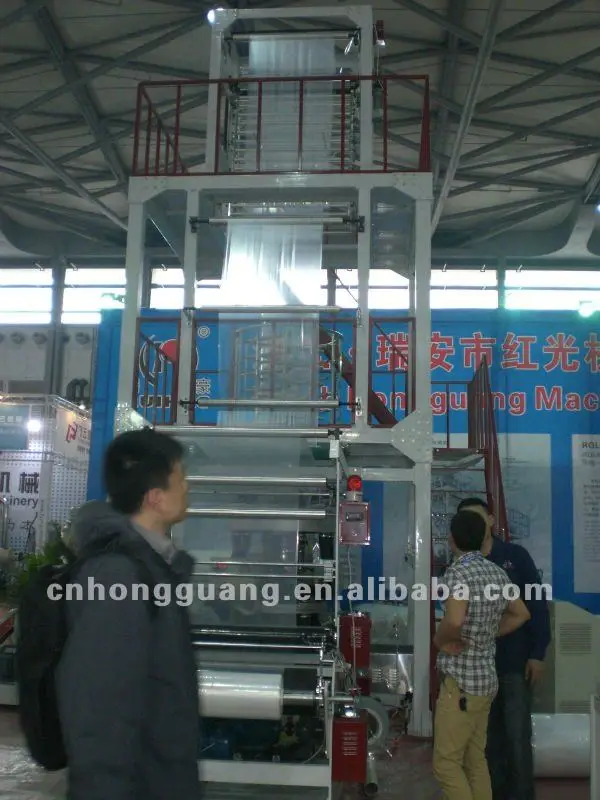

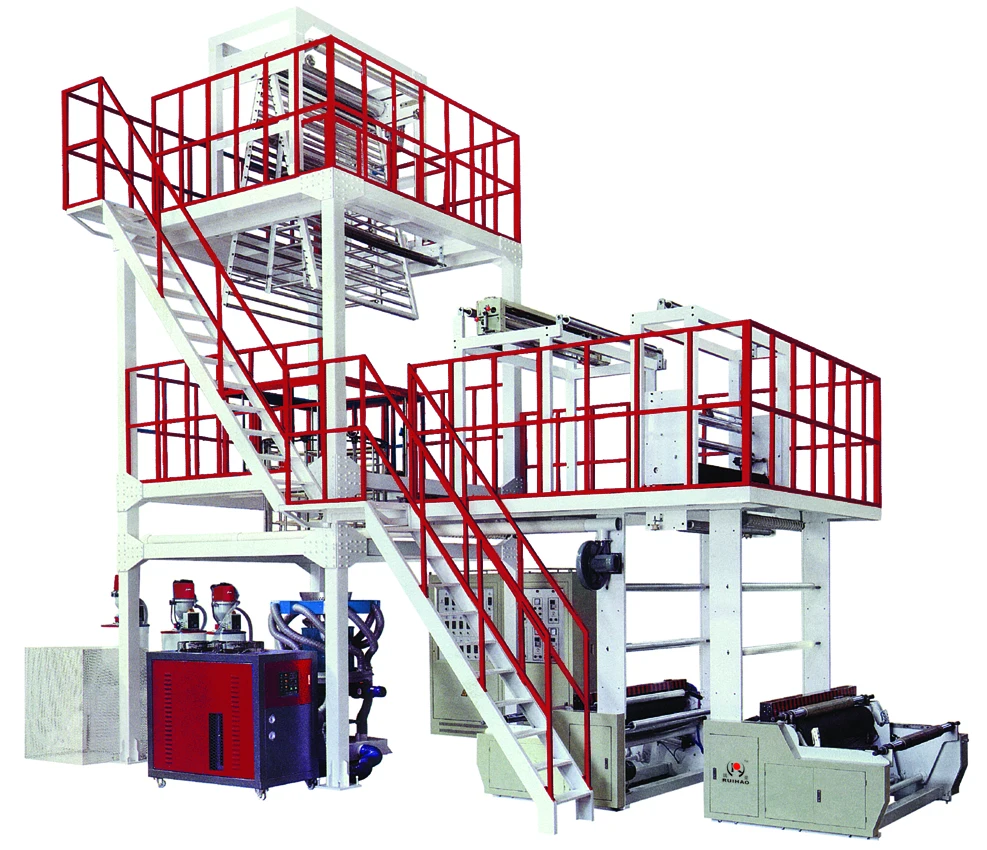

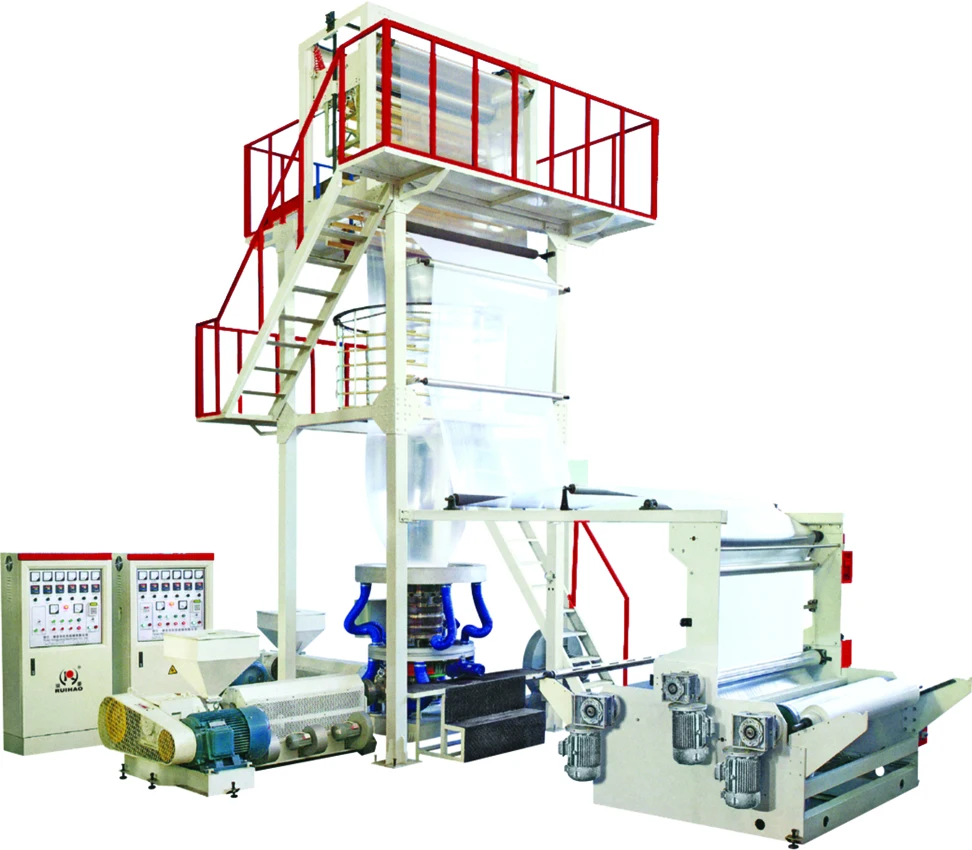

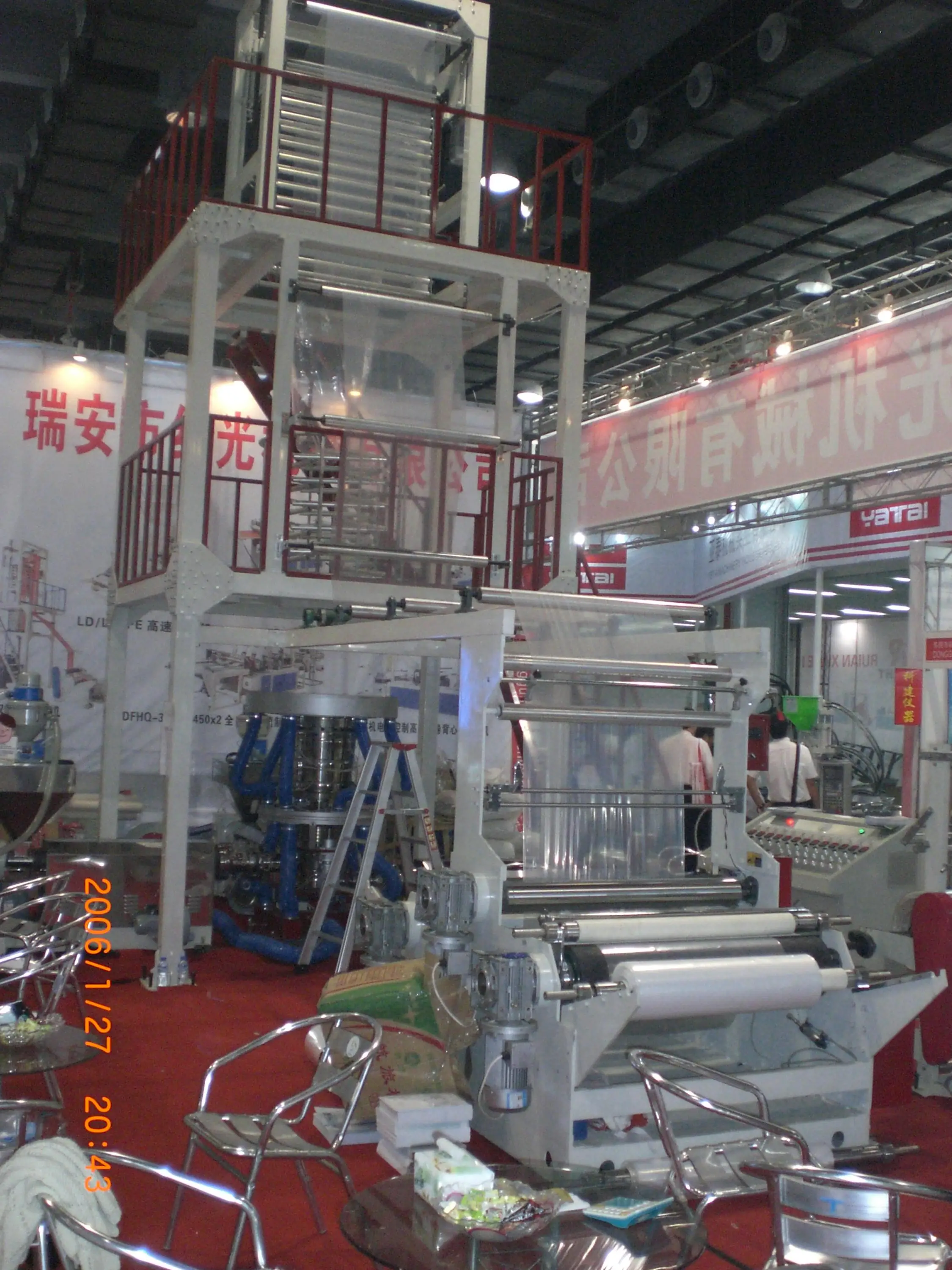

Three Layer Co-Extrusion Rotary Die Film Blowing Plant
Optional equipment of this film blowing machine:
1) Auto loader
2) Embossing roller
3) Film surface treater
4) Die rotary device
5) Air compressor
6) Mechanics screen changer
MODEL | SD-3L45 | SD-3L50 | SD-3L55 |
SUITABLE MATERIAL | LDPE LLDPE HDPE EVA | ||
FILM WIDTH(mm) | 800-1300 | 800-1500 | 1200-2000 |
FILM THICKNESS (mm) | 0.028-0.25 | 0.028-0.25 | 0.03-0.25 |
MAX.EXTRUSION OUTPUT | 130kg/hr | 190kg/hr | 260kg/hr |
EXTRUDER |
|
|
|
SCREW DIAMETER(mm) | A45 B50 C45 | A50 B55 C50 | A55 B65 C55 |
SCREW L/D LENGTH | 28:1 | ||
SCREW MATERIAL | SACM-645/38 CRMOALA | ||
CYLINDER MATERIAL | SACM-645/38 CRMOALA | ||
CYLINDER COOLING | 370w¡Á2/3 | 370w¡Á2/3 | 550w¡Á2/3 |
DRIVING MOTOR(Kw) | A15+B18.5+C15 | A18.5+B22+C18.5 | A22+B37+C22 |
TEMPERATURE CONTROL | 3x3 | 3x3 | 3x3 |
AVERAGE POWER-CONSUME(Kw) | 58 | 70 | 90 |

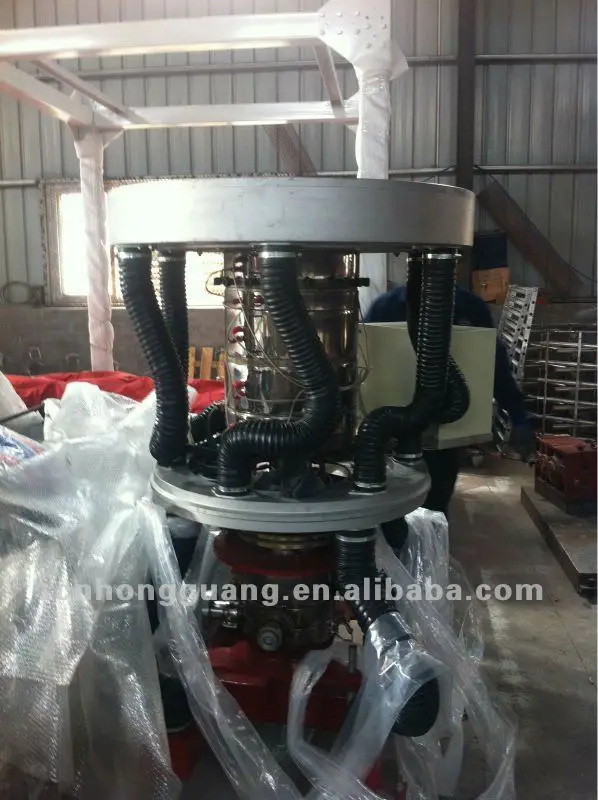

TYPE OF DIE |
|
|
|
DIE SIZE(mm) | 200/250 | 250/300 | 350/400 |
TEMPERATURE CONTROL | 4 | ||
AIR RING | 1 | ||
AIR BLOWER(Kw) | 5.5 | 7.5 | 11 |
TAKE-UPUNIT |
|
|
|
PINCH ROLLER (DIA. WIDTH)mm | ¦Õ165¡Á1400 | ¦Õ190¡Á1600 | ¦Õ 190¡Á2100 |
TAKE-UP SPEED(m/min) | 5-60 | 5-60 | 5-60 |
TAKE-UP MOTOR(Kw) | 1.5 | 1.5 | 1.5 |
WINDING UNIT |
|
|
|
TYPE | SURFACE FRICTION TYPE | ||
WINDING MOTOR(Kw) | 1.5 | 1.5 | 2.2 |
WINDING SPEED(m/min) | 5-60 | 5-60 | 5-60 |
COVER DIMENSION(m) | 7.5*5.5*6.5 | 8.2*5.8*7.2 | 9.0*6.4*8.2 |
