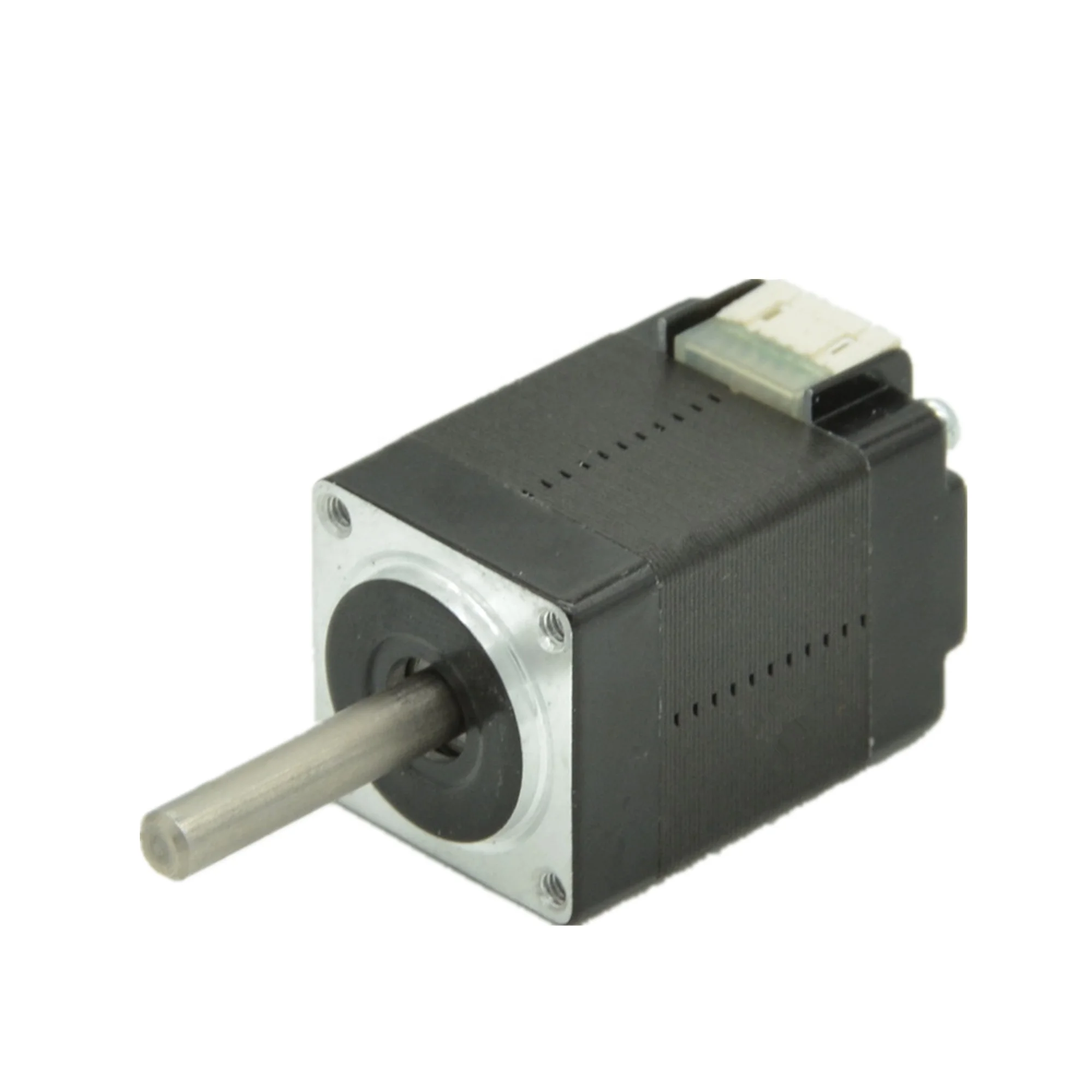

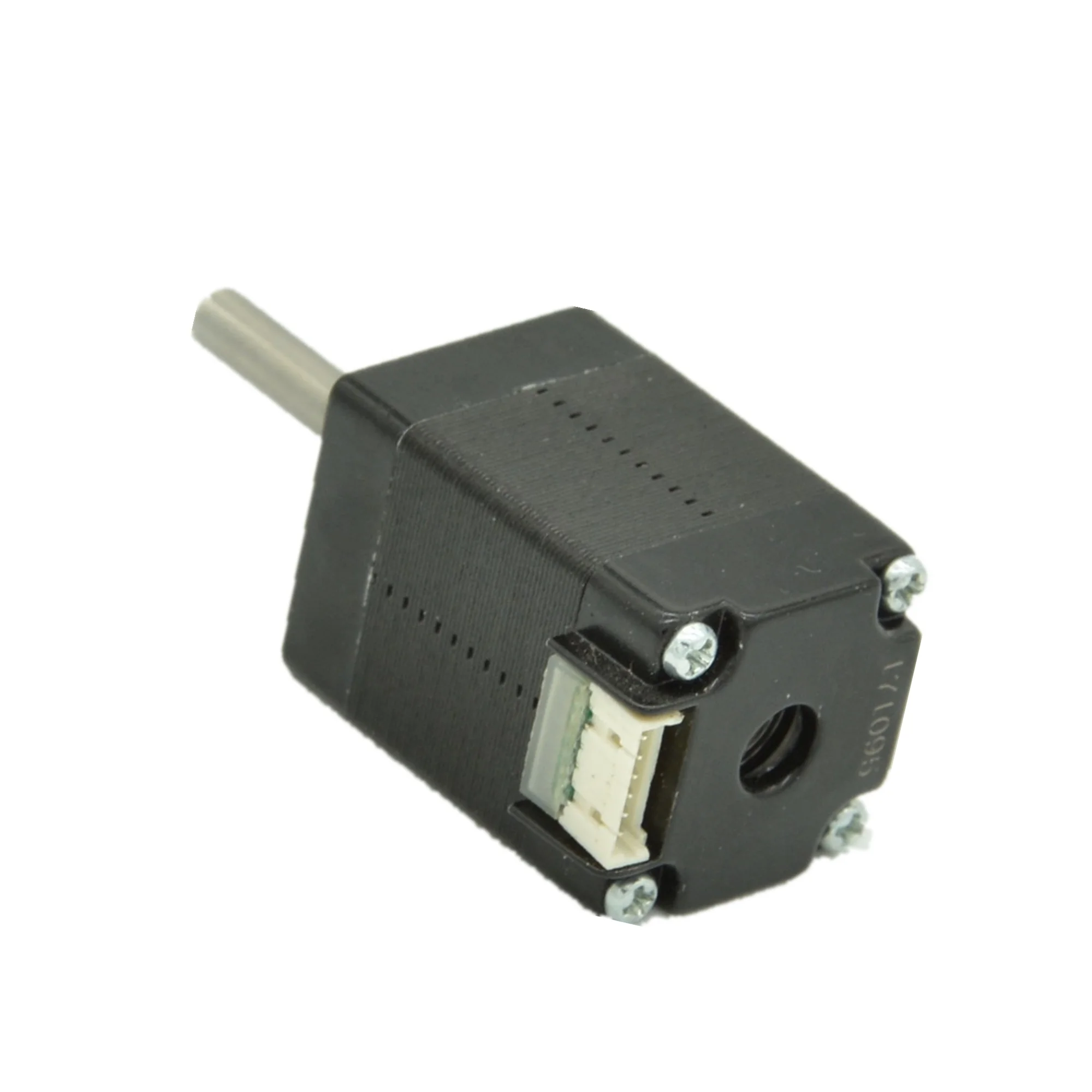

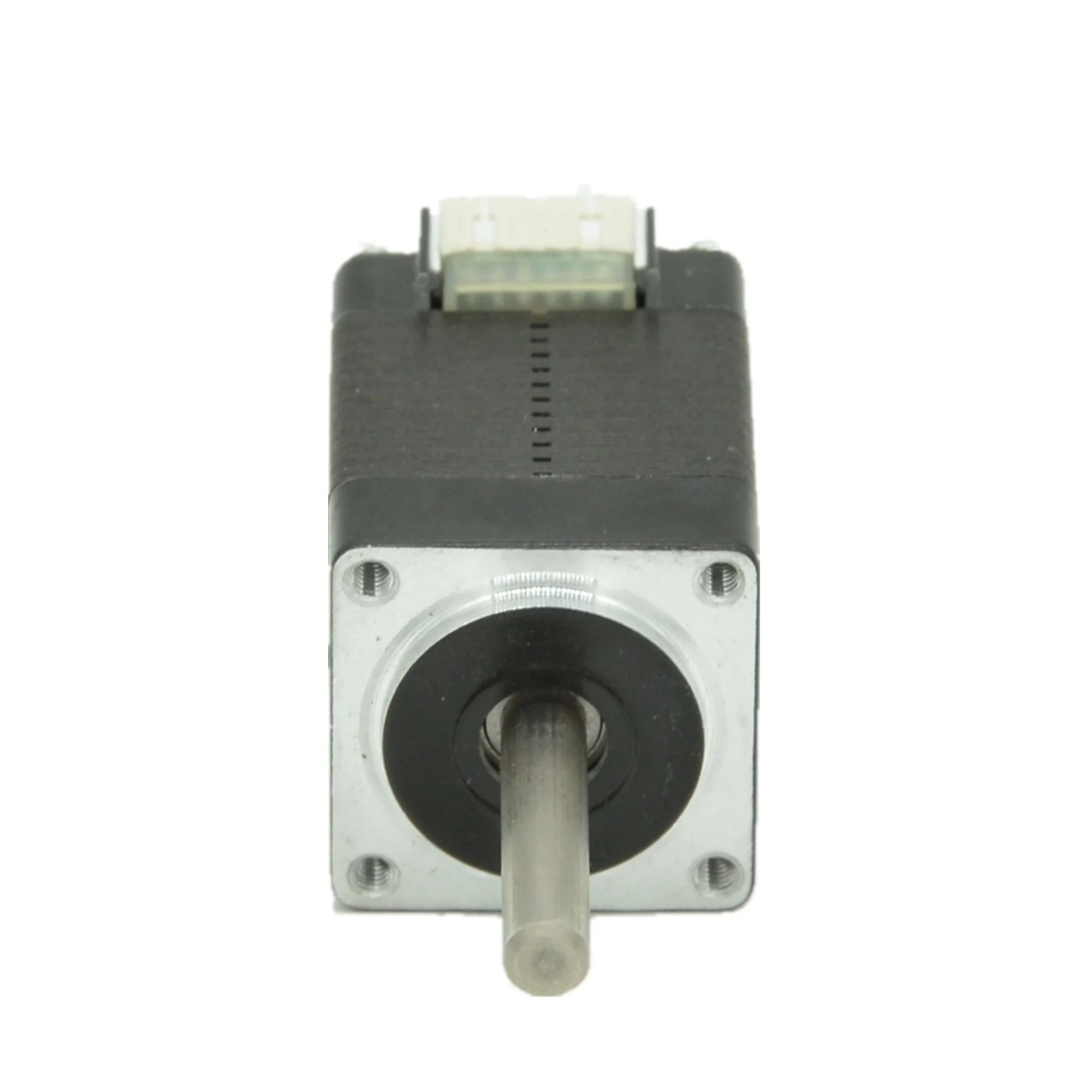

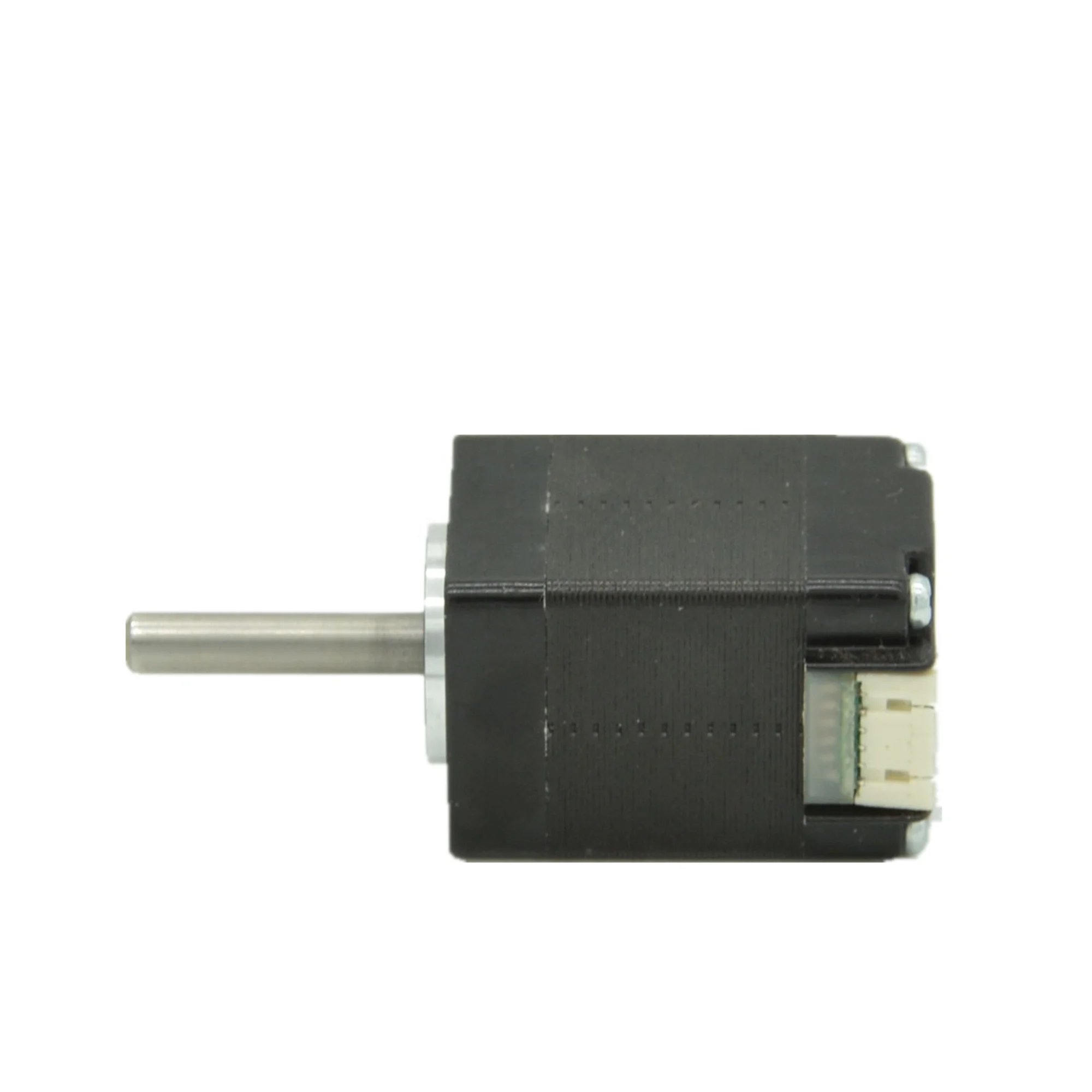

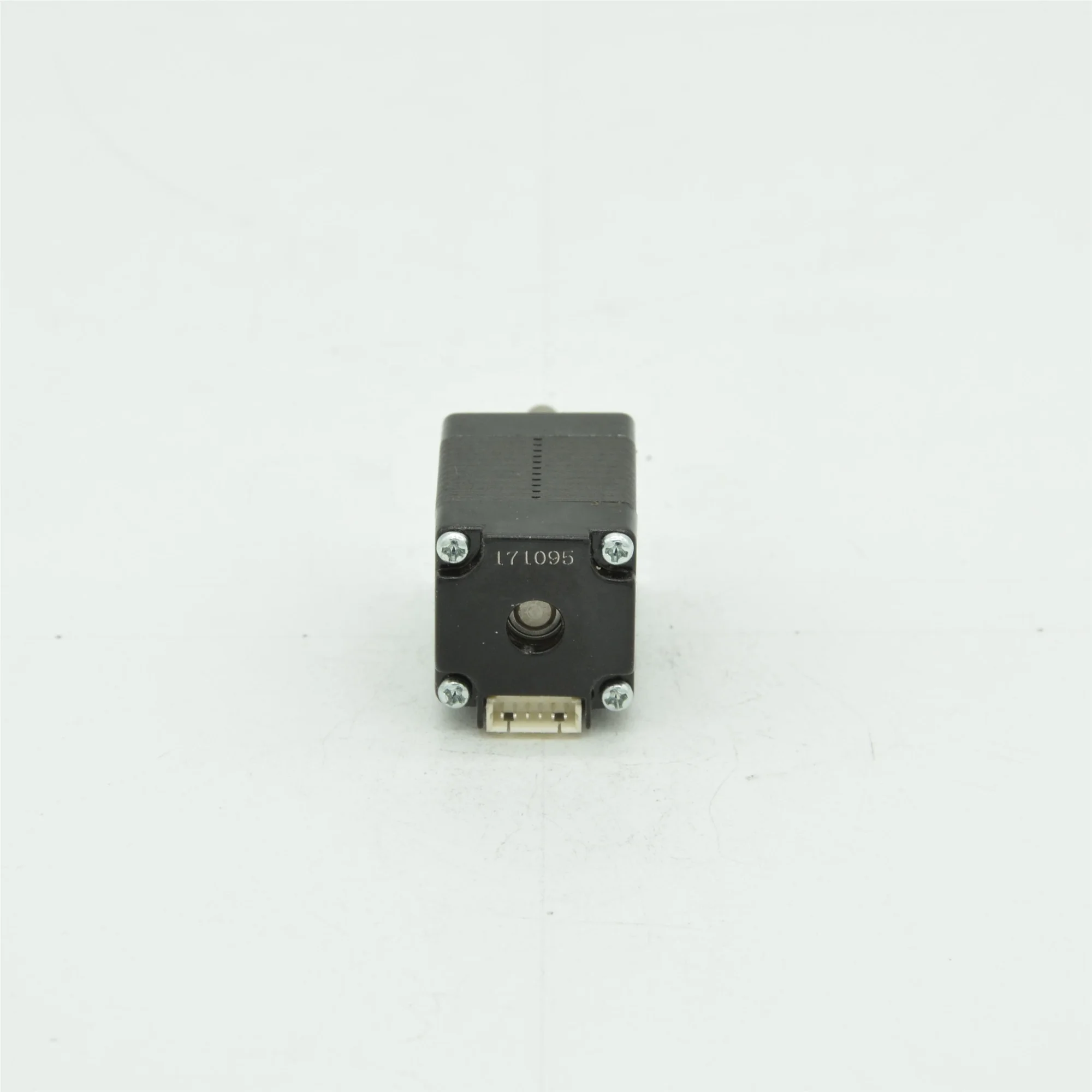

Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE
Low Cost Nema 8 Hybrid mini Stepper Motor with CE

Low Cost Nema 8 Hybrid mini Stepper Motor with CE

Share on (62362459817):


Price:$9.90 - $12.00

Quantity:


Product Overview

Description


Product Description

Genaral Specification:
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 110 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N

Step Angle
1.8 degree
Motor Length
30mm
Current/Phase
0.6A
Holding Torque / Nm
18mN.m
No. of Leads
4
Resistance/ Phase
1.7mH
Mass
0.1Kg
Voltage
3.9V
Size Information
NEMA 23 stepper motor catalog
Applications
3D printer
CNC milling machine
CNC laser machine
