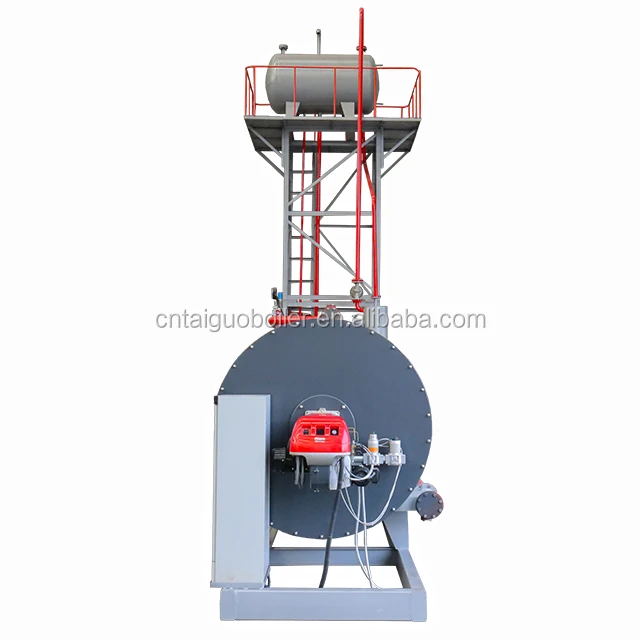

Industrial Horizontal small thermal oil boiler
- Category: >>>
- Supplier: Henan Taiguo Boiler Manufacturing Co. Ltd.
Share on (62362575197):
Product Overview
Description
Product Description
High Quality
TAIGUO YY(Q)W series thermal fluid boiler heater has skid-mounted design and full automatic control system. The heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, working temperature ≤310℃. Adopting three-pass structure, 3 layer corrugated coil rings.
Free-Installation
The complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, user no need to do installation, just filling the thermal fluid oil, join the fuel and electricity. Entire boiler system is portable.
Excellent Structure
Free-Assembly
Portable System
Three Fire-Passes
New Wet-Back Design
Corrugated Furnace, Fire-tube
Safety Technologies
Automatic Ignition Burner
Accurate Oil-Temp. Control ±1℃
Automatic Oil Replenishment
Automatic Over-pressure Protection
Automatic Over-temp. Protection
Simple Operation
Automatic PLC ON/OFF
Visible Oil Temperature
Visible Working Pressure
Visible Exhaust-gas Temperature
Adjustable Oil Temp. ≤310℃
Model Catalogue
Model | YY(Q)W-350 | YY(Q)W-500 | YY(Q)W-700 | YY(Q)W-1000 |
Heat Power | 300,000 Kcal/H | 420,000 Kcal/H | 600,000 Kcal/H | 850,000 Kcal/H |
Boiler Horsepower | 350 KW | 500KW | 700 KW | 1000 KW |
Working Pressure | ≤ 10 BAR | ≤ 10 BAR | ≤ 10 BAR | ≤ 10 BAR |
Oil Outlet Temp. | ≤310 ℃ | ≤310 ℃ | ≤310 ℃ | ≤310 ℃ |
Fuel Type | Gas, Oil | Gas, Oil | Gas, Oil | Gas, Oil |
Model | YY(Q)W-1200 | YY(Q)W-1400 | YY(Q)W-1800 | YY(Q)W-2400 |
Heat Power | 1,000,000 Kcal/H | 1,200,000 Kcal/H | 1,500,000 Kcal/H | 2,000,000 Kcal/H |
Boiler Horsepower | 1200 KW | 1400 KW | 1800 KW | 2400 KW |
Working Pressure | ≤ 10 BAR | ≤ 10 BAR | ≤ 10 BAR | ≤ 10 BAR |
Oil Outlet Temp. | ≤310 ℃ | ≤310 ℃ | ≤310 ℃ | ≤310 ℃ |
Fuel Type | Gas, Oil | Gas, Oil | Gas, Oil | Gas, Oil |
Detailed Image
1. Italy BALTUR/ RIELLO Burner
2. PLC ON/OFF Control Cabinet
3. Oil Storage Tank
4. Oil Expansion Tank
5. Oil Circulation Pumps
6. Hot Oil Outlet Pipe
7. Cold Oil Inlet Pipe
8. Thermometer, Pressure Gauge
9. Furnace Explosion-Proof Door
Our Service
Pre-Sales Service
* Inquiry and consulting the support
* Visting our factory
Shipment
* Loading the container in the factory
* Manage the CHINA-CUSTOM clearance, ocean shipping
After-Sales Service
* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the boiler.
Returning Visit
* Our After-Sales team will return the visit to remind the maintenance, and help the user to solve the problem in daily operation.
About Us
Well-organized Workshop
TAIGUO has 2 workshops, adopting 5S management standards, the workshop environment is clean and tidy, equipment and products are placed in an orderly manner. All the above, just to create a comfortable working experience for production workers and visiting customers. 300,000-2,000,000 Kcal/H Natural Gas LPG Oil Diesel Fired Heat Transfer Hot Thermal Oil Boiler Price
Sufficient New Stocks
In order to manage the delivery ASAP, TAIGUO ready the sufficient new stocks, include gas (oil) boiler, gas (oil) fired steam generator, coal (biomass) boiler, electric heating boiler, gas (oil) fired thermal oil boiler, coal-fired thermal oil boiler, biomass fired thermal oil boiler, timber treatment cylinder, hot air furnace, etc. 300,000-2,000,000 Kcal/H Natural Gas LPG Oil Diesel Fired Heat Transfer Hot Thermal Oil Boiler Price
Experienced Team
TAIGUO has more than 190 employees, includes 2 general managers, 4 technical directors, 9 QC engineers,25 salesmen, 10 administrative staff, 4 warehouse staff, 6 financial staff, 4 pre-sales engineers, and 6 after-sales engineers, 120 frontline production workers. 300,000-2,000,000 Kcal/H Natural Gas LPG Oil Diesel Fired Heat Transfer Hot Thermal Oil Boiler Price
a. How to get a detailed and exact offer?
Please let us know your required heat power,fuel type. Then our sales-engineer will send you the detailed and exact offer.
b. How long does it take to get the boiler ready?
Usually our company have new stocks, we can manage the shipping within 1-3days. But you please contact us salesman to confirm in advance.
c. Can you assist us to do the installation and operation training?
Yes, our company will provide the drawings and operation manual. Also our engineer can provide the technical supports online.
