Product Overview
Description

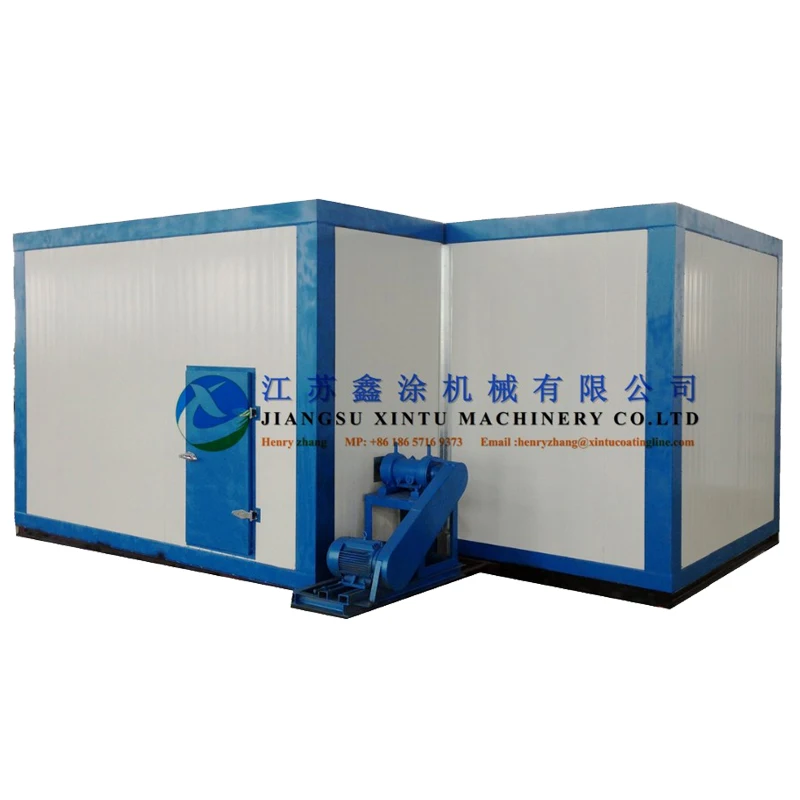

Diesel, natual gas and electric Heater Powder Coating Curing Furnace with RIELLO Burner
1.Specification
| Dimension | Customized according to workpiece size & output requirement |
| Diesel curing oven inner galvanized plate | 0.8mm/1.0mm/1.2mm |
| Oven outer cold-rolled plate | 0.8mm/1.0mm/1.2mm |
| Surface anti-corrosion | Powder Coating surface/Stainless Steel |
| Heating source | Desiel Oil/Natural Gas |
| Burner | Italy RIELLO |
| Curing oven power supply | 220V/380V AC 50/60HZ(according to customer's requirement) |
| Insulation materials | Rock wool (120~150mm thickness; Depends on required temperature ) |
| Temperature control | Continuously Adustable and setting by thermocouple sensor components |
| Temperature Fluctuation | ±5℃ |
(Remark:Electric Powder coating Curing Oven is available by us too)
 |  |
2.Feature

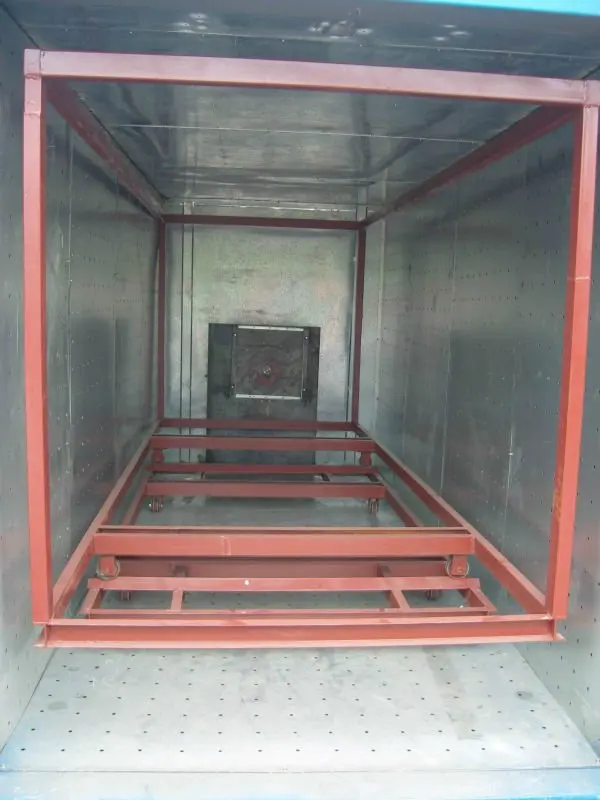

1. The oven is assembling structure with manual double swing gate on single side, and the workpiece is conveyorized by hanging type workpiece trolley. Outer plate of the oven is made of anti-corrosion treatment coled rolled sheet , glossy ,clean and beautiful. Inner plate of oven is made of Stainless Steel or galvanizing sheet. The intermedium filling materials is heating insulation rock wool, by which to make sure the heat calories not flowing out from the oven and achieve the aim of saving energy. Exhausting air emission system and fresh air supplement system are designed separately on the oven roof and side, which prevent from the accumulation of inflammable and explosive gas, reducing the inside pollution of the oven caused by harmful gas, thus improve the products quality.
2. Oven is directly heated by diesel source.Hot air circulation system is by "Bottom blowing-in and top side air-returning" mode, uniform adjustable air outlets are set up for direct air-pressure bearing duct ,which makes the uniform temperature of inner oven.
3. Adopting automatic temperature adjustable system, temperature controlling system consists of temperature regulator, temperature-measured probe, heating source controlling device etc. temperature-measured heating resistor is inserted in the oven. Digital readout temperature controller will measure the temperature reading generated from the temperature-measured resistor and control the heating source device, (Start or stop heating), and control the temperature within preset range.

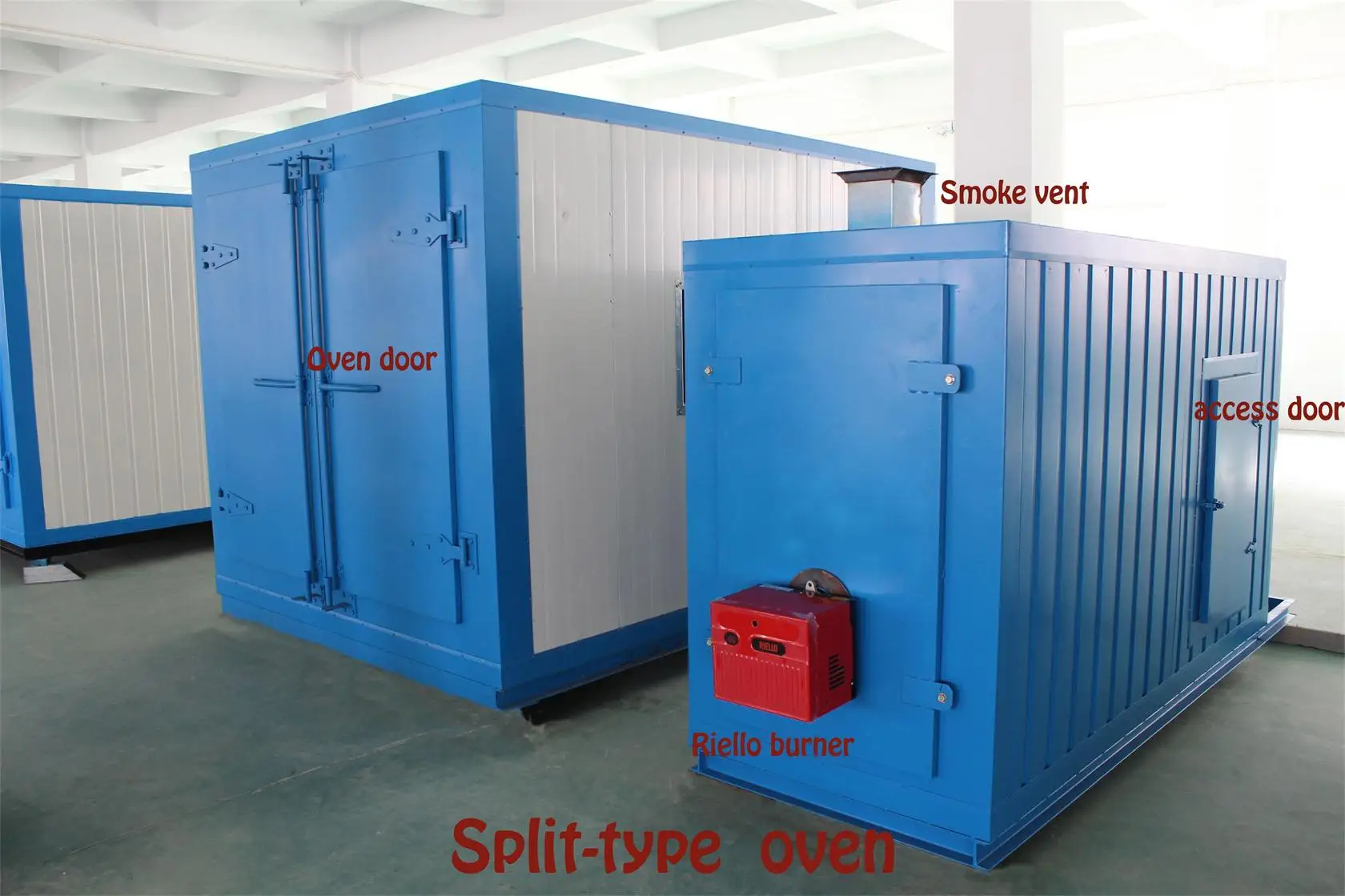

3.Picture of the ITALY RIELLO BURNER
List of the RIELLO burner model
| NO | Model | Power |
| 1 | FS10 | 100KC |
| 2 | FS20 | 200KC |
| 3 | RS34/1 | 300KC |
| 4 | RS34 | 300KC |
| 5 | RS44 | 400KC |
| 6 | RS44/1 | 400KC |
| 7 | G10LC | 100KC |
| 8 | G20LC | 200KC |
| 9 | GW | 300KC |
| 10 | RL34 | 330KC |
| 11 | RL44 | 400KC |
| 12 | RL100 | 1000KC |

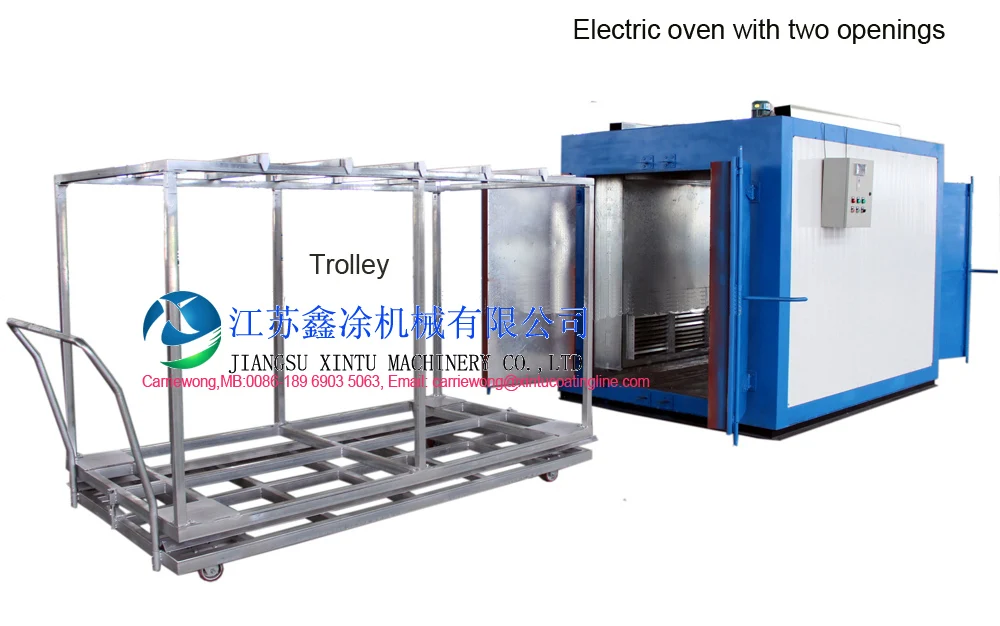

4.Picture of the Electric Powder Coating Oven
Key Words:Powder Coating Oven/Dry Oven/Curing Oven/ Powder coating curing oven/ITALY RIELLO/FORNO DI POLIMERITÀ PER RIVESTIMENTI IN POLVERE/FOUR DE DURCISSEMENT DE REVÊTEMENT DE POUDRE
5.Company Profile
Company Information
Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machines.
Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 15 years experience in offering a wide variety products such as powder coating equipment, flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
We have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!
