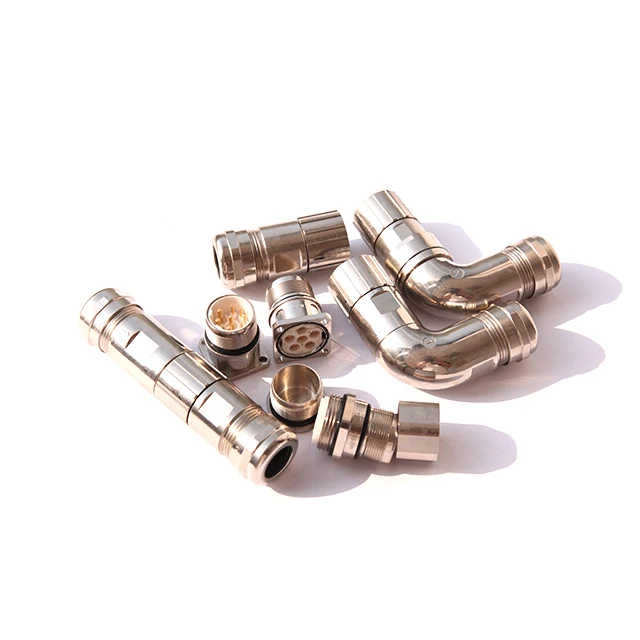

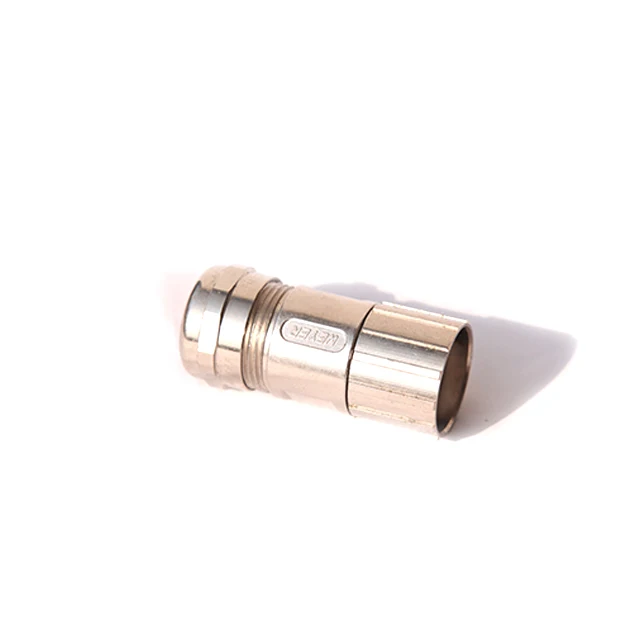

M23 Electrical Waterproof Automotive 10 pin male Circular Connector

Product Overview

Description

 M23 High-Load  Electrical Waterproof Automotive 10 pin male Circular Connector

Usage and installation methods
Plug-ins are also called electric connectors. They are known as industrial connectors and sockets in China. They are often used unshielded multi-core
cables and can play a role in transmitting current or signals, fix cable tampering, shielded grounding, and waterproof dust protection.The company
has developed a high-load plug-in connector, which can be installed quickly. The installation seat(socket) can be fixed by M3 screws, M25/M20 and
other specifications such as box thread holes, and various specifications box holes. The connection between the cable connection plug(plug) and the
installation seat(socket) is only required to be tightened and fixed by the self-tightening nut,and the installation is flexible and convenient.

Shell material: copper and zinc alloy nickel plating, zinc alloy nickel plating Contact Material: Copper and Zinc Alloy Gold Plating earth tag material: copper and zinc alloy gold plating Shield Material: Stainless Steel SUS304 Sealed materials: EPDM, NBR, Silicon rubber Shell shape: straight, right angle Contact connection mode: clamping / welding Ground function: PE ground plate(six cores, eight cores), no ground(ten cores) Protection degree: IP68
