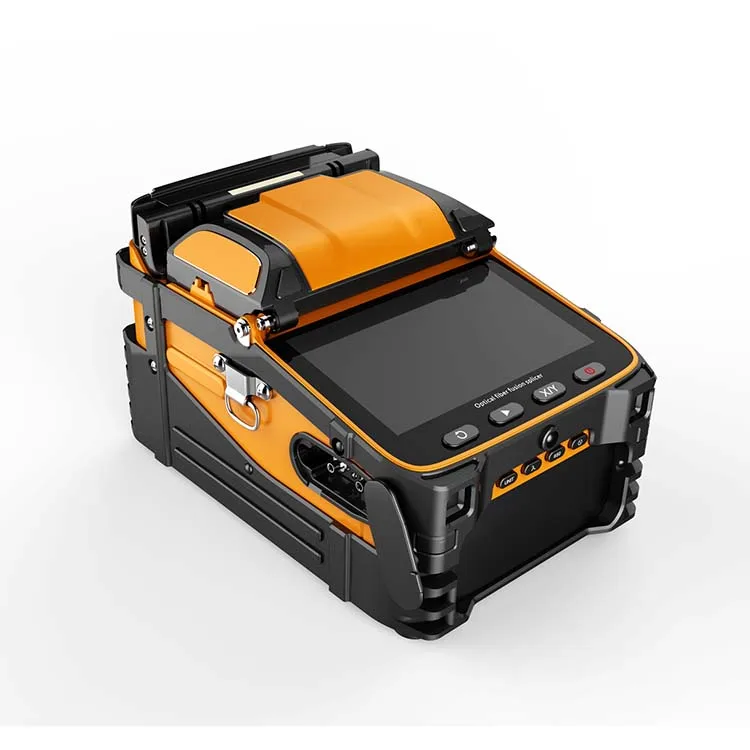

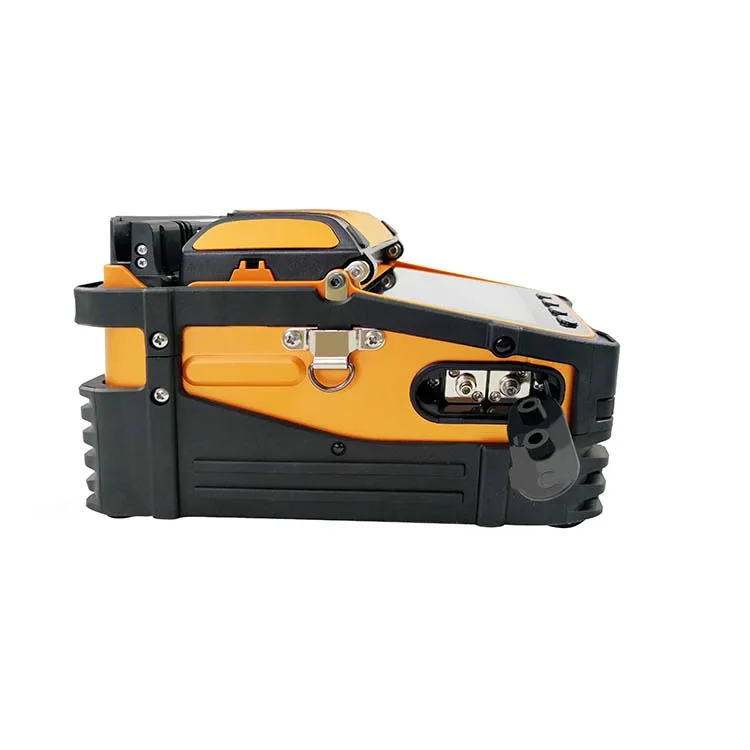

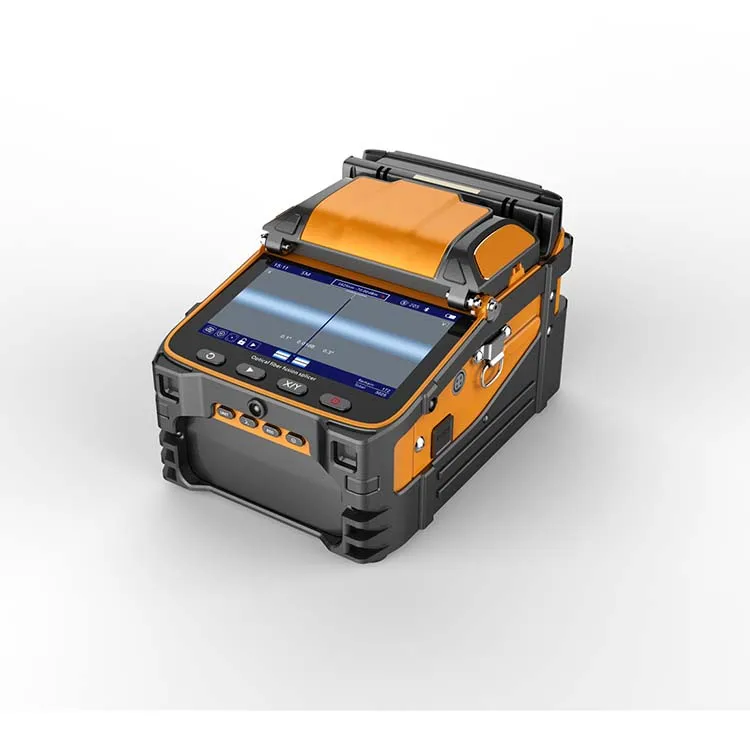

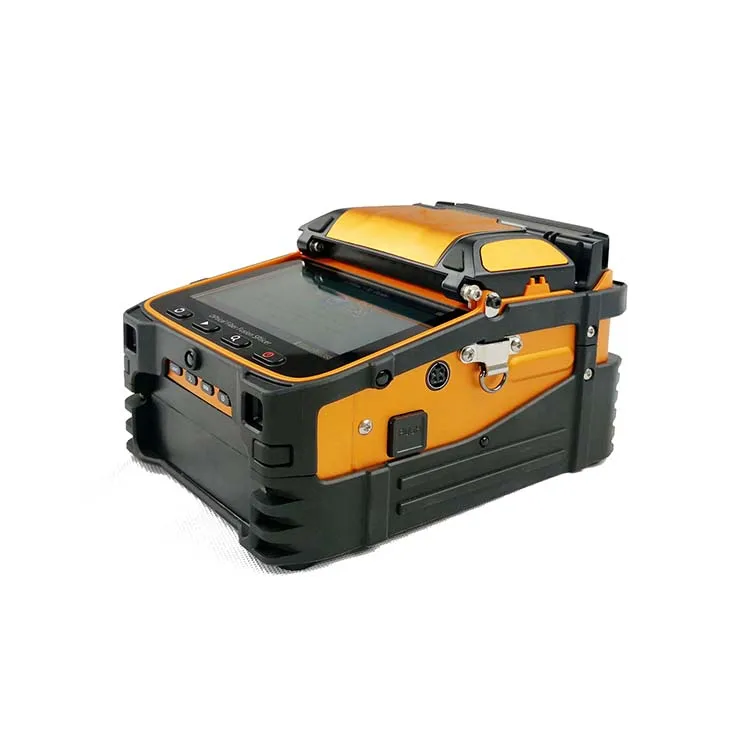

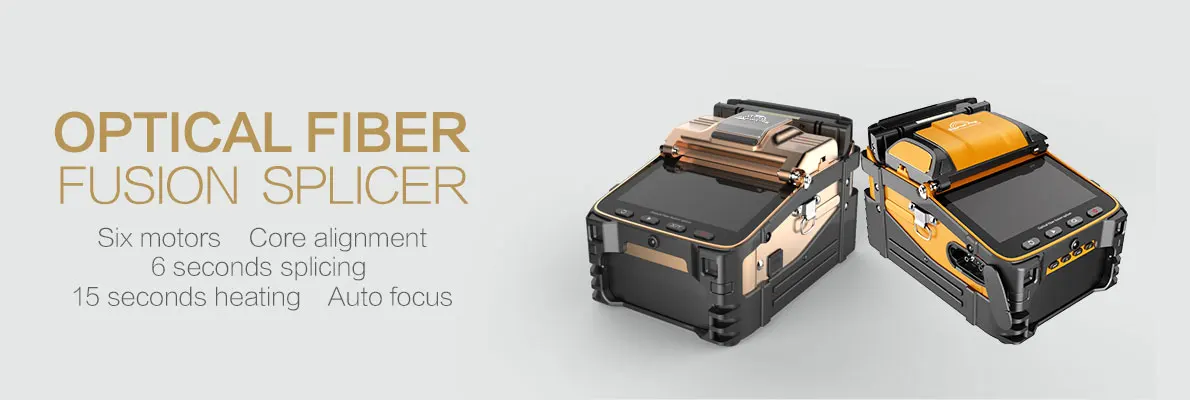

Ai-9 FTTH Optical Fiber Fusion Splicer
Signal Fire AI-7C/7V/8C/9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.
Specification
Fiber alignment | Core/cladding alignment / Manual alignment |
Splicing time | 5S |
Heating time | 15S |
Heating mode | Automatic heating (Preheating) |
Focus mode | Six motors Auto focus |
Applicable Fibers | SM[G.652&G.657)、MM (G.651) 、DS(G.657)、 NZDS (G.655) |
Splice Loss | 0.025dB (SM)、0.01dB (MM) 0.04dB (DS/NZDS) |
Control technology | Real-time control and calibration of fusion ARC |
Return loss | Better than 60DB |
Fiber diameter | Cladding Diameter: 80-150um Coating Diameter: 100-1000um |
Fiber Cleave Length | Coating less than 250um: 8-16mm Coating less than 250-1000um:16mm |
Builtin lighting | easy for night operation |
Tension Test | easy for night operation |
Fiber holders | 3in 1 fiber holder, SM. MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification | 300 for XorY view, 150 forX or Y view |

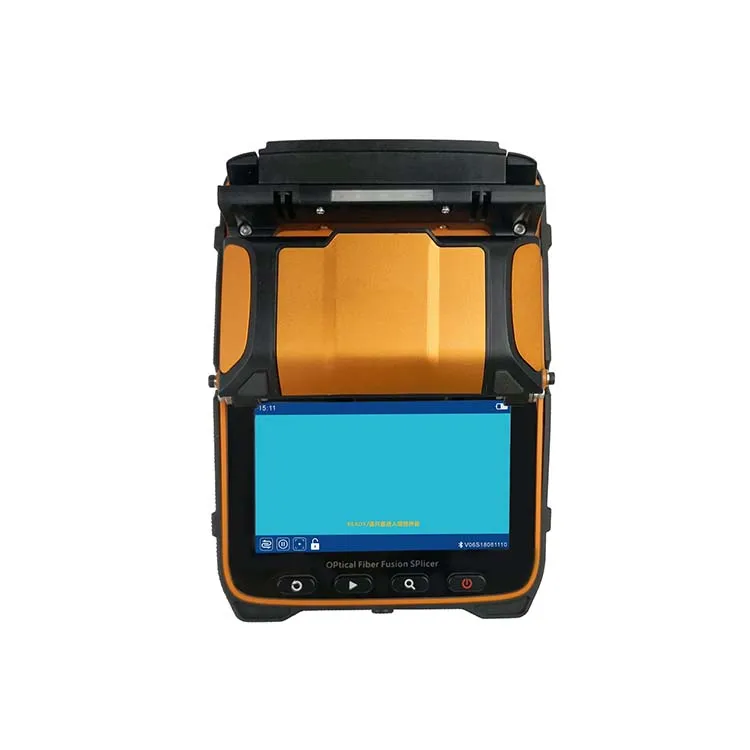

Screen | 5 inch TFT color display |
Splicing Mode | Normal / high precision splicing |
Splicing record storage | Synchronize to the phone, the server to coud storage unlimited |
Bult-in battery | 7800 mA high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 260 times |
Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A. the current power mode can be identifled, real-time detection of battery power |
Operating Conditions | Temperature -15~ +50 C,Working altitude:0 ~ 5000m, Resist max. wind speed:≤15m/s |
Shrinkable tube | 60mm、40mm |

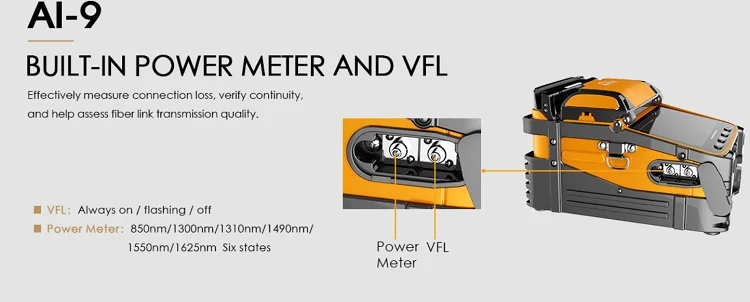

Visual Fault Locator | Power:15mw.2hzflashing And Constantly Bright Mode |
Optical Power Meter | Wavelength:850nm、1300nm、1310nm、 1 490nm、1550nm、 1 625nm Measuring Range:-70 ~ + 6db Absolute Error: |

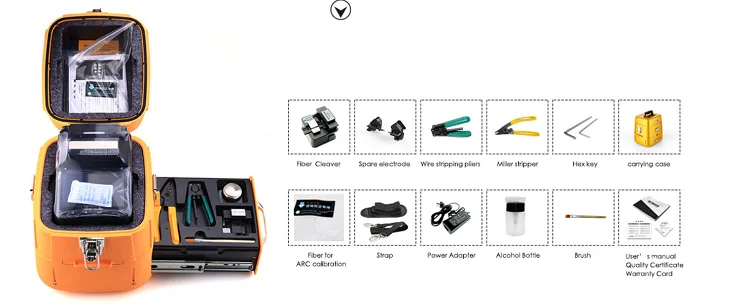

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
