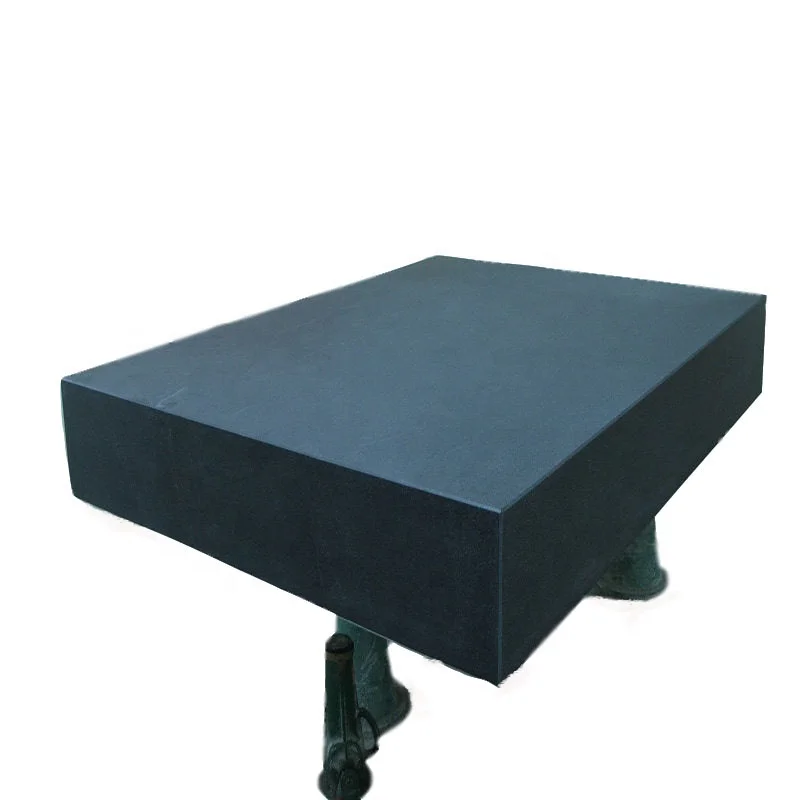

Precision granite surface plate black granite inspection surface plate

Price:$200.00

Price in USD:Details

Quantity:

Natural material black granite inspection surface plate

Product Description

Features:

1 High precision reliable stability resistant to deform and guaranteed accuracy under normal ambient temperature.

2 No-rust and anticorrosion.

3 Wear resistance long service life.

4 Any cutting or scraching for working surface does not bring about rough edges which might influence its measuring precision.

5 Non-magnetization.

6 Glossy surface without sluggishness when the workpieces or tools are moving on it.

Physical properties:

Proportion,2970-3070kg/m3

Compression strength,245-254kg/mm2

Flexible grinding capacity,1.27-1.47N/mm2

Coefficient of linear expansion,4.6×1-6°C

Water absorption 0.13%

Shore hardness HS, more than 70.

It is the ideal tool for drawing line and inspection at precision processing company.

Specification:

Precision has 000. 00, 0, 1 grade.

Specification Length × Width × Thickness (mm)	Weight (kgs)	Precision Grade (μm)
Specification Length × Width × Thickness (mm)	Weight (kgs)	000	00	0	1
300 × 200 × 50	17	1.5	3	6	12
300 × 300 × 50	19	1.5	3	6	12
400 × 300 × 70	25	1.5	3	6	12
400 × 400 × 70	48	2	3.5	6.5	13
630 × 400 × 100	76	2	3.5	7	14
630 × 630 × 100	155	2	4	8	16
800 × 500 × 130	156	2	4	8	16
1000 × 630 × 130	284	2.5	4.5	9	18
1000 × 750 × 150	338	2.5	5	9	18
1000 × 1000 × 150	450	2.5	5	10	20
1600 × 1000 × 200	963	3	6	12	24
2000 × 1000 × 200	1200	3.5	6.5	13	26
1600 × 1600 × 300	2312	3.5	6.5	13	26
2000 × 1600 × 300	2890	3.5	7	14	28
2500 × 1600 × 300	3612	4	8	16	32
3000 × 2000 × 500	9030	4.5	9	18	36
4000 × 2000 × 500	12040	5.5	11	22	44
6000 × 2000 × 700	25284	7.5	15	30	60
