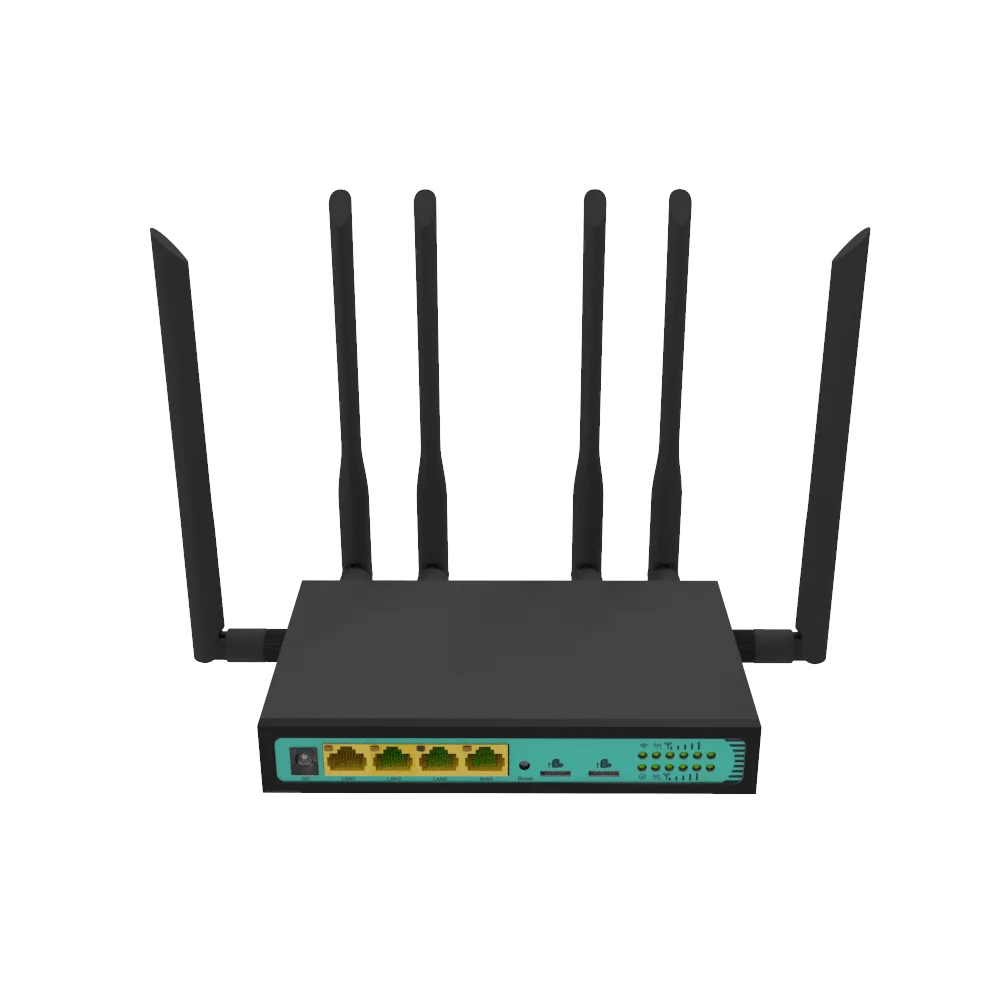

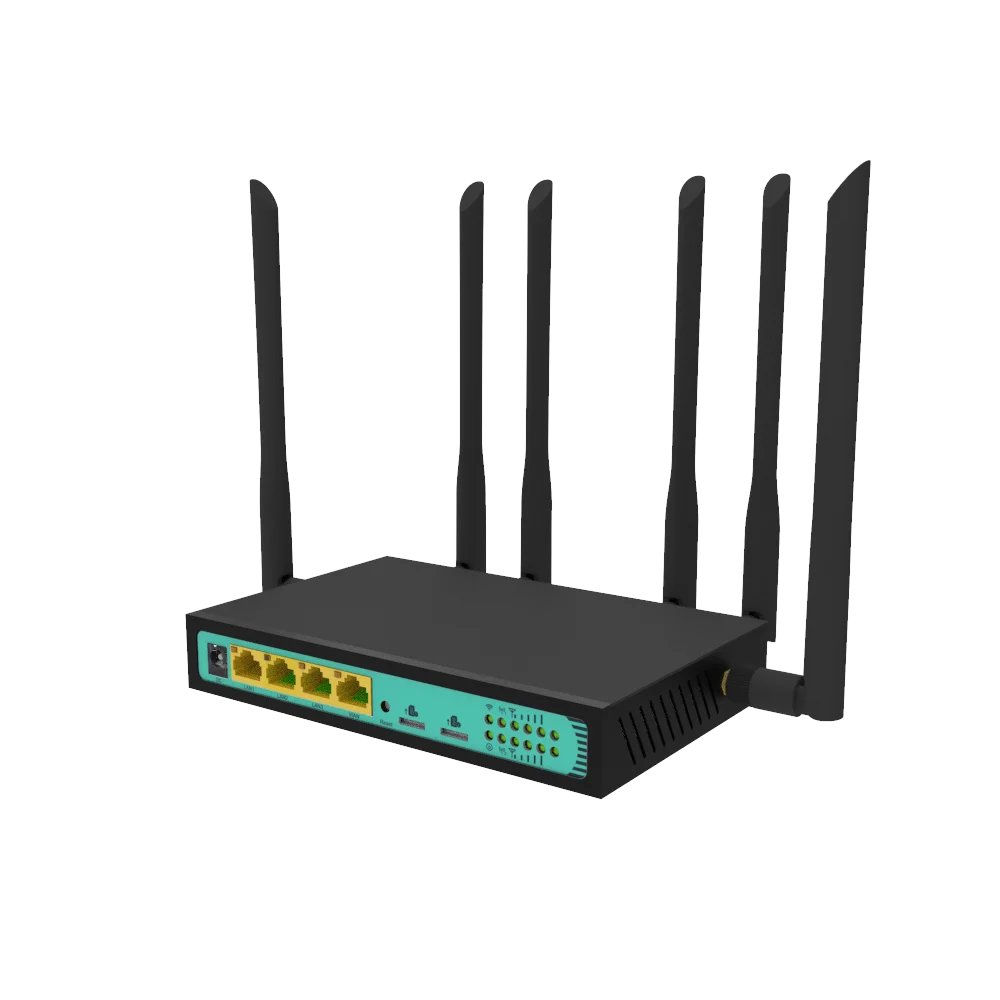

MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog

• The web price is not including any 3G/4G module, that means it can not use SIM card to get Internet.


• If you need 3G/4G, please tell me which one country you will use or band&frequency information so that I can offer to you.

MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog

lAdopt MT7628AN chipset, frequency up to 580MHZ, strong performance and stability

lSupport IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless standard, wireless transmission rate up to 300Mbps

lSupport IEEE 802.3/3u standard, 1WAN+3LAN 10/100M adaptive network port, support automatic flip (Auto MDI/MDIX)

lBulit-in dual PCIE interface,support dual 4G module dual SIM card slot

lBuilt-in hardware watchdog to ensure stable operation of the system

lSupport 12V or 32V DC power supply, can be customized according to customer needs

lNew OS system, running remote management

Hardware Introduction

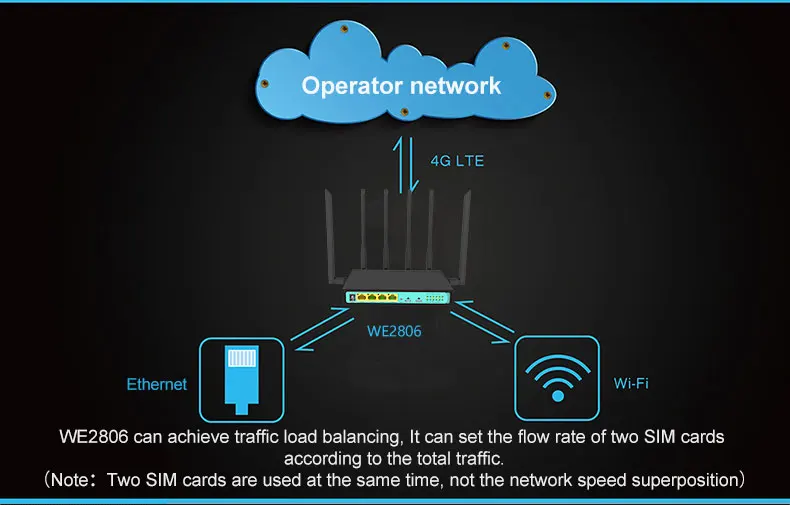

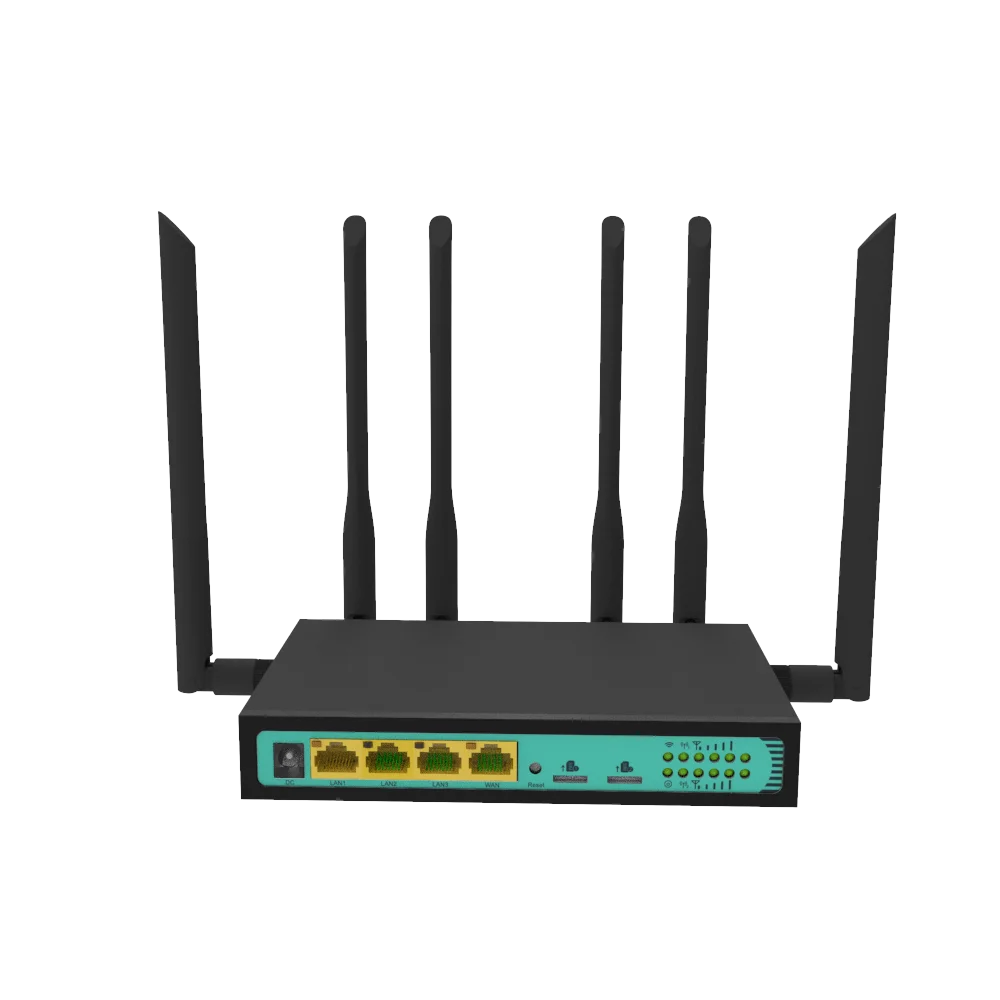

WE2806 used MT7628 chipset,Work frequency can reach 580MHZ, It provides 4 10/100M adaptive Ethernet interfaces, built-in dual PCIE interfaces, dual SIM cards for dual 4G modules, and dual SIM cards for single 4G modules. The simple and clear indicator light can be used to understand the running status of the device at a glance. Has a high cost performance.

Wireless Introduction

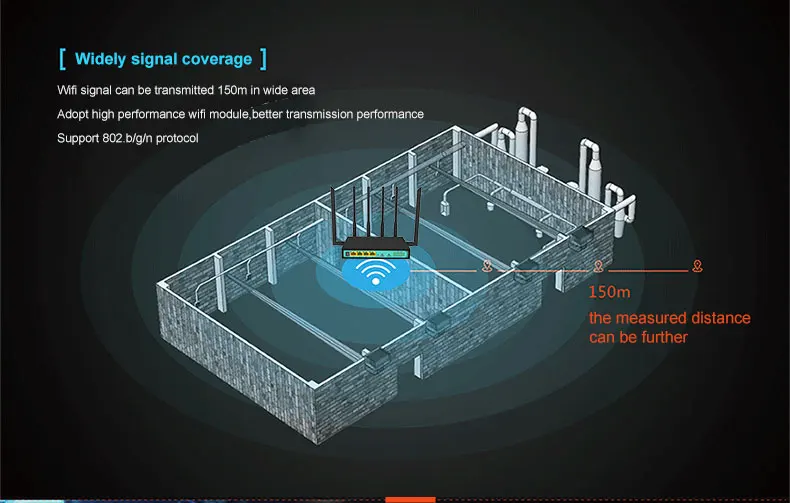

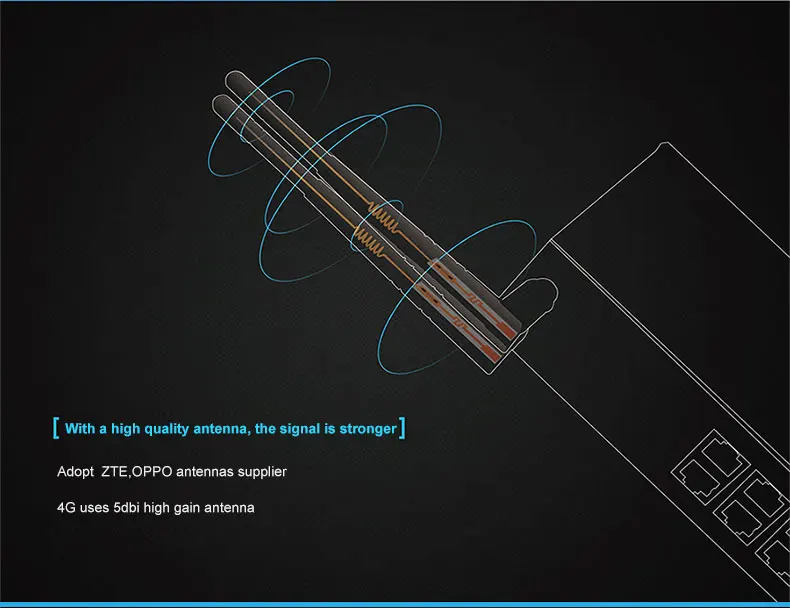

Compliant with IEEE802.11n/g/b wireless network protocol, adopting 2x2 MIMO (Multiple Input Multiple Output) architecture, wireless transmission rate up to 300Mbps, external 2 2.4G antennas, 4 4G antenna SMA interfaces, one GPS antenna interface, The wireless signal has a theoretical coverage radius of more than 50 meters in an open environment and a theoretical capacity of 30.

Software Introduction

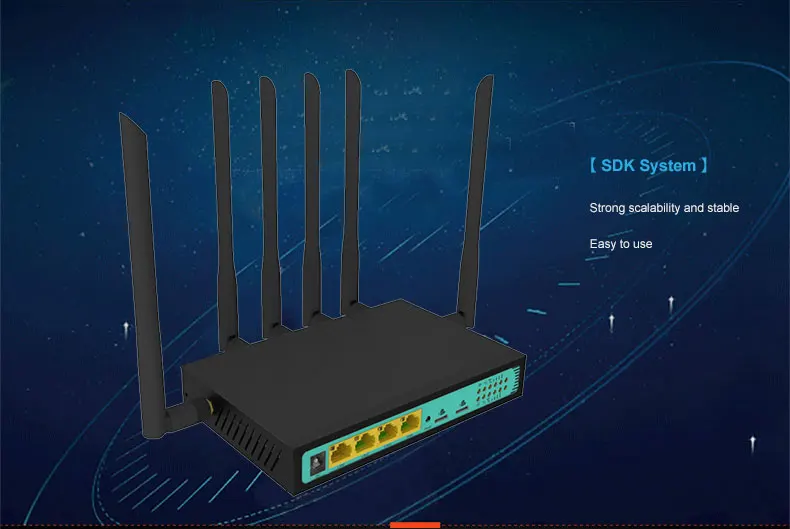

Adopting a mature and stable SDK system, it provides an intuitive and easy-to-use setting interface; integrates multiple network application functions.

Customization

In order to meet the "routing enthusiasts" and some "special industry" applications, WE2806 supports "one-click webpage brush mode", which can be easily implemented.

Product Specification

MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog

MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog

MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog

 MTK7628 openwrt 2 PCIE slot 4G lte modem wireless router with watchdog
