Hydraulic Spindle rotary peeling machine for face veneer and plywood
- Category: >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (62362937261):
Product Overview
Description

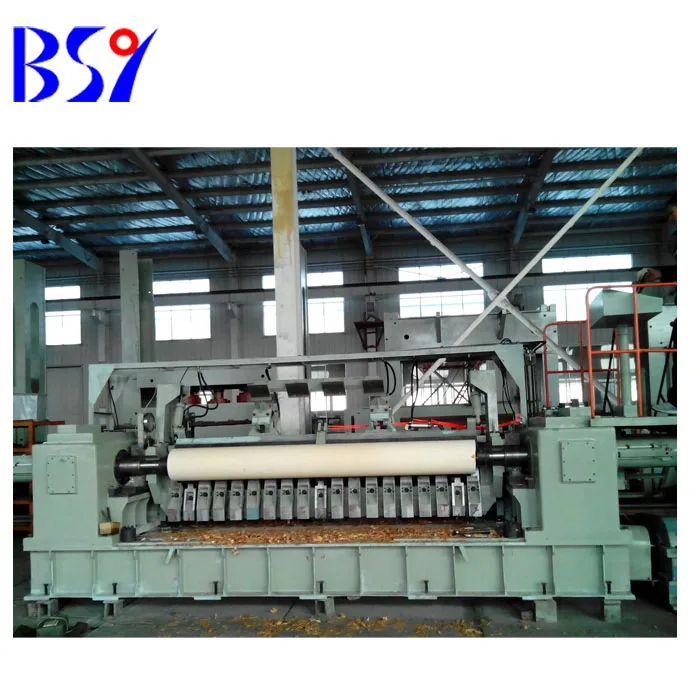

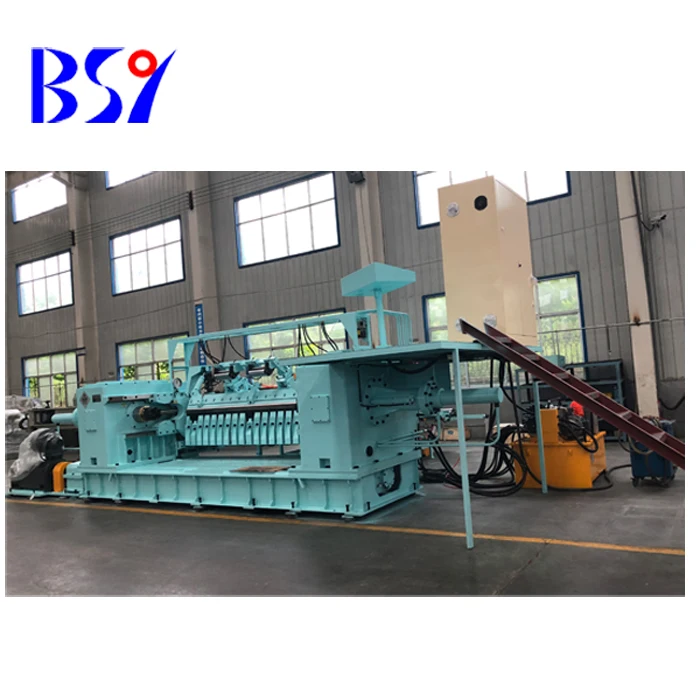

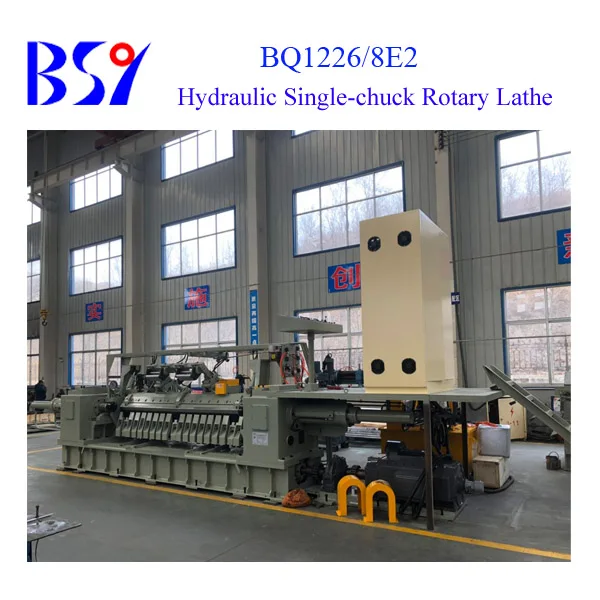

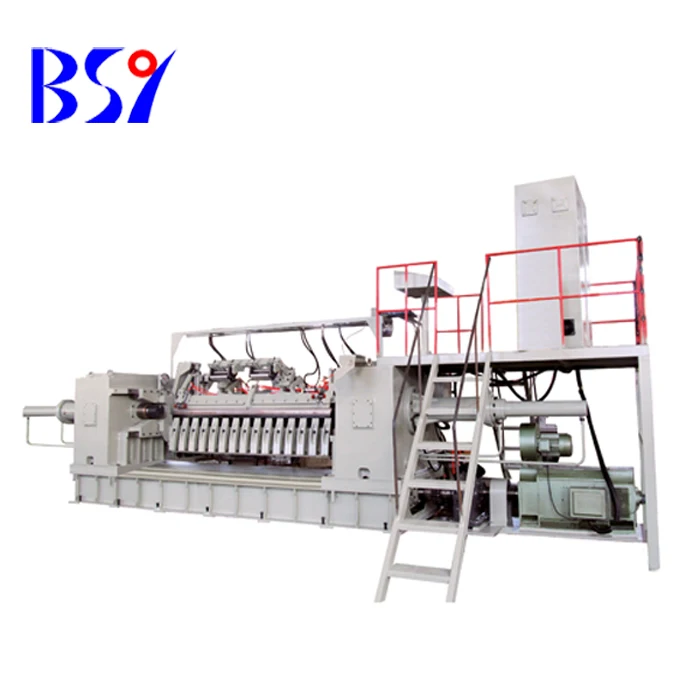

Hydraulic Spindle Rotary Peeling lathe
Product Description
This machine is used to peel log without skin with single spindles into veneer.
1. Auto knife installation system, auto tool carriage feeding system
2. Hydraulic clamping
3. Auto anti-bend roller
4. Both soft and hard wood are available.
5 We have several model for log diameter 800mm, 1000mm,1300mm,1500mm.
We have 4f,6f and 8f to meet different requirement. You can choose it according to your demand.
MODEL | BQ1226/8E2 | BQ1226/8F2 | BQ1215/8A2 |
Max.cutting diameter(mm) | 170-800 | 170-800 | 170-800 |
Max,cutting length(mm) | 2150-2700 | 2150-2700 | 1000-1500 |
Range of veneer thickness(mm) | 0.35-3.9 | 0.35-4.2 | 0.35 - 4.2 |
Chuck diameter(mm) | 100 | 130 | 85( 100 ) |
Max.rotating speed of spindel(rpm) | 0-200 | 0-200 | 0-160 |
Quick forward and backward speed of tool cartridge(m/min) | 1.8 | 1.8 | 1.8 |
Main motor power(kw) | 75 | 75 | 45 |
Rapid feed motor power(kw) | 4 | 4 | 4 |
Hydraulic motor power(kw) | 7.5 | 7.5 | 7.5 |
Grinding angle of appropriate tool cartridge | 18o-22o | 18o-22o | 18- 22 |
General motor(kw) | 89.5 | 89.5 | 57.658.35 |
Overall dimensions(mm) | 8250×2855×1554 | 8250×2855×1554 | 7295×1770×1909 |
Weight(kg) | 16500 | 16500 | 12000 |

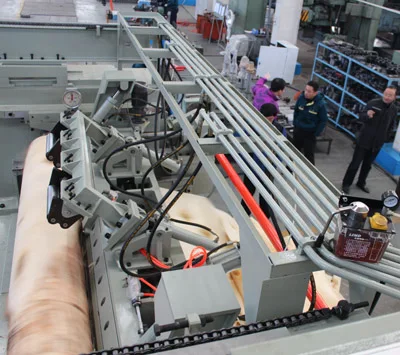

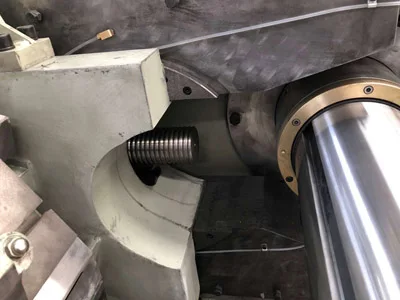

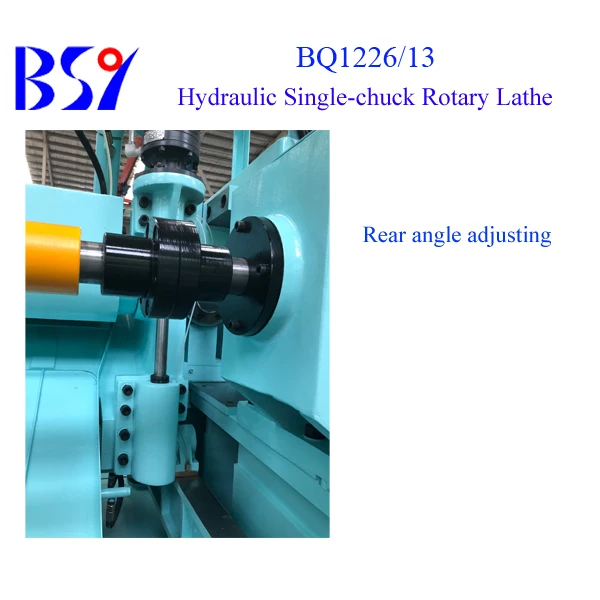

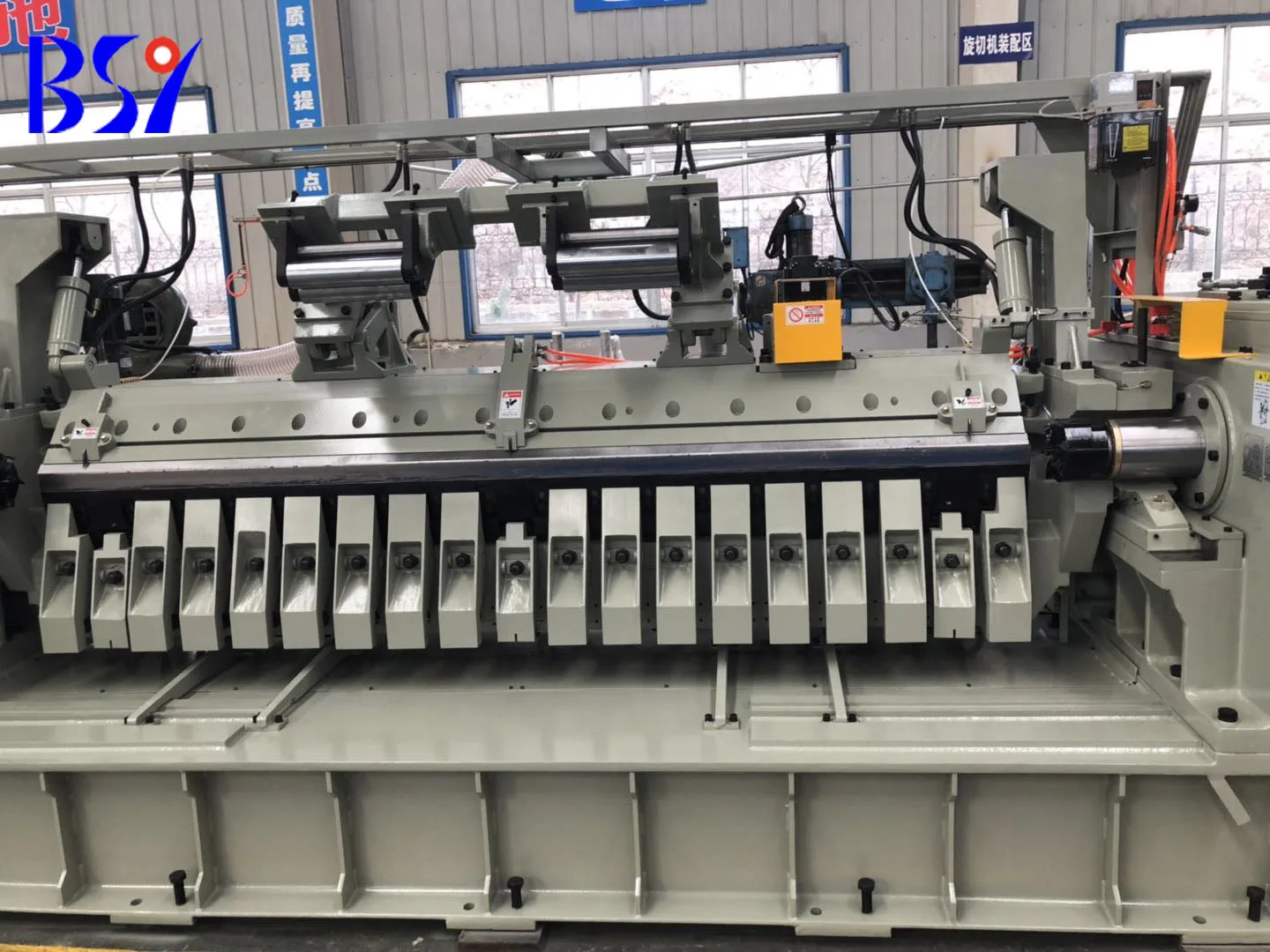

Detailed Images

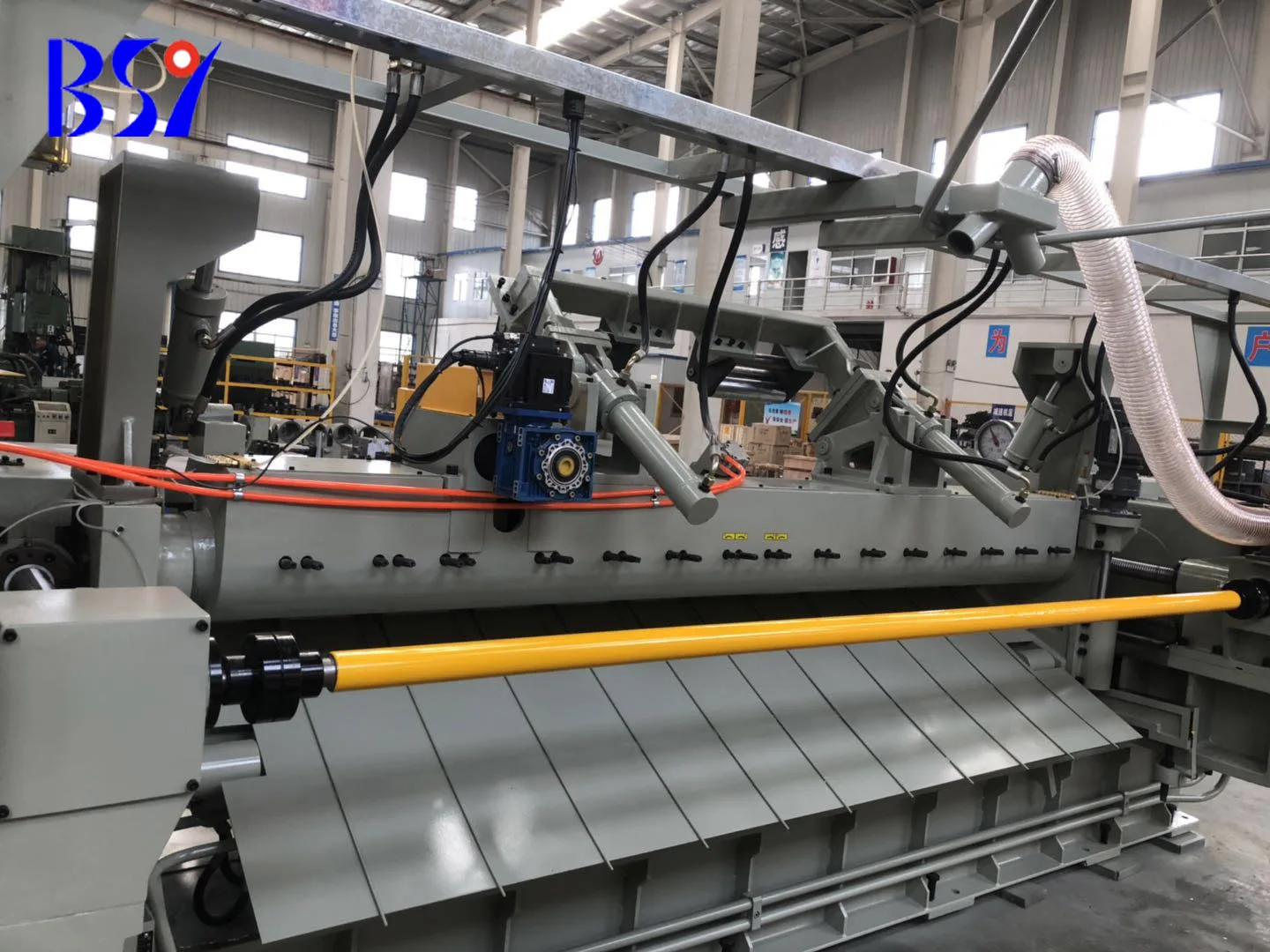

Nose bar is adjusted by servo motor

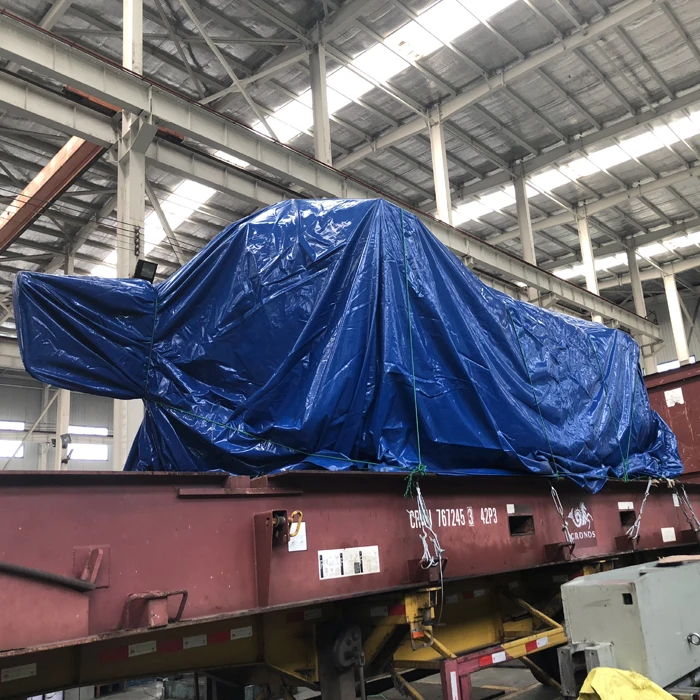

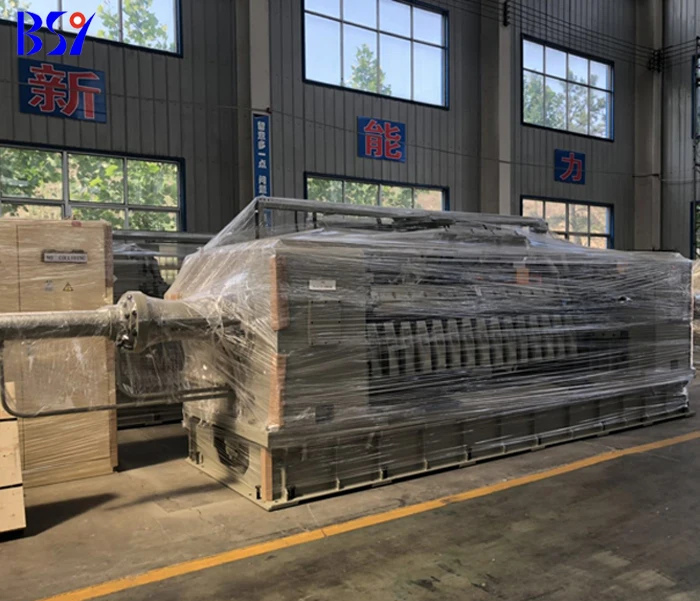

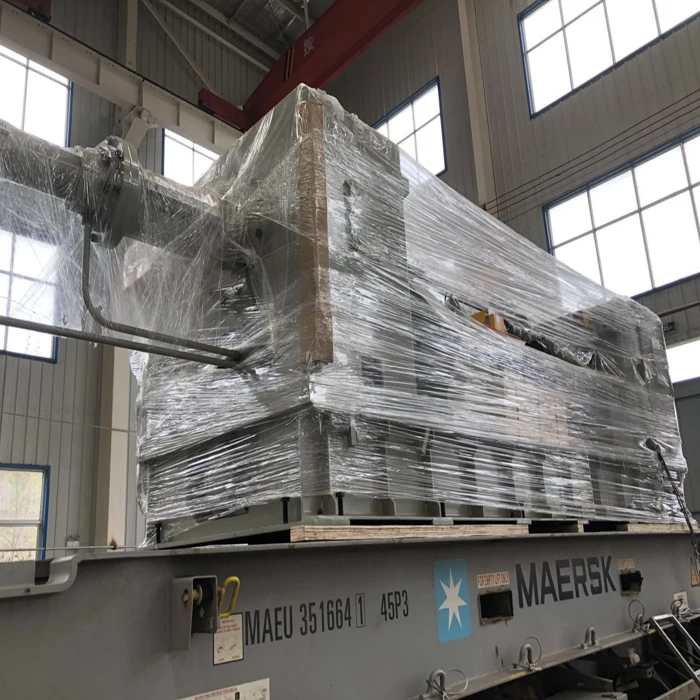

Packaging & Shipping
Our Services
Our engineer can go to your factory for installation and test runing.
We offer excellent after-sales service.
We are the leading manufacturer of woodworking machinery in China, fo
Company Information
Why do you choose us:
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, sanding machine etc.
If you show us the details you want, our engineer will design the suitable production as your requirement, especially.If you are interested in our machines, please let me know.
