New Version Sonoff 4CH R3 Smart Home 4 Channel 2200W Wifi Remote Smart Switch WITHOUT RF
- Category: >>>
- Supplier: Shenzhen Freeshine Technolog Ltd.
Share on (62363095974):
Product Overview
Description
New Version Sonoff 4CH R3 Smart Home 4 Channel 2200W Wifi Remote Smart Switch
Product Description
4CH R3 are 4-gang switches with din rail mounting. Sonoff 4CH R3 4 gang light switch supports to connect and control 4 electrical appliances, which can be turned on/off separately by the buttons or iOS/Android App EweLink. Besides, with the multi gang switch, you can check real-time devices status for each device on App. Owning a Sonoff 4CH R3 multi gang switch means you have 4 Sonoff basic WiFi switches integrate together.
The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.
Sonoff 4CH R3 4 gang WiFi light switch belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.
Function:
Remote ON/OFF – Turn electrical devices on/off from anywhere

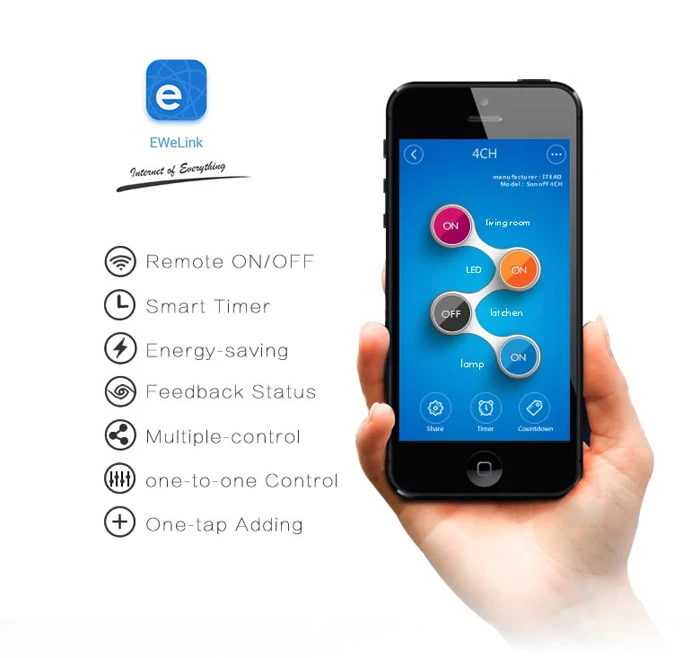

App Support – Free iOS and Android mobile App eWeLink
Sync Status – Real-time device status provided to App

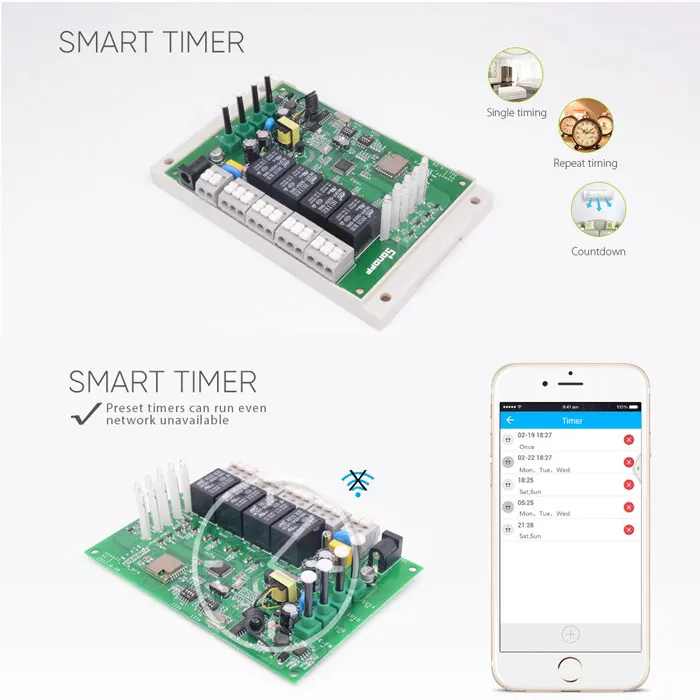

Timing – Set scheduled/countdown/loop timers to turn on/off at specified time
Share Control – Control your smart home together with your family
Scene – Turn on/off a gang of devices with one tap
Smart Scene – Triggered on/off by temp, hum or other environmental conditions(Need support by Sonoff TH10/16 with sensor)
Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest
Features:
Remote turn on/off connected device
Support checking real-time device status on APP
Support scheduled/countdown/loop timing tasks
Setting scene to turn on/off a group of devices in the same account
Setting scene to trigger on/off the other device by status changes
Works with Amazon Echo, Echo Dot, Amazon Tap
Works with Google Home, Google Home Mini, Google Nest
Works with IFTTT
Specifications:
Power Supply: 90V~250V AC(50/60Hz)
Max. Current: 10A/gang
Max. Power: 2200W/gang, 2200W/Total
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Gang: 4
Dimensions: 145*90*40 (mm)
Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
Operating Humidity: 5%-90%RH, Non-condensing
Certification: CE/FCC/RoHS
Company Information
FAQ
1. My device has added successfully, but stays “Offline”.
Answers: The new added device need 1-2 min to connect to your router and the Internet. If it stay offline for long time, please judge the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, which means device failed to connect to router. The reason may be you have entered wrong WiFi password or your device is too far away from router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router,only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
1.2. Green led slowly blinks one time and repeats, which means device has connected to router and server, but failed to be added to device list. Then power on the device again, if it still not working, just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device has connected to router but failed to connect to server. Then please confirm your WiFi router works normally.
2. Why the APP can not find the device in paring status?
Answers: That’s because of your phone’s cache. Please close the Wlan of your phone then open it after a minute. At the same time,please power off the device if you can,then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: Currently eWeLink do not support LAN or directly connect to deceive hotspot. All devices must be connected to router, thus they can communicate with the Internet cloud server.
