Plastic Recycling Machine soundproof Crusher Granulator

Product Overview

Description

Plastic Recycling Machine soundproof Crusher Granulator

HG series of silent centralized crushers is of compact size, easy to operate with fully enclosed sound insulation design, which lowers noise and avoids dust contamination.

It is suitable for centralized crushing of various pieces of injection molding, blow molding, profiles, sheet or film and outlet materials. The series includes various types with a wide scope of application in the plastic industry. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.



Features of  Plastic Recycling Machine soundproof Crusher Granulator

1) Constant/sealing/cleangrind cutting technology

2) Minimal energy consumption, no friction heat,uniform size of granule and low dust

3) Modularity design and Tailor made for your different application

4) Easy and quick change of rotating or fixing knife

5) Easy and directto access cutting house simplifies cleaning when changing color or material

6) Esay and auick change of rotating or fixed knife

7) Between low and high rotation speed is optional

8) Multiple safety protection,Operation with low voltage

9) High load factor on shaft desgin ,safe sealing protection on bearing.

10) Hardened cutter ring as standard

11)Wear-resistant and turnovered screen,excellent durability

12)A quieter environment due to soundproof covering

13)Compact structure and move easily

14)The assistant gas spring help to open or close hopper easliy

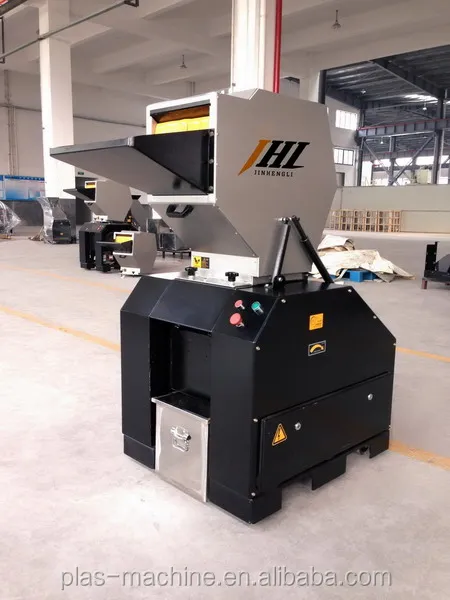

Pictures of c Plastic Recycling Machine soundproof Crusher Granulator

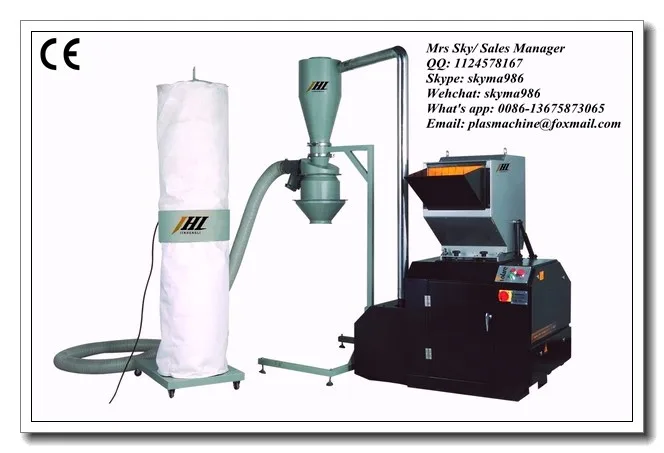

Pictures of plastic crusher with extra suction blower and cyclone silo





Specifications



Model	HG2230	HG2540	HG2650	HG3060	HG3670	HG4080
Motor power  (kw)	5.5	7.5	11	15	22	30
Motor optional (kw)	7.5	11	7.5/15	11/18.5	18.5/30	22/37
Rotating speed  (rpm)	600	500	500	480	480	480
Knives material	SKD-II	SKD-II	SKD-II	SKD-II	SKD-II	SKD-II
Claw moving knives (pcs)	9	12	15	18	21	24
Optional Flat knives (pcs)				3	6	6
Fixed knives (pcs)	2	2	2	2	4	4
Rotating Dia. (mm)	230	250	260	300	360	400
Crushing chamber (mm*mm)	230*300	250*400	260*500	300*600	360*700	400*800
Screen Hole Dia.-standard (mm)	8	8	8	8	8	8
Screen Hole Dia.-optional (mm)	4,6,10,12,14,18,25
Hardened Screen	o	o	o	o	o	a
Manual Bin	s	s	s	s	s	b
Blower	o	o	o	o	o	a
Dust Separator	o	o	o	o	o	a
Noise Enclosed Cover	o	o	o	o	o	a
Crushing Capacity (kg/hr)	≤200	≤300	≤450	≤550	≤650	≤900
Sound pressure level (dB)	75-90		75-95
Dimensions (L*W*H) (mm)	930×680×1120	1150×820×1280	1200×880×1400	1230×1020×1520	1460×1200×1700	1500×1350×2100
Weight (kg)	400	550	850	1000	1200	2000
Notes: 1) “s”standard, “o”optional            2)Throughput capacity depends on type of plastic material,waste,etc.            3)Sound pressure level depends on type of material and motor.            4)To avoid sticking knives,material must be in normal temperature. Half-inclosed Type:  Manual Bin Full-inclosed Type:  Be installed with blower & Cyclone silo & Noise Enclosed Cover.  "Q" TYPE

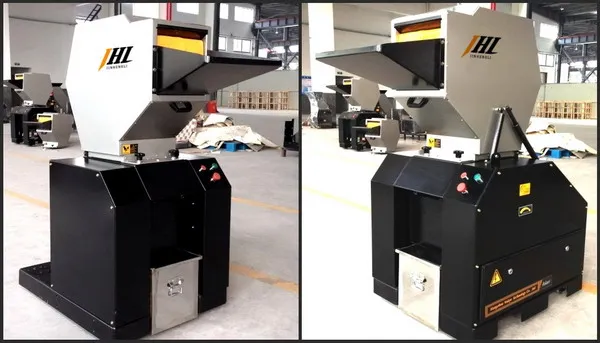

Below is  HG series  Half-inclosed Type:  Manual Bin

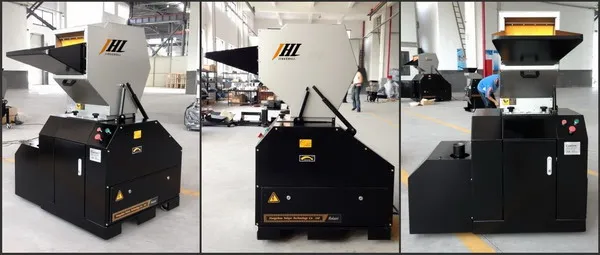

Below is  HG series   Full-inclosed Type :  Be installed with blower & Cyclone silo & Noise Enclosed Cover. ("Q" type)  Soundproof  function









Option: Dust separator







Our Product Range





F.A.Q

1) What's warranty and after-sale service of machine?

1. 12 months Warranty for main machinery part like motor and electric

2. 24 hours service both online and on telephone

3. 24 hours door to door in domestic

2) Can we test our material by your machine free?

Yes, please bring your materials so that we can test for you; If it is not available for you to come to our factory, you may deliver to our address and we can take video of machine operation for you

3) Are you a factory or trading company?

We are a factory and manufacturer and also a trading company can do exporting

4) Why Choose us?

1. More than 25 years of manufacturer experience, supplying stable and sound quality with competitive price.

2. High quality, with thicker product material and stronger structure and brand name parts

3. Many of our products have stock, timely delivery

4. We have professional sales service team,we will respond immediately

5. Customized made machine is available with professional engineer

6. Our goods are of CE certificate for EU market

7. Long years sales engages us the richful experience in helping our clients to find the most suitable machine and we can offer the custom clearance documents at clients request to help smoothly importing the gooods

5) How to contact with the company?

It's very easy to contact us. Just pull down to the page bottom and find the "Send your message to this supplier", then enter your idea and click "Send". We promise to reply and offer help for you immediately

6) Can we order on alibaba.com?

Yes! Of course! We also give you more discount if you order on alibaba.com

7)Don't know which type you need?

Please contact us!

8)Don't know how the machine working?

Please contact us to see the video and get further information

1. What is your material?

2. Do you have requirement about the crushing capacity per hour?

3. The original voltage of this machine is 380V/50Hz/3Phase. Is it workable in your country?

If you are not sure whether this machine is suitable or not, please send me the above details so that i can find a best solution for you.





















1. Wrapped with film inside and polywood pacakge outside

2. Shipping can be tailored according to clients’ request
