PET Nylon Zipper Monofilament/Yarn/Fiber Extrusion Line
I. Brief Introduction of PET Nylon Zipper Monofilament Extrusion Line
PET Nylon zipper monofilament extrusion line consists of special dehumidifying and crystallizing system, extruder, material filter, melt pump, mold, haul-off rollers, ovens, and winders
----Raw material: PET bottle flakes, PET chipes, Nylon granules
----high tension
----Monofilament diameter: 0.2-1.0mm or as customer needs
Extrusion line picture
PET Nylon Zipper monofilament yarn fiber picture
II. Main Technical Parameters
NO | Machine Model | Machine Capacity | Power Consumption (KW) |
1 | SJ75 | 60-70kg/h | 130 |
2 | SJ90 | 150-200kg/h | 160 |
3 | SJ110 | 200-250kg/h | 180 |
4 | SJ120 | 250-300kg/h | 210 |
Machine Pictures & Details
Optional:
---100% recycled pet bottle flakes
--- mainly for small machine capacity, like 50-100kg/h
Optional:

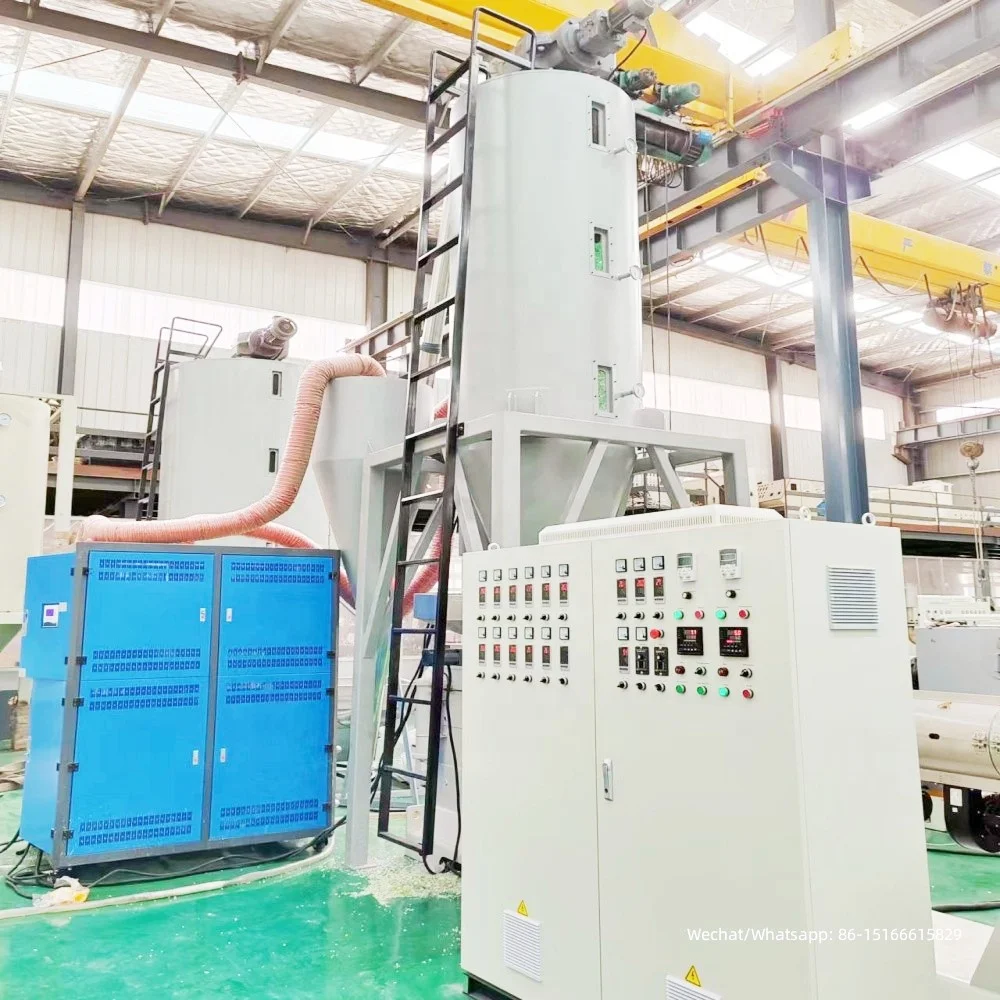

---special rotators for pet botlle flakes dryign and dehumidifying
----machine capacity can be 70-300kg.h
Optional:
--- specially designed for Nylon granlues and PET chipes
Optional:
----special treated screw & barrel
Optiona

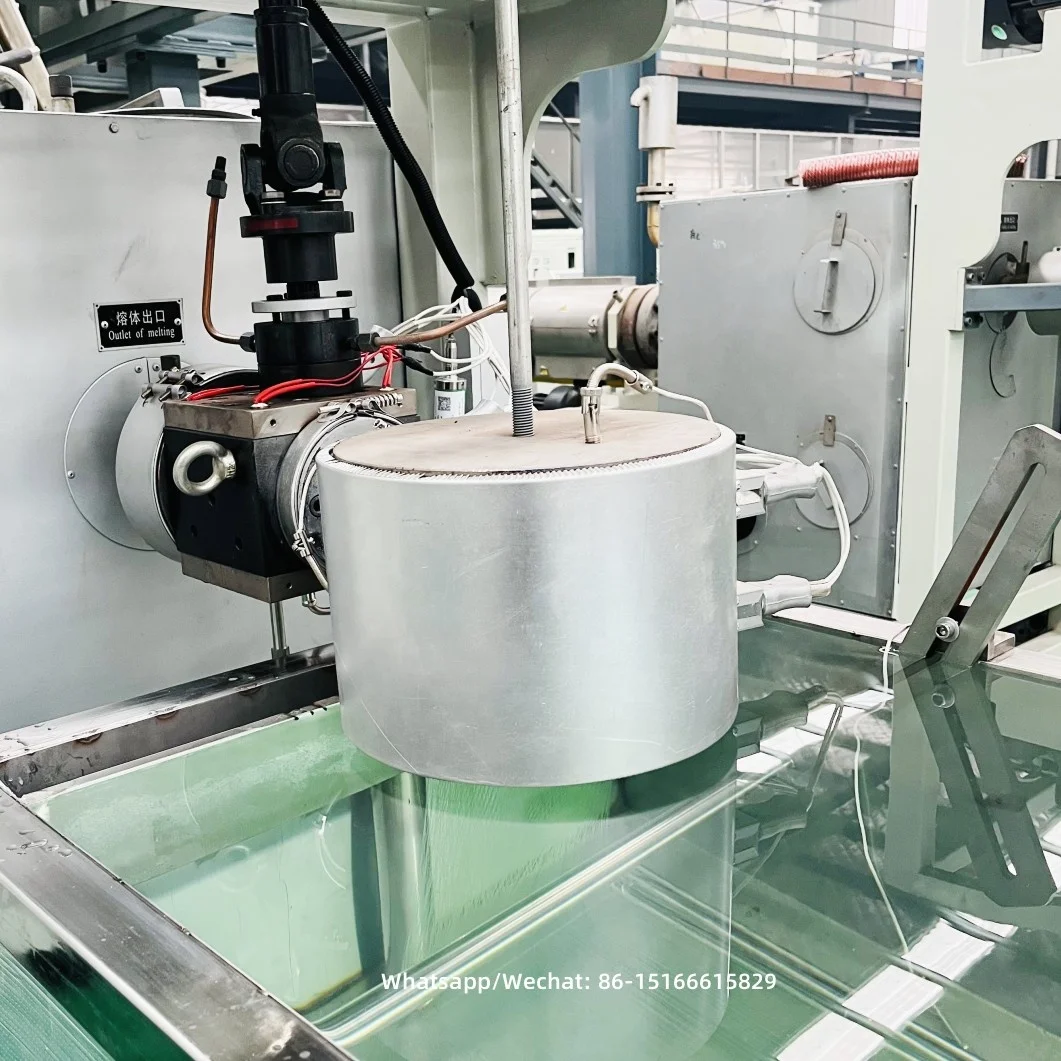

4. Material Filter, Melt pump, Extrusion Mould & Cooling Tank
--- hydraulic screen exchanger
----Melt pump ensures stable extrusion
----304 stainless steel water cooling tank
----Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
----Melt pump ensures stable extrusion
----304 stainless steel water cooling tank
Optional:
--- candle type filter, bigger filtering area, no need change filter net shortly.
----Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
----Melt pump ensures stable extrusion
----Melt pump ensures stable extrusion
---304 stainless steel water cooling tank
5. Extrusion Mould
---produce different size monofilaments
---hole quantity can be changed

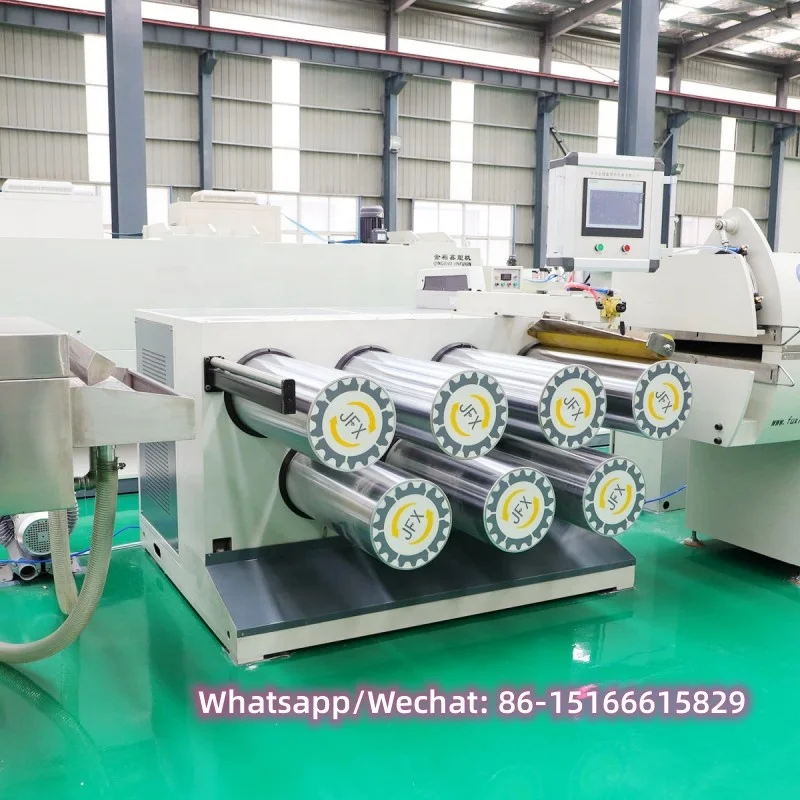

6. Haul-off Rollers
--gear transmission
---chromized rollers
---rollers are PLC synchronized speed control7. Water Oven
---made by 304 stainless steel

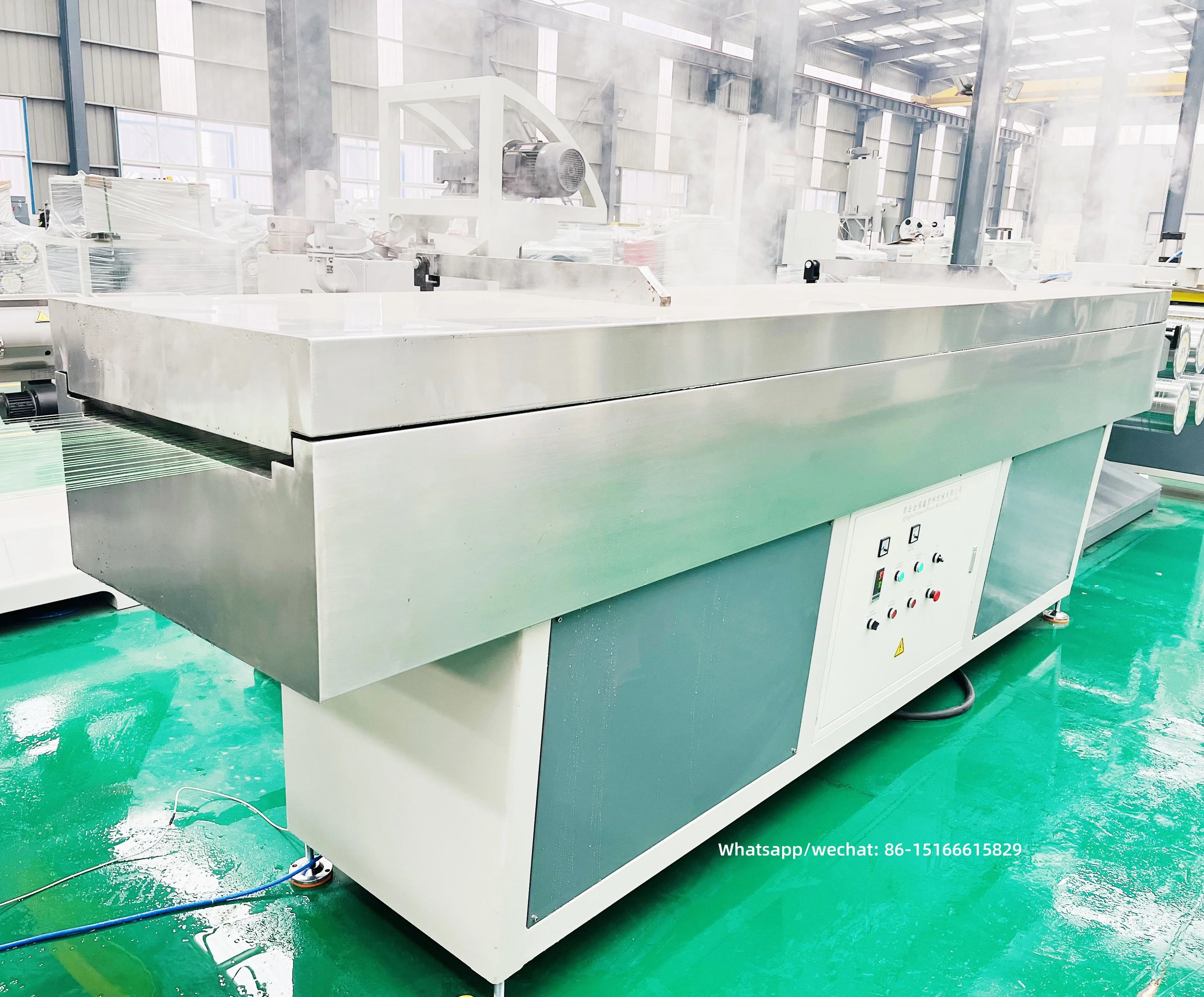

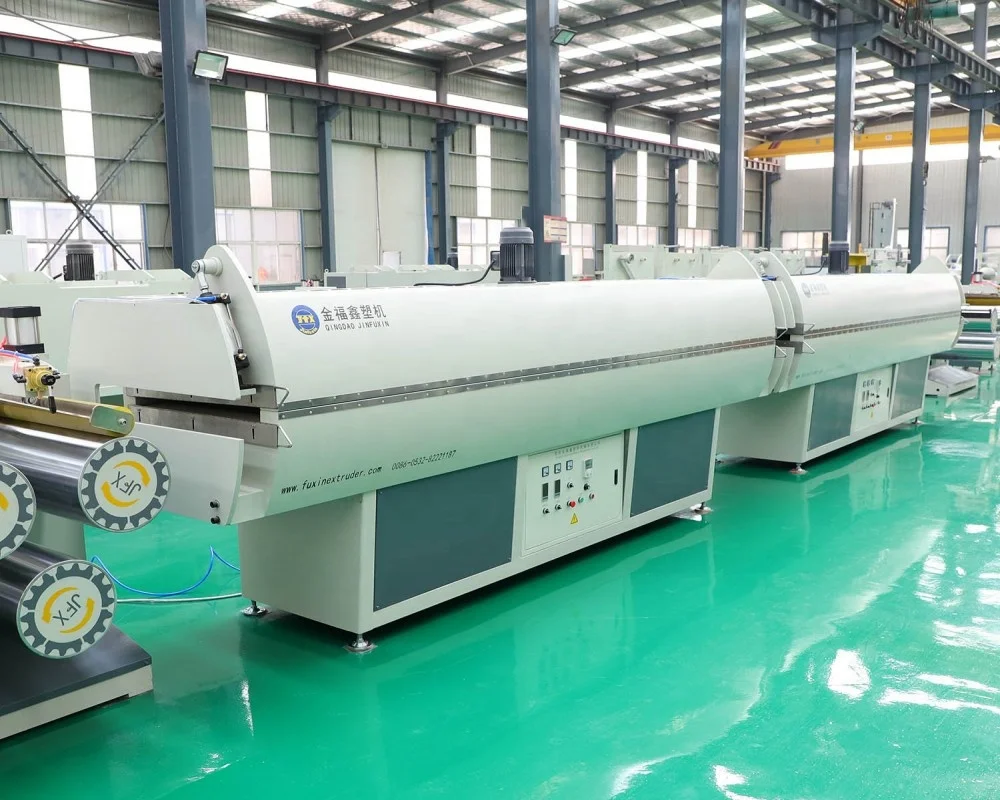

8. Air Oven
---forced air blowing system
---inverter control
---good heat-preservation
9. Online shaping
10. winding machine
--I-wheel bobbins
--winding weight: as customer needs
