Underground garage car lift price for lifting 20 tons pit car lift
- Category: >>>
- Supplier: Qingdao Furun Automobile Repair Equipment Factory
Share on (62363186870):
Product Overview
Description
Product Description
Function Instruction

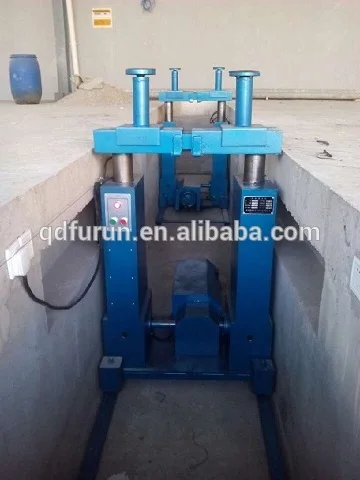

The jack of QJJ20/30-4A type used for inspection pit is fit for hoisting operation for large and medium scale loading automobiles
and vehicles of all kinds when they needs maintenance. It is convenient and safe as well as reliable to use this equipment. Two

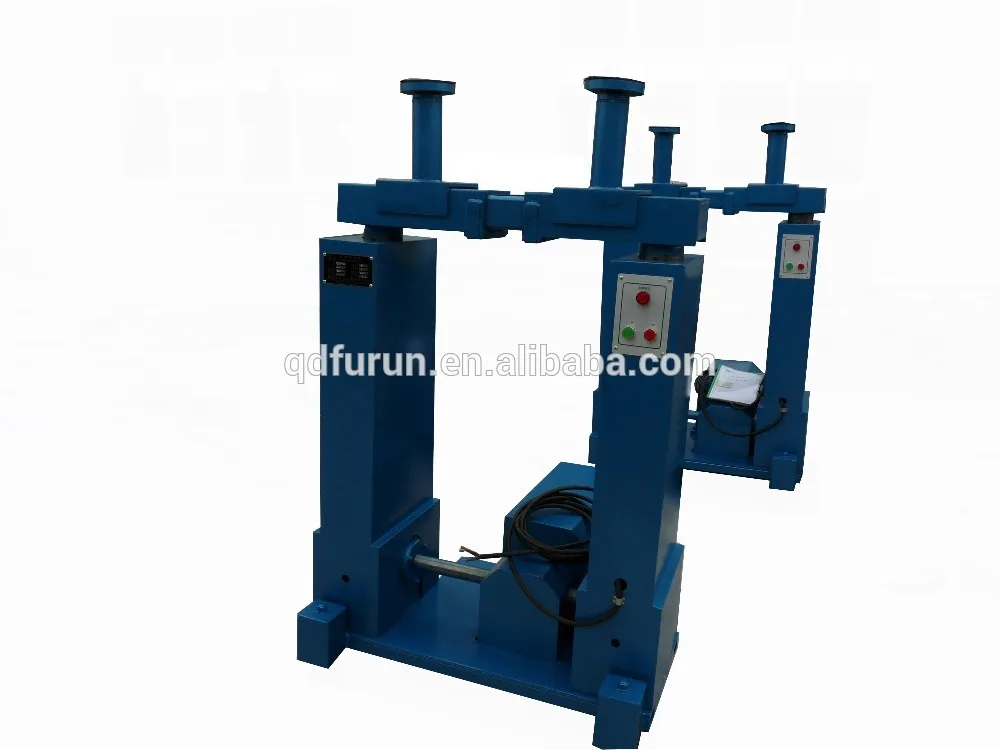

sets of equipments could be combined used, so it is available to operate any one equipment while the other equipment can rise and
fall separately or two equipments rise and fall at the same time.

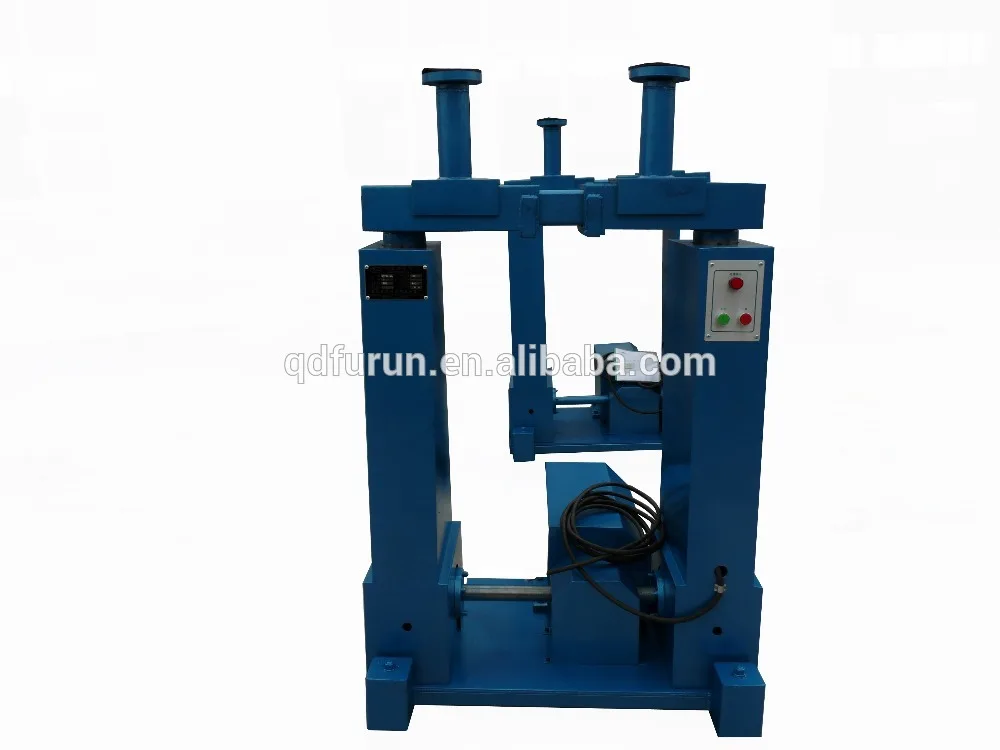

The equipment consists of motor, worm wheel box gear speed-shift structure, hoisting beam rising system and mobile enhancing
salver, main body, shell, track and electric control system .
The jack of QJJ20/30-4A type used for inspection pit is fit for hoisting operation for large and medium scale loading automobiles
and vehicles of all kinds when they needs maintenance. It is convenient and safe as well as reliable to use this equipment. Two
sets of equipments could be combined used, so it is available to operate any one equipment while the other equipment can rise and
fall separately or two equipments rise and fall at the same time.
The equipment consists of motor, worm wheel box gear speed-shift structure, hoisting beam rising system and mobile enhancing
salver, main body, shell, track and electric control system .
Technical Parameter
* Maximum hoisting force: 300KN
* Maximum hoisting height:510mm
* using single upper beam: 800mm;
* installing mobile bracket: 1080mm
* Maximum hoisting width: 960mm
* Vertical supporting-point range: 1600-7000mm
* Maximum working journey of the jack: 670mm
* Motor Power: 2.2KW
* Outer dimension Length×Height×Width:910×760×1280mm
*
* Maximum hoisting height:510mm
* using single upper beam: 800mm;
* installing mobile bracket: 1080mm
* Maximum hoisting width: 960mm
* Vertical supporting-point range: 1600-7000mm
* Maximum working journey of the jack: 670mm
* Motor Power: 2.2KW
* Outer dimension Length×Height×Width:910×760×1280mm
*
Detailed Images
Advantage
1. Nanomaterials is used inside the working nut to protect the elevating screw
2· The steel safety nut is set under the working nut
3· The travel limit switches are set on each upright posts to guarantee the automatic stop of the motor in case the travel range
is exceeded.
4· The electromagnetic clutch is installed on the speed reducer
Capacity(T):20T
Lifting height(mm):500mm
Motor power(KW)3KWx2
Input valtage(V):380V/220V
Lifting speed(mm/min):240
Weight(T):1.2
1. Nanomaterials is used inside the working nut to protect the elevating screw
2· The steel safety nut is set under the working nut
3· The travel limit switches are set on each upright posts to guarantee the automatic stop of the motor in case the travel range
is exceeded.
4· The electromagnetic clutch is installed on the speed reducer
Capacity(T):20T
Lifting height(mm):500mm
Motor power(KW)3KWx2
Input valtage(V):380V/220V
Lifting speed(mm/min):240
Weight(T):1.2
